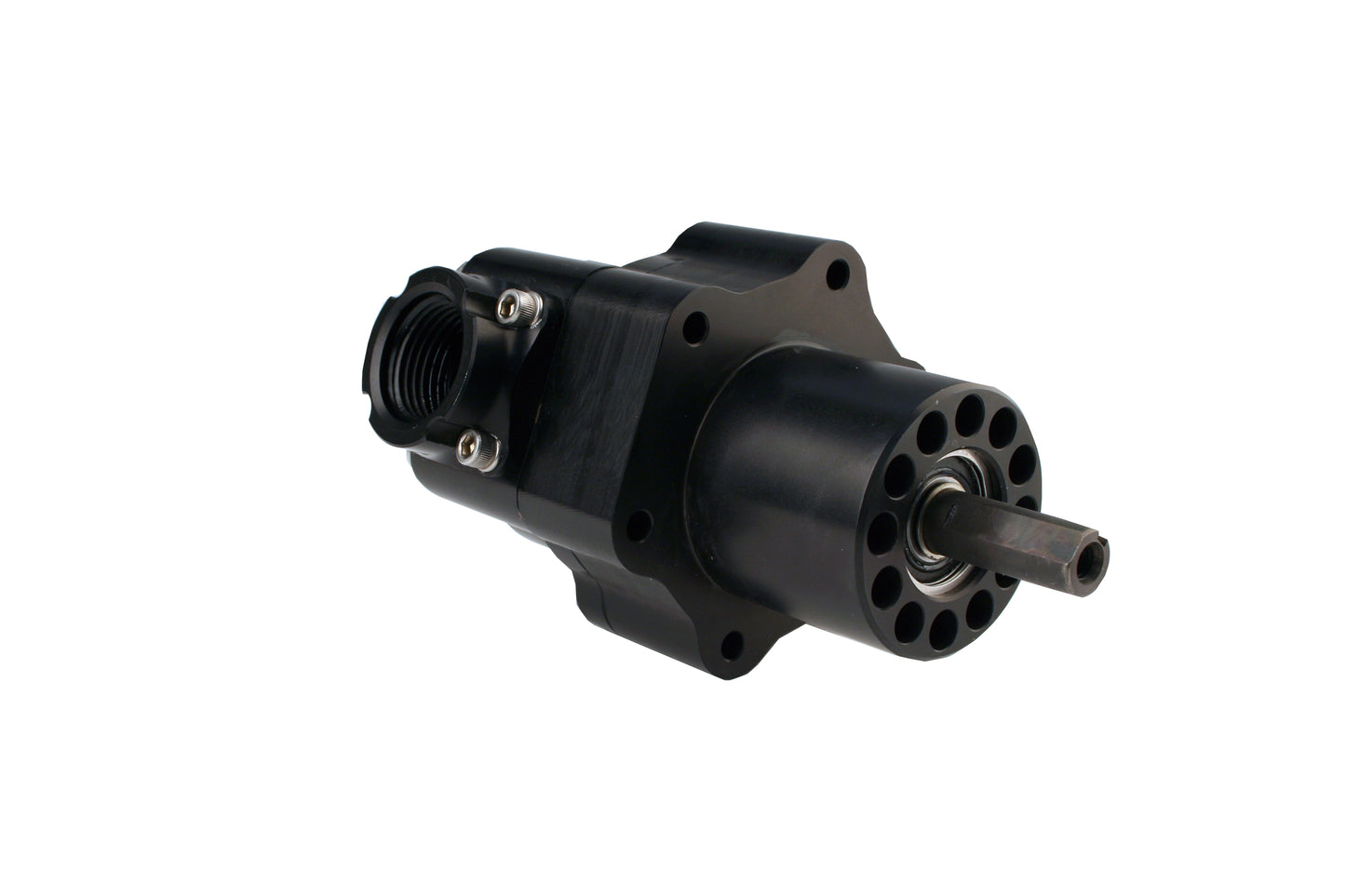

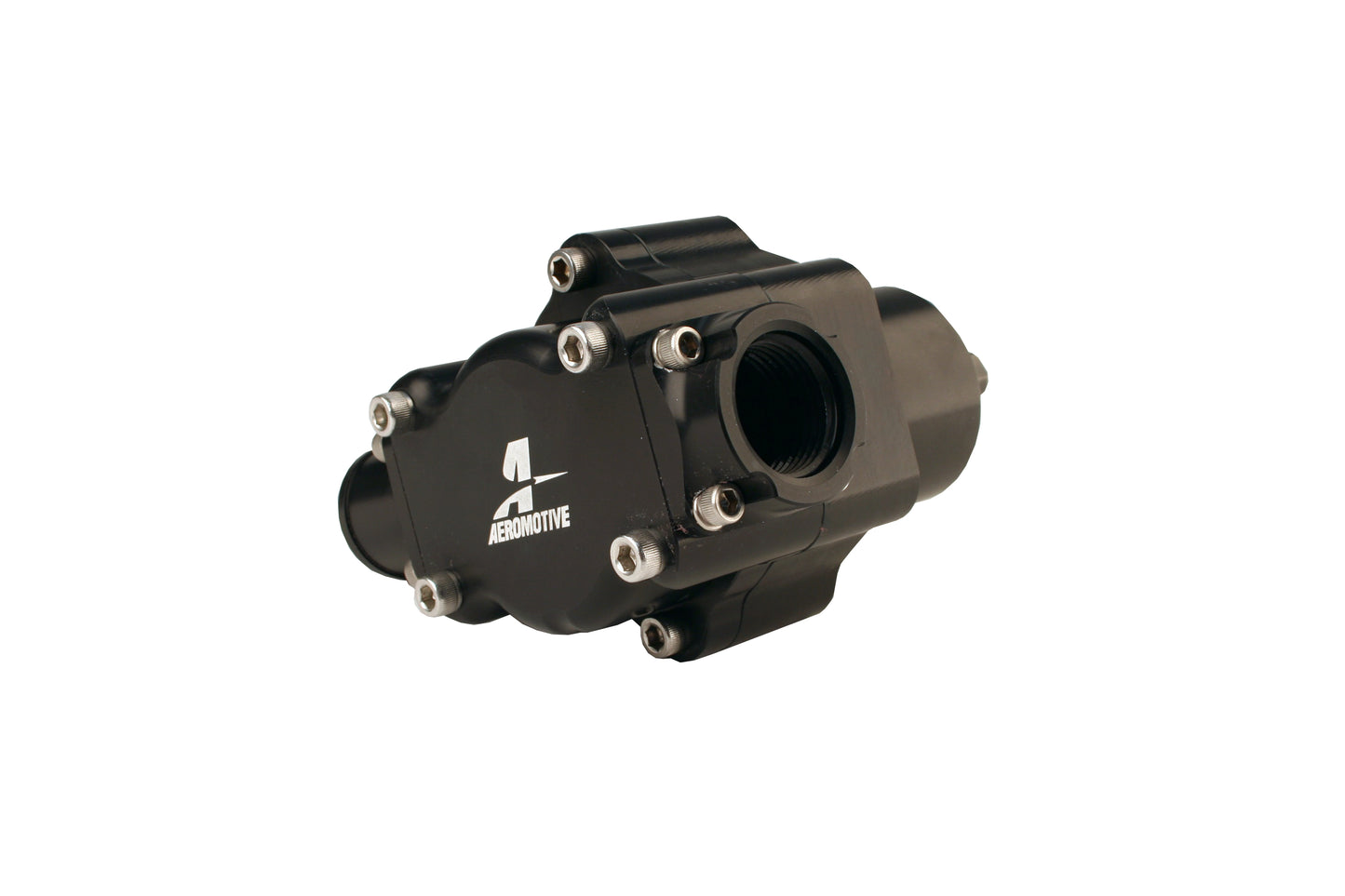

12-Series Belt Drive Mechanical Pump

12-Series Belt Drive Mechanical Pump

Part Number: 11115 / UPC 00684980002355
Skip to product information

Product Info

P/N 11115: 12 Series Belt Drive Fuel Pump
12-GPM Belt Drive Mechanical Fuel Pump

Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low pressure applications.

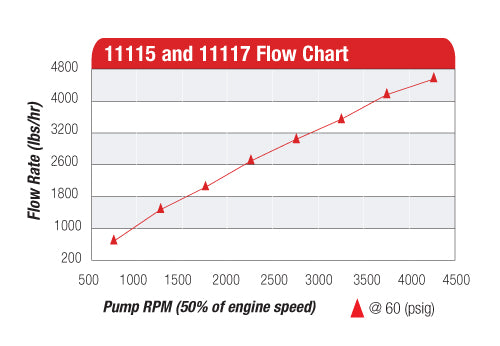

  • Flows up to 12 GPM

  • Naturally Aspirated EFI:

    • 6,000+ FWHP on gas

    • Up to 3,000 FWHP on methanol



  • Forced Induction EFI:

    • 5,000+ FWHP on gas

    • Up to 2,000 FWHP on methanol



  • High efficiency, Gerotor pumping mechanism.

  • Tough, Type III hard coat anodized body.

  • CNC Machined from 6061 T6 aircraft aluminum.

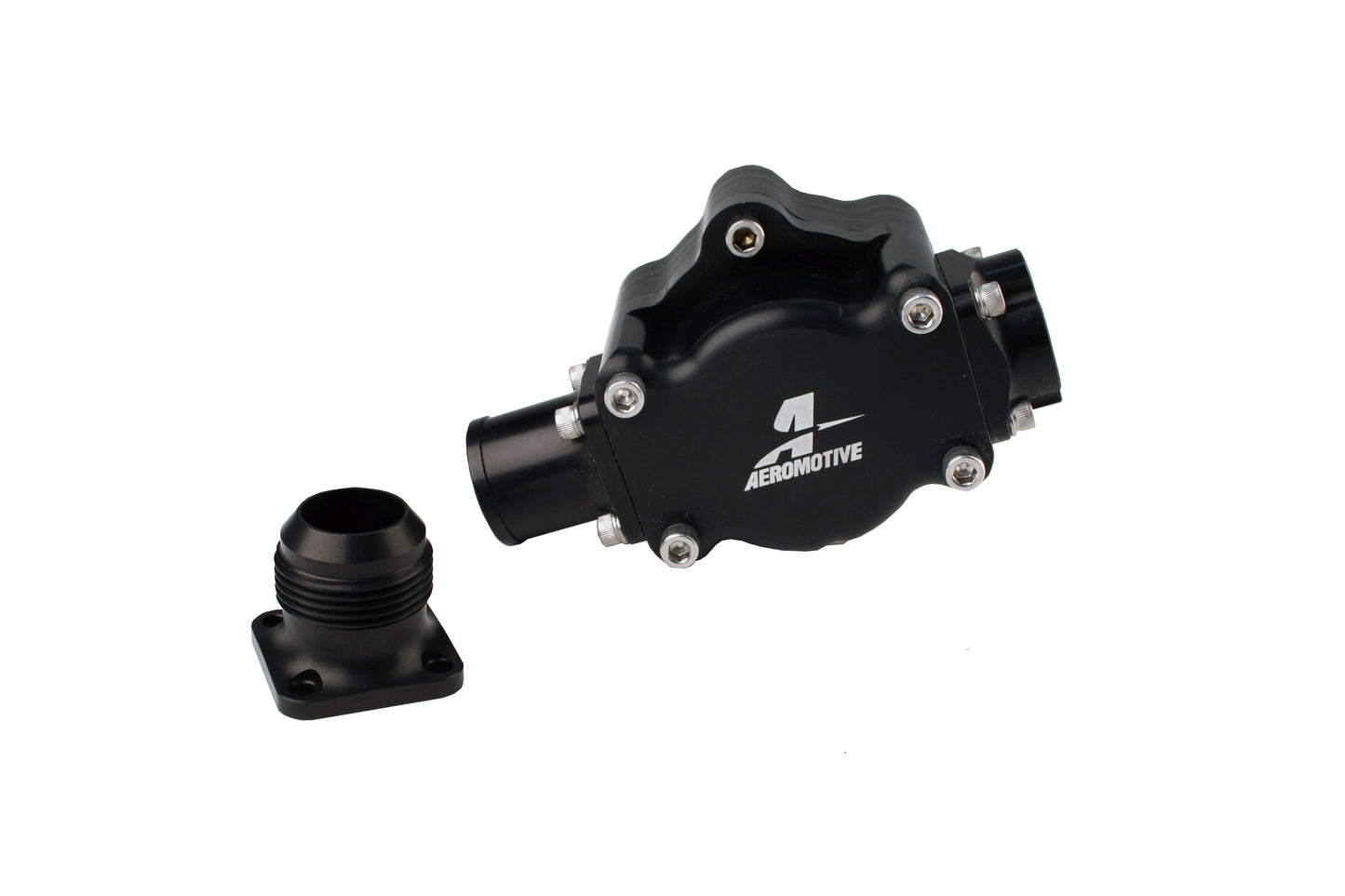

  • Includes both 1.25' barb and AN-16 Male inlet.

  • ORB-12 female outlet port.

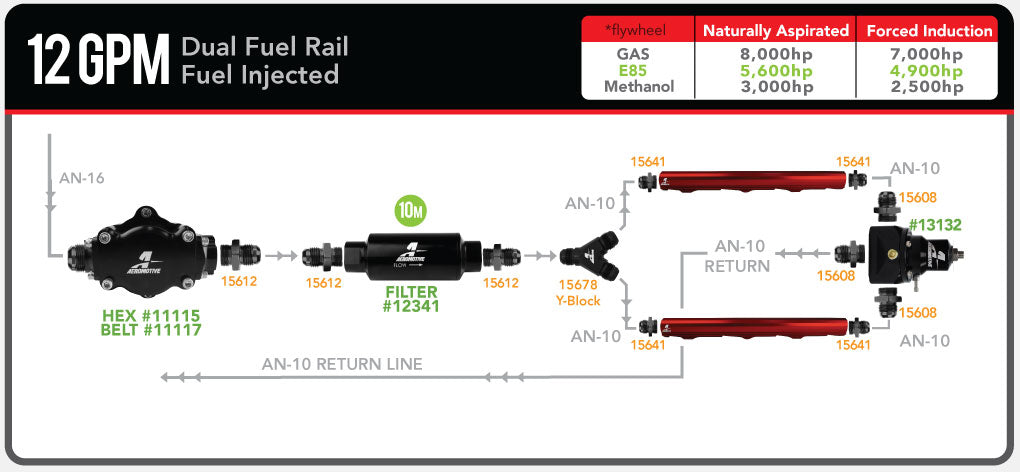

EFI applications require high-flow return style regulators:
P/N 131321313313137 or  13113.

Sold Separately:
Mounting Bracket: P/N 11706
Cog Pulley: P/N 21109.
Electric Priming/Starting Kit:  P/N 17301

Additional information

Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low pressure applications.

  • Flows up to 12 GPM

  • Naturally Aspirated EFI:

    • 6,000+ FWHP on gas

    • Up to 3,000 FWHP on methanol



  • Forced Induction EFI:

    • 5,000+ FWHP on gas

    • Up to 2,000 FWHP on methanol



  • High efficiency, Gerotor pumping mechanism.

  • Tough, Type III hard coat anodized body.

  • This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.

  • CNC Machined from 6061 T6 aircraft aluminum.

  • Includes both 1.25' barb and AN-16 Male inlet.

  • ORB-12 female outlet port.
