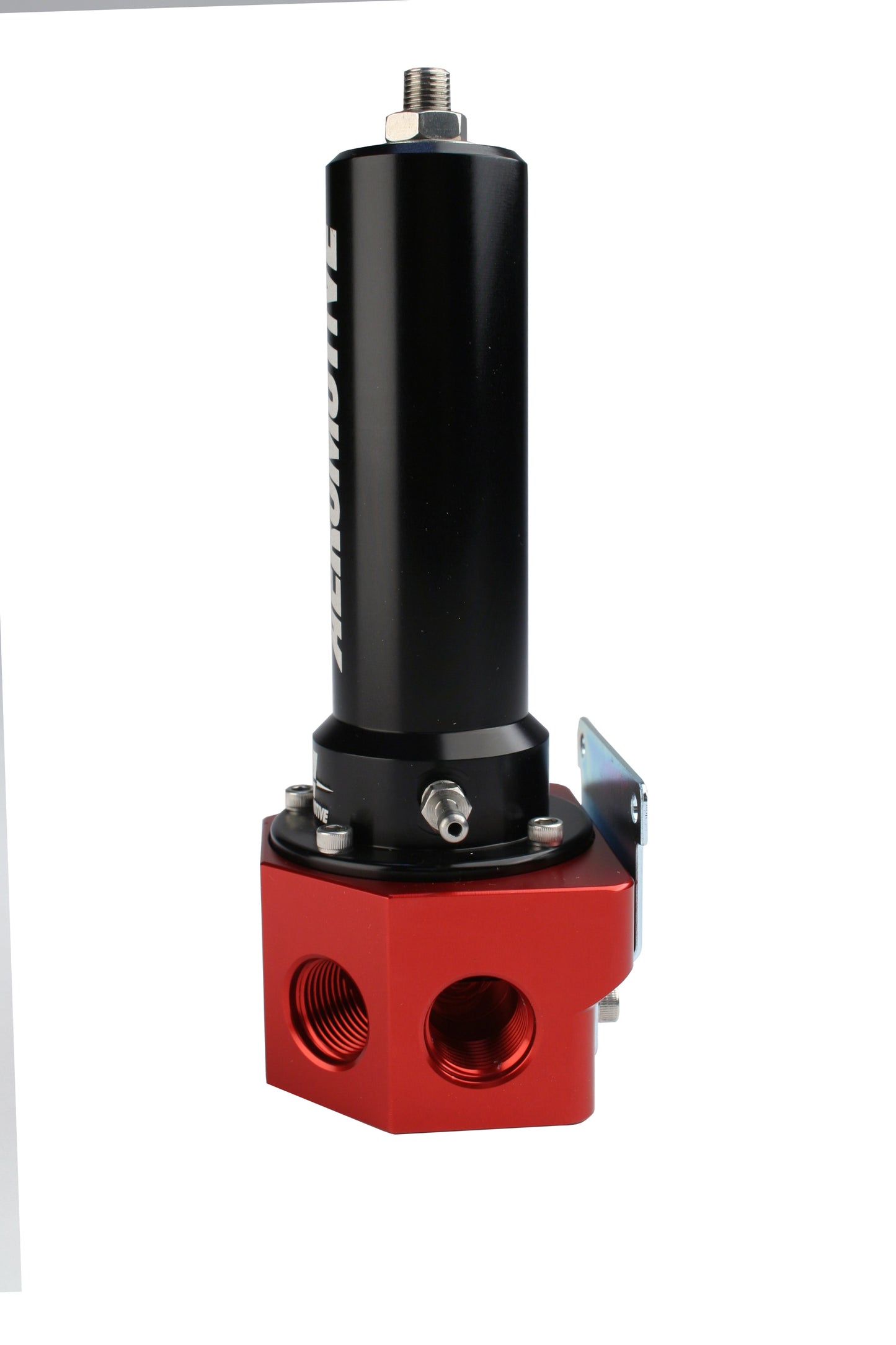

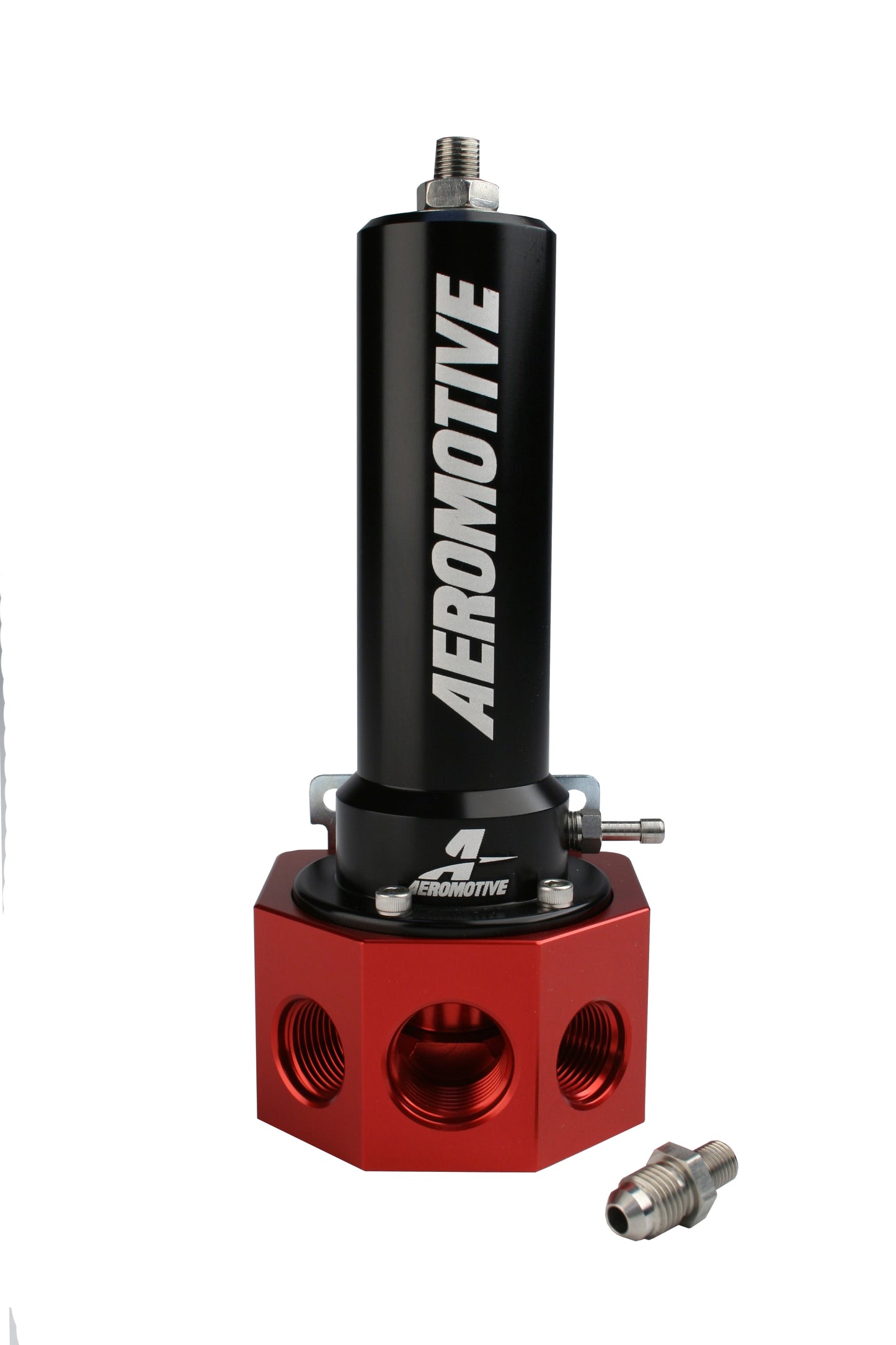

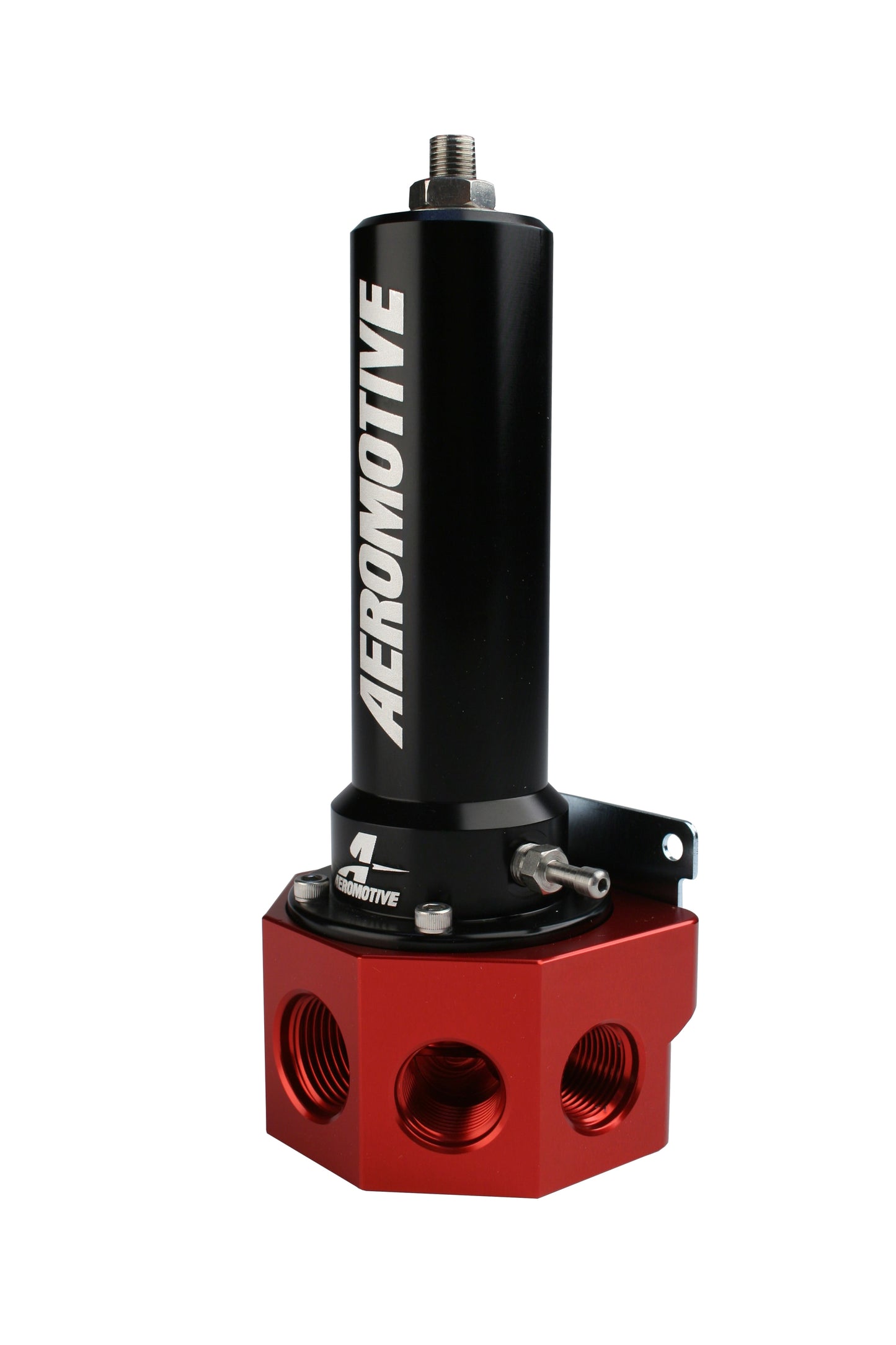

Belt Drive Pump EFI Regulator

$281.18

Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol.

  • Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure.
  • Base pressure adjustable from 40-100 PSI.
  • References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)
  • Ports available for nitrous fuel supply, pressure gauges and transducers.
  • (4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port.View Installation Instructions
SKU: 13113 Category: Tag:

Description

Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol.

  • Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure.
  • Base pressure adjustable from 40-100 PSI.
  • References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)
  • Ports available for nitrous fuel supply, pressure gauges and transducers.
  • (4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port. View Installation Instructions

Additional information

Weight1.98 lbs
Dimensions8.5 × 4.75 × 4 in

Mounting Configuration: External

CARB or EFIPower AdderFUELHorsepower
