Phantom Apex EFI Jet Siphon Kit

Phantom Apex EFI Jet Siphon Kit

Part Number: 18706 / UPC 00684980009910
Skip to product information

Product Info

P/N 18706 Apex EFI Jet-Siphon Pump Kit
Patent Pending, Jet-Siphon Powered Transfer Pump

  • The Apex EFI Jet-Siphon Pump utilizes advanced, patent-pending jet siphon technology to provide a constant supply of cool fuel from a remote spot in the tank into the Phantom bladder or reservoir.

  • State of the art Jet-Siphon technology is self priming and ideal in extreme applications from all-out road-racing to radical rock crawling.

  • Transfers fuel across "saddle-bag" style tanks keeping the main tank and reservoir full.

  • Ideal for applications experiencing extreme cornering loads or radical, off-angle / off road vehicle environments.

  • The Apex Jet-Siphon Pump keeps fuel at the pump inlet even when fuel tank levels are low and fuel is moving away from the pump location.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Perfect addition to any existing Phantom.

  • For the ultimate slosh control and low fuel tank performance use with Phantom Bladder Baffles.

  • Requires minimum 40-60 PSI EFI pressure for proper jet-siphon performance.

Additional information



Perfect for regulated EFI systems with return style regulator and ideal for Late Model Returnless, Pulse-Modulated Systems when used with a Phantom Fuel Pump Module and matching Bladder Baffle kit.  Aeromotive’s Apex Jet Siphon Pump works in either standard or saddle-bag style tanks.

The Apex EFI Jet Siphon delivers OEM fuel control combined with high horsepower fuel delivery that only Aeromotive pumps can provide. With the Aeromotive Apex Jet Siphon kit installed with your Phantom fuel pump you'll have a continuous supply of fuel from the off-tank or saddle-bag to maintain a full Phantom baffle and keep the main tank full during normal driving. And you’ll never have to worry about priming the Apex Phantom thanks to the ingenious, patent-pending jet siphon design that automatically floods and primes/re-primes itself, regardless of whether it gets a gulp of air when the off-tank is low, or even if the off tank runs dry before you get it refilled. Click Here for more information

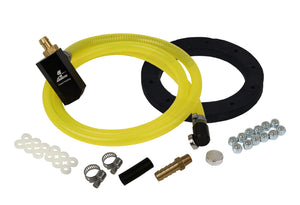

Apex EFI Jet Siphon Pump Kit includes everything needed for installation in an existing Phantom:

  • Apex Jet Siphon pump.

  • 4-feet of submersible gasoline and ethanol rated suction line.

  • Supply barb fitting adapts to existing internal port in any Phantom hat.

  • Powerful, two-magnet system, secures pickup line in the exact intended position.

  • Compatible with ferrous metal and non ferrous aluminum/poly tank applications.

  • Phantom retrofit kit includes replacement Phantom gasket, sealing washers and nylock nuts.

  • Requires minimum 40-60 PSI EFI pressure for proper jet-siphon performance.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


For the best in full fuel slosh control, add Phantom Bladder Baffles

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Reviews

Phantom Apex EFI Jet Siphon Kit

Phantom Apex EFI Jet Siphon Kit

Part Number: 18706 / UPC 00684980009910
Regular price $329.95
Sale price $329.95 Regular price

Part Number: 18706 / UPC 00684980009910
View full details

Product Info

P/N 18706 Apex EFI Jet-Siphon Pump Kit
Patent Pending, Jet-Siphon Powered Transfer Pump

  • The Apex EFI Jet-Siphon Pump utilizes advanced, patent-pending jet siphon technology to provide a constant supply of cool fuel from a remote spot in the tank into the Phantom bladder or reservoir.

  • State of the art Jet-Siphon technology is self priming and ideal in extreme applications from all-out road-racing to radical rock crawling.

  • Transfers fuel across "saddle-bag" style tanks keeping the main tank and reservoir full.

  • Ideal for applications experiencing extreme cornering loads or radical, off-angle / off road vehicle environments.

  • The Apex Jet-Siphon Pump keeps fuel at the pump inlet even when fuel tank levels are low and fuel is moving away from the pump location.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Perfect addition to any existing Phantom.

  • For the ultimate slosh control and low fuel tank performance use with Phantom Bladder Baffles.

  • Requires minimum 40-60 PSI EFI pressure for proper jet-siphon performance.

Additional information



Perfect for regulated EFI systems with return style regulator and ideal for Late Model Returnless, Pulse-Modulated Systems when used with a Phantom Fuel Pump Module and matching Bladder Baffle kit.  Aeromotive’s Apex Jet Siphon Pump works in either standard or saddle-bag style tanks.

The Apex EFI Jet Siphon delivers OEM fuel control combined with high horsepower fuel delivery that only Aeromotive pumps can provide. With the Aeromotive Apex Jet Siphon kit installed with your Phantom fuel pump you'll have a continuous supply of fuel from the off-tank or saddle-bag to maintain a full Phantom baffle and keep the main tank full during normal driving. And you’ll never have to worry about priming the Apex Phantom thanks to the ingenious, patent-pending jet siphon design that automatically floods and primes/re-primes itself, regardless of whether it gets a gulp of air when the off-tank is low, or even if the off tank runs dry before you get it refilled. Click Here for more information

Apex EFI Jet Siphon Pump Kit includes everything needed for installation in an existing Phantom:

  • Apex Jet Siphon pump.

  • 4-feet of submersible gasoline and ethanol rated suction line.

  • Supply barb fitting adapts to existing internal port in any Phantom hat.

  • Powerful, two-magnet system, secures pickup line in the exact intended position.

  • Compatible with ferrous metal and non ferrous aluminum/poly tank applications.

  • Phantom retrofit kit includes replacement Phantom gasket, sealing washers and nylock nuts.

  • Requires minimum 40-60 PSI EFI pressure for proper jet-siphon performance.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


For the best in full fuel slosh control, add Phantom Bladder Baffles

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Reviews
