100 Micron Red Fuel Filter with ORB-10 Ports & Stainless Mesh Element

100 Micron Red Fuel Filter with ORB-10 Ports & Stainless Mesh Element

Part Number: 12304

Product Info

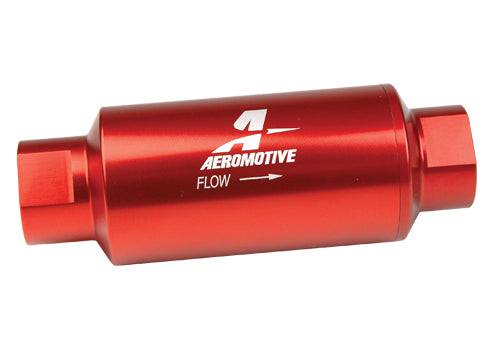

P/N 12304: 100 Micron, ORB-10 Red Fuel Filter

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

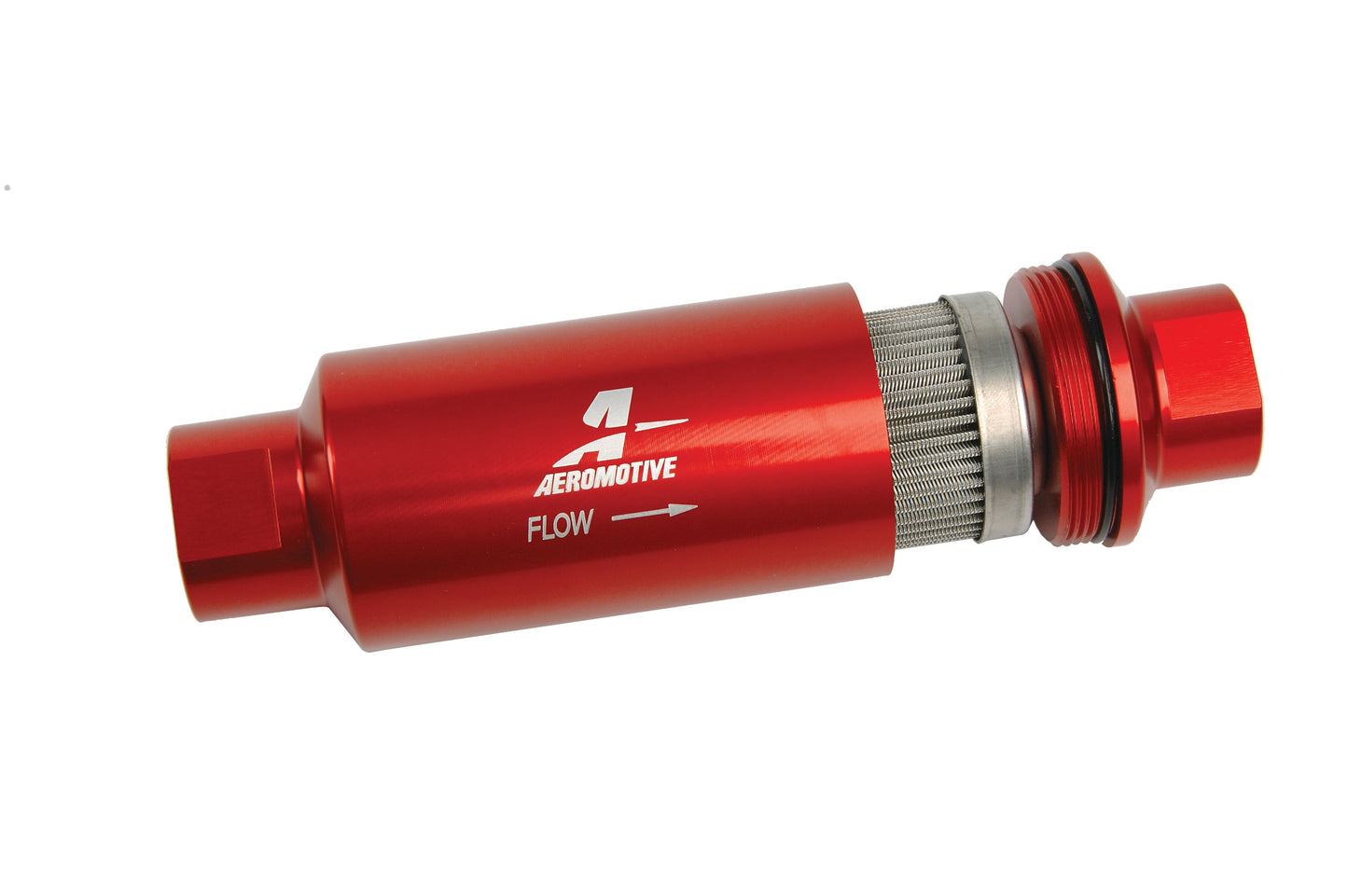

  • High-flow, 100-micron stainless steel (coarse) cleanable element.

  • Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.

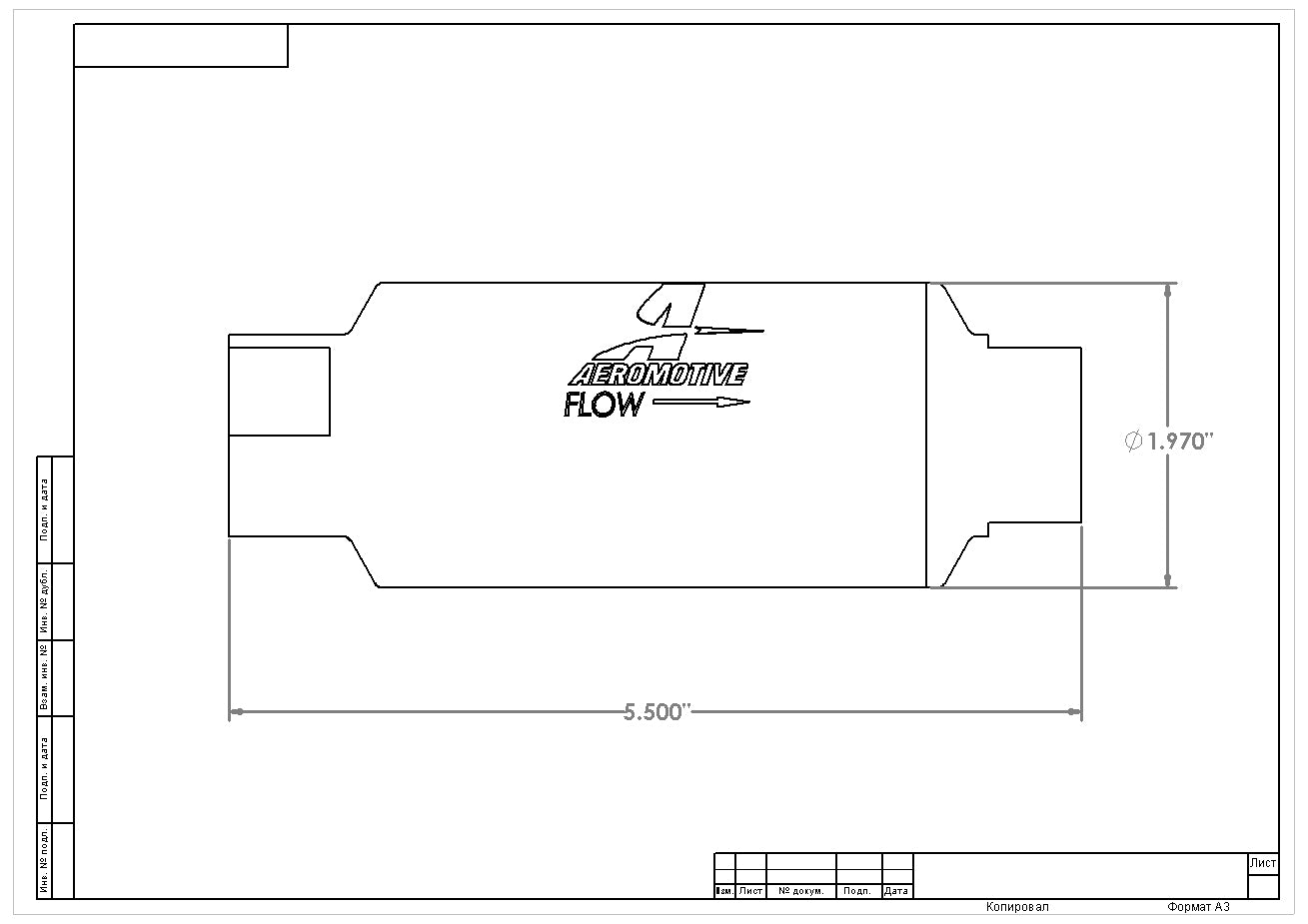

  • Compact size: 5.5' long x 2' diameter

  • ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • All filter assemblies feature an O-ring for positive sealing in high pressure applications.

  • CNC-machined from 6061-T6 aircraft aluminum.

  • Bright dip red anodized finish for a corrosion resistant, show car quality appearance.100-micron filters are designed for use between the fuel tank and the fuel pump to protect the pump.


100 Micron ORB 10 Element - 12604

Specifications
Fuel Filter Style Inline
Fuel Type All Fuels
Inlet Quantity 1
Inlet Size AN-10
Inlet Attachment Female Thread
Inlet Outside Diameter AN-10
Outlet Quantity 1
Outlet Size AN-10
Outlet Attachment Female Thread
Outlet Outside Diameter AN-10
End 1 Gender Female
End 2 Gender Female
Fitting Type AN-10
Fittings Included No
Filter Element Included Yes
Filter Element Material Stainless steel mesh
Micron Rating 100
Smallest Particle Filtered 100 microns
Flow Rate 2000 Pounds Per Hour
Filter Housing Color Red
Filter Housing Finish Anodized
Filter Housing Diameter 2.0 Inches
Filter Housing Length 5.5 Inches
Filter Housing Material Billet Aluminum
Mounting Type External
Mounting Bracket Included No
Clamps Included No
Gasket Or Seal Included Yes
Maximum Fuel Pressure (psi) 70 PSI
Universal Or Specific Fit Universal
