Part Number: 12321
Product Info
Product Info

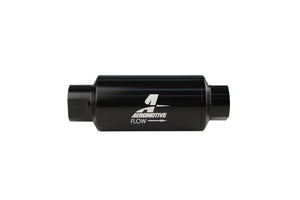

P/N 12321: 10 Micron, ORB-10 Black Fuel Filter
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
10 Micron Element ORB-10 - 12601
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (fine) replaceable element.
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
- Compact size: 5.5' long x 2' diameter
- ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Bright dip black anodized finish for a corrosion resistant, show car quality appearance.10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor.
Fabric elements not suitable for use in E85 or alcohol applications.
10 Micron Element ORB-10 - 12601
Specifications
Specifications
Fuel Filter Style | Inline |
---|---|
Fuel Type | Gas / Diesel |
Inlet Quantity | 1 |
Inlet Size | AN-10 |
Inlet Attachment | Female Thread |
Inlet Outside Diameter | AN-10 |
Outlet Quantity | 1 |
Outlet Size | AN-10 |
Outlet Attachment | Female Thread |
Outlet Outside Diameter | AN-10 |
End 1 Gender | Female |
End 2 Gender | Female |
Fitting Type | AN-10 |
Fittings Included | No |
Filter Element Included | Yes |
Filter Element Material | Cellulose |
Micron Rating | 10 |
Smallest Particle Filtered | 10 microns |
Flow Rate | 2000 Pounds Per Hour |
Filter Housing Color | Black |
Filter Housing Finish | Anodized |
Filter Housing Diameter | 2.0 Inches |
Filter Housing Length | 5.5 Inches |
Filter Housing Material | Billet Aluminum |
Mounting Type | External |
Mounting Bracket Included | No |
Clamps Included | No |
Gasket Or Seal Included | Yes |
Maximum Fuel Pressure (psi) | 70 PSI |
Universal Or Specific Fit | Universal |
