A1000 In-Tank Pump Gas Fuel System with 5.4L CJ Fuel Rails, 10-17 Mustang GT
A1000 In-Tank Pump Gas Fuel System with 5.4L CJ Fuel Rails, 10-17 Mustang GT
Product Info
Product Info
P/N 17323: 10-17 Mustang GT Stealth EFI Fuel System:
For Late Model GT's with Cobra Jet 4-V 5.4L swap.
For Limited Duty/Racing Applications See P/N 17322
For Late Model GT's with Cobra Jet 4-V 5.4L swap.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas.
- For 2010-2017 Mustang GT Chassis with engine swap to 5.4L Cobra Jet Supercharged 4-V engine and/or the equivalent intake.
- Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/strip applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For Limited Duty/Racing Applications See P/N 17322
Additional information
Additional information

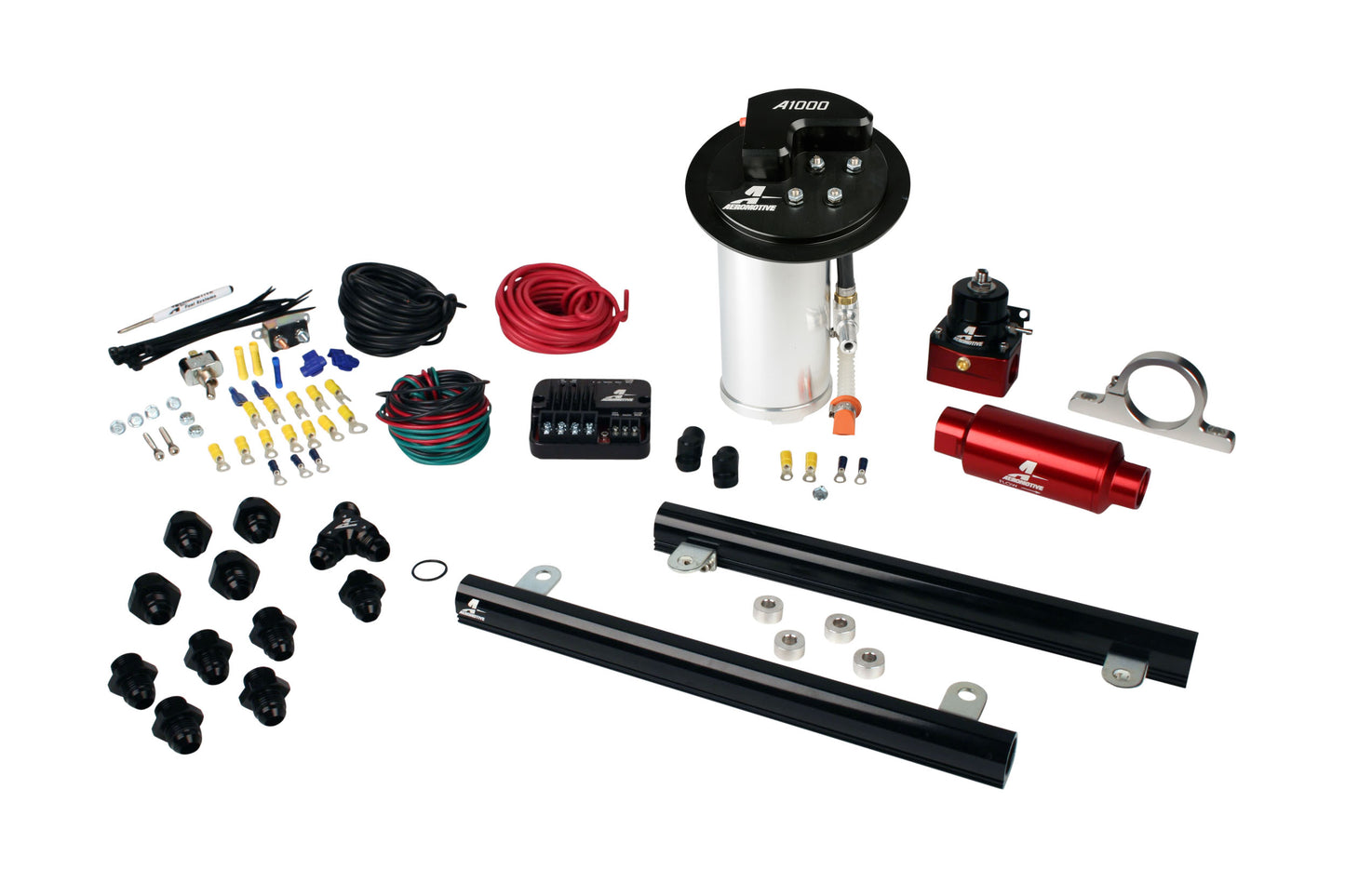

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving, but still need full pump performance for all out racing. Fuel Lines and Hose-Ends sold separately. The purchase of a separate tach adapter may be required to operate the Fuel Pump Speed Controller.
This system contains the following parts (Click on any item for more details):
1ea p/n 14141 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18694 Fuel Pump Assembly
1ea p/n 16306 Fuel Pump Speed Controller
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
This system contains the following parts (Click on any item for more details):
1ea p/n 14141 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18694 Fuel Pump Assembly
1ea p/n 16306 Fuel Pump Speed Controller
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
A1000 In-Tank Pump Gas Fuel System with 5.4L CJ Fuel Rails, 10-17 Mustang GT
A1000 In-Tank Pump Gas Fuel System with 5.4L CJ Fuel Rails, 10-17 Mustang GT
Regular price
$2,577.55
Sale price
$2,577.55
Regular price
$2,863.95
Unit price
per
Does This part fit My vehicle?
Couldn't load pickup availability
Product Info
Product Info
P/N 17323: 10-17 Mustang GT Stealth EFI Fuel System:
For Late Model GT's with Cobra Jet 4-V 5.4L swap.
For Limited Duty/Racing Applications See P/N 17322
For Late Model GT's with Cobra Jet 4-V 5.4L swap.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas.
- For 2010-2017 Mustang GT Chassis with engine swap to 5.4L Cobra Jet Supercharged 4-V engine and/or the equivalent intake.
- Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/strip applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For Limited Duty/Racing Applications See P/N 17322
Additional information
Additional information
This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving, but still need full pump performance for all out racing. Fuel Lines and Hose-Ends sold separately. The purchase of a separate tach adapter may be required to operate the Fuel Pump Speed Controller.
This system contains the following parts (Click on any item for more details):
1ea p/n 14141 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18694 Fuel Pump Assembly
1ea p/n 16306 Fuel Pump Speed Controller
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
This system contains the following parts (Click on any item for more details):
1ea p/n 14141 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18694 Fuel Pump Assembly
1ea p/n 16306 Fuel Pump Speed Controller
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
