03-04 Cobra Stealth A1000 Race Fuel System

03-04 Cobra Stealth A1000 Race Fuel System

Part Number: 17188 / UPC 00684980006766
Skip to product information

Product Info

P/N 17188: 03-04 Cobra Stealth A1000 System.
For Mustang Cobra's with 4.6L 4-V Cobra Engine.


  • Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas.

  • For 2003-2004 Mustang Cobra Chassis with Cobra Engine and/or Intake Manifold and OEM style 03-04 Cobra Fuel Tank.

  • Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


For Continuous Duty/Street Applications See P/N 17189

Additional information

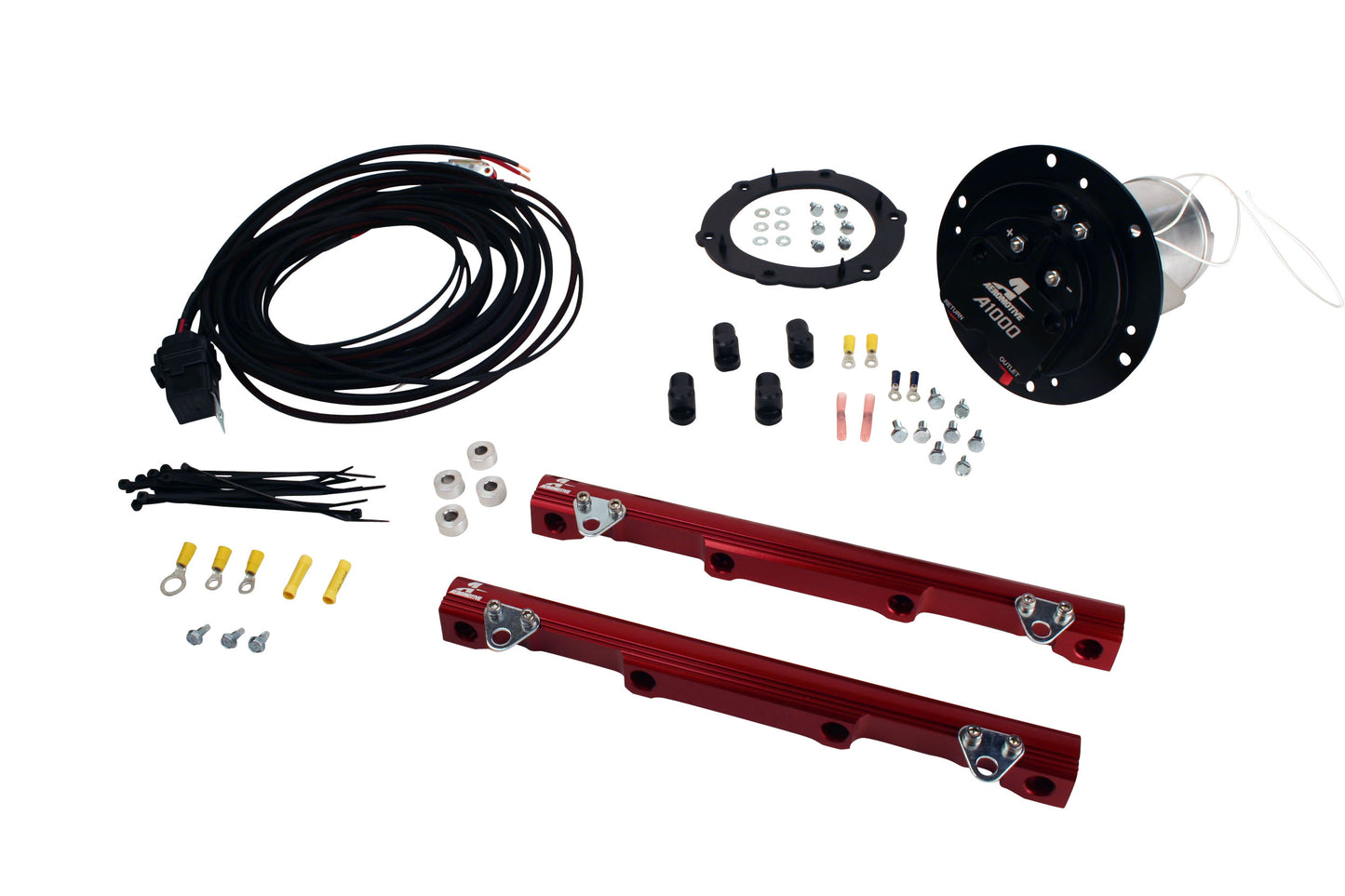

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM 03-04 Cobra Mustang tank and integrate with the stock fuel-level sending unit. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings.  Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.

This system contains the following parts (click on any item for more details):

1ea p/n 14111 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18679 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-647-7300, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.
