10 Micro Replacement Microglass Element for ORB-10 Filter Housings

10 Micro Replacement Microglass Element for ORB-10 Filter Housings

Part Number: 12650

Product Info

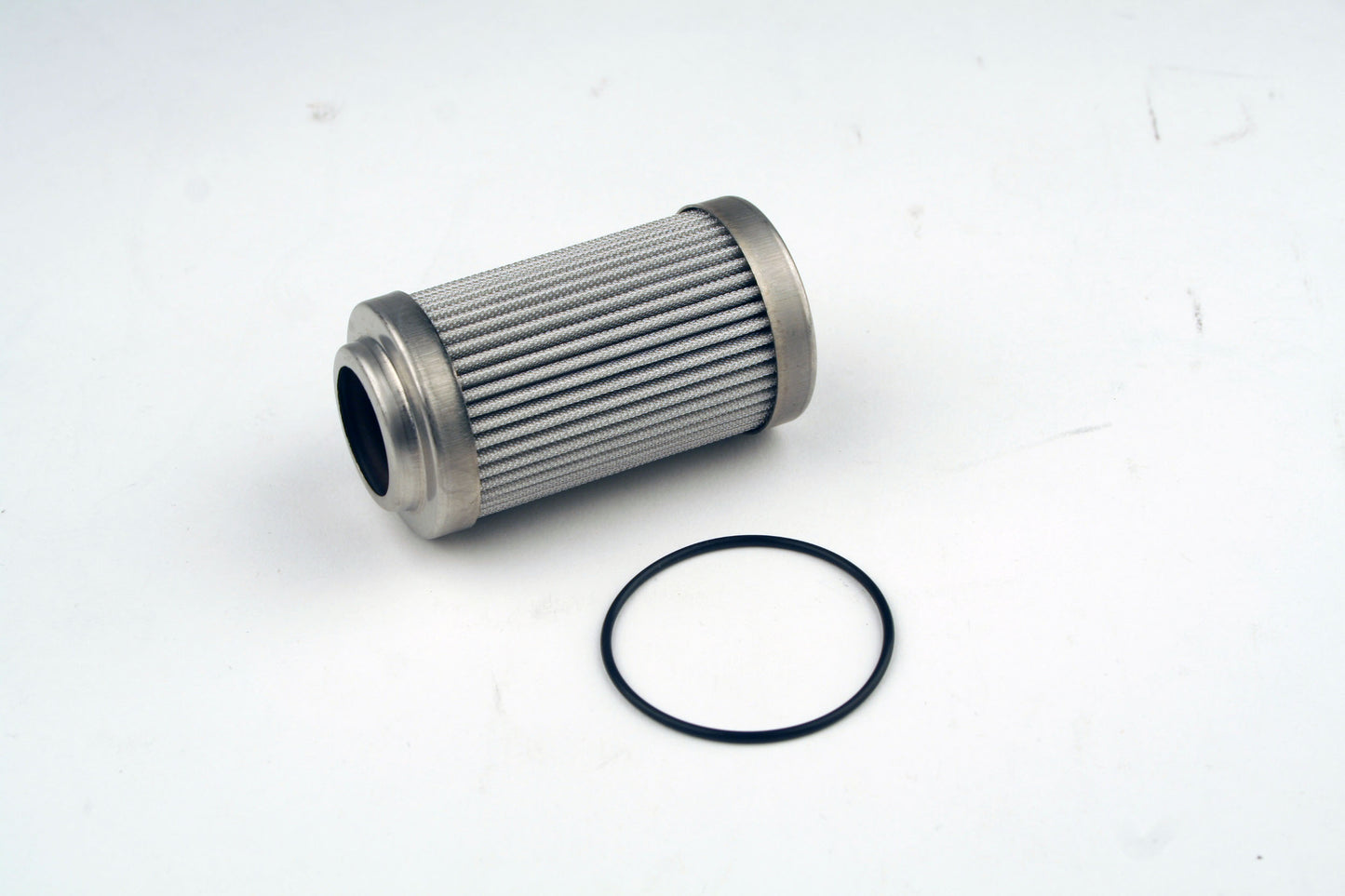

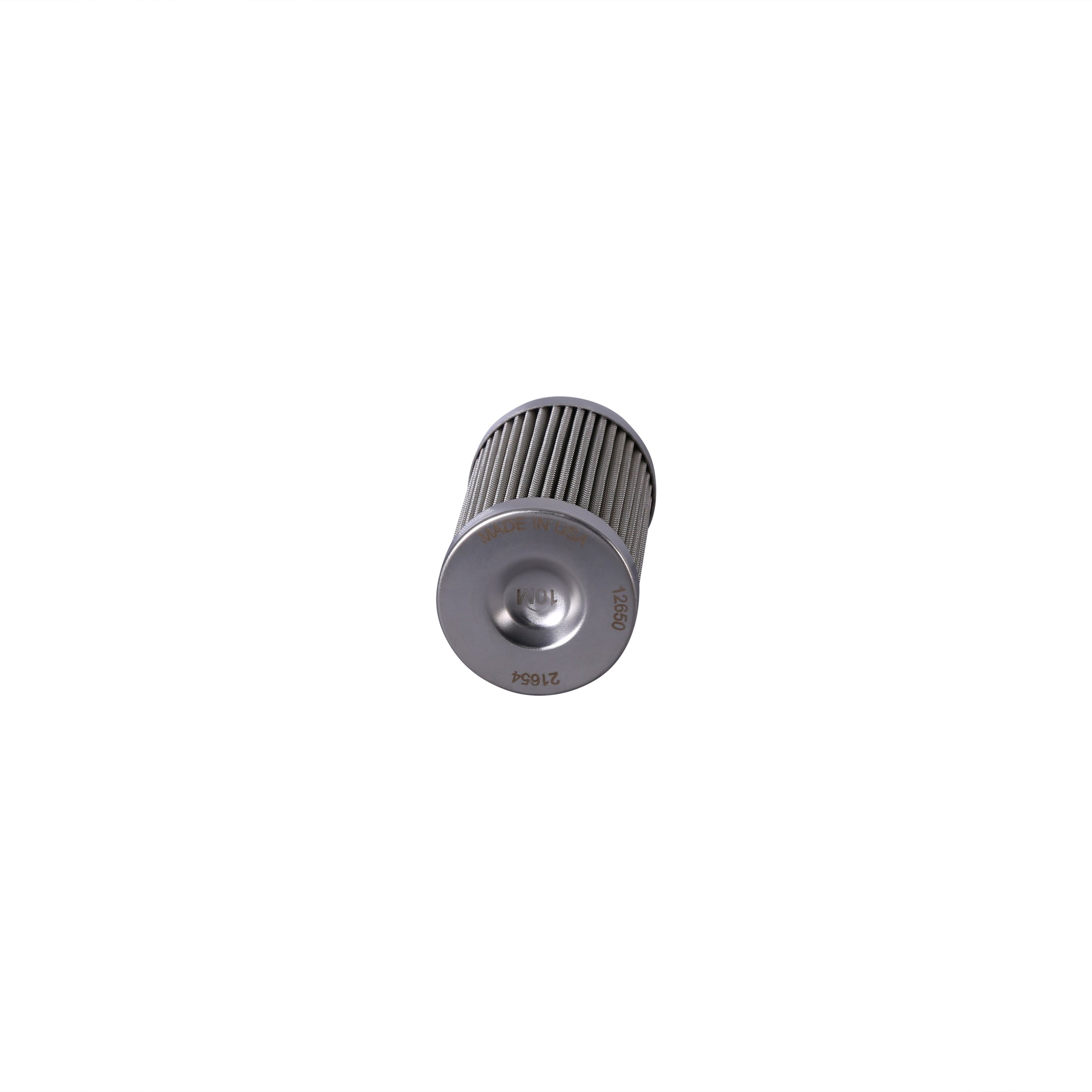

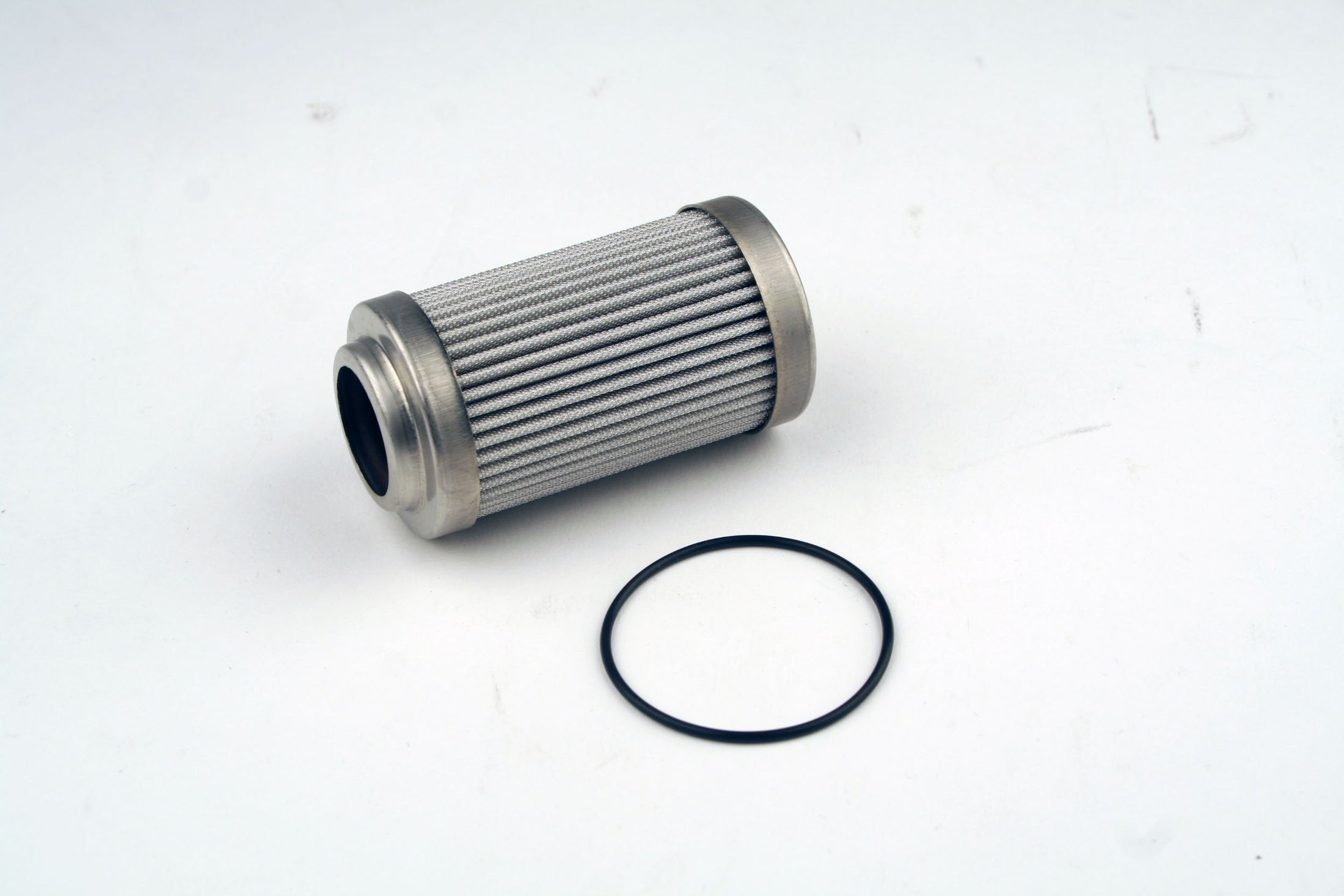

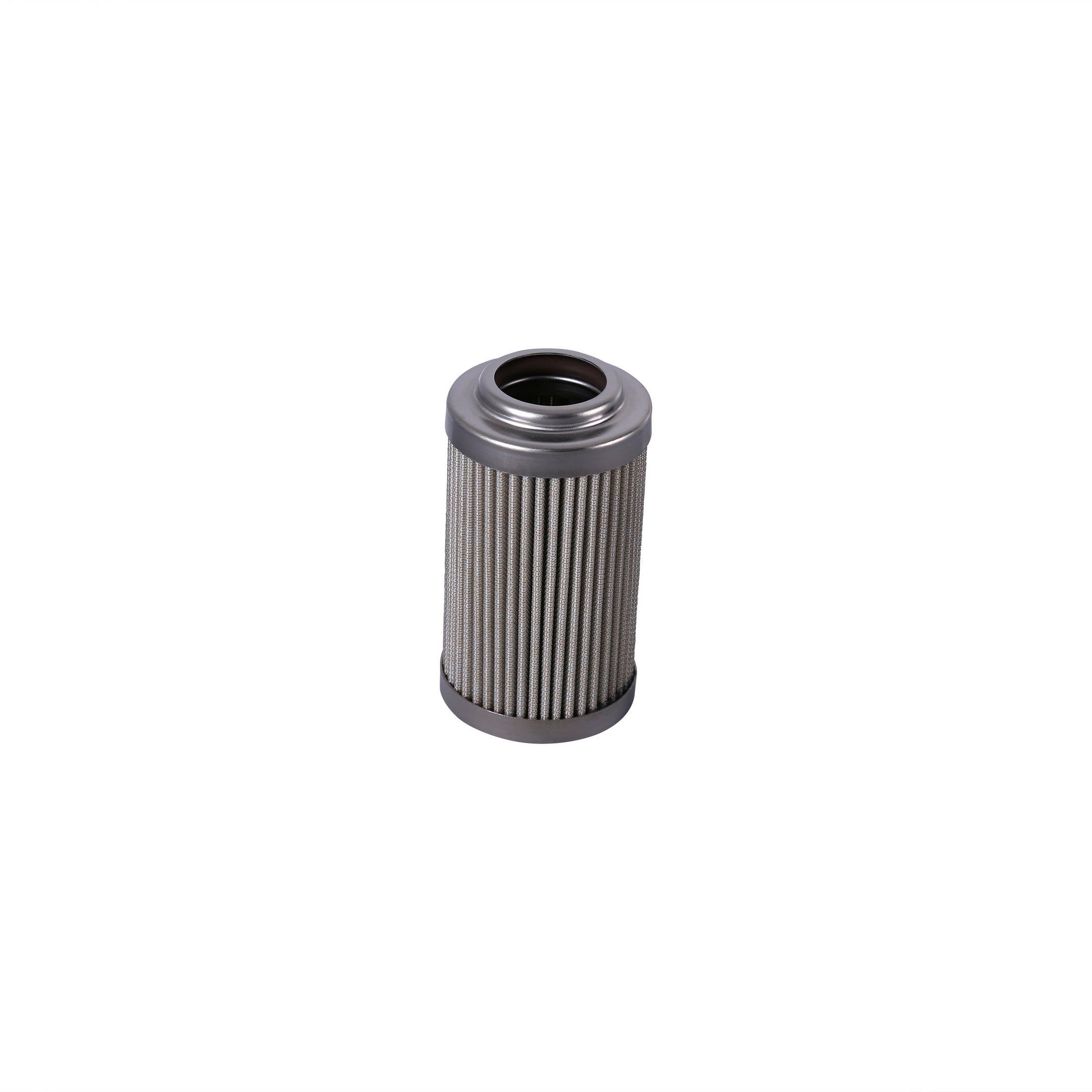

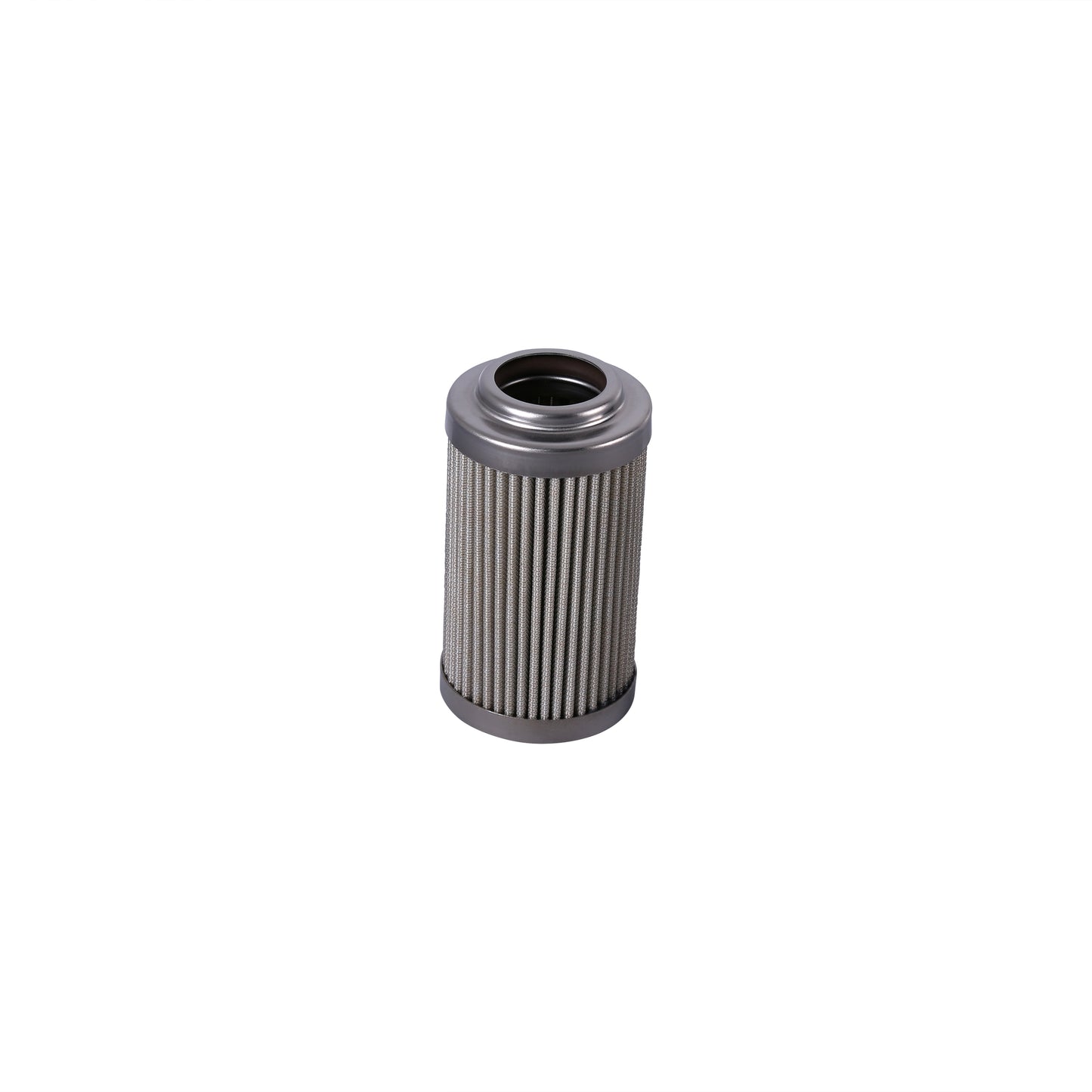

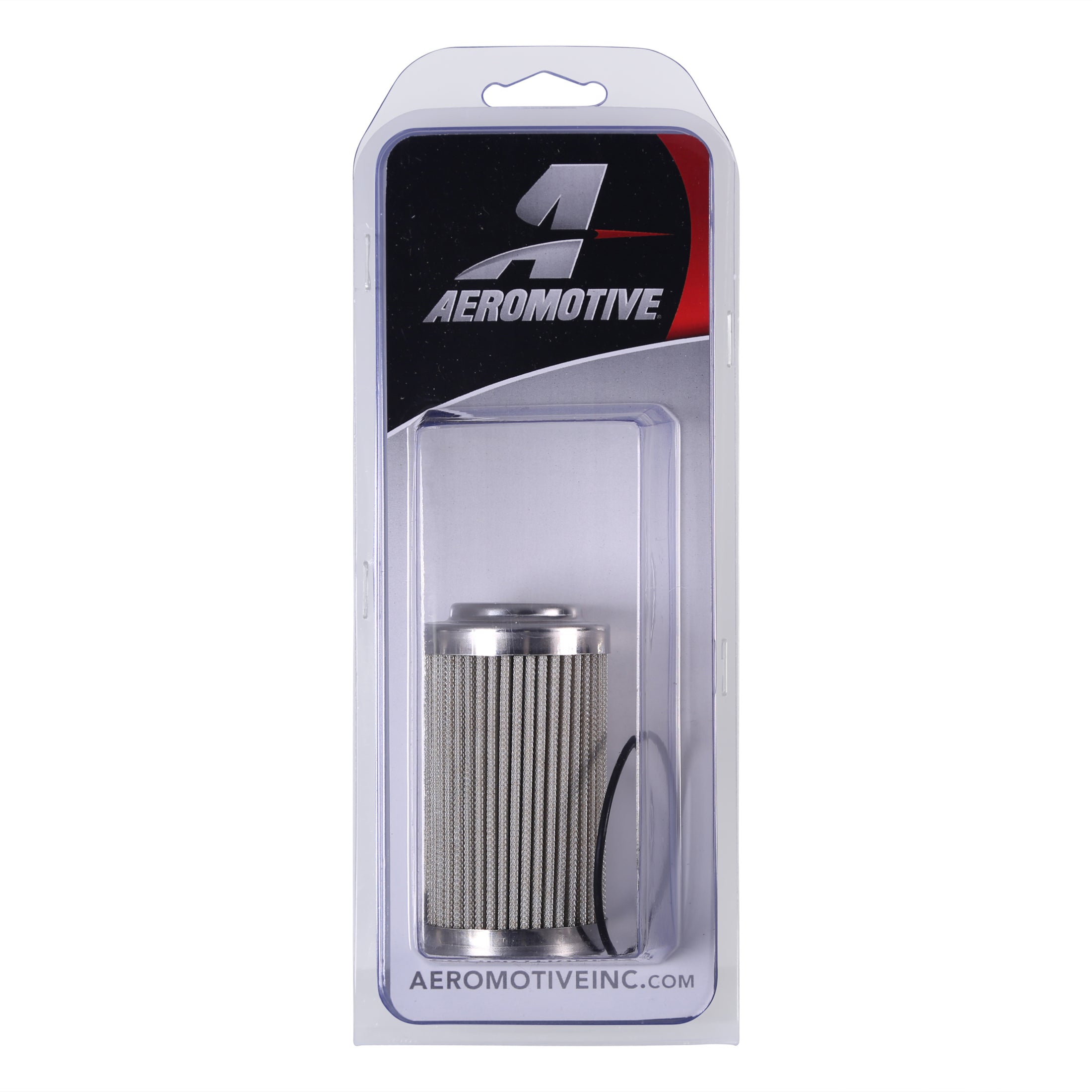

P/N 12650 10-M Micro-glass Replacement Element
Service element for Aeromotive Billet, in-line filters
Fits all 2" OD x 5-1/2" long ORB-10 filter housings.

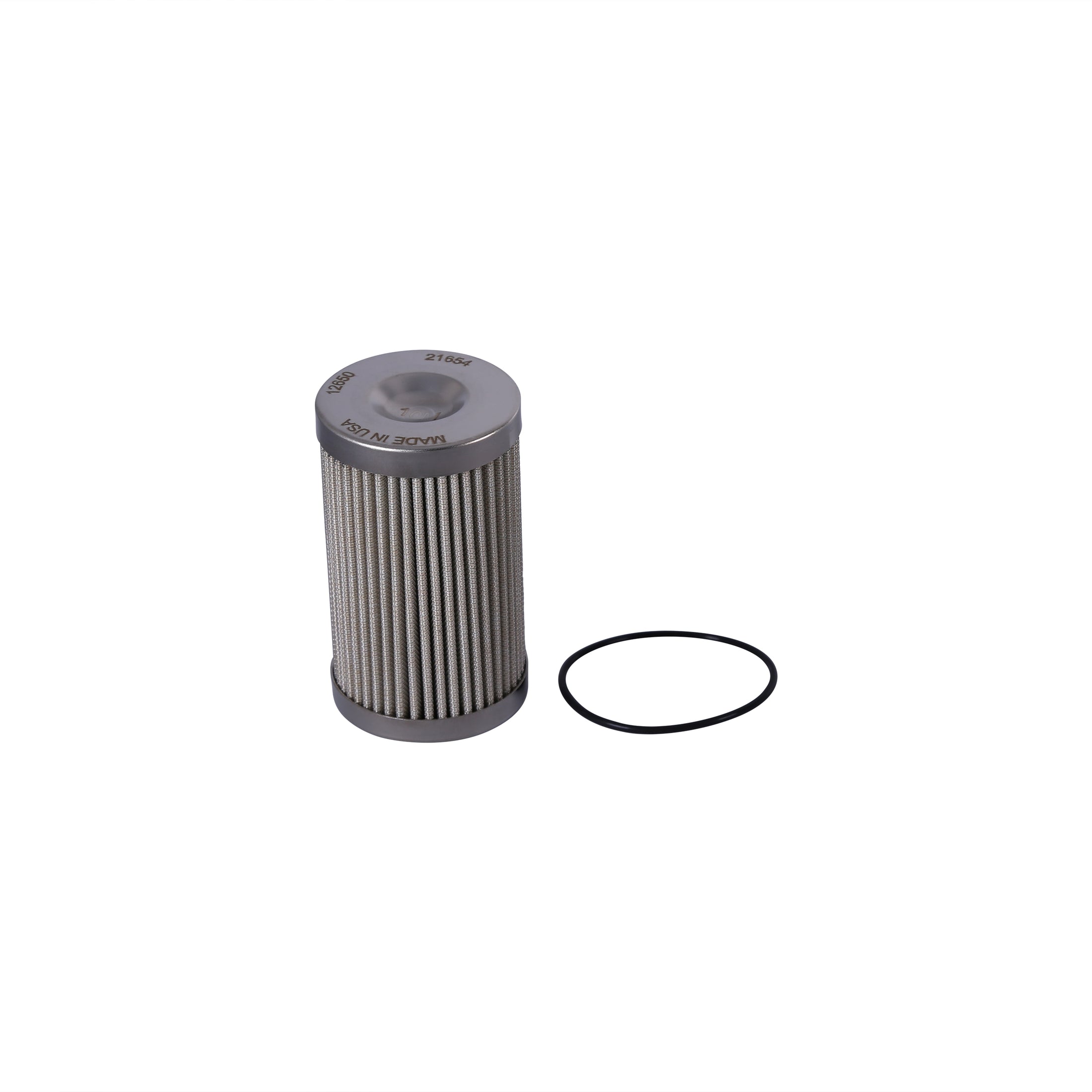

Includes new housing o-ring to reseal the filter assembly.

Suitable for use on the pressure side of a fuel pump only, with gasoline, diesel, ethanol and methanol fuels.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Direct Replacement Filter Element For Filter P/N's:

P/N 12340 ,   P/N 12346 ,   P/N 12350 ,   P/N 12345 ,   P/N 12375 ,   P/N 12385

Recommended for use with alcohol based fuels including ethanol and methanol.

For comparable filter element suitable for gasoline only based fuels see P/N 12601

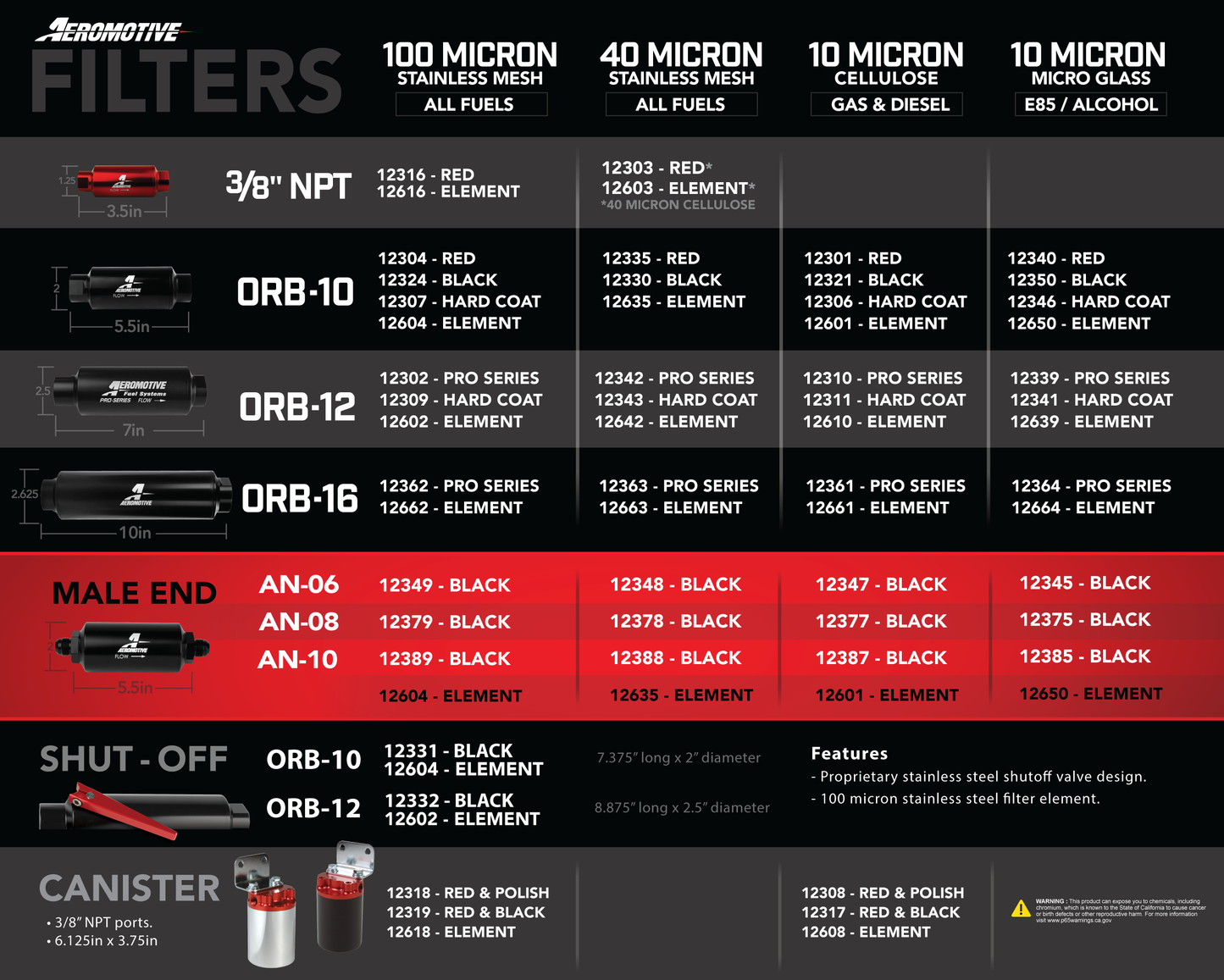

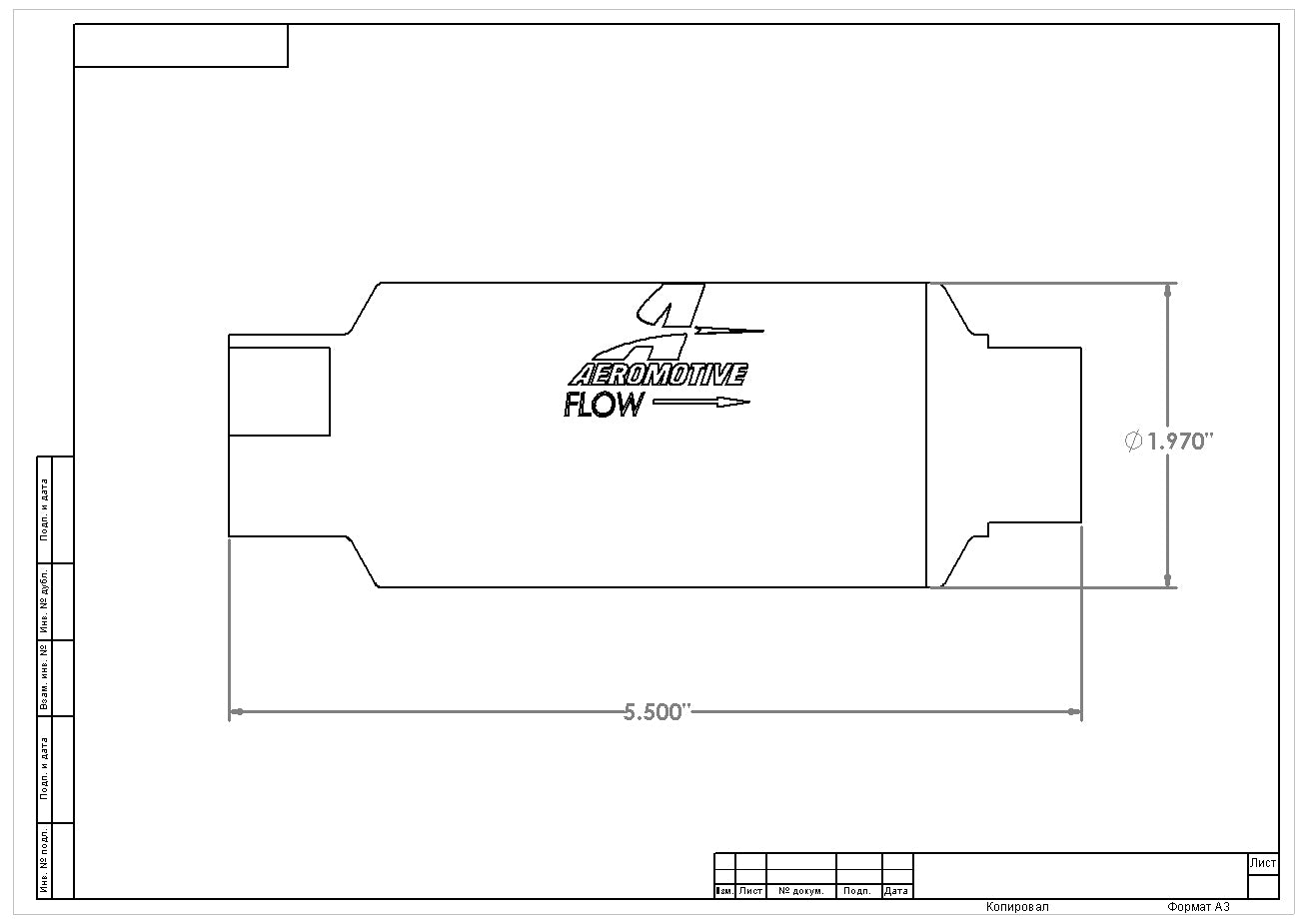

See the Filter Chart in the image gallery to the left, and the Filter Dimensional Drawing, if you need further help identifying what filter you have and which element will be a direct replacement.

Additional information

  • Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.

  • Approved for use in alcohol fuels including ethanol and methanol.

  • Over 60-sq. inches of element surface area supports high flow while providing good service life.

  • Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop.

  • Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline.

  • Supports up to 1,400 Flywheel HP Forced Induction on E85.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Ideal for gasoline and ethanol burning EFI engines with small to medium Aeromotive fuel pumps, from the Phantom 200 through the Eliminator pump.

  • Popular for demanding gasoline and ethanol/methanol, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps.


If you wish to change the filter in your housing from a P/N 12650 10-micron to an element with a different micron rating, you may choose one of the following options:

  • P/N 12604  100-micron Stainless Steel Mesh

  • P/N 12635    40-micron Stainless Steel Mesh

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.
