10-M Cellulose Element: ORB-12 Filter Housings

10-M Cellulose Element: ORB-12 Filter Housings

Part Number: 12610 / UPC 00684980002089

Product Info

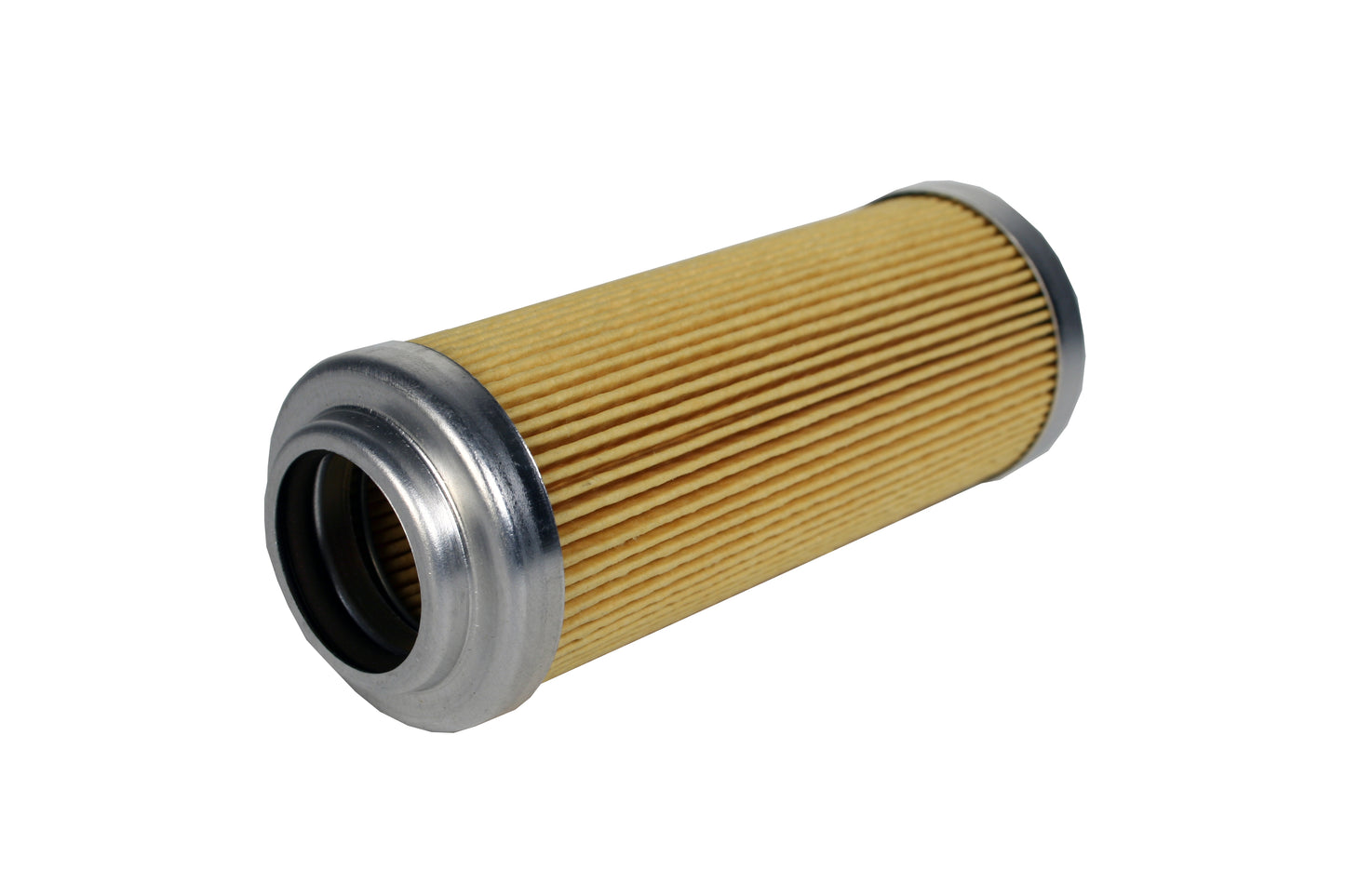

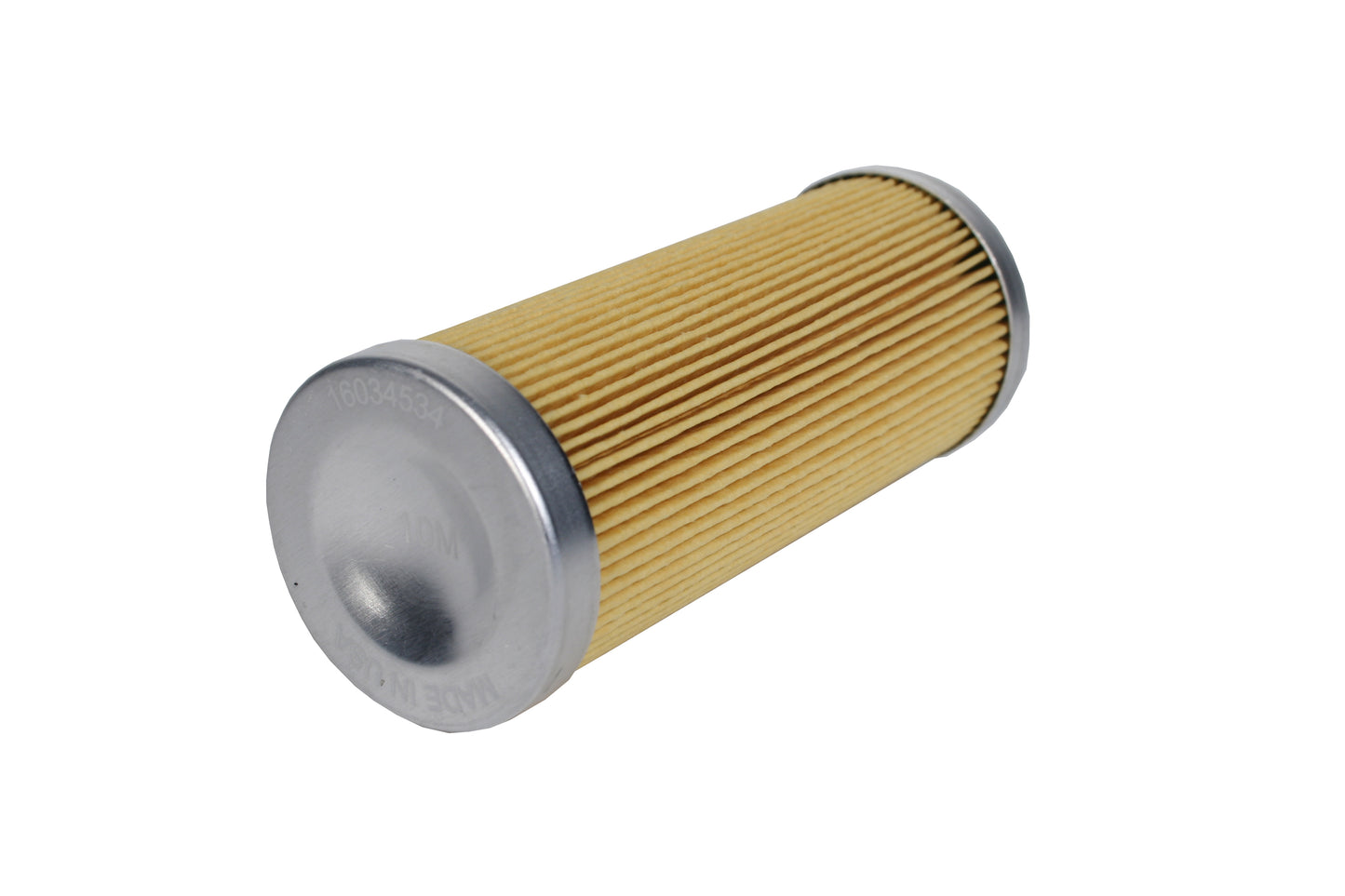

P/N 12610 10-M Fabric Replacement Element
Service element for Aeromotive Billet, in-line filters
Fits all 2-1/2" OD x 7" long ORB-12 filter housings.

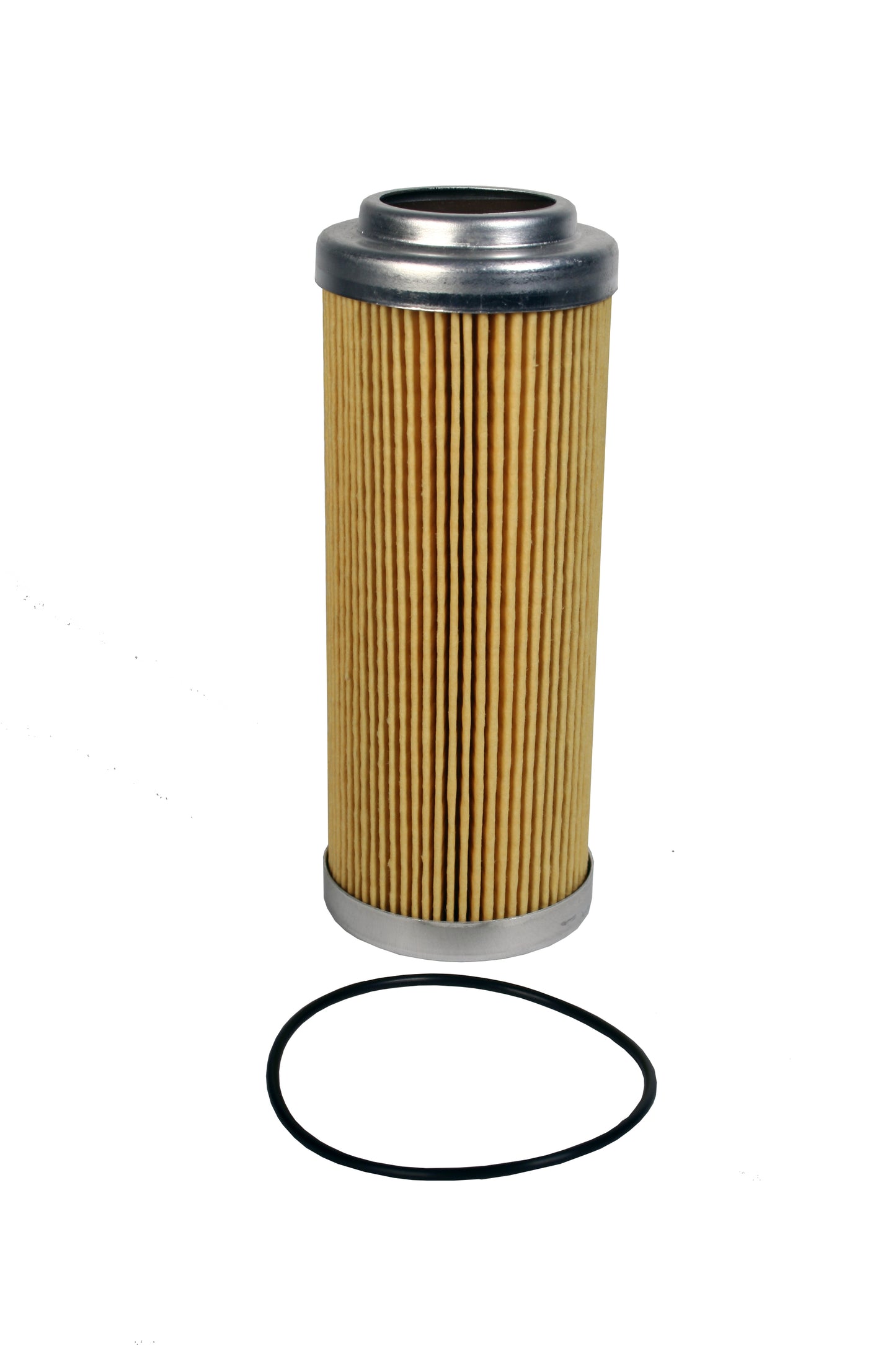

Includes new housing o-ring to reseal the filter assembly.

Suitable for use on the pressure side of a fuel pump only, with gasoline and diesel based fuels.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Direct Replacement Filter Element For Filter P/N's:

P/N 12310 ,   P/N 12311  ,   P/N 12360

Not for use with alcohol based fuels including ethanol (more than 10%) and methanol

For comparable filter element suitable for alcohol based fuels see P/N 12639

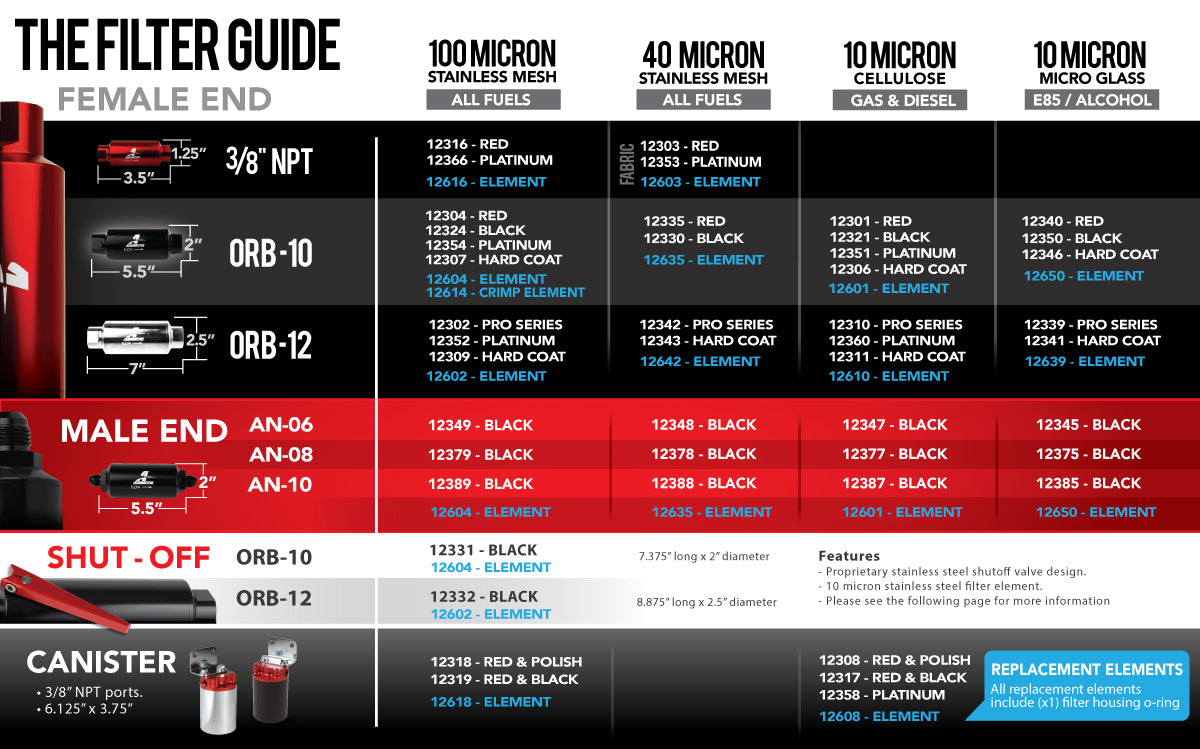

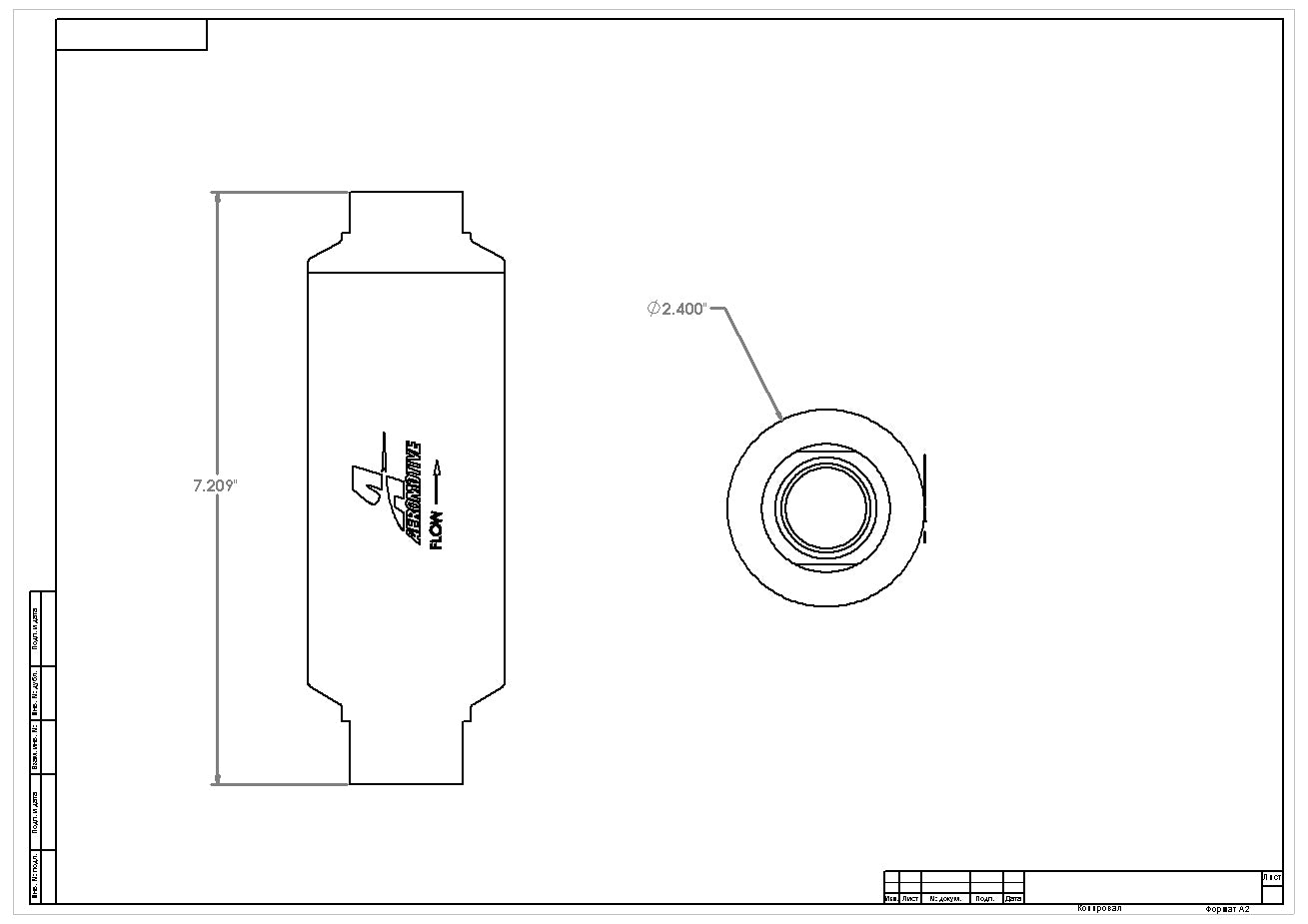

See the Filter Chart in the image gallery to the left, and the Filter Dimensional Drawing, if you need further help identifying what filter you have and which element will be a direct replacement.

Additional information

  • Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.

  • Not recommended for alcohol fuels including ethanol and methanol.

  • Over 90-sq. inches of element surface area supports extreme flow while providing good service life.

  • Flow capacity of up to 400 GPH (6.66 GPM) with less than 1-PSI pressure drop.

  • Supports up to 4,000 Flywheel HP, Forced Induction, on gasoline.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Ideal for gasoline, EFI engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.

  • Popular for demanding gasoline, carbureted engine applications using Aeromotive A2000, A3000 and the 6 and 12 Series (belt and hex driven) mechanical fuel pumps.


If you wish to change the filter in your housing from a P/N 12610 10-micron to an element with a different micron rating, you may choose one of the following options:

  • P/N 12602  100-micron Stainless Steel Mesh

  • P/N 12642    40-micron Stainless Steel Mesh

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-647-7300, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.
