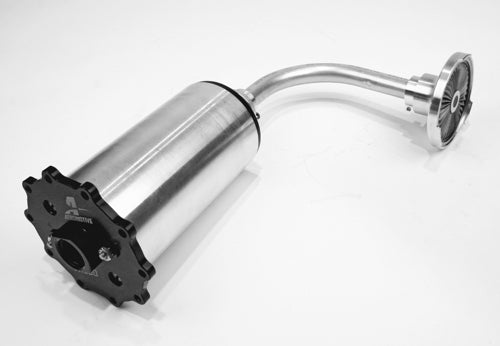

Universal A1000 Stealth Pump Assembly

Universal A1000 Stealth Pump Assembly

Part Number: 18668 / UPC 00684980004069
Skip to product information

Product Info

Since releasing our Stealth Fuel Cells, the demand for the pump assembly alone has been exceptional. To meet this demand, we've developed our new Universal Stealth Pump Assemblies. Thesr revolutionary designs incorporate the same advantages all our Stealth Fuel Systems provide by placing the fuel pump and pre-filter inside the tank. However, this new design allows for multiple mounting options in almost any fuel tank or cell.

Designed for the custom tank builder or fabricator, the universal assembly uses O-Ring clamps to positively seal the provided ¾'' tube to both the filter pickup and the fuel pump inlet, allowing for perfect placement of the pickup and ensuring superior performance.

Now custom tanks and fuel cells can easily and affordably feature an in-tank fuel pump; increasing performance and driveability while extending the life span of the pump. Proper baffling and clearance will be required, but installation could not be simpler with this universal design. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

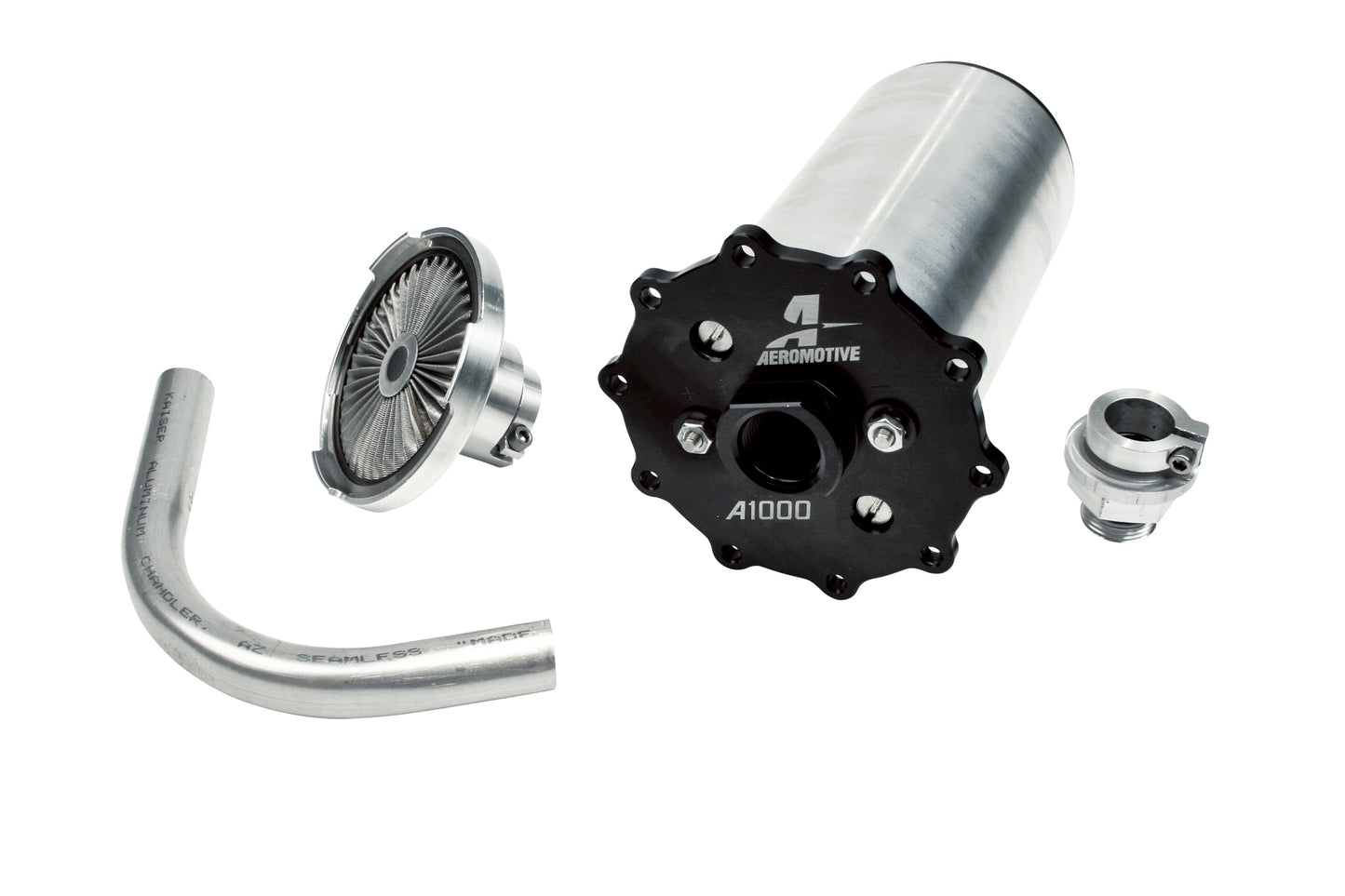

P/N 18668 features:
Aeromotive A1000 Fuel Pump (for specs on this pump, CLICK HERE)
100 Micron stainless steel Fuel Filter / Pickup
20" long 3/4" aluminum tube w/ 90 degree bend
Gaskets, mounting ring, bolts and washers for a positive seal mounting

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Reviews

Universal A1000 Stealth Pump Assembly

Universal A1000 Stealth Pump Assembly

Part Number: 18668 / UPC 00684980004069
Regular price $813.95
Sale price $813.95 Regular price

View full details

Product Info

Since releasing our Stealth Fuel Cells, the demand for the pump assembly alone has been exceptional. To meet this demand, we've developed our new Universal Stealth Pump Assemblies. Thesr revolutionary designs incorporate the same advantages all our Stealth Fuel Systems provide by placing the fuel pump and pre-filter inside the tank. However, this new design allows for multiple mounting options in almost any fuel tank or cell.

Designed for the custom tank builder or fabricator, the universal assembly uses O-Ring clamps to positively seal the provided ¾'' tube to both the filter pickup and the fuel pump inlet, allowing for perfect placement of the pickup and ensuring superior performance.

Now custom tanks and fuel cells can easily and affordably feature an in-tank fuel pump; increasing performance and driveability while extending the life span of the pump. Proper baffling and clearance will be required, but installation could not be simpler with this universal design. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 18668 features:
Aeromotive A1000 Fuel Pump (for specs on this pump, CLICK HERE)
100 Micron stainless steel Fuel Filter / Pickup
20" long 3/4" aluminum tube w/ 90 degree bend
Gaskets, mounting ring, bolts and washers for a positive seal mounting

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Reviews
