Part Number: 18119
Product Info
Product Info

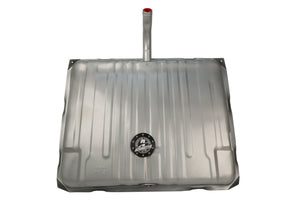

P/N 18119: Stealth Gen 2 Fuel Tank, '64 Pontiac GTO, 240lph pump
GEN II Stealth Tank Diagrams - Click Here
- Perfect for EFI and carbureted engines
- OEM appearance and 20-gallon capacity
- High flow, quiet 200 or 340 Stealth fuel pump
- 0-90 Ohm fuel level sending unit included
- Billet hat with ORB-06 outlet and return ports
- Utilizes OEM fuel outlet location and seal
- Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control
- Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install
- Utilizes stock mounting straps, filler cap and vent
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
GEN II Stealth Tank Diagrams - Click Here
Additional information
Additional information
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Specifications
Specifications
#18119 - 200 lph | #18419 - 340 lph | |
---|---|---|
Series | Gen II Stealth | Gen II Stealth |
Capacity | 20 Gallons | 20 Gallons |
Baffled | Yes | Yes |
Material | Steel | Steel |
Universal Or Specific Fit | Specific | Specific |
Color | Silver | Silver |
Filler Neck Attached | Yes | Yes |
Width | 11 Inches | 11 Inches |
Fuel Type | Gas | Gas |
Grade Type | Performance | Performance |
Height | 33 Inches | 33 Inches |
Length | 40 Inches | 40 Inches |
Mounting Hardware Included | No | No |
Mounting Straps Included | No | No |
Sender Ohm Range | 0-90 | 0-90 |
Sending Unit Included | Yes | Yes |
Fuel Pump Included | Yes | Yes |
Maximum Flow Rating | 200LPH | 340LPH |
Maximum Pressure | 95 PSI | 105 PSI |
Pump Design | Turbine Impeller | Turbine Impeller |
Motor Style | Brushed | Brushed |
Integrated Controller | No | No |
Pulse Width Modulation Compatible | Yes | Yes |
Outlet Type | Female | Female |
Outlet Outside Diameter | ORB-06 | ORB-06 |
Return Fitting Size | ORB-06 | ORB-06 |
Maximum Current Draw | 8.3A @ 40PSI | 13A @ 40PSI |
Voltage | 12-16V | 12-16V |
Negative Ground | Yes | Yes |
Terminal Gender | Male | Male |
Terminal Quantity | 3 | 3 |
Terminal Type | Threaded Stud | Threaded Stud |
Installation Instructions
