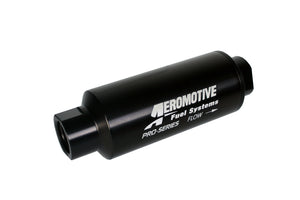

10 Micron Pro-Series Fuel Filter with AN-12 ORB Ports & Cellulose Element
10 Micron Pro-Series Fuel Filter with AN-12 ORB Ports & Cellulose Element
Product Info
Product Info
P/N 12310: Pro-Series 10-m Fabric AN-12 ORB Fuel Filter
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (cellulose) replaceable element
- Featuring our tough, Hard-Coat Black Anodized finish.
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- AN-12 ORB ports. Fittings available to adapt to AN-12, AN-10 and AN-08 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- 7" long x 2.5" diameter.
- Replacement 10-m fabric element P/N 12610
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
Additional information
Additional information
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (cellulose) replaceable element
- Featuring our tough, Hard-Coat Black Anodized finish.
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- AN-12 ORB ports. Fittings available to adapt to AN-12, AN-10 and AN-08 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- 7" long x 2.5" diameter.
- Replacement 10-m fabric element P/N 12610
Specifications
Specifications
| Fuel Filter Style | Inline |
|---|---|
| Fuel Type | Gas / Diesel |
| Inlet Quantity | 1 |
| Inlet Size | AN-12 |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-12 |
| Outlet Quantity | 1 |
| Outlet Size | AN-12 |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-12 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Fitting Type | AN-12 |
| Fittings Included | No |
| Filter Element Included | Yes |
| Filter Element Material | Cellulose |
| Micron Rating | 10 |
| Smallest Particle Filtered | 10 microns |
| Flow Rate | 2000 Pounds Per Hour |
| Filter Housing Color | Black |
| Filter Housing Finish | Anodized |
| Filter Housing Diameter | 2.5 Inches |
| Filter Housing Length | 7 Inches |
| Filter Housing Material | Billet Aluminum |
| Mounting Type | External |
| Mounting Bracket Included | No |
| Clamps Included | No |
| Gasket Or Seal Included | Yes |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Universal Or Specific Fit | Universal |
filter replacement element
filter replacement element

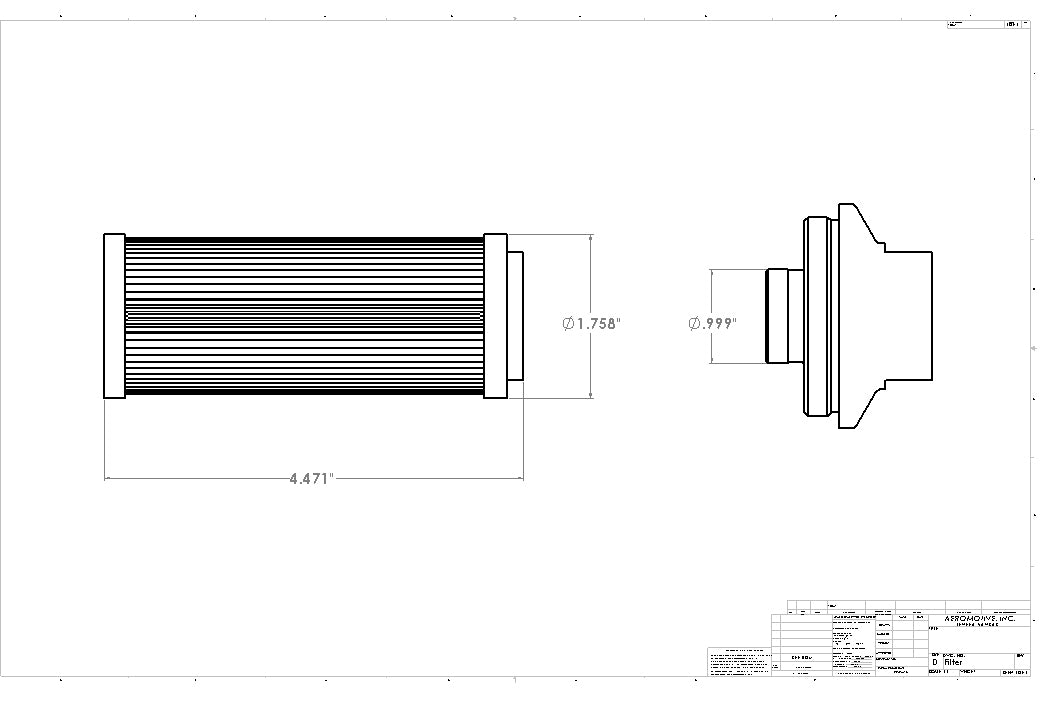

10 Micron Replacement Cellulose Element for ORB-12 Filter Housings
Part Number:
12610
Regular price
$31.45
Sale price
$31.45
Regular price
Unit price
per
10-Pack Replacement O-Rings
Part Number:
12002
Regular price
$11.20
Sale price
$11.20
Regular price
$12.45
Unit price
per
Sale
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
10 Micron Pro-Series Fuel Filter with AN-12 ORB Ports & Cellulose Element
10 Micron Pro-Series Fuel Filter with AN-12 ORB Ports & Cellulose Element
Regular price
$208.75
Sale price
$208.75
Regular price
$231.95
Unit price
per
Does This part fit My vehicle?
Emissions Code
Continue Reading to Understand Emissions Codes
View full details
Product Info
Product Info
P/N 12310: Pro-Series 10-m Fabric AN-12 ORB Fuel Filter
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (cellulose) replaceable element
- Featuring our tough, Hard-Coat Black Anodized finish.
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- AN-12 ORB ports. Fittings available to adapt to AN-12, AN-10 and AN-08 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- 7" long x 2.5" diameter.
- Replacement 10-m fabric element P/N 12610
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
Additional information
Additional information
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 10-micron fabric (cellulose) replaceable element
- Featuring our tough, Hard-Coat Black Anodized finish.
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- AN-12 ORB ports. Fittings available to adapt to AN-12, AN-10 and AN-08 line sizes. (see Fittings & Adapters)
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- 7" long x 2.5" diameter.
- Replacement 10-m fabric element P/N 12610
Specifications
Specifications
| Fuel Filter Style | Inline |
|---|---|
| Fuel Type | Gas / Diesel |
| Inlet Quantity | 1 |
| Inlet Size | AN-12 |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-12 |
| Outlet Quantity | 1 |
| Outlet Size | AN-12 |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-12 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Fitting Type | AN-12 |
| Fittings Included | No |
| Filter Element Included | Yes |
| Filter Element Material | Cellulose |
| Micron Rating | 10 |
| Smallest Particle Filtered | 10 microns |
| Flow Rate | 2000 Pounds Per Hour |
| Filter Housing Color | Black |
| Filter Housing Finish | Anodized |
| Filter Housing Diameter | 2.5 Inches |
| Filter Housing Length | 7 Inches |
| Filter Housing Material | Billet Aluminum |
| Mounting Type | External |
| Mounting Bracket Included | No |
| Clamps Included | No |
| Gasket Or Seal Included | Yes |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Universal Or Specific Fit | Universal |
filter replacement element
filter replacement element
10 Micron Replacement Cellulose Element for ORB-12 Filter Housings
Part Number:
12610
Regular price
$31.45
Sale price
$31.45
Regular price
Unit price
per
10-Pack Replacement O-Rings
Part Number:
12002
Regular price
$11.20
Sale price
$11.20
Regular price
$12.45
Unit price
per
Sale
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
EMISSIONS PLACARD
Aeromotive use a voluntary product identification program whereby all emission sensitive products can be identified by placing numbered labels in product packaging and listing corresponding numeric codes next to each part number. The corresponding numbers and explanations are as follows:
AEROMOTIVE EMISSIONS CODES
This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
AEROMOTIVE EMISSIONS CODES
This product is Legal for use on Pre-PoIIution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
AEROMOTIVE EMISSIONS CODES
This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
AEROMOTIVE EMISSIONS CODES
This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufactured's Application Guide and lnstallation Instructions.
AEROMOTIVE EMISSIONS CODES
This Product is legal for Street or Off Highway use in 49 States. This product meets the EPA Anti Tampering Policy for Reasonable Basis that allows the stated vehicle to operate within the legal emissions standards in states that do not require а California EO. This product in Not Legal for Street or Off Highway use in California.
AEROMOTIVE EMISSIONS CODES
This Product is Certified by the Manufacturer as being а Non-Emissions Related part per CARB and EPA regulations and therefore does not require emissions certification or CARB EO and is legal in all 50 states.
