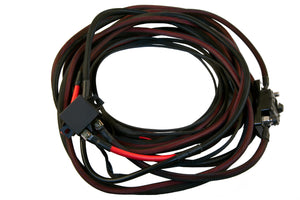

Premium HD 60-Amp Fuel Pump Wiring Kit

Premium HD 60-Amp Fuel Pump Wiring Kit

Part Number: 16308
Skip to product information

Product Info

P/N 16308 Premium HD 60-Amp Fuel Pump Wiring Kit
Recommended for all Brushless Spur Gear Pumps 5.0 and higher
60-amp capablefully loomed and professionally terminated

Kit construction includes:

  • 75 Amp 12 VDC Automotive Relay

  • 60 Amp 12 VDC Circuit Breaker

  • 20' overall length for full size vehicles

  • 6-gauge main power and ground wires

  • 10' 16-gauge trigger wire

  • Self Tapping mounting screws

  • Wire ties.


Tools required for installation:

  • Electrical terminal crimping tool

  • 5/16” nut driver

  • Electric Drill


For pumps requiring up to 30-Amps see P/N 16307

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Additional information

For Shipping (Not Product) Dimensions See Additional Information Tab Above.


Simply the best built, best looking, hardest working, most affordable fuel pump wiring harness available for High Flow electric fuel pumps requiring from 30-60 Amps flawless, continuous electrical supply.

Parts included in kit:  1ea  75 Amp 12 VDC Automotive Relay, 1ea  60 Amp 12 VDC Circuit Breaker, 2ea  Insulated Butt Connector, 2ea  Ring Connector for #10 Stud, 1ea  Ring Connector for 3/8” Stud, 18ft   6ga. Fuel Pump Power/Ground Wire, 2ft  06ga. Red + Battery Wire, 10ft  16ga. Red Trigger Wire, 2ft  16ga. Black Relay Ground Wire, 12ea  6 inch cable ties, 4ea  Self-Drilling Screws.

Tools required for installation: Electrical terminal crimping tool 5/16” nut driver.

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Limited Warranty for Aeromotive Products for the United States of America

Aeromotive, LLC warrant to the original end user purchaser in the United States that the Aeromotive and Waterman Racing Components branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.

 Products Warranty Duration
  • Aeromotive marine pumps
2 years
  • All other Aeromotive products
  • Waterman Racing Components products
1 year



Because Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.

This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.

Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.

Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.

There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.

This warranty supersedes any warranties stated in product manuals or other written materials.

Effective Date: March 16, 2026

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Limits of Responsibility:

  • See Product Warranty page for more info.
