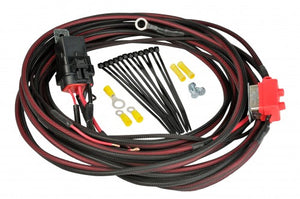

Premium HD 30-Amp Fuel Pump Wiring Kit

Premium HD 30-Amp Fuel Pump Wiring Kit

Part Number: 16307 / UPC 00684980005714

Product Info
P/N 16307 Premium 30-Amp Fuel Pump Wiring Kit
Recommended for all Aeromotive electric fuel pumps Brush and Brushless through 3.5 Spur-Gear.  30-amp capable, fully loomed and 70% terminated

Kit construction includes:

  • 30 Amp 12 VDC Automotive Relay

  • 30 Amp 12 VDC Circuit Breaker

  • 20' overall length for full size vehicles

  • 10-gauge power and ground wires

  • 16-gauge trigger wire

  • Self Tapping mounting screws

  • Wire ties.


Tools required for installation:

  • Electrical terminal crimping tool

  • 5/16” nut driver

  • Electric Drill


For pumps requiring over 30-Amp electrical supply see P/N 16308

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Additional information
Simply the best built, best looking, hardest working, most affordable fuel pump wiring harness available.

Parts included in kit: 1ea 30 Amp 12 VDC Automotive Relay 1ea 30 Amp 12 VDC Circuit Breaker 2ea Yellow Insulated Butt Connector 2ea Yellow Ring Connector for #10 Stud 1ea Yellow Ring Connector for 3/8” Stud 18ft 10ga. Fuel Pump Power/Ground Wire 4ft 10ga. Red + Battery Wire 10ft 16ga. Red Trigger Wire 1ft 10ga. Black Ground Wire 12ea 6 inch cable ties 3ea Self-Drilling Screws

Tools required for installation: Electrical terminal crimping tool 5/16” nut driver Click here to learn more about the phantom, universal in tank fuel system. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Installation Instructions
Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-647-7300, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.
