Direct Drop-In In-Tank Fuel Pump Kit, 99-02 Camaro
Direct Drop-In In-Tank Fuel Pump Kit, 99-02 Camaro
Product Info
Product Info
This system is designed to work in Chevy Camaros equipped with the OEM plastic fuel tanks only; some of the 1999 models may still have a steel tank, which will not fit this Phantom series. The 1999-2002 models with a plastic tank use a smaller factory opening so be sure to ensure your tank before ordering.
The smaller opening in the 1999-2002 tanks does limit the pump configurations which will fit. These tanks will accommodate several pump options including; a single 340, a dual 340, and a single 450 pump. Any other combination of more/larger pumps will not physically fit through the factory tank opening.

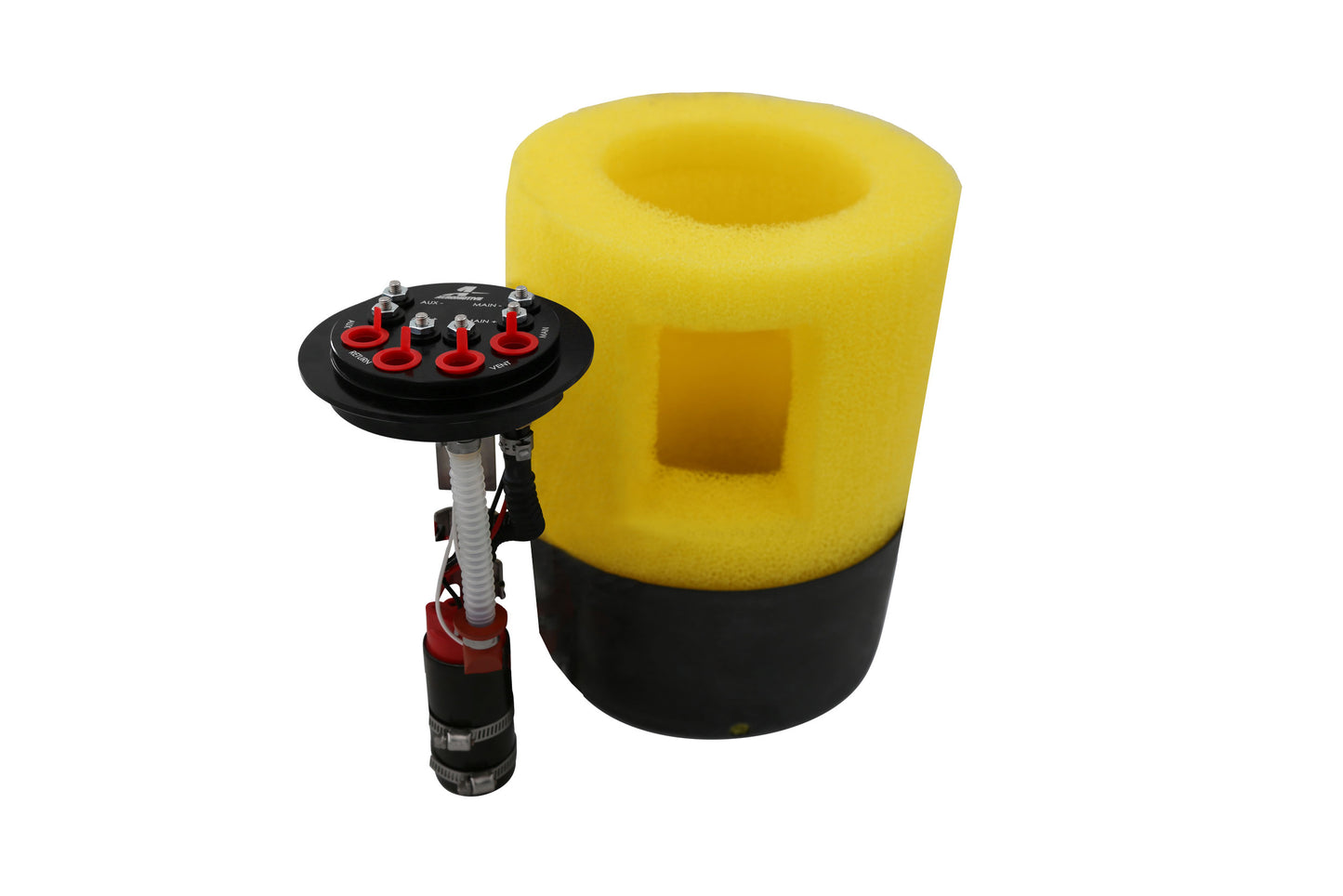

P/N 19101 - Single 340lph pump

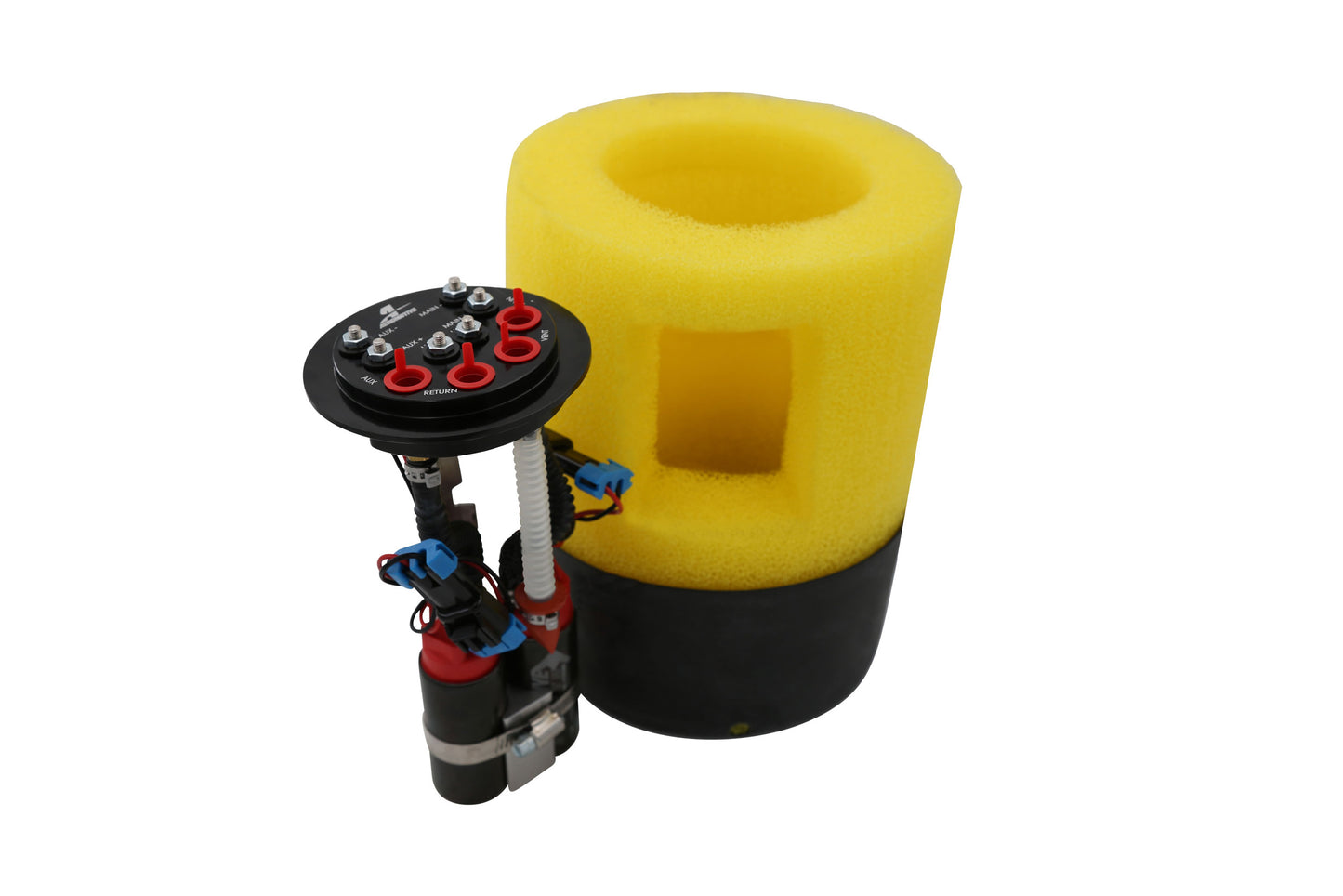

P/N 19102 - Dual 340lph pumps
P/N 19103 - Single 450lph pump
All configurations come with fuel level sending unit bracket.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
The smaller opening in the 1999-2002 tanks does limit the pump configurations which will fit. These tanks will accommodate several pump options including; a single 340, a dual 340, and a single 450 pump. Any other combination of more/larger pumps will not physically fit through the factory tank opening.
P/N 19101 - Single 340lph pump
P/N 19102 - Dual 340lph pumps
P/N 19103 - Single 450lph pump
All configurations come with fuel level sending unit bracket.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Additional information
Additional information
Must be a new body style/plastic tank for the model year 1999
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Specifications
Specifications
| #19101 - 340 lph | #19103 - 450 lph | #19102 - Dual 340 lph | |
|---|---|---|---|
| Series | Stealth 340 | Stealth 340 | Stealth 340 |
| Maximum Flow Rating | 340 | 450 | 680 |
| Maximum Pressure | 40 | 40 | 40 |
| Fuel Type | Gas/E85 | Gas/E85 | Gas/E85 |
| Universal Or Specific Fit | Specific | Specific | Specific |
| Internal Or External | Internal | Internal | Internal |
| Pump Design | Turbine Impeller | Turbine Impeller | Turbine Impeller |
| Integrated Controller | No | No | No |
| Pulse Width Modulation Compatible | Yes | Yes | Yes |
| Fuel Delivery Type | Fuel Injection | Fuel Injection | Fuel Injection |
| Outlet Type | Male | Male | Male |
| Outlet Outside Diameter | AN-06 | AN-06 | AN-06 |
| Maximum Current Draw | 15.5 | 15.5 | 15.5 |
| Voltage | 12 | 12 | 12 |
| Negative Ground | Yes | Yes | Yes |
| Wire Quantity | 0 | 0 | 0 |
| Wiring Harness Included | No | No | No |
| Terminal Gender | Male | Male | Male |
| Terminal Quantity | 6 | 3 | 3 |
| Terminal Type | Threaded Stud | Threaded Stud | Threaded Stud |
| Strainer Included | Yes | Yes | Yes |
| Fuel Sending Unit Included | Yes | Yes | Yes |
| Regulator Included | No | No | No |
| Mounting Bracket Included | Yes | Yes | Yes |
| Mounting Hardware Included | Yes | Yes | Yes |
| Seal And Lock Ring Included | No | No | No |
| Gasket Or Seal Included | Yes | Yes | Yes |
| Grade Type | Performance | Performance | Performance |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
Direct Drop-In In-Tank Fuel Pump Kit, 99-02 Camaro
Direct Drop-In In-Tank Fuel Pump Kit, 99-02 Camaro
Regular price
$488.95
Sale price
$488.95
Regular price
Unit price
per
Does This part fit My vehicle?
Product Info
Product Info
This system is designed to work in Chevy Camaros equipped with the OEM plastic fuel tanks only; some of the 1999 models may still have a steel tank, which will not fit this Phantom series. The 1999-2002 models with a plastic tank use a smaller factory opening so be sure to ensure your tank before ordering.
The smaller opening in the 1999-2002 tanks does limit the pump configurations which will fit. These tanks will accommodate several pump options including; a single 340, a dual 340, and a single 450 pump. Any other combination of more/larger pumps will not physically fit through the factory tank opening.
P/N 19101 - Single 340lph pump
P/N 19102 - Dual 340lph pumps
P/N 19103 - Single 450lph pump
All configurations come with fuel level sending unit bracket.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
The smaller opening in the 1999-2002 tanks does limit the pump configurations which will fit. These tanks will accommodate several pump options including; a single 340, a dual 340, and a single 450 pump. Any other combination of more/larger pumps will not physically fit through the factory tank opening.
P/N 19101 - Single 340lph pump
P/N 19102 - Dual 340lph pumps
P/N 19103 - Single 450lph pump
All configurations come with fuel level sending unit bracket.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Additional information
Additional information
Must be a new body style/plastic tank for the model year 1999
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Specifications
Specifications
| #19101 - 340 lph | #19103 - 450 lph | #19102 - Dual 340 lph | |
|---|---|---|---|
| Series | Stealth 340 | Stealth 340 | Stealth 340 |
| Maximum Flow Rating | 340 | 450 | 680 |
| Maximum Pressure | 40 | 40 | 40 |
| Fuel Type | Gas/E85 | Gas/E85 | Gas/E85 |
| Universal Or Specific Fit | Specific | Specific | Specific |
| Internal Or External | Internal | Internal | Internal |
| Pump Design | Turbine Impeller | Turbine Impeller | Turbine Impeller |
| Integrated Controller | No | No | No |
| Pulse Width Modulation Compatible | Yes | Yes | Yes |
| Fuel Delivery Type | Fuel Injection | Fuel Injection | Fuel Injection |
| Outlet Type | Male | Male | Male |
| Outlet Outside Diameter | AN-06 | AN-06 | AN-06 |
| Maximum Current Draw | 15.5 | 15.5 | 15.5 |
| Voltage | 12 | 12 | 12 |
| Negative Ground | Yes | Yes | Yes |
| Wire Quantity | 0 | 0 | 0 |
| Wiring Harness Included | No | No | No |
| Terminal Gender | Male | Male | Male |
| Terminal Quantity | 6 | 3 | 3 |
| Terminal Type | Threaded Stud | Threaded Stud | Threaded Stud |
| Strainer Included | Yes | Yes | Yes |
| Fuel Sending Unit Included | Yes | Yes | Yes |
| Regulator Included | No | No | No |
| Mounting Bracket Included | Yes | Yes | Yes |
| Mounting Hardware Included | Yes | Yes | Yes |
| Seal And Lock Ring Included | No | No | No |
| Gasket Or Seal Included | Yes | Yes | Yes |
| Grade Type | Performance | Performance | Performance |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
| Year / Make / Model | 1999-2002 Chevrolet Camaro |
|---|---|
| Engine Size(s) |
Liters: 3.8, 5.7 Cubic Inches: 231, 350 |
