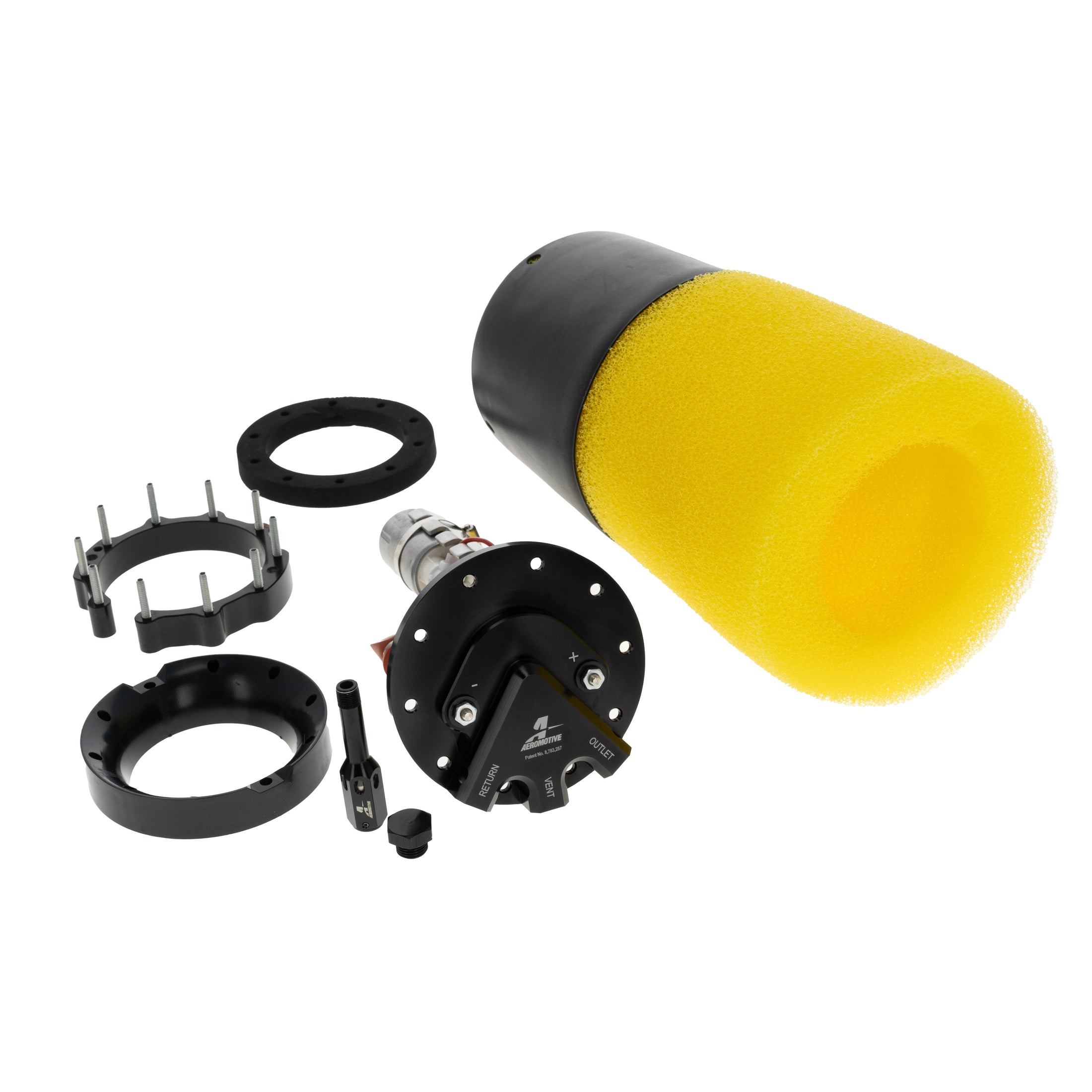

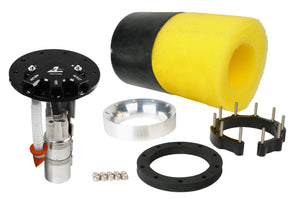

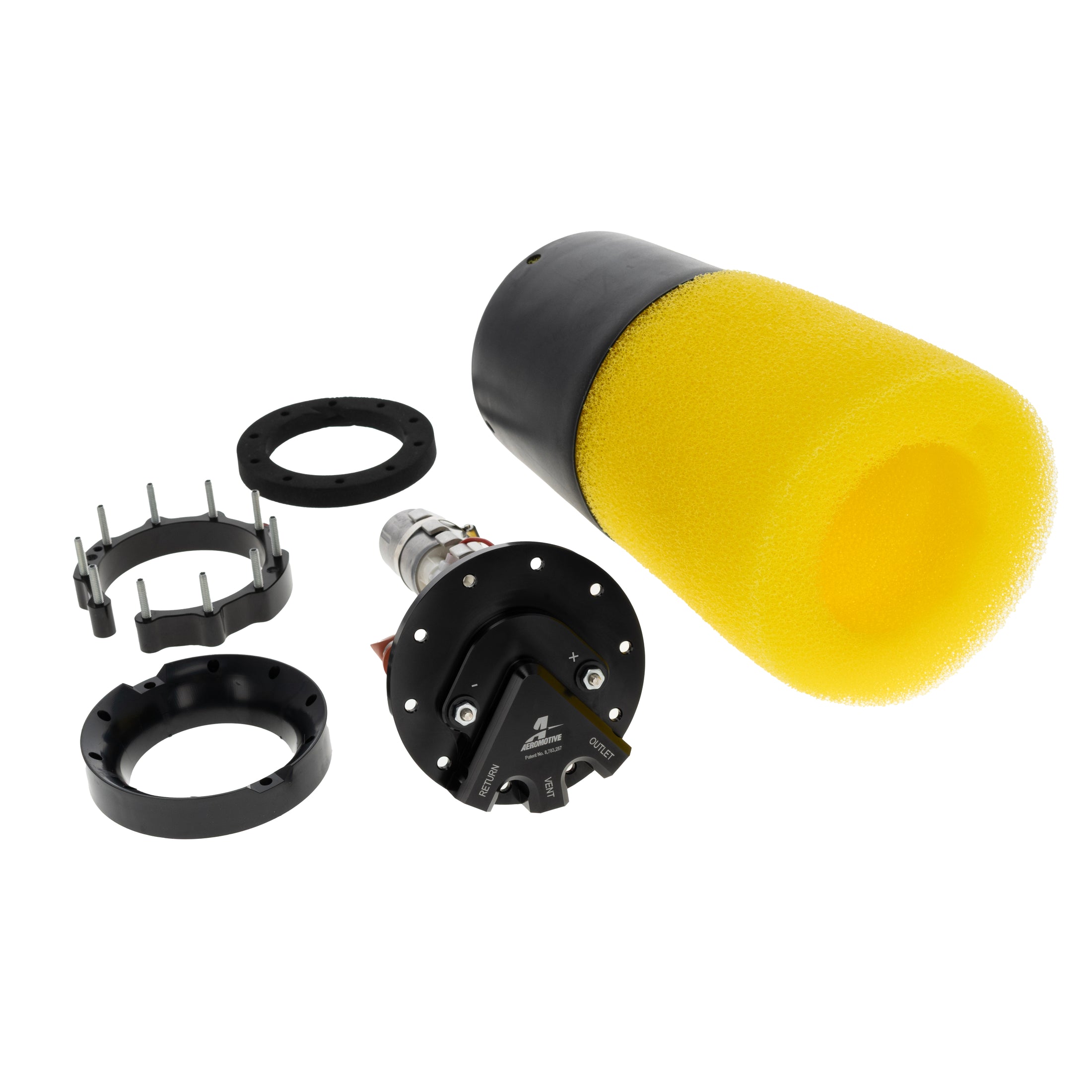

200 LPH In-Tank Fuel Pump System

200 LPH In-Tank Fuel Pump System

Part Number: 18689 / UPC 00684980005530
Skip to product information

Product Info

Considering a switch to EFI or swapping in that late model motor? What has recently become the hottest trend in hot rodding has been plagued by fuel delivery. The question is always, what do I do for a tank? Up until now, it's been one of three options. Weld in a sump to your tank, go with a fuel cell or pay for a custom tank. Well, not any more. Aeromotive's Phantom Fuel System gives you the option to put a high performance fuel pump inside virtually any fuel tank, including your factory tank.

Simply cut a hole in you tank. Measure the depth. Cut you pump hanger bracket to length and your baffle / basket foam. Insert the baffle. Install the retainer ring and gasket. Bolt your pump and hanger down. That's it. Now you have a fuel pump inside your factory tank capable of supporting big horsepower EFI or Carbureted and its whisper quiet.

No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system's internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. The best part about this whole system - its completely universal. This system will fit virtually any tank from 6" deep to 11" deep, plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. Its serious performance you will never know is there!

Click here to learn more about this universal in tank fuel system.

Patent No. 8,783,287

Features and Specifications:

  • 200 lph high performance fuel pump

  • Supports up to
    - 450 HP EFI - Forced Induction
    - 600 HP EFI - Naturally Aspirated
    - 600 HP Carbureted - Forced Induction
    - 750 HP Carbureted - Naturally Aspirated

  • Black anodized hanger assembly

  • (3) ORB-06 Ports – Supply, Return, Vent

  • Fuel resistant baffle / basket (Includes: Foam and Bladder)

  • Universal high flow pre-pump filter

  • Modular design can be cut to height to fit almost any fuel tank

  • EFI or Carbureted

  • Turbine pump mechanism increases durability.

  • Must be used with a return style system

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • In-tank use only


For our Phantom extension kit (p/n 18788), please click here.

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews
