200 LPH Phantom Series In-Tank Fuel Pump, Fuel Injected Returnless Applications

200 LPH Phantom Series In-Tank Fuel Pump, Fuel Injected Returnless Applications

Part Number: 18398

Product Info

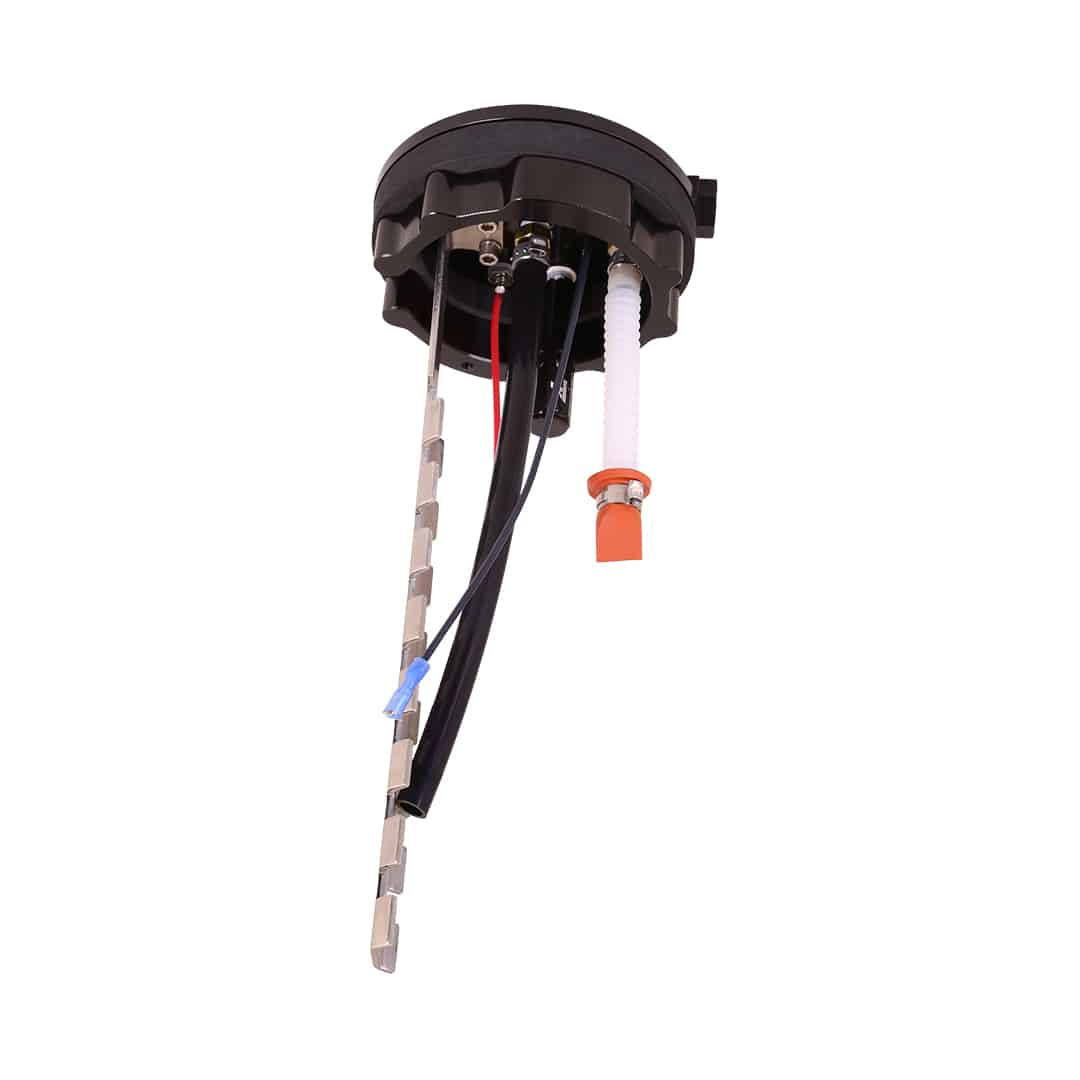

P/N 18398 EFI-Returnless Phantom In-Tank Pump
58-60 PSI Internally regulated, returnless EFI fuel pump kit

Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done!  Supports up to 600 FWHP naturally aspirated and up to 450 FWHP forced induction on gasoline.  Not e85 Compatible.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

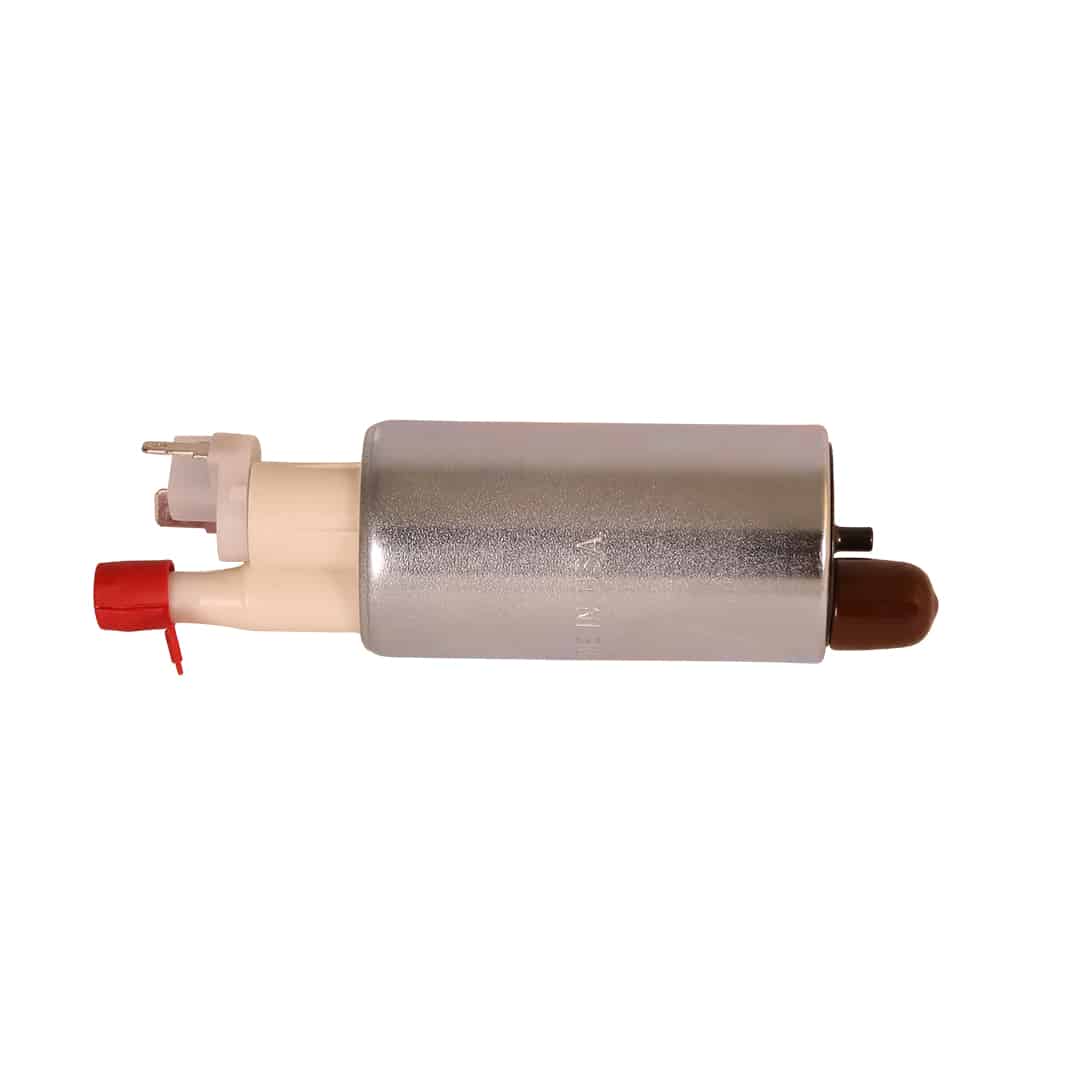

  • 200 Stealth in-tank, baffled fuel pump

  • 55-60 PSI internal bypass valve for returnless installations

  • ORB-06 outlet and vent ports

  • Gasoline compatible only.

  • Made for non-pulse modulated return-less systems.


Recommended parts to complete the system include:

Additional information
Aeromotive’s all-new returnless EFI Phantom 200 is a cost-effective way to fuel a late model EFI engine swapped into an early, carbureted muscle car or truck. For those who want an in-tank, baffled fuel pump, but they don't want to run an external regulator with a return line, the new Phantom EFI-Returnless In-Tank Pump is just the ticket.

Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done!  Supports up to 600 FWHP naturally aspirated and up to 450 FWHP forced induction EFI on gasoline.  Not E85 Compatible.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

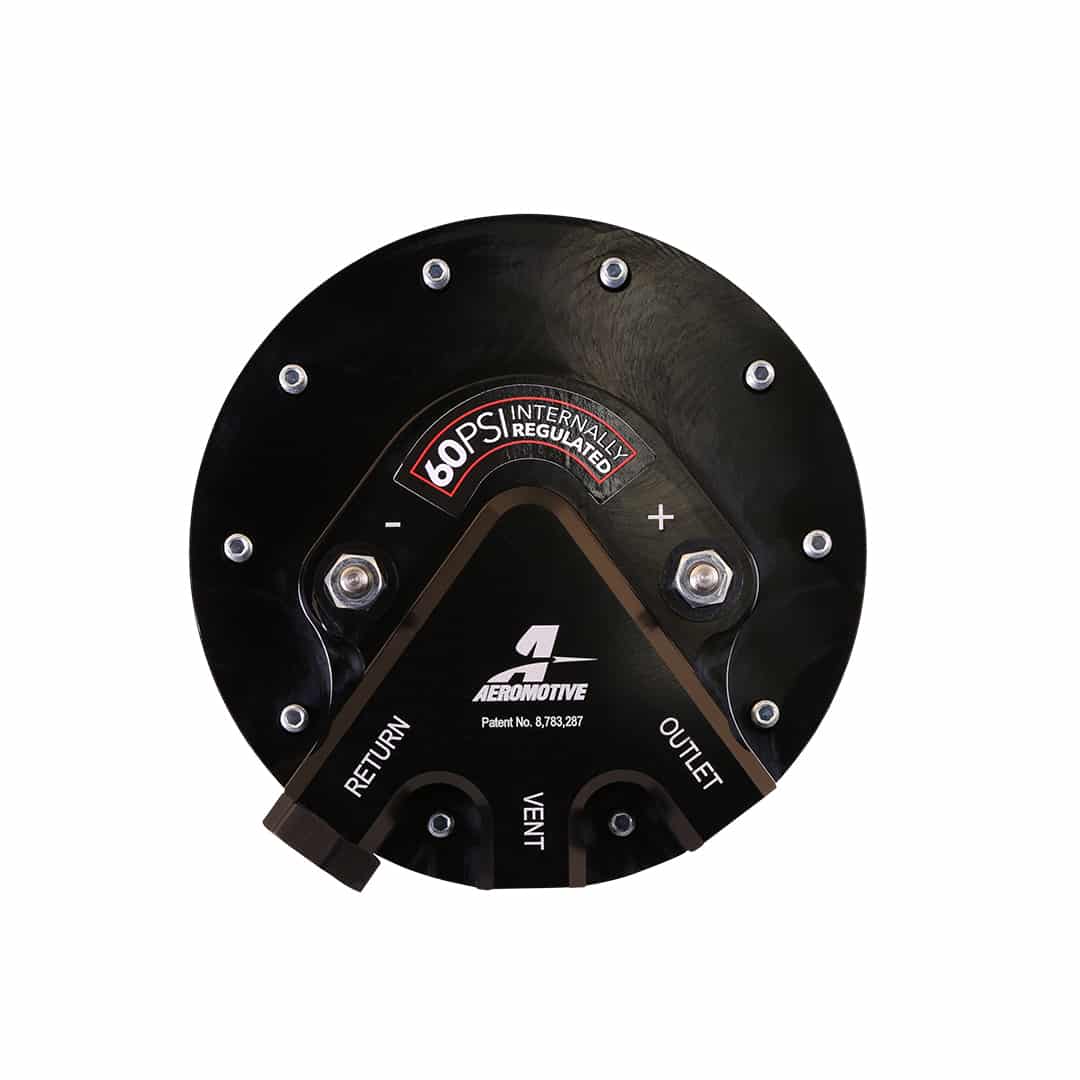

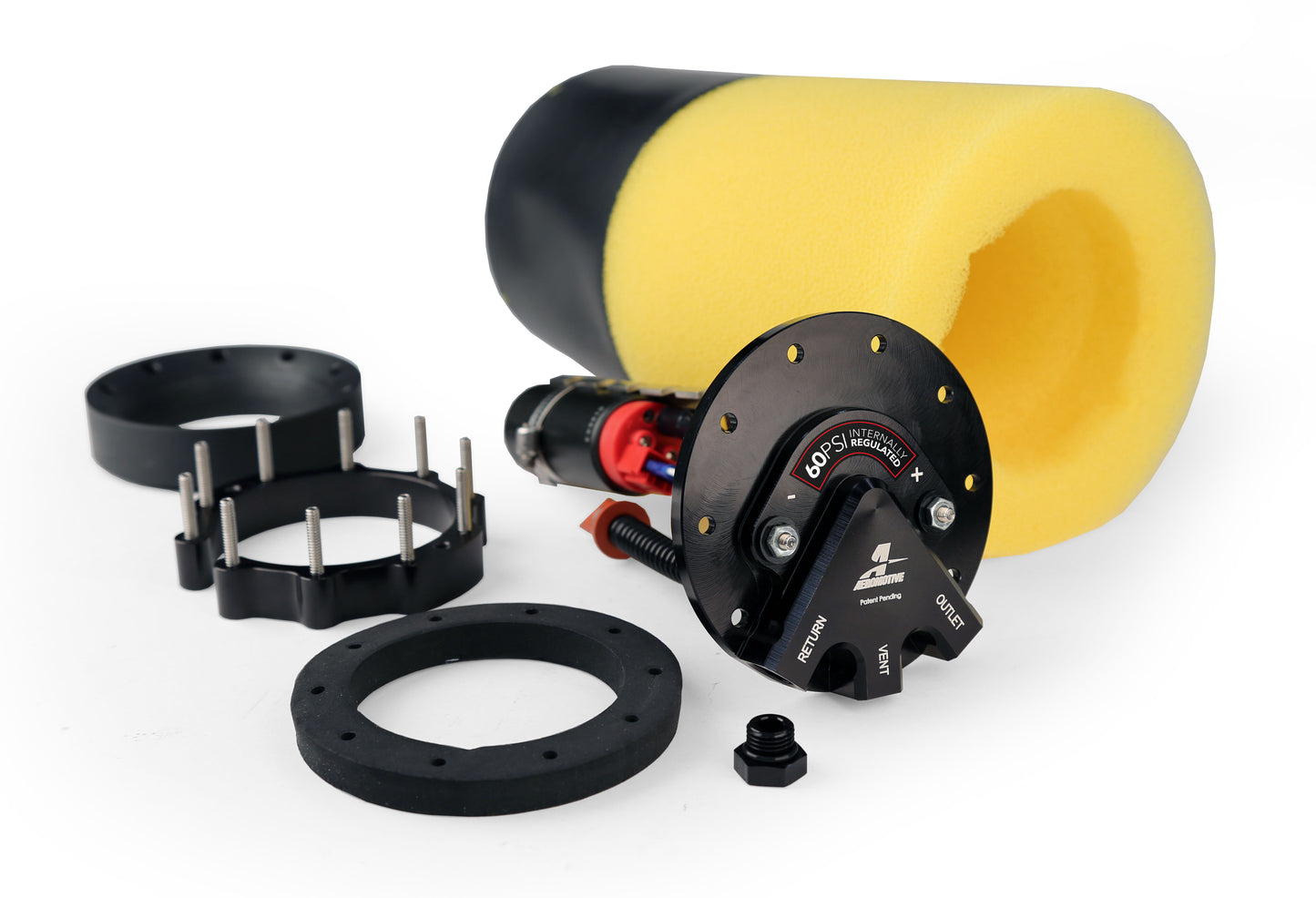

  • Billet Top Hat with ORB-06 ports

  • 55-60 PSI internal bypass valve for returnless installations

  • Foam Baffle & Bladder Sump

  • Proprietary Sealing Gasket

  • Installation Ring

  • High-Flow Pre-Pump Filter

  • Billet C-Ring Mount

  • Height Adjustable 6-11”

  • ORB-06 port plug

Specifications
Series Phantom
Maximum Flow Rating 200
Maximum Pressure 55-60
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Fuel Injection
Outlet Type Female Thread
Outlet Outside Diameter AN-06
Maximum Current Draw 8.3
Voltage 12
Negative Ground Yes
Wiring Harness Included No
Terminal Gender Male
Terminal Quantity 2
Terminal Type Threaded Stud
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included Yes
Mounting Hardware Included Yes
Seal And Lock Ring Included Yes
Gasket Or Seal Included Yes
Grade Type Performance

Installation Instructions
