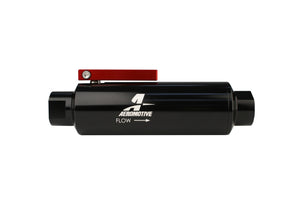

100 Micron Shutoff Valve Fuel Filter with ORB-10 Ports & Stainless Mesh Element

100 Micron Shutoff Valve Fuel Filter with ORB-10 Ports & Stainless Mesh Element

Part Number: 12331
Skip to product information

Product Info

P/N 12331: ORB-10 Shutoff Valve Fuel Filter

Ever take a fuel bath when changing your filter?
We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or
sumped tank and the fuel pump inlet.

  • ORB-10 ports

  • 100 micron stainless steel (coarse) cleanable element.

  • Dimensions: 7.38'' long x 2'' diameter

  • Proprietary stainless steel shutoff valve design.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle.

  • Perfect for pre-pump filtration.Watch the video about this product.

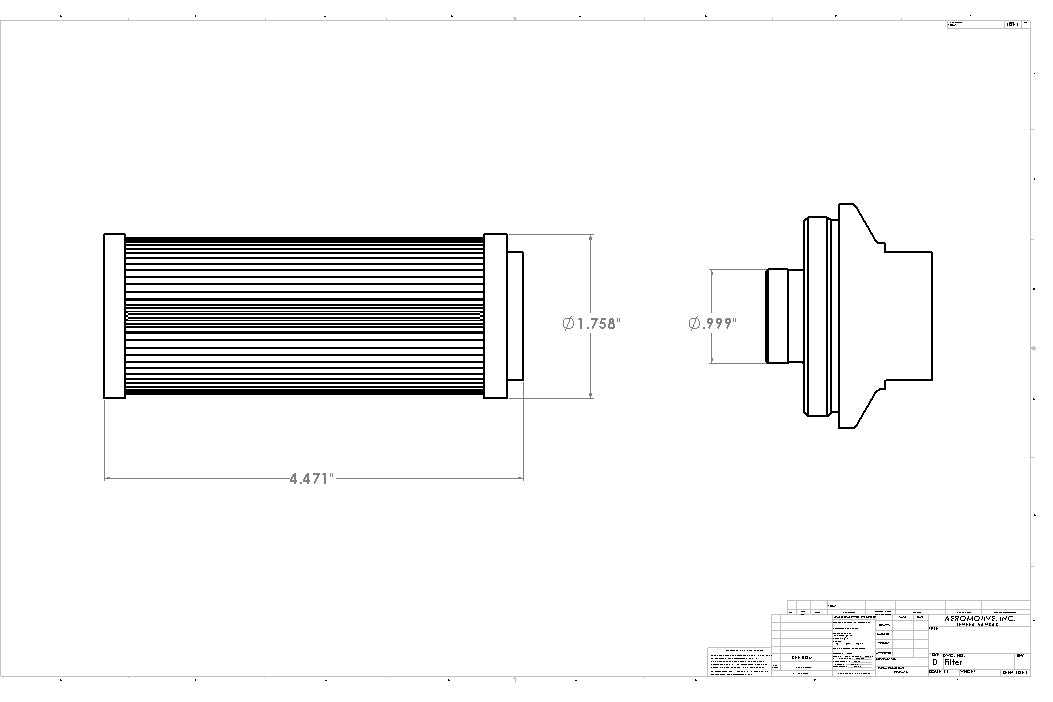

100 Micron ORB 10 Element - 12604

Specifications

Fuel Filter Style Inline
Fuel Type All Fuels
Inlet Quantity 1
Inlet Size AN-10
Inlet Attachment Female Thread
Inlet Outside Diameter AN-10
Outlet Quantity 1
Outlet Size AN-10
Outlet Attachment Female Thread
Outlet Outside Diameter AN-10
End 1 Gender Female
End 2 Gender Female
Fitting Type AN-10
Fittings Included No
Filter Element Included Yes
Filter Element Material Stainless steel mesh
Micron Rating 100
Smallest Particle Filtered 100 microns
Flow Rate 2000 Pounds Per Hour
Filter Housing Color Black
Filter Housing Finish Anodized
Filter Housing Diameter 2.0 Inches
Filter Housing Length 5.5 Inches
Filter Housing Material Billet Aluminum
Mounting Type External
Mounting Bracket Included No
Clamps Included No
Gasket Or Seal Included Yes
Maximum Fuel Pressure (psi) 70 PSI
Universal Or Specific Fit Universal

filter replacement element

  • Product warranty

    Limited Warranty for Aeromotive Products for the United States of America

    Aeromotive, LLC warrant to the original end user purchaser in the United States that the Aeromotive and Waterman Racing Components branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.

     Products Warranty Duration
    • Aeromotive marine pumps
    2 years
    • All other Aeromotive products
    • Waterman Racing Components products
    1 year



    Because Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.

    This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.

    Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.

    Company will replace or repair a defective Product that is covered by this warranty. This
    warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.

    There are no warranties which extend beyond those stated herein. ANY IMPLIED
    WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
    WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
    LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
    allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

    UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
    INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
    WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

    This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

    If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.

    This warranty supersedes any warranties stated in product manuals or other written materials.

    Effective Date: March 16, 2026
