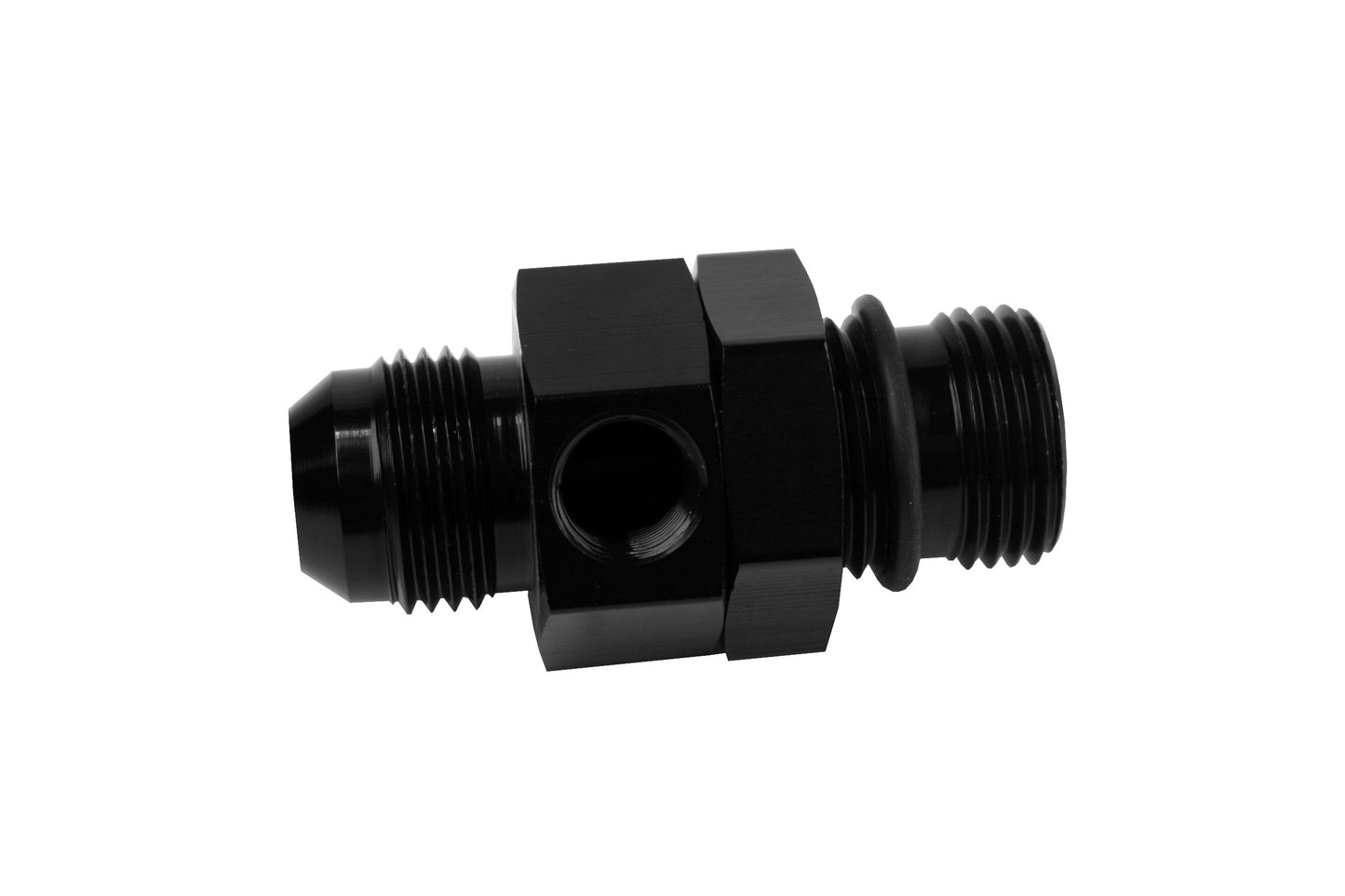

ORB-08 to AN-08 In-line Gauge Adapter

ORB-08 to AN-08 In-line Gauge Adapter

Part Number: 15695 / UPC 00684980005363
Skip to product information

Product Info

P/N 15695 ORB-08 to AN-08 In-line Gauge Adapter
ORB Port to AN Male Flare Gauge Adapter with Jamb Nut to allow clocking the gauge port position.

  • Adapts any ORB-08 port for in-line fuel pressure take-off point to easily monitor system pressure where no gauge port is currently available.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Standard 1/8" NPT Gauge Port

  • ORB-08 male with o-ring included.

  • Fits and seals in all ORB-08 ports.

  • AN-08 male works with all AN-08 hose-ends.

  • Design allows gauge port to be clocked.

Additional information

In-Line Gauge Adapter, ORB Male to AN Male Flare.  Jamb-Nut style allows the gauge port to be clocked and the ORB port side tightened for proper sealing.

Ideal for installing a pressure gauge where no pressure test port is available.  Perfect for checking flowing pressure at various locations in any bypass or return-style fuel system, finding hidden flow restrictions that create excessive back pressure like a clogged or restrictive filter.  Just locate the gauge and gauge adapter between the pump and the next likely restriction and turn on the pump, then compare pressure to the fuel rail or carburetor pressure.  Any reading more than 5-PSI higher than the engine operating pressure indicates a restriction worth investigating.

The Aeromotive line of custom fittings, adapters and hose-ends are a step above the norm, offering uncompromising fuel flow and positive sealing.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Constructed of 6061 T6 aircraft grade aluminum or stainless steel, each component is CNC-machined for precision fit and unmatched flow. All billet aluminum fittings are anodized Type II bright dip black for corrosion protection and good looks.

Aeromotive offers a wide range of hard to find fittings including ORB to AN port fittings and OEM specific adapters that support AN connections.

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.
