Part Number: 11108
Product Info
Product Info

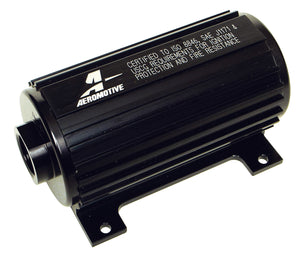

P/N 11108: Marine A100 Fuel Pump
For additional information on this product, see the A1000 Fuel Pump, P/N 11101
Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
Carbureted Engines:
up to 1500 HP - naturally aspirated
up to 1200 HP - forced air induction
Fuel Injected Engines:
up to 1300 HP - naturally aspirated
up to 1000 HP - forced air induction
For additional information on this product, see the A1000 Fuel Pump, P/N 11101
Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
Carbureted Engines:
up to 1500 HP - naturally aspirated
up to 1200 HP - forced air induction
Fuel Injected Engines:
up to 1300 HP - naturally aspirated
up to 1000 HP - forced air induction
Additional information
Additional information
For additional information on this product, see the A1000 Fuel Pump, P/N 11101
* This product is not compatible for use with diesel fuel. For an engineered solution for diesel, please click here.
- Certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
- ORB-10 inlet and outlet ports.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- For EFI applications use regulator P/N 13114, carbureted P/N 13207
- Qualified to run continuously for over 2,000 hours.
- Full, 2 year, factory direct warranty.
* This product is not compatible for use with diesel fuel. For an engineered solution for diesel, please click here.
Specifications
Specifications
Series | A1000 |
---|---|
Maximum Flow Rating | 1000 |
Maximum Pressure | 100 |
Fuel Type | Gas/E85 |
Universal Or Specific Fit | Universal |
Internal Or External | External Or Internal |
Pump Design | Rotary Vane |
Motor Style | Brushed |
Integrated Controller | No |
Pulse Width Modulation Compatible | Yes |
Fuel Delivery Type | Carburation & Fuel Injection |
Inlet Type | Female Thread |
Inlet Outside Diameter | ORB-10 |
Outlet Type | Female Thread |
Outlet Outside Diameter | ORB-10 |
Maximum Current Draw | 18 @ 45 psi |
Voltage | 12 |
Negative Ground | Yes |
Wire Quantity | 0 |
Wiring Harness Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Threaded Stud |
Strainer Included | No |
Fuel Sending Unit Included | No |
Regulator Included | No |
Mounting Bracket Included | Yes |
Mounting Hardware Included | No |
Seal And Lock Ring Included | No |
Gasket Or Seal Included | No |
Grade Type | Performance |
