Part Number: 11209
Product Info
Product Info

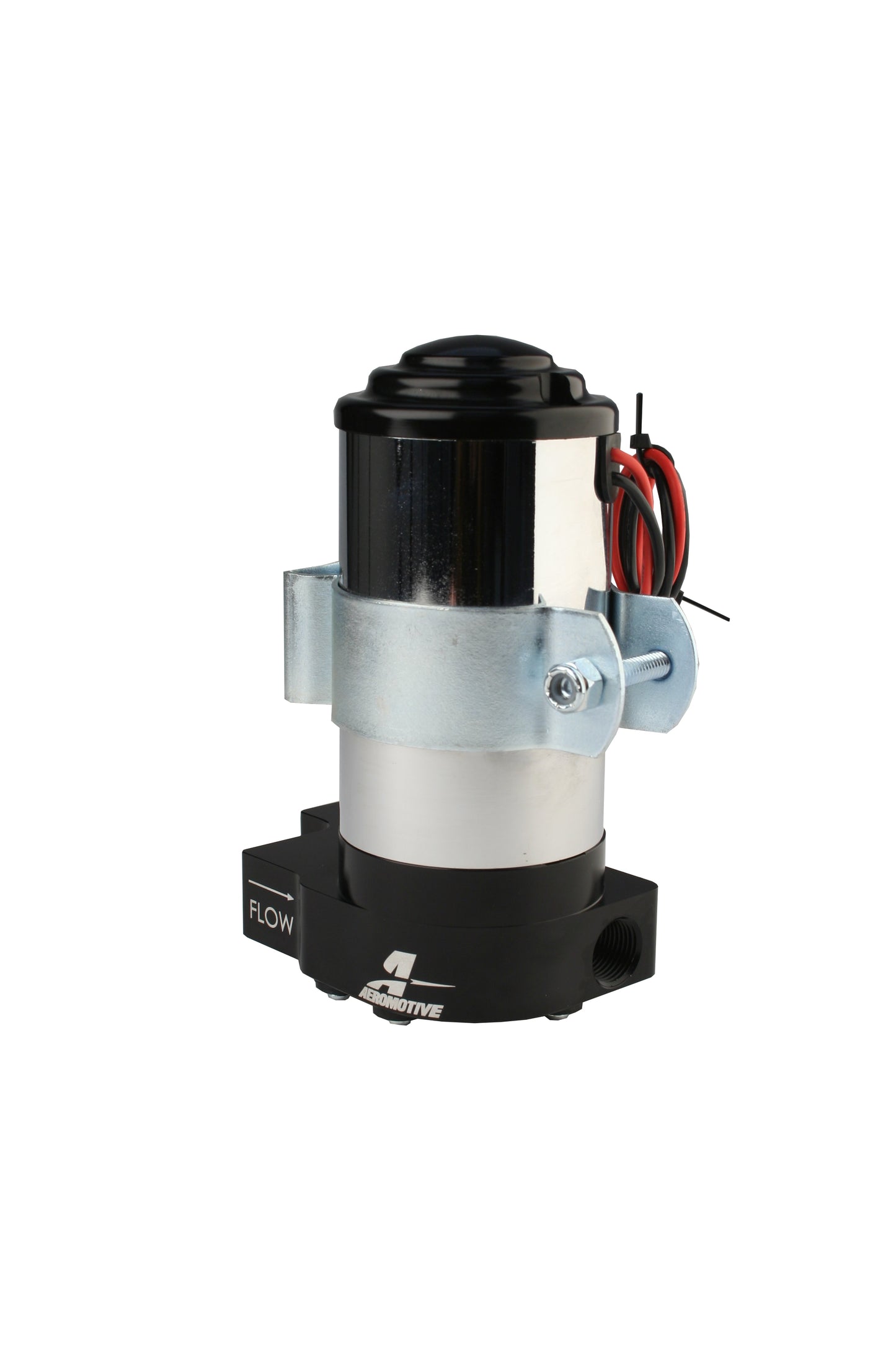

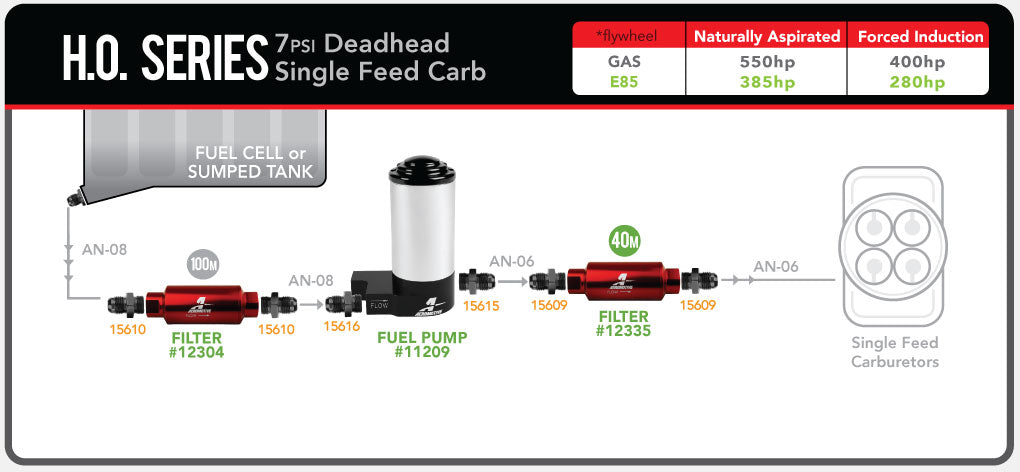

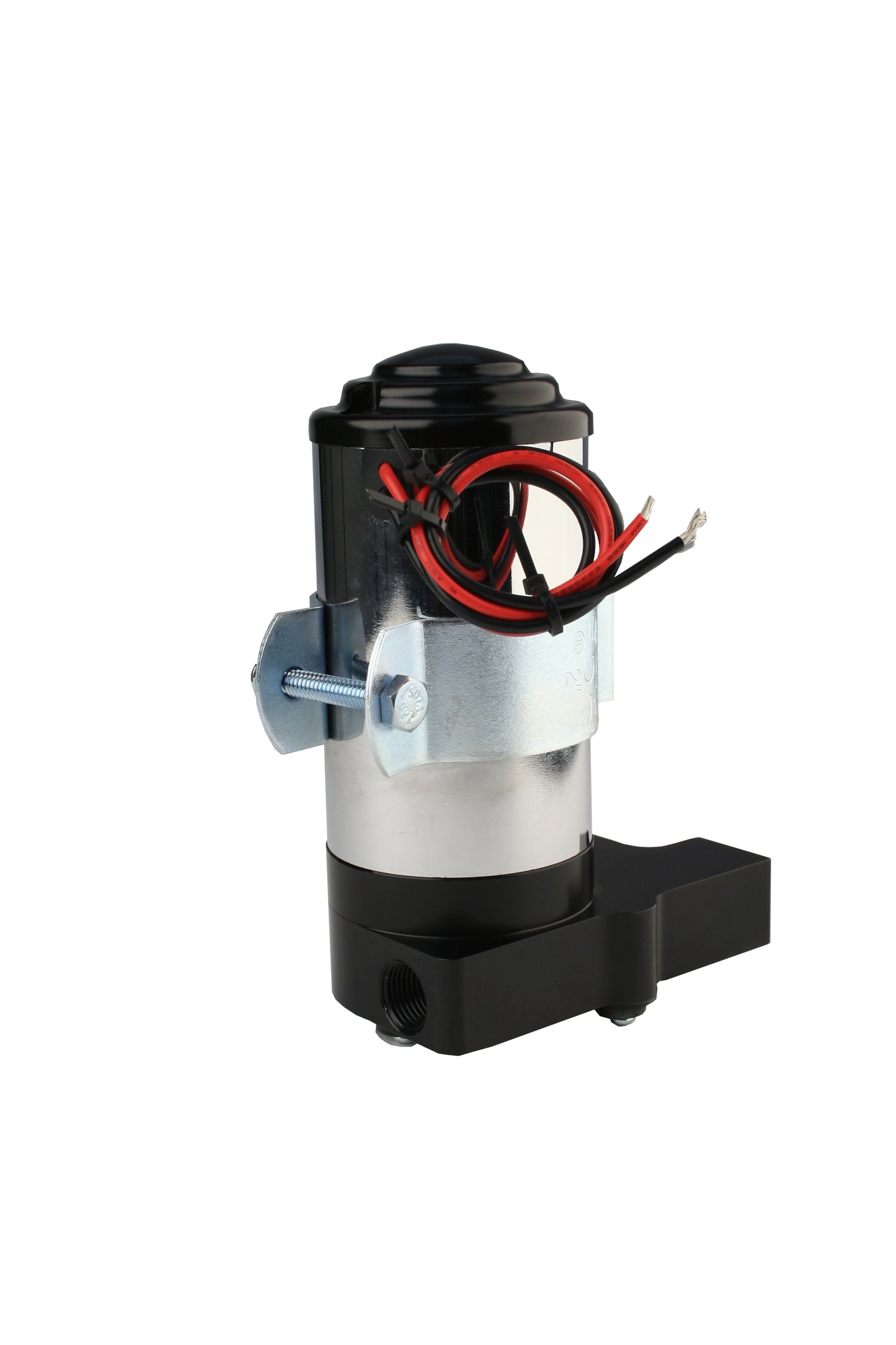

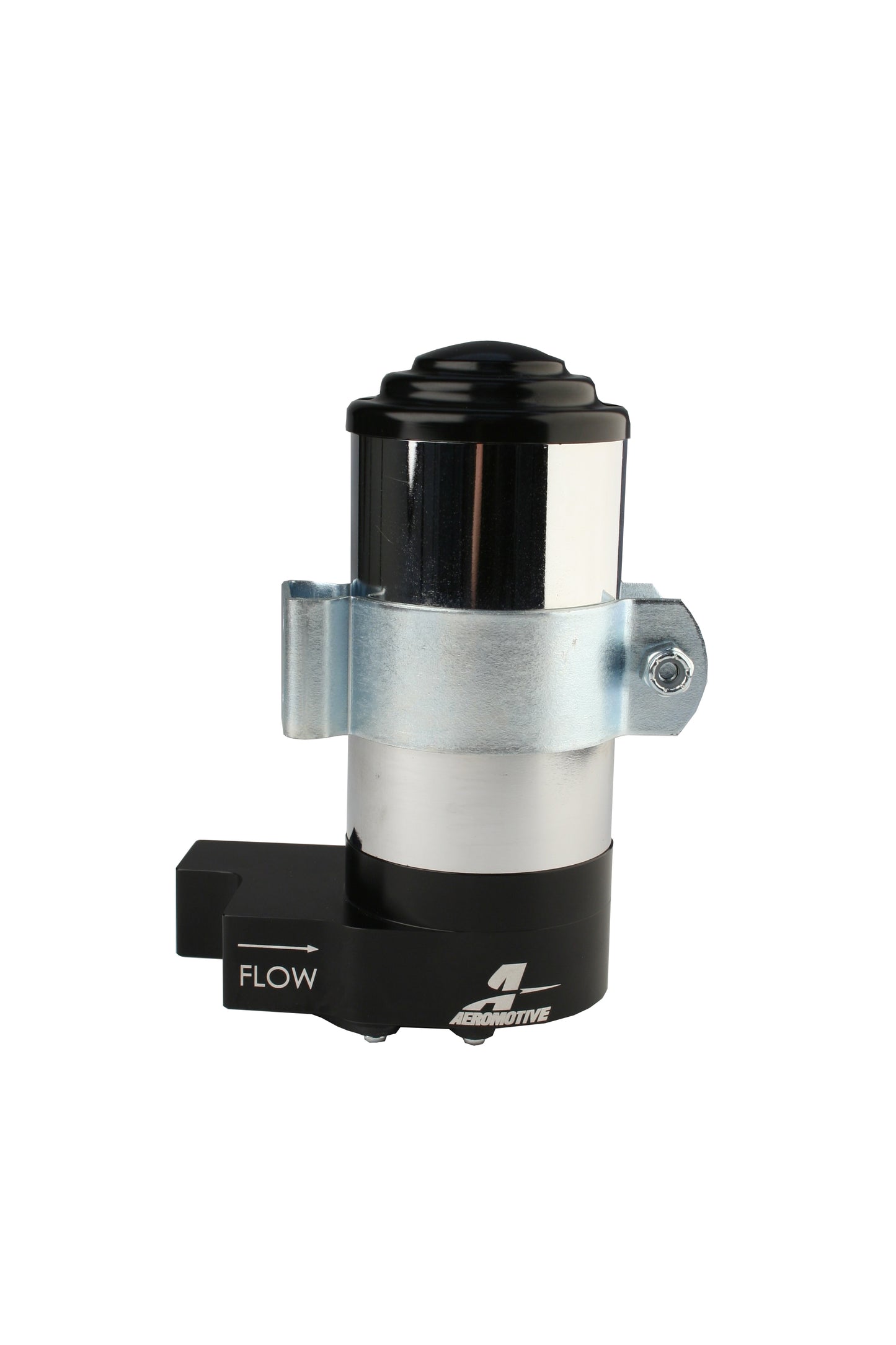

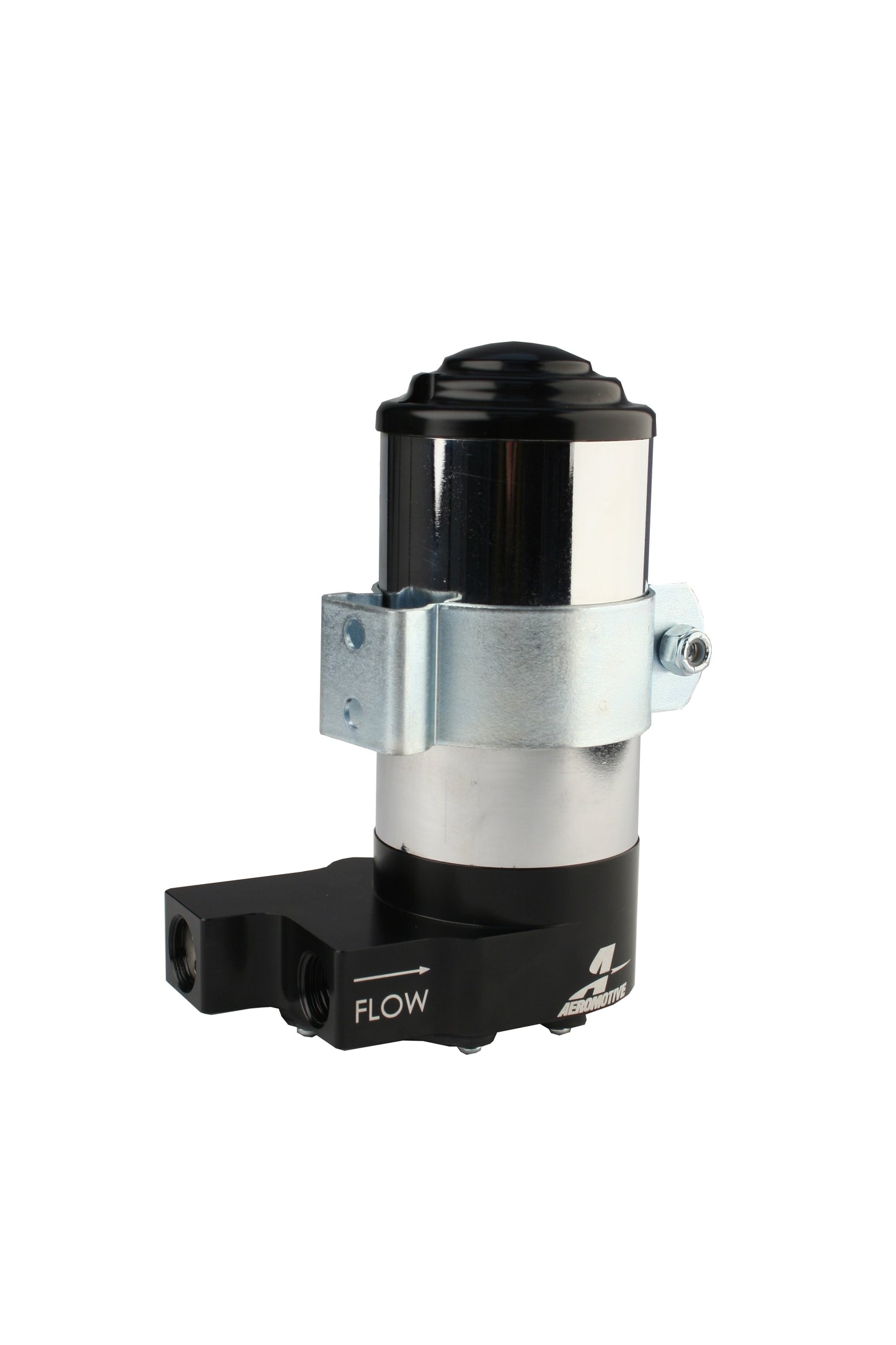

Ideal for carbureted power plants not using a separate fuel pressure regulator, the high output (H/O) Fuel Pump is designed for engines making 200-600 HP and is ideal for street cars and mild race cars alike. Similar to our SS Fuel Pump design, but internally regulated to 7 PSI.
- Available with optional 3/8' NPT (or) ORB -8 inlet and outlet ports.
- Durable billet construction.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Fuel flow exceeds 90 GPH at 5 PSI and draws less than 5 amps.
- Internally regulated to 7 PSI, eliminating the need for a separate regulator on most carburetors.
- Rated for continuous duty, the pumping mechanism features a composite rotor, stainless steel vanes and heat treated steel top and bottom plates for durability.
Specifications
Specifications
#11209 - 3/8" NPT | #11219 - ORB -8 AN | |
---|---|---|
Series | H/O | H/O |
Maximum Flow Rating | 90 GPH | 90 GPH |
Maximum Pressure | 15 | 100 |
Fuel Type | Gas/E85 | Gas/E85 |
Universal Or Specific Fit | Universal | Universal |
Pump Design | Rotary Vane | Rotary Vane |
Motor Style | Brushed | Brushed |
Integrated Controller | No | No |
Pulse Width Modulation Compatible | Yes | Yes |
Fuel Delivery Type | Carbureted | Carbureted |
Inlet Type | Female Thread | Female Thread |
Inlet Outside Diameter | 3/8" | ORB-08 |
Outlet Type | Female Thread | Female Thread |
Outlet Outside Diameter | 3/8" | ORB-08 |
Maximum Current Draw | 10 @ 9 psi | 15 @ 45 psi |
Voltage | 12 | 12 |
Negative Ground | Yes | Yes |
Wire Quantity | 2 | 2 |
Wiring Harness Included | No | No |
Terminal Quantity | 0 | 0 |
Terminal Type | Lead Wire | Lead Wire |
Strainer Included | No | No |
Fuel Sending Unit Included | No | No |
Regulator Included | No | No |
Mounting Bracket Included | Yes | Yes |
Mounting Hardware Included | No | No |
Seal And Lock Ring Included | No | No |
Gasket Or Seal Included | No | No |
Grade Type | Performance | Performance |
Marine Approved | No | No |
