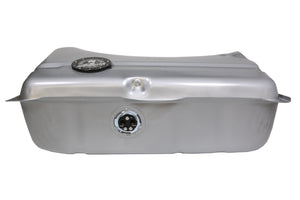

Gen II Stealth Fuel Tank, 70-76 Dart/Duster

Gen II Stealth Fuel Tank, 70-76 Dart/Duster

Part Number: 18144
Skip to product information

Product Info

P/N 18144: '70-'76 Dart / Duster
With Stealth 200 pump and 73-10 ohm sending unit


  • Perfect for EFI and carbureted engines

  • OEM appearance and 16-gallon capacity

  • High flow, quiet 200 or 340 Stealth fuel pump

  • 73-10 Ohm fuel level sending unit included

  • Billet hat with ORB-06 outlet and return ports

  • Utilizes OEM fuel outlet location and seal

  • Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control

  • Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install

  • Utilizes stock mounting straps, filler cap and vent

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


P/N 18144 - 200lph Stealth Gen II Tank Application Specs:

  • Fuel Injected Engines (gasoline):

    • Up to 600 HP – naturally aspirated.

    • Up to 450 HP – forced air induction.



  • Carbureted Engines (gasoline):

    • Up to 750 HP – naturally aspirated.

    • Up to 600 HP – forced air induction.




P/N 18444 - 340lph Stealth Gen II Tank Application Specs:

  • Fuel Injected Engines:

    • Gasoline: up to 850 HP – naturally aspirated.

    • Gasoline: up to 700 HP – forced air induction.

    • E85: up to 595 HP – naturally aspirated.

    • E85: up to 490 HP – forced air induction.



  • Carbureted Engines:

    • Gasoline: up to 1000 HP – naturally aspirated.

    • Gasoline: up to 850 HP – forced air induction.

    • E85: up to 700 HP – naturally aspirated.

    • E85: up to 595 HP – forced air induction.




P/N 18844 – 525lph Stealth Gen II Tank Application Specs:

  • Fuel Injected Engines:

    • Gasoline: up to 1200 HP – naturally aspirated.

    • Gasoline: up to 900 HP – forced air induction.

    • E85: up to 810 HP – naturally aspirated.

    • E85: up to 600 HP – forced air induction.



  • Carbureted Engines:

    • Gasoline: up to 1400 HP – naturally aspirated.

    • Gasoline: up to 1100 HP – forced air induction.

    • E85: up to 950 HP – naturally aspirated.

    • E85: up to 740 HP – forced air induction.




GEN II Stealth Tank Diagrams – Click Here

Additional information

Why an Aeromotive Gen II Stealth Fuel Tank?

The new Gen II Stealth tank utilizes Aeromotive’s patented and award-winning Phantom in-tank technology that enables a quiet, high-flow EFI pump and baffle to maintain an ample fuel supply around the inlet of the pump while ensuring consistent fuel delivery and drivability even in low fuel conditions. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Unlike competitive tanks, Aeromotive’s Gen II Stealth tanks feature outlet and return ports along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers.

All Gen II Stealth tanks come out of the box completely assembled. The fuel pump, fuel level sending unit, and fuel/electrical bulkhead are pre-installed. As a true plug-and-play assembly, the Aeromotive Gen II Stealth tank gets you out of the garage and on the road in no time.

Specifications

#18144 - 200 lph #18444 - 340 lph #18844 - 525 lph
Series Gen II Stealth Gen II Stealth Gen II Stealth
Capacity 16 Gallons 16 Gallons 16 Gallons
Baffled Yes Yes Yes
Material Steel Steel Steel
Universal Or Specific Fit Specific Specific Specific
Color Silver Silver Silver
Filler Neck Attached Yes Yes Yes
Width 14 Inches 14 Inches OEM Inches
Fuel Type Gas Gas Gas
Grade Type Performance Performance Performance
Height 25 Inches 25 Inches OEM Inches
Length 33 Inches 33 Inches OEM Inches
Mounting Hardware Included No No No
Mounting Straps Included No No No
Sender Ohm Range 73-10 73-10 73-10
Sending Unit Included Yes Yes Yes
Fuel Pump Included Yes Yes Yes
Maximum Flow Rating 200LPH 340LPH 525LPH
Maximum Pressure 95 PSI 105 PSI 105 PSI
Pump Design Turbine Impeller Turbine Impeller Turbine Impeller
Motor Style Brushed Brushed Brushed
Integrated Controller No No No
Pulse Width Modulation Compatible Yes Yes Yes
Outlet Type Female Female Female
Outlet Outside Diameter ORB-06 ORB-06 ORB-06
Return Fitting Size ORB-06 ORB-06 ORB-06
Maximum Current Draw 8.3A @ 40PSI 13A @ 40PSI 17A @ 40PSI
Voltage 12-16V 12-16V 12-16V
Negative Ground Yes Yes Yes
Terminal Gender Male Male Male
Terminal Quantity 3 3 3
Terminal Type Threaded Stud Threaded Stud Threaded Stud

Installation Instructions

Instruction Manual
18144 Installation Instructions

Download PDF
Instruction Manual
18444 Installation Instructions

Download PDF
Instruction Manual
18844 Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews
