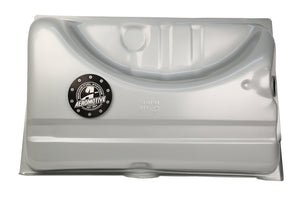

P/N 18161: Gen II Stealth Fuel Tank 68-69 Dart
with Stalth 200 pump
GEN II Stealth Tank Diagrams - Click Here
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 18161 - 200lph Stealth Gen II Tank Application Specs:
P/N 18461 - 340lph Stealth Gen II Tank Application Specs:
P/N 18861 – 525lph Stealth Gen II Tank Application Specs:
with Stalth 200 pump
- OEM style tank, fully assembled.
- 18-Gallon Capacity.
- Fuel level sending unit 73-10 ohm.
- Complete with new tank, fuel pump, fuel sock.
- Phantom baffle assembly built-in.
- AN-06 O-ring Inlet/outlet ports in factory stock location.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
GEN II Stealth Tank Diagrams - Click Here
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 18161 - 200lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines (gasoline):
- Up to 600 HP – naturally aspirated.
- Up to 450 HP – forced air induction.
-
Carbureted Engines (gasoline):
- Up to 750 HP – naturally aspirated.
- Up to 600 HP – forced air induction.
P/N 18461 - 340lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines:
- Gasoline: up to 850 HP – naturally aspirated.
- Gasoline: up to 700 HP – forced air induction.
- E85: up to 595 HP – naturally aspirated.
- E85: up to 490 HP – forced air induction.
-
Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 700 HP – naturally aspirated.
- E85: up to 595 HP – forced air induction.
P/N 18861 – 525lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines:
- Gasoline: up to 1200 HP – naturally aspirated.
- Gasoline: up to 900 HP – forced air induction.
- E85: up to 810 HP – naturally aspirated.
- E85: up to 600 HP – forced air induction.
-
Carbureted Engines:
- Gasoline: up to 1400 HP – naturally aspirated.
- Gasoline: up to 1100 HP – forced air induction.
- E85: up to 950 HP – naturally aspirated.
- E85: up to 740 HP – forced air induction.
Additional information
Additional information
Why an Aeromotive Gen II Stealth Fuel Tank?
The new Gen II Stealth tank utilizes Aeromotive’s patented and award-winning Phantom in-tank technology that enables a quiet, high-flow EFI pump and baffle to maintain an ample fuel supply around the inlet of the pump while ensuring consistent fuel delivery and drivability even in low fuel conditions. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Unlike competitive tanks, Aeromotive’s Gen II Stealth tanks feature outlet and return ports along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers.
All Gen II Stealth tanks come out of the box completely assembled. The fuel pump, fuel level sending unit, and fuel/electrical bulkhead are pre-installed. As a true plug-and-play assembly, the Aeromotive Gen II Stealth tank gets you out of the garage and on the road in no time.
The new Gen II Stealth tank utilizes Aeromotive’s patented and award-winning Phantom in-tank technology that enables a quiet, high-flow EFI pump and baffle to maintain an ample fuel supply around the inlet of the pump while ensuring consistent fuel delivery and drivability even in low fuel conditions. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Unlike competitive tanks, Aeromotive’s Gen II Stealth tanks feature outlet and return ports along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers.
All Gen II Stealth tanks come out of the box completely assembled. The fuel pump, fuel level sending unit, and fuel/electrical bulkhead are pre-installed. As a true plug-and-play assembly, the Aeromotive Gen II Stealth tank gets you out of the garage and on the road in no time.
Specifications
Specifications
| #18161 - 200 lph | #18461 - 340 lph | #18861 - 525 lph | |
|---|---|---|---|
| Series | Gen II Stealth | Gen II Stealth | Gen II Stealth |
| Capacity | 18 Gallons | 18 Gallons | 18 Gallons |
| Baffled | Yes | Yes | Yes |
| Material | Steel | Steel | Steel |
| Universal Or Specific Fit | Specific | Specific | Specific |
| Color | Silver | Silver | Silver |
| Filler Neck Attached | Yes | Yes | Yes |
| Width | OEM Inches | OEM Inches | OEM Inches |
| Fuel Type | Gas | Gas | Gas |
| Grade Type | Performance | Performance | Performance |
| Height | OEM Inches | OEM Inches | OEM Inches |
| Length | OEM Inches | OEM Inches | OEM Inches |
| Mounting Hardware Included | No | No | No |
| Mounting Straps Included | No | No | No |
| Sender Ohm Range | 73-10 | 73-10 | 73-10 |
| Sending Unit Included | Yes | Yes | Yes |
| Fuel Pump Included | Yes | Yes | Yes |
| Maximum Flow Rating | 200LPH | 340LPH | 525LPH |
| Maximum Pressure | 95 PSI | 105 PSI | 105 PSI |
| Pump Design | Turbine Impeller | Turbine Impeller | Turbine Impeller |
| Motor Style | Brushed | Brushed | Brushed |
| Integrated Controller | No | No | No |
| Pulse Width Modulation Compatible | Yes | Yes | Yes |
| Outlet Type | Female | Female | Female |
| Outlet Outside Diameter | ORB-06 | ORB-06 | ORB-06 |
| Return Fitting Size | ORB-06 | ORB-06 | ORB-06 |
| Maximum Current Draw | 8.3A @ 40PSI | 13A @ 40PSI | 17A @ 40PSI |
| Voltage | 12-16V | 12-16V | 12-16V |
| Negative Ground | Yes | Yes | Yes |
| Terminal Gender | Male | Male | Male |
| Terminal Quantity | 3 | 3 | 3 |
| Terminal Type | Threaded Stud | Threaded Stud | Threaded Stud |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
Regular price
$720.95
