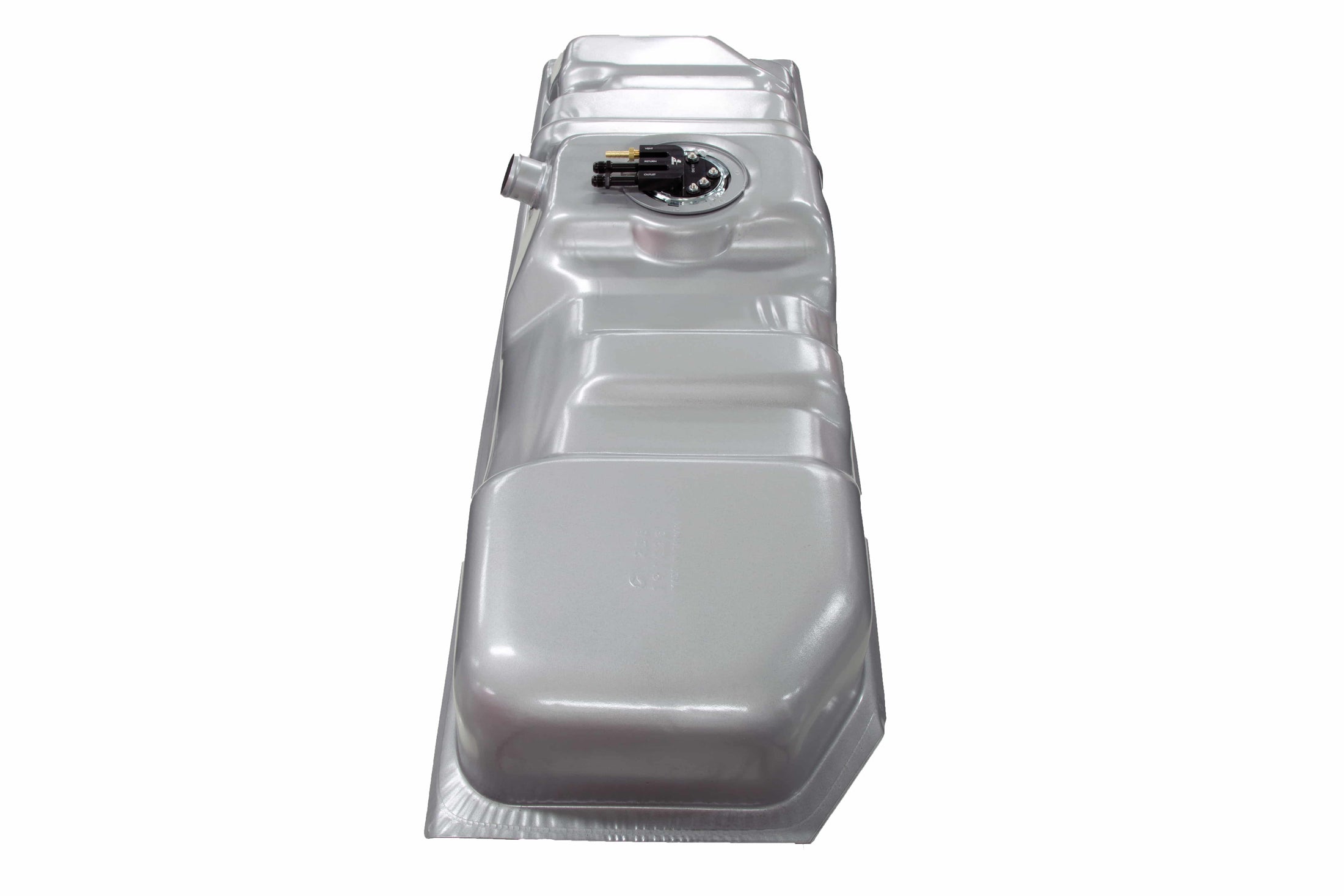

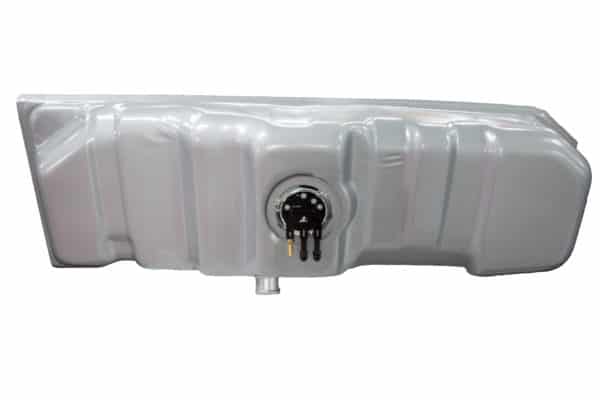

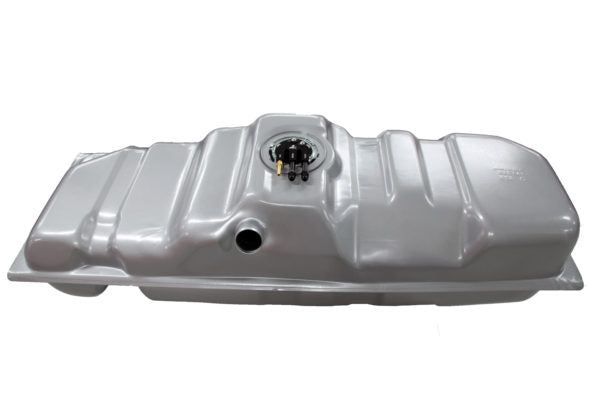

Gen II Stealth Fuel Tank, 88-98 C/K 1500/2500 Chevy Truck
Gen II Stealth Fuel Tank, 88-98 C/K 1500/2500 Chevy Truck
Product Info
Product Info
P/N 18174: 1988-2000 C/K 1500 / 2500 Chevy Truck
With Stealth 200 Pump and 0-90 ohm Sending Unit
P/N 18174 - 200lph Stealth Gen II Tank Application Specs:
P/N 18474 - 340lph Stealth Gen II Tank Application Specs:

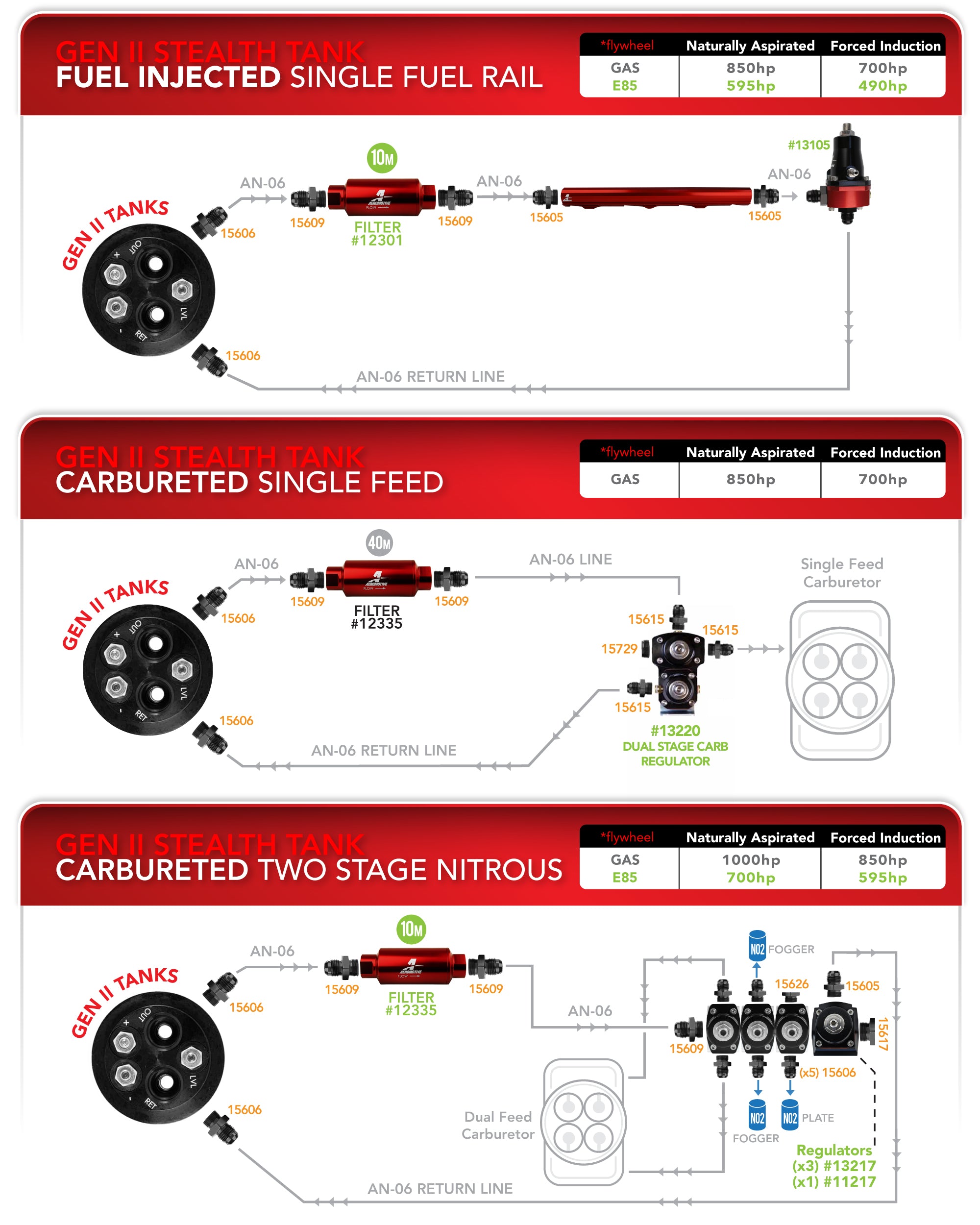

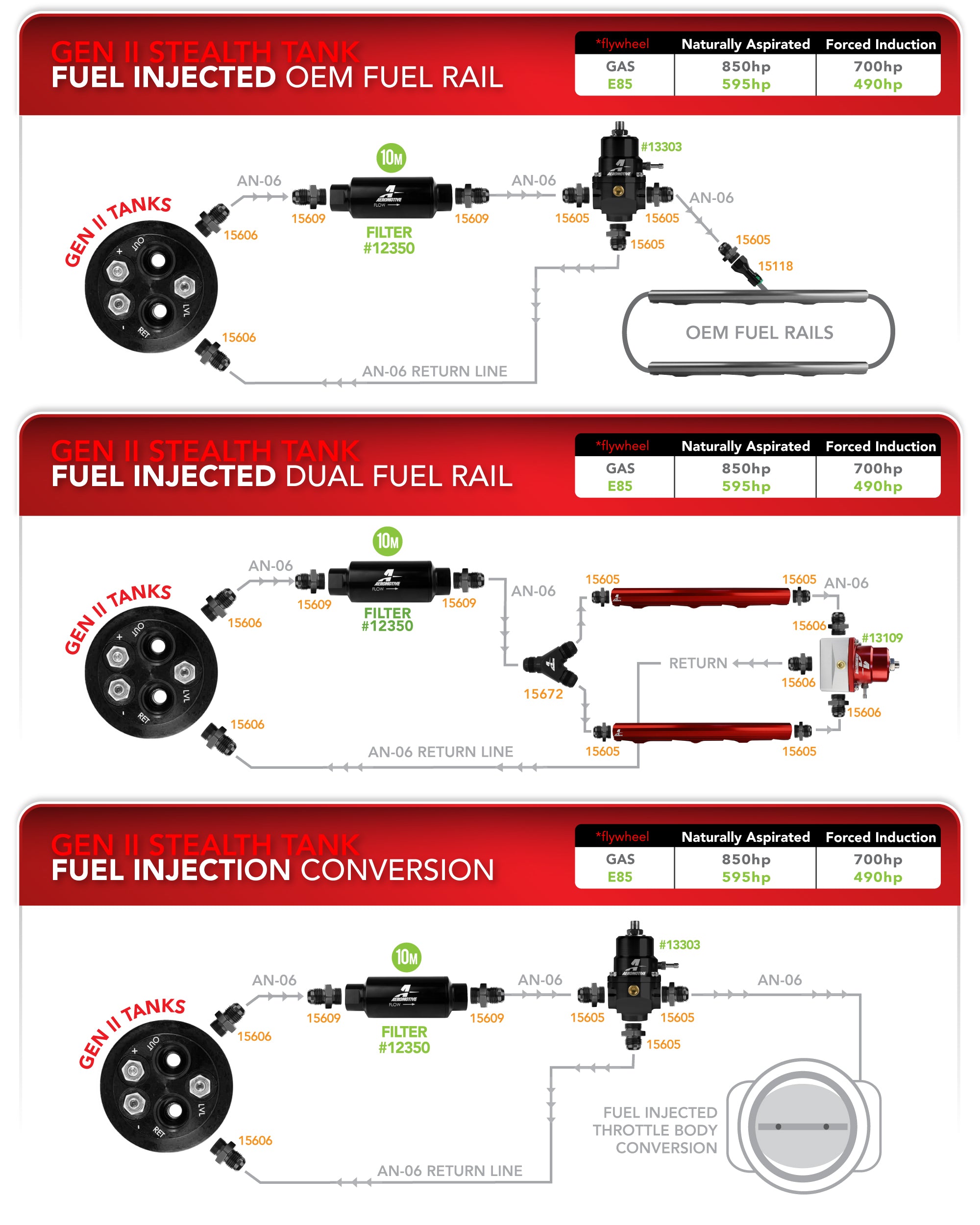

GEN II Stealth Tank Diagrams - Click Here
With Stealth 200 Pump and 0-90 ohm Sending Unit
P/N 18474: 1988-2000 C/K 1500 / 2500 Chevy Truck
With Stealth 340 Pump and 0-90 ohm Sending Unit
- Perfect for EFI and carbureted engines
- OEM appearance and 25-gallon capacity
- High flow, 340 Stealth fuel pump
- 0-90 Ohm fuel level sending unit included
- Utilizes OEM fuel outlet location and seal
- Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control
- Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install
- Utilizes stock mounting straps, filler cap and vent
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 18174 - 200lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines:
- Gasoline up to 600hp - Naturally Aspirated
- Gasoline up to 450hp - Forced Induction
-
Carbureted Engines:
- Gasoline up to 750hp - Naturally Aspirated
- Gasoline up to 600hp - Forced Induction
P/N 18474 - 340lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines:
- Gasoline: up to 850 HP – naturally aspirated.
- Gasoline: up to 700 HP – forced air induction.
- E85: up to 595 HP – naturally aspirated.
- E85: up to 490 HP – forced air induction.
-
Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 700 HP – naturally aspirated.
- E85: up to 595 HP – forced air induction.
GEN II Stealth Tank Diagrams - Click Here
Specifications
Specifications
| #18174 - 200 lph | #18474 - 340 lph | |
|---|---|---|
| Series | Gen II Stealth | Gen II Stealth |
| Capacity | 25 Gallons | 25 Gallons |
| Baffled | Yes | Yes |
| Material | Steel | Steel |
| Universal Or Specific Fit | Specific | Specific |
| Color | Silver | Silver |
| Filler Neck Attached | Yes | Yes |
| Width | OEM Inches | OEM Inches |
| Fuel Type | Gas | Gas |
| Grade Type | Performance | Performance |
| Height | OEM Inches | OEM Inches |
| Length | OEM Inches | OEM Inches |
| Mounting Hardware Included | No | No |
| Mounting Straps Included | No | No |
| Sender Ohm Range | 0-90 | 0-90 |
| Sending Unit Included | Yes | Yes |
| Fuel Pump Included | Yes | Yes |
| Maximum Flow Rating | 200LPH | 340LPH |
| Maximum Pressure | 95 PSI | 105 PSI |
| Pump Design | Turbine Impeller | Turbine Impeller |
| Motor Style | Brushed | Brushed |
| Integrated Controller | No | No |
| Pulse Width Modulation Compatible | Yes | Yes |
| Outlet Type | Female | Female |
| Outlet Outside Diameter | ORB-06 | ORB-06 |
| Return Fitting Size | ORB-06 | ORB-06 |
| Maximum Current Draw | 8.3A @ 40PSI | 13A @ 40PSI |
| Voltage | 12-16V | 12-16V |
| Negative Ground | Yes | Yes |
| Terminal Gender | Male | Male |
| Terminal Quantity | 3 | 3 |
| Terminal Type | Threaded Stud | Threaded Stud |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
Gen II Stealth Fuel Tank, 88-98 C/K 1500/2500 Chevy Truck
Gen II Stealth Fuel Tank, 88-98 C/K 1500/2500 Chevy Truck
Regular price
$576.95
Sale price
$576.95
Regular price
Unit price
per
$50 MAIL-IN REBATE Learn more
Does This part fit My vehicle?
Product Info
Product Info
P/N 18174: 1988-2000 C/K 1500 / 2500 Chevy Truck
With Stealth 200 Pump and 0-90 ohm Sending Unit
P/N 18174 - 200lph Stealth Gen II Tank Application Specs:
P/N 18474 - 340lph Stealth Gen II Tank Application Specs:
GEN II Stealth Tank Diagrams - Click Here
With Stealth 200 Pump and 0-90 ohm Sending Unit
P/N 18474: 1988-2000 C/K 1500 / 2500 Chevy Truck
With Stealth 340 Pump and 0-90 ohm Sending Unit
- Perfect for EFI and carbureted engines
- OEM appearance and 25-gallon capacity
- High flow, 340 Stealth fuel pump
- 0-90 Ohm fuel level sending unit included
- Utilizes OEM fuel outlet location and seal
- Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control
- Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install
- Utilizes stock mounting straps, filler cap and vent
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
P/N 18174 - 200lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines:
- Gasoline up to 600hp - Naturally Aspirated
- Gasoline up to 450hp - Forced Induction
-
Carbureted Engines:
- Gasoline up to 750hp - Naturally Aspirated
- Gasoline up to 600hp - Forced Induction
P/N 18474 - 340lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines:
- Gasoline: up to 850 HP – naturally aspirated.
- Gasoline: up to 700 HP – forced air induction.
- E85: up to 595 HP – naturally aspirated.
- E85: up to 490 HP – forced air induction.
-
Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 700 HP – naturally aspirated.
- E85: up to 595 HP – forced air induction.
GEN II Stealth Tank Diagrams - Click Here
Specifications
Specifications
| #18174 - 200 lph | #18474 - 340 lph | |
|---|---|---|
| Series | Gen II Stealth | Gen II Stealth |
| Capacity | 25 Gallons | 25 Gallons |
| Baffled | Yes | Yes |
| Material | Steel | Steel |
| Universal Or Specific Fit | Specific | Specific |
| Color | Silver | Silver |
| Filler Neck Attached | Yes | Yes |
| Width | OEM Inches | OEM Inches |
| Fuel Type | Gas | Gas |
| Grade Type | Performance | Performance |
| Height | OEM Inches | OEM Inches |
| Length | OEM Inches | OEM Inches |
| Mounting Hardware Included | No | No |
| Mounting Straps Included | No | No |
| Sender Ohm Range | 0-90 | 0-90 |
| Sending Unit Included | Yes | Yes |
| Fuel Pump Included | Yes | Yes |
| Maximum Flow Rating | 200LPH | 340LPH |
| Maximum Pressure | 95 PSI | 105 PSI |
| Pump Design | Turbine Impeller | Turbine Impeller |
| Motor Style | Brushed | Brushed |
| Integrated Controller | No | No |
| Pulse Width Modulation Compatible | Yes | Yes |
| Outlet Type | Female | Female |
| Outlet Outside Diameter | ORB-06 | ORB-06 |
| Return Fitting Size | ORB-06 | ORB-06 |
| Maximum Current Draw | 8.3A @ 40PSI | 13A @ 40PSI |
| Voltage | 12-16V | 12-16V |
| Negative Ground | Yes | Yes |
| Terminal Gender | Male | Male |
| Terminal Quantity | 3 | 3 |
| Terminal Type | Threaded Stud | Threaded Stud |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
| Year / Make / Model | 1988-1998 Chevrolet C1500 |
|---|---|
| Engine Size(s) |
Liters: 4.1, 4.3, 5.0, 5.7, 7.4 Cubic Inches: 250, 262, 305, 350, 454 |
| Year / Make / Model | 1988-1998 Chevrolet C2500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7, 7.4 Cubic Inches: 262, 305, 350, 454 |
| Year / Make / Model | 1988-1999 Chevrolet K1500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7 Cubic Inches: 262, 305, 350 |
| Year / Make / Model | 1988-1989 Chevrolet K1500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7 Cubic Inches: 262, 305, 350 |
| Year / Make / Model | 1991-1995 Chevrolet K1500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7 Cubic Inches: 262, 305, 350 |
| Year / Make / Model | 1988-1998 Chevrolet K2500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7, 7.4 Cubic Inches: 262, 305, 350, 454 |
| Year / Make / Model | 1988-1999 GMC C1500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7 Cubic Inches: 262, 305, 350 |
| Year / Make / Model | 1988-1998 GMC C2500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7, 7.4 Cubic Inches: 262, 305, 350, 454 |
| Year / Make / Model | 1988-1999 GMC K1500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7 Cubic Inches: 262, 305, 350 |
| Year / Make / Model | 1988-1998 GMC K2500 |
|---|---|
| Engine Size(s) |
Liters: 4.3, 5.0, 5.7, 7.4 Cubic Inches: 262, 305, 350, 454 |
