Gen I Stealth Fuel Tank with 200 lph Pump, 64-68 Mustang

Gen I Stealth Fuel Tank with 200 lph Pump, 64-68 Mustang

Part Number: 18698 / UPC 00684980008111
Skip to product information

Product Info

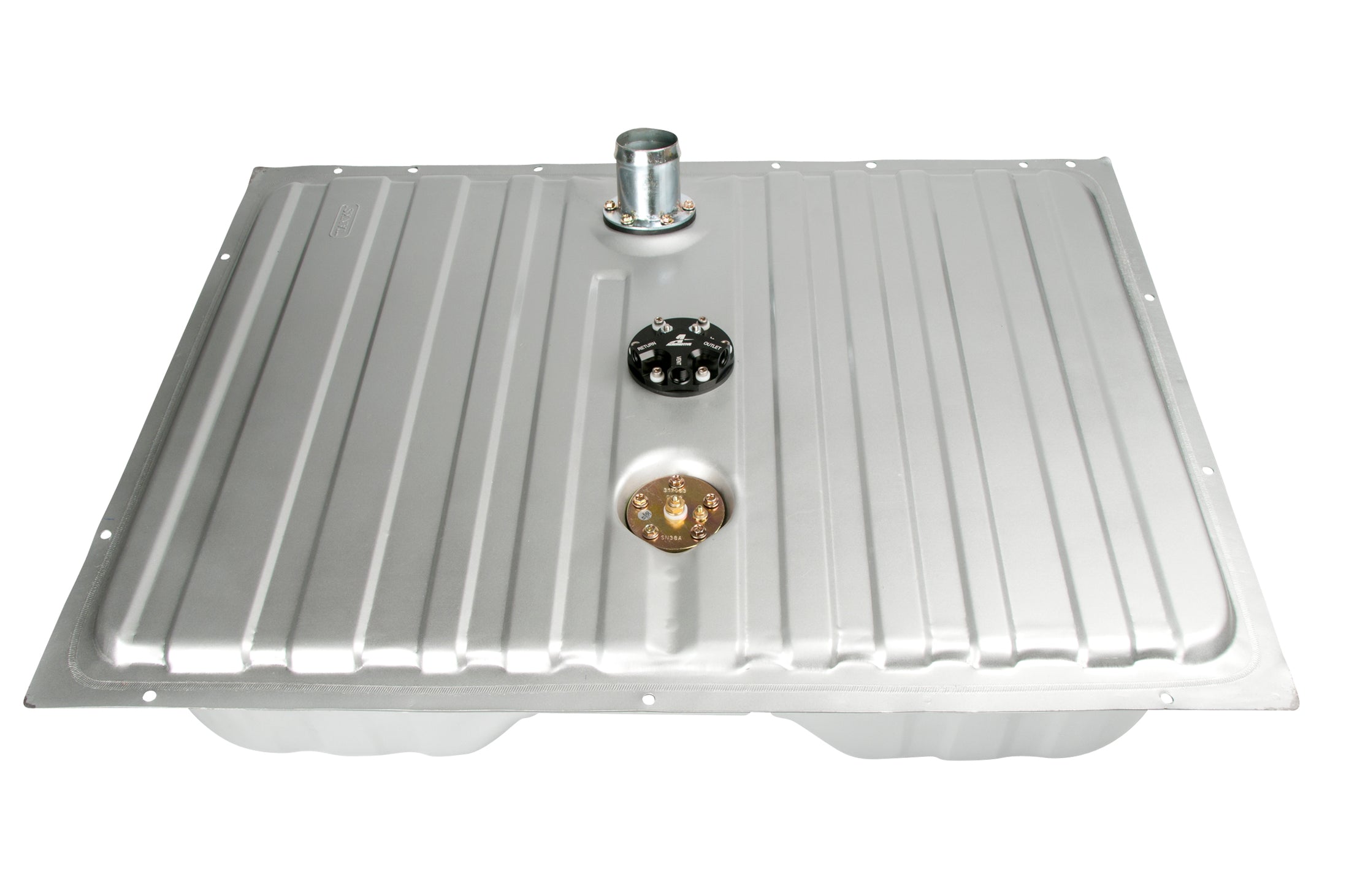

P/N 18698: 64-68 Mustang Stealth 200 Tank
With Stealth 200 pump and 73-10 ohm sending unit.

  • Perfect for EFI and carbureted engines

  • OEM appearance and 16-gallon capacity

  • Durable, powder-coat silver exterior finish

  • High flow, quiet 200 Stealth in-tank fuel pump

  • Wide, lateral internal surge baffle

  • Large, EFI friendly fuel pump reservoir

  • 73-10 Ohm fuel level sending unit

  • Billet hat with ORB-06 outlet, return and vent ports

  • Fully assembled out of the box, ready to install

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Additional information

Why an Aeromotive 200 Stealth Fuel Tank?

These Aeromotive 200 Stealth fuel tank features our 200 LPH Stealth electric fuel pump mounted to our CNC machined, billet aluminum hat and hanger assembly. With 200 lph flow, using a turbine pumping mechanism for increased durability and quiet operation, the Stealth Tank is equipped with the most proven, capable, quiet operating fuel pump available in it's class.

All Aeromotive Stealth fuel tanks feature an innovative baffle and tray design to control fuel slosh, ensuring good street drivability even even at lower fuel levels.  A fuel level sending unit with the correct ohm rating for the factory gauge in the dash comes pre-installed.  The 340 Stealth pump has its own pre-pump filter sock for protection and is supported by a billet hat with robust electrical bulkhead connections and ORB-06 outlet, return and vent ports, ensuring high flow capacity and a positive, leak free seal at any pressure. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

For extra protection and long-term good looks, most Stealth tanks are finished with a silver powder-coat exterior.  Exceptions to this are the early Mustang and 32-34 Ford Stealth Tanks, which are painted silver, allowing them to be prepped and painted later to match the car if desired.

200 Stealth Tank Application Specs:

  • Fuel Injected Engines (gasoline):

    • Up to 600 HP - naturally aspirated.

    • Up to 450 HP - forced air induction.



  • Carbureted Engines (gasoline):

    • Up to 750 HP - naturally aspirated.

    • Up to 600 HP - forced air induction.




Recommended Fuel Pump Wiring Kit:

Recommended Return Style Kits to Complete Stealth Tank Installation:

  • P/N 17350 Kit for EFI engines with Billet, aftermarket fuel rail.

  • P/N 17351 Kit for EFI engines with OEM returnless fuel rail.

  • P/N 17352 Kit for EFI engines with aftermarket Throttle Body EFI.

  • P/N 17256 Kit for Carbureted Engines.


Kits above require a return line, AN-06 EFI and AN-08 Carbureted.

Note: Stealth Fuel Tanks are not engineered for competition drag racing or road racing applications where extreme acceleration and cornering will occur with fuel levels lower than 1/2 tank.  Racing fuel cells such as Aeromotive's 6-Gallon Stealth Fuel cell or bladder style road racing tanks with the appropriate baffling and gated collectors are recommended for these types of applications.

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews
