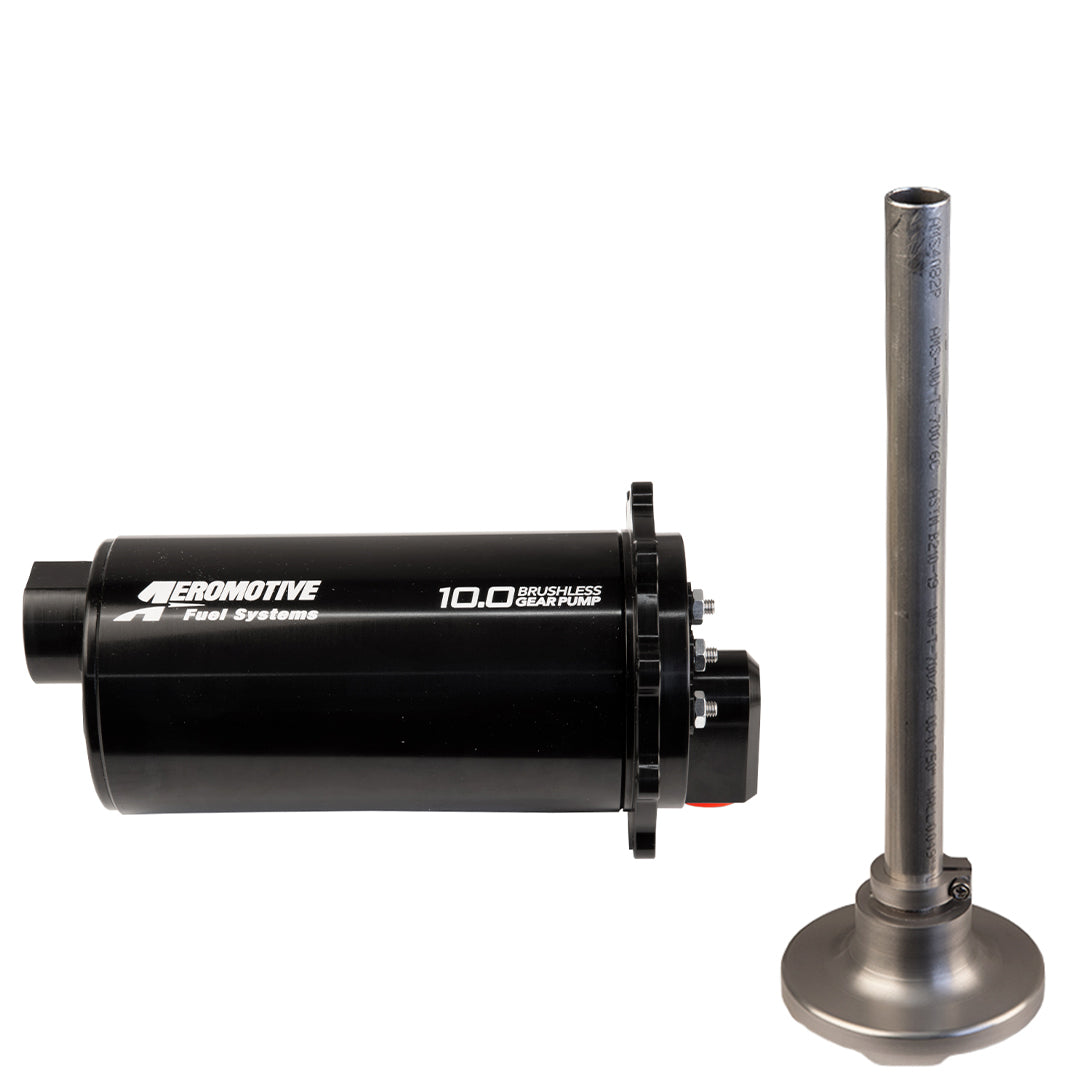

10.0 GPM Brushless In-Tank Fuel Pump with 90 Degree Outlet & True Variable Speed Controller
10.0 GPM Brushless In-Tank Fuel Pump with 90 Degree Outlet & True Variable Speed Controller
Part Number: 19324
Product Info
Product Info
P/N 19324: Fuel Pump, TVS, Universal In-Tank, 90-Deg Outlet, BL Spur Gear 10.0
Ground Shaking Performance – Advanced Technology
Fuel-injected engines:
– up to 6,900 FWHP on GAS – naturally-aspirated
– up to 4,900 FWHP on GAS – forced air induction
– up to 4,830 FWHP on E85 – naturally-aspirated
– up to 3,430 FWHP on E85 – forced air induction
– up to 2,415 FWHP on METHANOL – naturally-aspirated
– up to 1,715 FWHP on METHANOL – forced air induction
Carbureted Engines:
– up to 7,600 FWHP on GAS – naturally-aspirated
– up to 5,500 FWHP on GAS – forced air induction
– up to 5,300 FWHP on E85 – naturally-aspirated
– up to 3,850 FWHP on E85 – forced air induction
– up to 2,650 FWHP on METHANOL – naturally-aspirated
– up to 1,925 FWHP on METHANOL – forced air induction
Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
https://aeromotiveinc.com/7-0-10-0-diagrams/
Ground Shaking Performance – Advanced Technology
- Supports
Fuel-injected engines:
– up to 6,900 FWHP on GAS – naturally-aspirated
– up to 4,900 FWHP on GAS – forced air induction
– up to 4,830 FWHP on E85 – naturally-aspirated
– up to 3,430 FWHP on E85 – forced air induction
– up to 2,415 FWHP on METHANOL – naturally-aspirated
– up to 1,715 FWHP on METHANOL – forced air induction
Carbureted Engines:
– up to 7,600 FWHP on GAS – naturally-aspirated
– up to 5,500 FWHP on GAS – forced air induction
– up to 5,300 FWHP on E85 – naturally-aspirated
– up to 3,850 FWHP on E85 – forced air induction
– up to 2,650 FWHP on METHANOL – naturally-aspirated
– up to 1,925 FWHP on METHANOL – forced air induction
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to a 16-VDC power supply.
- Not compatible with pulse-modulated systems or fuel pump speed controllers.
Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
https://aeromotiveinc.com/7-0-10-0-diagrams/
Specifications
Specifications
Series | 10.0 GPM |
---|---|
Maximum Flow Rating | 10.0 GPM |
Maximum Pressure | 150 |
Fuel Type | Gas/E85 |
Universal Or Specific Fit | Universal |
Internal Or External | Internal |
Pump Design | Spur Gear |
Motor Style | Brushless |
Integrated Controller | Remote |
Pulse Width Modulation Compatible | No |
Fuel Delivery Type | Carburation & Fuel Injection |
Inlet Type | Female Thread |
Inlet Outside Diameter | ORB-12 |
Outlet Type | Female Thread |
Outlet Outside Diameter | ORB-10 |
Voltage | 12 |
Negative Ground | Yes |
Wire Quantity | 3 |
Wiring Harness Included | No |
Terminal Gender | Male |
Terminal Quantity | 3 |
Terminal Type | Threaded Stud |
Strainer Included | Yes |
Fuel Sending Unit Included | No |
Regulator Included | No |
Mounting Bracket Included | Yes |
Mounting Hardware Included | Yes |
Seal And Lock Ring Included | Yes |
Gasket Or Seal Included | Yes |
Grade Type | Performance |
Marine Approved | No |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
