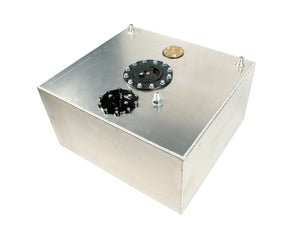

Fuel Cell with Integrated Eliminator In-Tank Fuel Pump Module and Pre-Pump Fuel Filter
Fuel Cell with Integrated Eliminator In-Tank Fuel Pump Module and Pre-Pump Fuel Filter
Product Info
Product Info
This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road.
Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete "in-tank" fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.
Stealth Fuel Cells are truly universal, performing perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Fuel Injected Engines:
up to 1900 HP - naturally aspirated
up to 1400 HP - forced air induction
Carbureted Engines:
up to 2300 HP - naturally aspirated
up to 1700 HP - forced air induction
Part Number 18667 Features:
- Eliminator Fuel Pump (internal) - P/N 11104
- 100 Micron Stainless Steel Fuel Filter
- 6, 15 or 20 Gallon Capacity
- AN-08 Return Line Provision
- ORB-10 Outlet Port
- (2) AN-08 Vents with Rollover Valves
- Standard 12-Bolt Flush Mount Lid Assembly
- Natural Aluminum Finish
- Dimensions:
- 6 Gallon: 12" L x 12" W x 10" H
- 15 Gallon: 18" L x 20" W x 10" H
- 20 Gallon: 24" L x 20" W x 10" H
Specifications
Specifications
#18662 - 15 Gallon | #18663 - 20 Gallon | #18667 - 6 Gallon | |
---|---|---|---|
Series | Stealth Fuel Cell | Stealth Fuel Cell | Stealth Fuel Cell |
Capacity | 15 Gallons | 20 Gallons | 6 Gallons |
Baffled | Yes | Yes | Yes |
Material | Aluminum | Aluminum | Aluminum |
Universal Or Specific Fit | Universal | Universal | Universal |
Color | Natural | Natural | Natural |
Filler Neck Attached | Yes | Yes | Yes |
Width | 20 Inches | 20 Inches | 12 Inches |
Fuel Type | Gas | Gas | Gas |
Grade Type | Performance | Performance | Performance |
Height | 10 Inches | 10 Inches | 10 Inches |
Length | 18 Inches | 24 Inches | 12 Inches |
Mounting Hardware Included | No | No | No |
Mounting Straps Included | No | No | No |
Sending Unit Included | No | No | No |
Fuel Pump Included | Yes | Yes | Yes |
Maximum Flow Rating | 1250 | 1250 | 1250 |
Pump Design | Rotary Vane | Rotary Vane | Rotary Vane |
Motor Style | Brushed | Brushed | Brushed |
Integrated Controller | No | No | No |
Pulse Width Modulation Compatible | Yes | Yes | Yes |
Outlet Type | Female | Female | Female |
Outlet Outside Diameter | ORB-08 | ORB-08 | ORB-08 |
Return Fitting Size | ORB-08 | ORB-08 | ORB-08 |
Voltage | 12-16V | 12-16V | 12-16V |
Negative Ground | Yes | Yes | Yes |
Wire Quantity | 3 | 3 | 3 |
Wiring Harness Included | No | No | No |
Terminal Gender | Male | Male | Male |
Terminal Quantity | 3 | 3 | 3 |
Terminal Type | Threaded Stud | Threaded Stud | Threaded Stud |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
