Fuel Cell with Integrated Brushless Eliminator In-Tank Fuel Pump Module, True Variable Speed Controller, and Pre-Pump Fuel Filter
Fuel Cell with Integrated Brushless Eliminator In-Tank Fuel Pump Module, True Variable Speed Controller, and Pre-Pump Fuel Filter
Product Info
Product Info

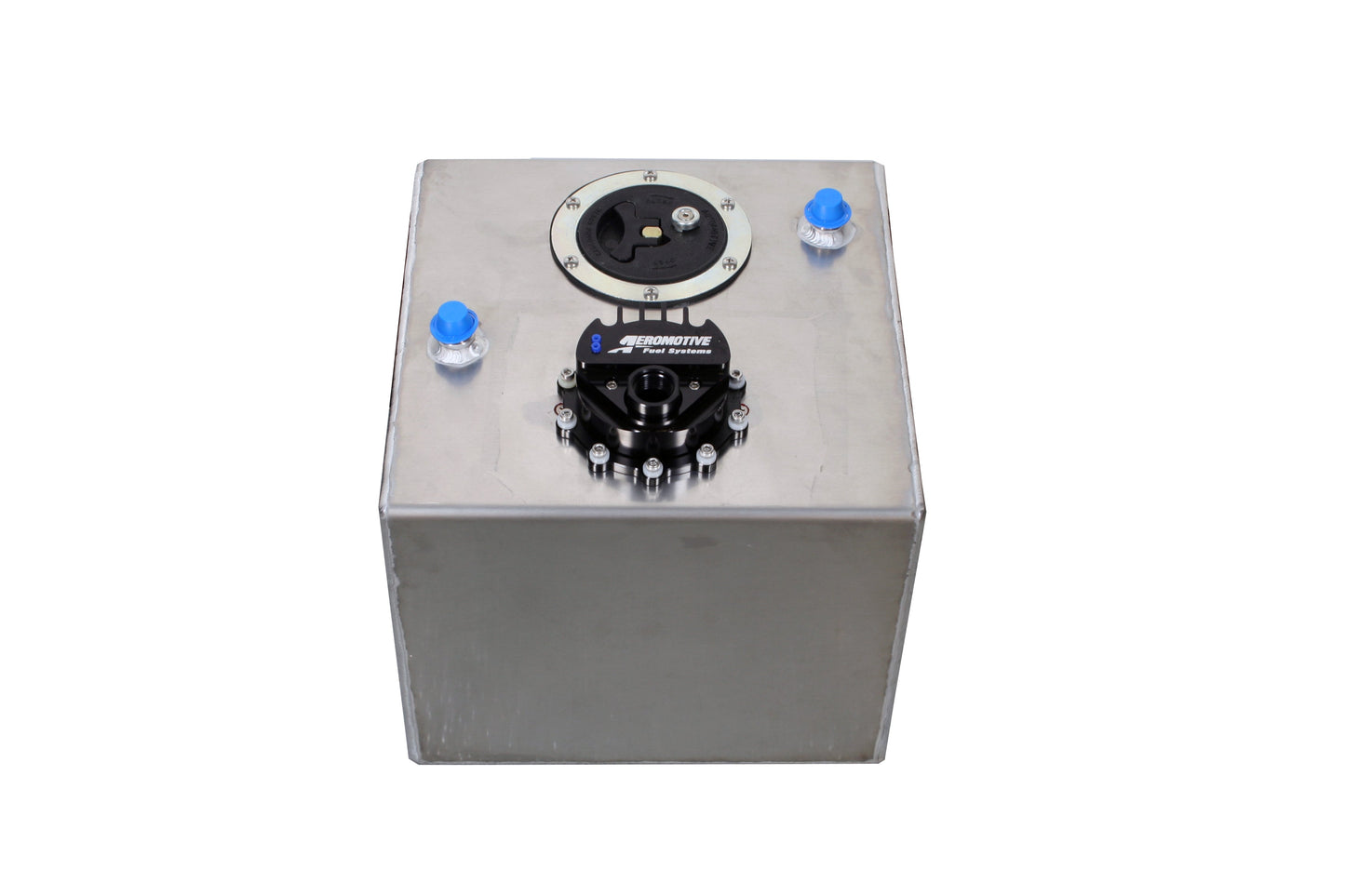

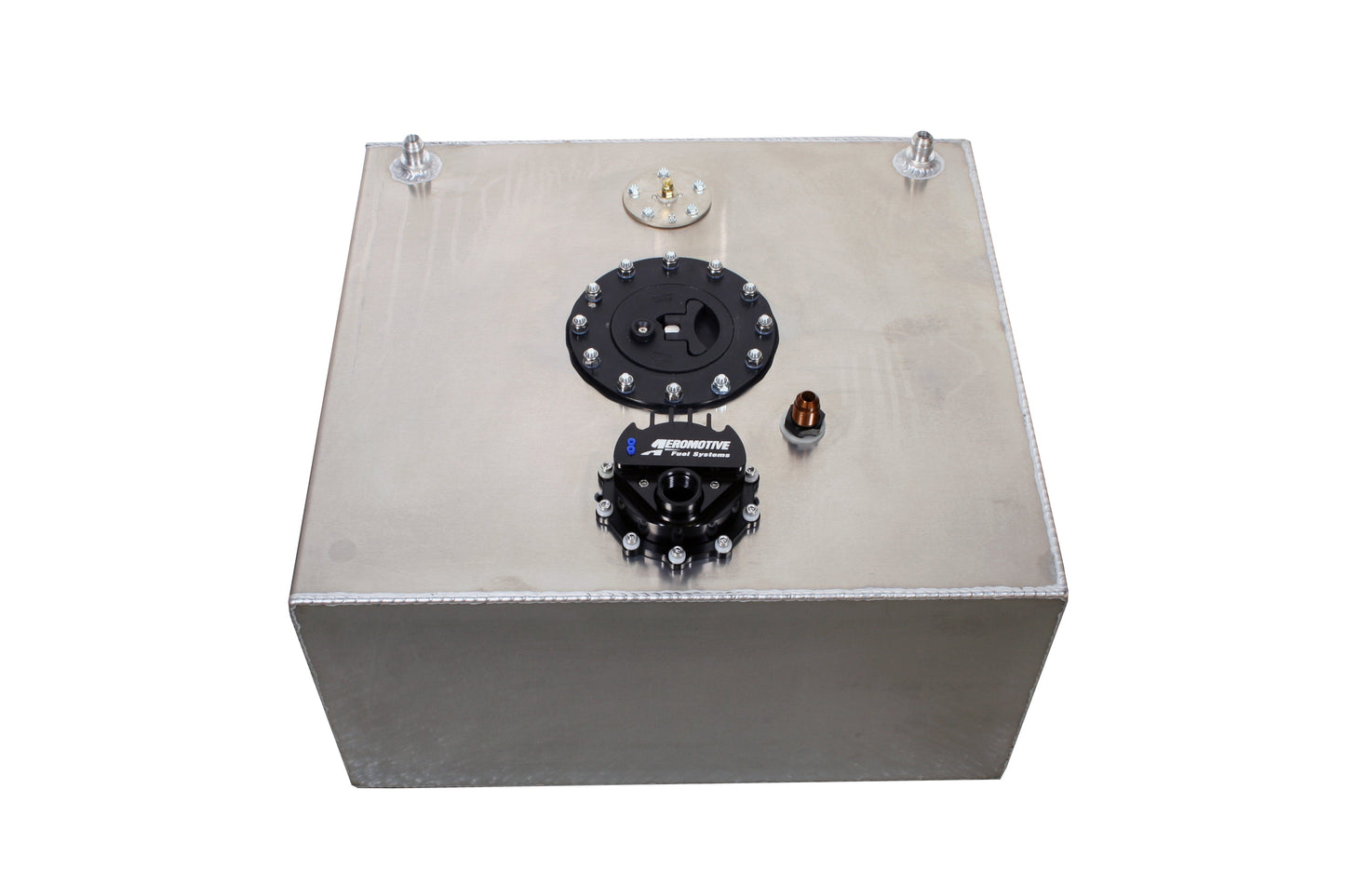

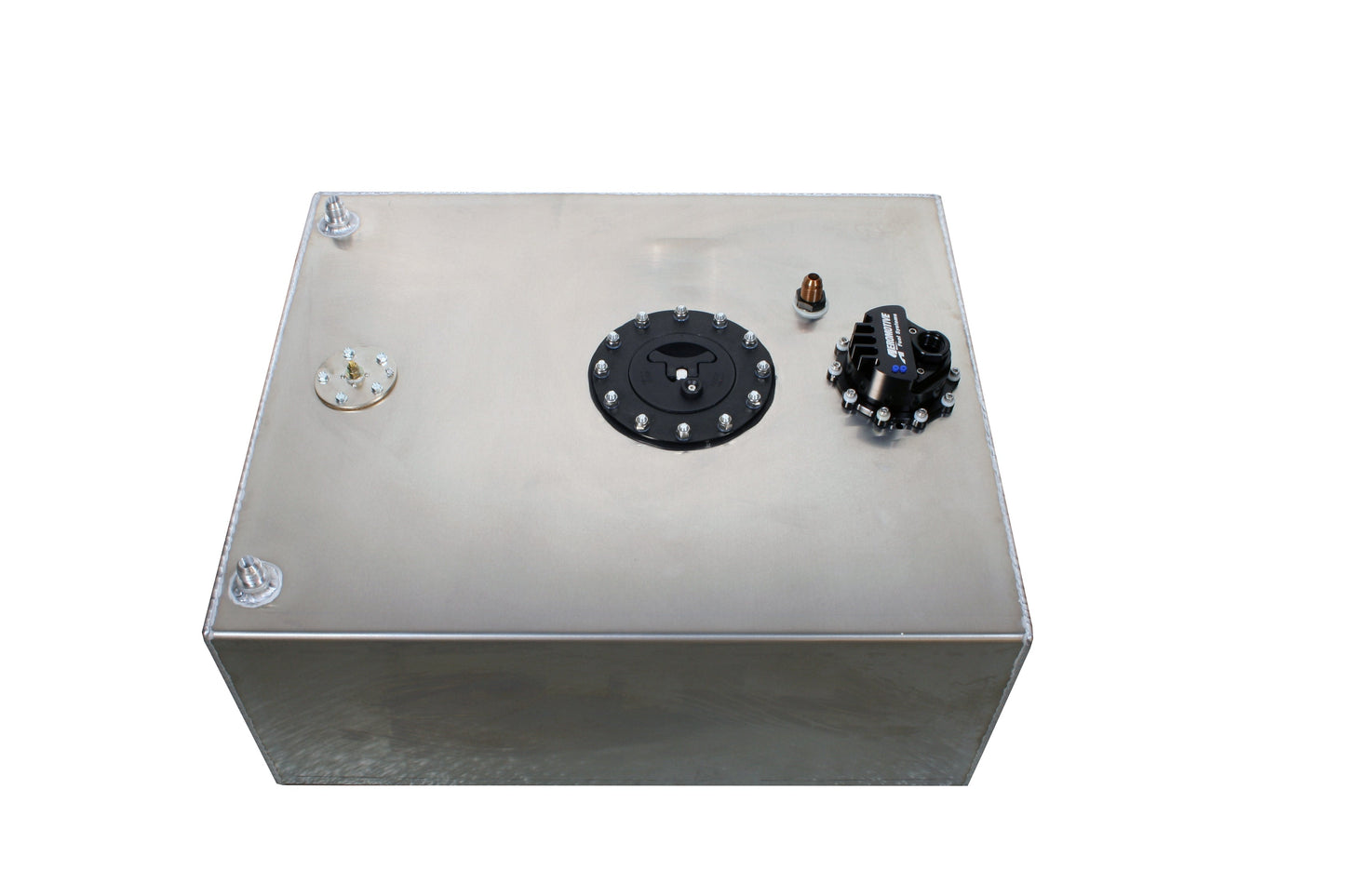

P/N 18387 (6 Gallon), 18382 (15 Gallon) and 18383 (20 Gallon) Brushless Eliminator Fuel Cell with Variable Speed Controller
Eliminator Performance Plus Advanced Technology
Racing Fuel Cell with Stealth Eliminator Brushless Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.
- Baffled design keeps fuel at the pump inlet
- Fluted pickup with integrated 100-m prefilter
- The Eliminator performance you expect and more:
-
Fuel Injected Engines: GAS
up to 1900 FWHP – naturally aspirated
up to 1400 FWHP – forced air induction
-
Carbureted Engines: GAS
up to 2300 FWHP – naturally aspirated
up to 1700 FWHP – forced air induction
-
Fuel Injected Engines: E85
up to 1330 FWHP – naturally aspirated
up to 980 FWHP – forced air induction
-
Carbureted Engines: E85
up to 1610 FWHP – naturally aspirated
up to 1190 FWHP – forced air induction
-
Fuel Injected Engines: GAS
- Lighter than the traditional Eliminator pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- Quieter than the traditional Eliminator pump.
- ORB-10 outlet port.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
- Fuel Cell Dimensions:
- 6 Gallon: 12" W x 12" L x 10" H
- 15 Gallon: 20" W x 18" L x 10" H
- 20 Gallon: 20" W x 24" L x 10" H
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts
EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Additional information
Additional information
Specifications
Specifications
#18382 - 15 Gallon | #18383 - 20 Gallon | #18387 - 6 Gallon | |
---|---|---|---|
Series | Stealth Fuel Cell | Stealth Fuel Cell | Stealth Fuel Cell |
Capacity | 15 Gallons | 20 Gallons | 6 Gallons |
Baffled | Yes | Yes | Yes |
Material | Aluminum | Aluminum | Aluminum |
Universal Or Specific Fit | Universal | Universal | Universal |
Color | Natural | Natural | Natural |
Filler Neck Attached | Yes | Yes | Yes |
Width | 20 Inches | 20 Inches | 12 Inches |
Fuel Type | Gas | Gas | Gas |
Grade Type | Performance | Performance | Performance |
Height | 10 Inches | 10 Inches | 10 Inches |
Length | 18 Inches | 24 Inches | 12 Inches |
Mounting Hardware Included | No | No | No |
Mounting Straps Included | No | No | No |
Sender Ohm Range | 0-90 | 0-90 | |
Sending Unit Included | Yes | Yes | No |
Fuel Pump Included | Yes | Yes | Yes |
Maximum Flow Rating | 1250 | 1250 | 1250 |
Pump Design | Rotary Vane | Rotary Vane | Rotary Vane |
Motor Style | Brushless | Brushless | Brushless |
Integrated Controller | No | No | No |
Pulse Width Modulation Compatible | No | No | No |
Outlet Type | Female | Female | Female |
Outlet Outside Diameter | ORB-08 | ORB-08 | ORB-08 |
Return Fitting Size | ORB-08 | ORB-08 | ORB-08 |
Voltage | 12-16V | 12-16V | 12-16V |
Negative Ground | Yes | Yes | Yes |
Wire Quantity | 3 | 3 | 3 |
Wiring Harness Included | No | No | No |
Terminal Gender | Male | Male | Male |
Terminal Quantity | 3 | 3 | 3 |
Terminal Type | Threaded Stud | Threaded Stud | Threaded Stud |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
