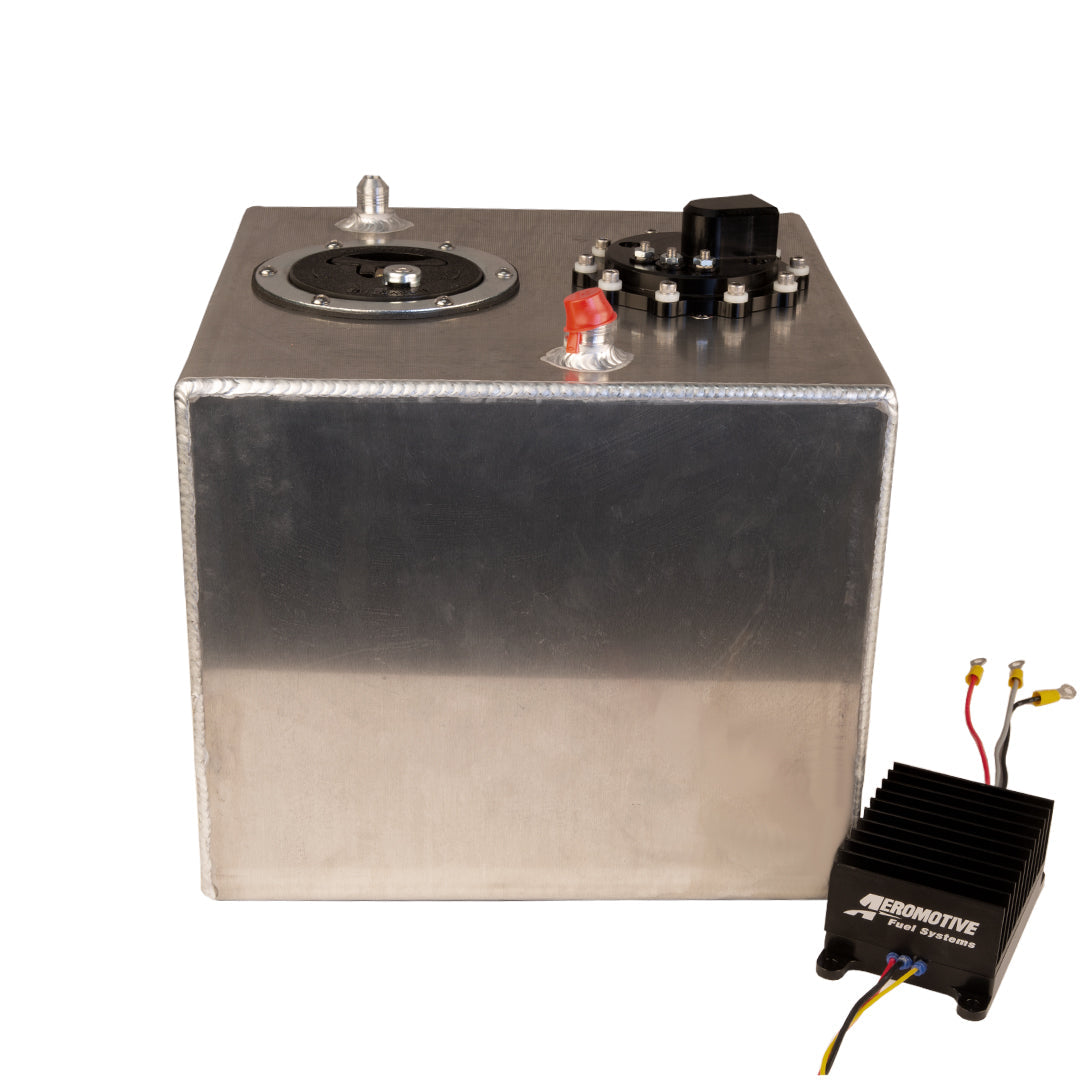

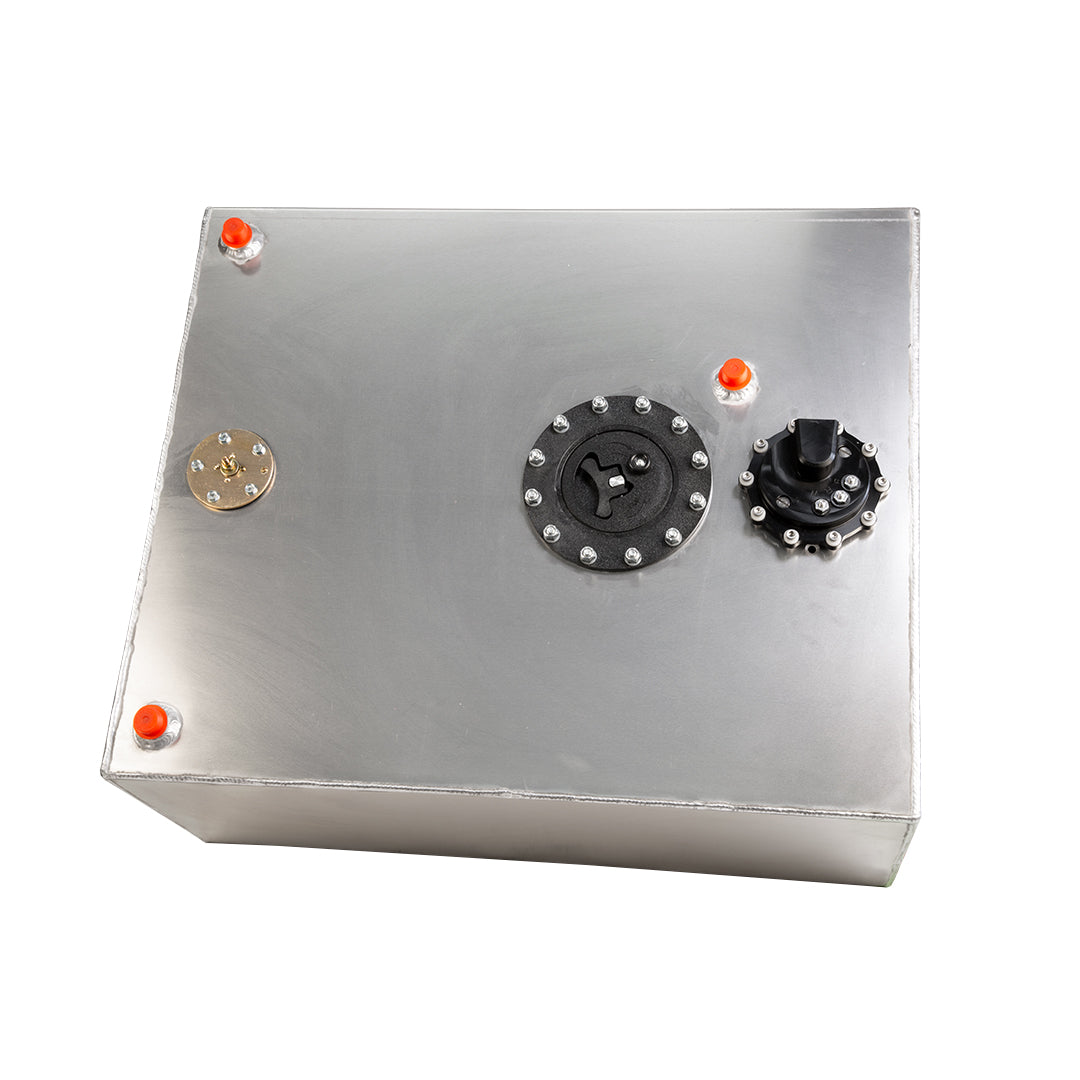

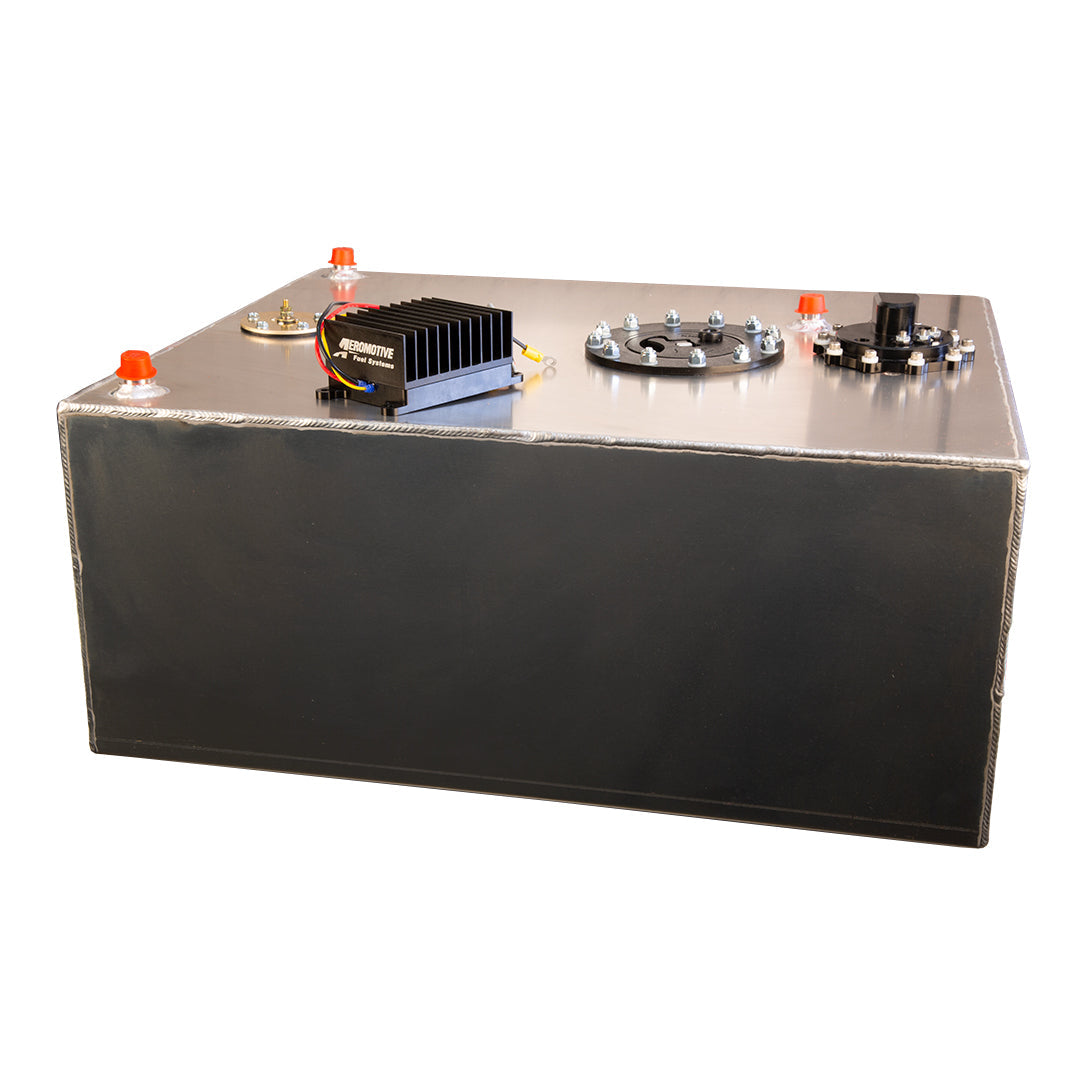

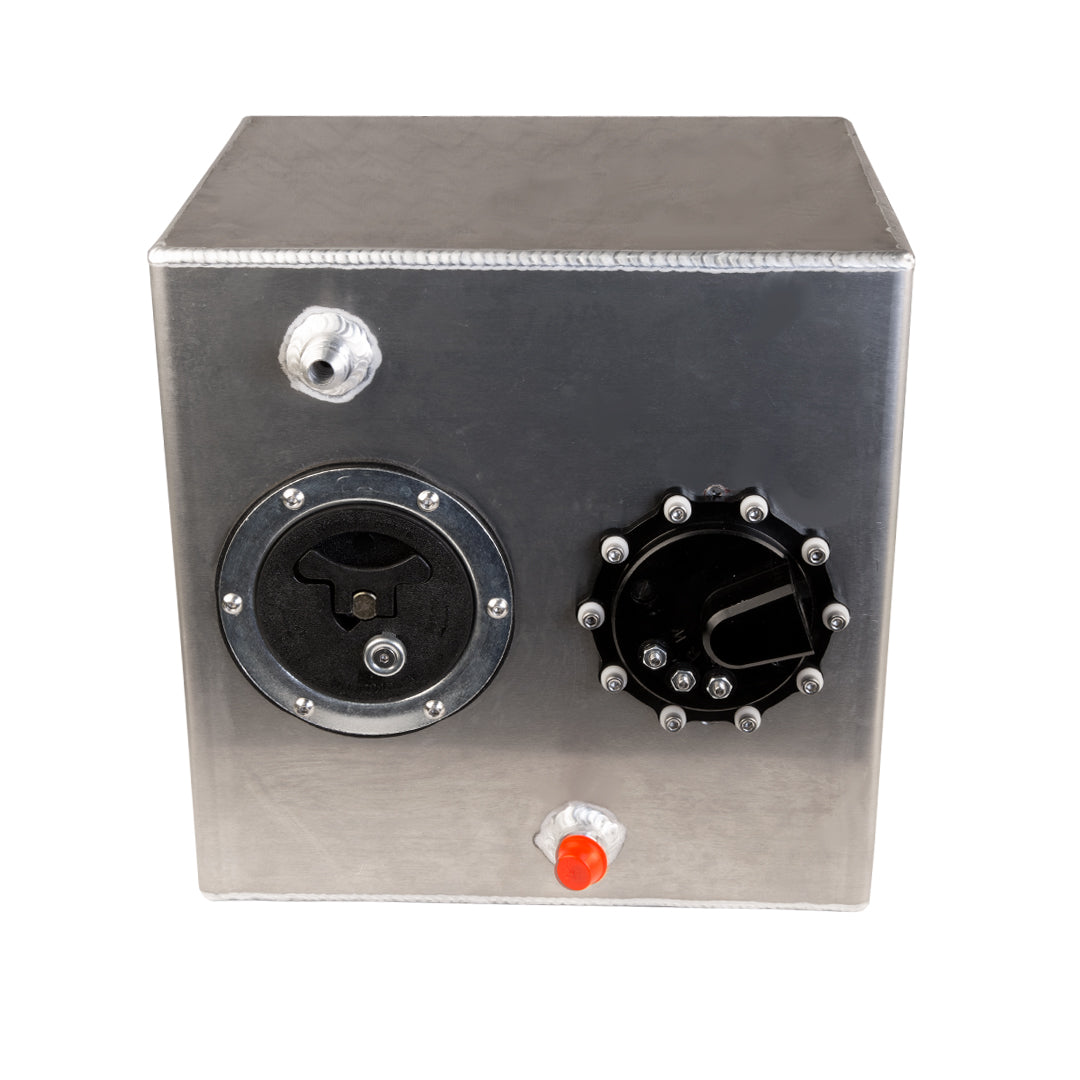

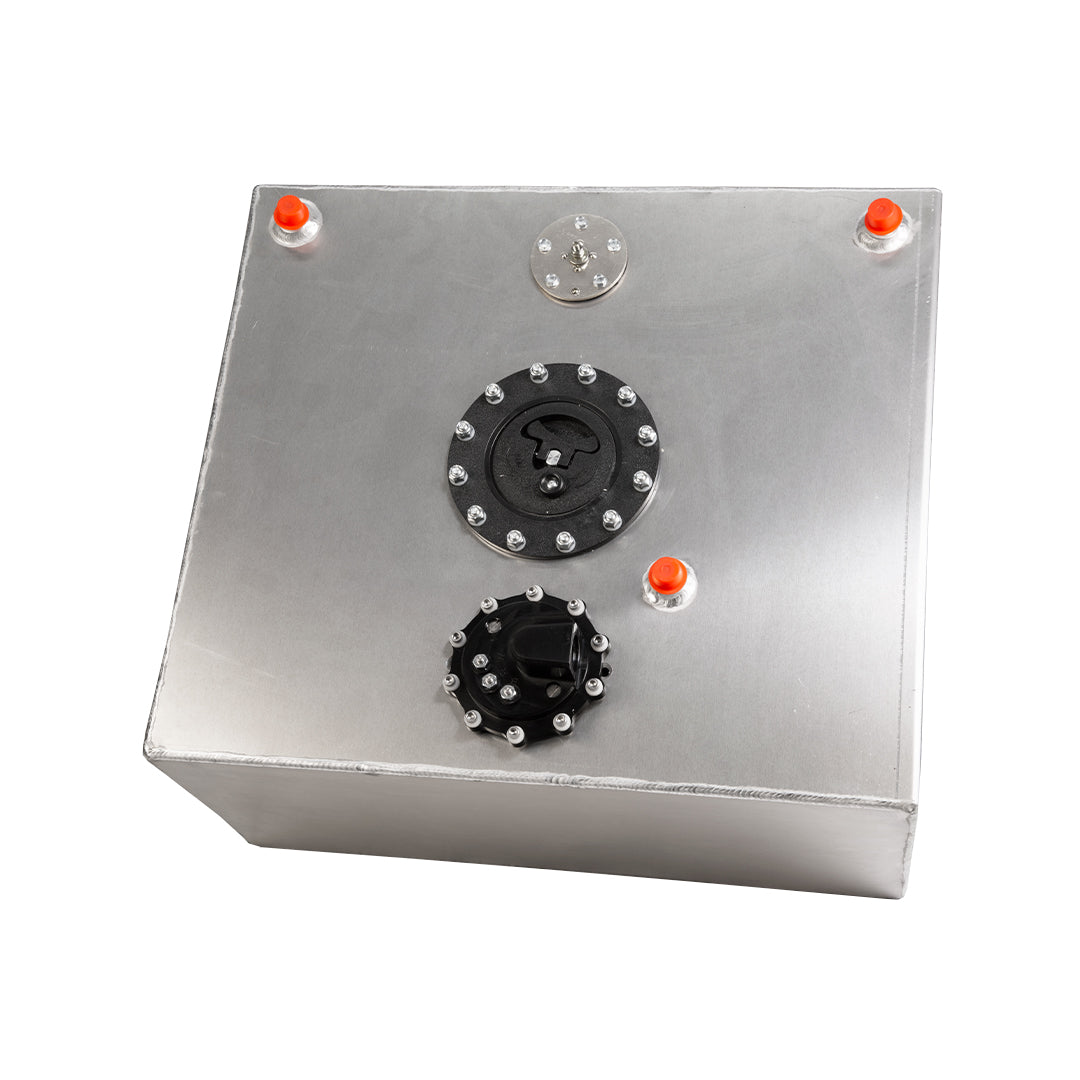

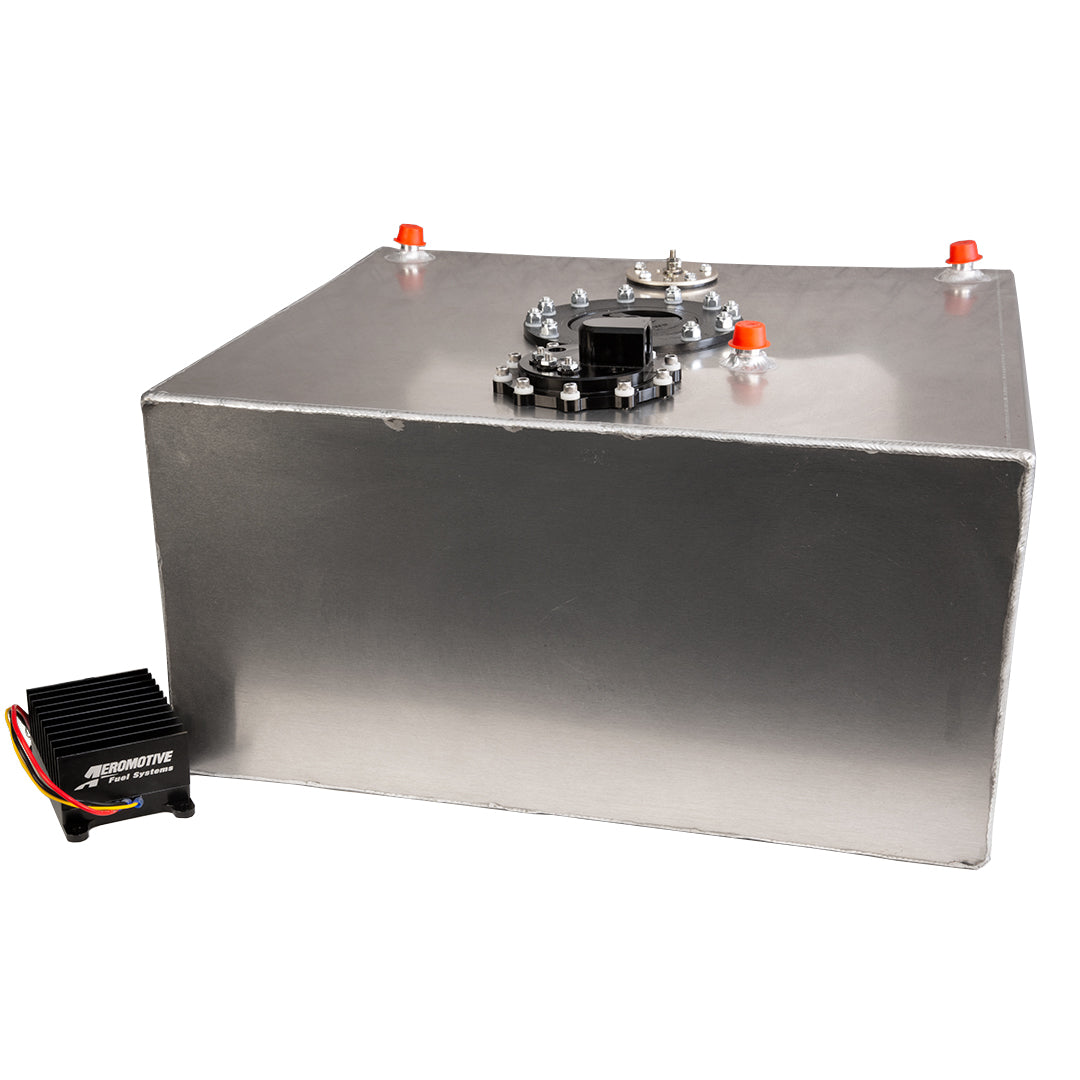

Fuel Cell with Integrated Brushless A1000 In-Tank Fuel Pump Module, True Variable Speed Controller, and Pre-Pump Fuel Filter (90 Degree Outlet)
Fuel Cell with Integrated Brushless A1000 In-Tank Fuel Pump Module, True Variable Speed Controller, and Pre-Pump Fuel Filter (90 Degree Outlet)
Product Info
Product Info
P/N 19301 (6 Gallon), 19307 (15 Gallon) and 19313 (20 Gallon): Fuel Cell, True Variable Speed, 90-Deg Outlet, Brushless A1000
A1000 Performance Plus Advanced Technology
- The A1000 performance you expect and more:
-
Fuel Injected Engines: GAS
up to 1300 FWHP – naturally-aspirated
up to 1000 FWHP – forced air induction
-
Carbureted Engines: GAS
up to 1500 FWHP – naturally-aspirated
up to 1200 FWHP – forced air induction
-
Fuel Injected Engines: E85
up to 910 FWHP – naturally-aspirated
up to 700 FWHP – forced air induction
-
Carbureted Engines: E85
up to 1050 FWHP – naturally-aspirated
up to 840 FWHP – forced air induction
-
Fuel Injected Engines: GAS
- Lighter than the traditional A1000 pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
- Quieter than the traditional A1000 pump.
- ORB-10 inlet and outlet ports.
- Requires straight 12-VDC to the 16-VDC power supply.
- Not compatible with pulse-modulated systems or fuel pump speed controllers.
- Includes 2 ea. P/N 12703 stainless steel t-bolt clamps for mounting.
EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts
Specifications
Specifications
| #19307 - 15 Gallon | #19313 - 20 Gallon | #19301 - 6 Gallon | |
|---|---|---|---|
| Series | Stealth Fuel Cell | Stealth Fuel Cell | Stealth Fuel Cell |
| Capacity | 15 Gallons | 20 Gallons | 6 Gallons |
| Baffled | Yes | Yes | Yes |
| Material | Aluminum | Aluminum | Aluminum |
| Universal Or Specific Fit | Universal | Universal | Universal |
| Color | Natural | Natural | Natural |
| Filler Neck Attached | Yes | Yes | Yes |
| Width | 20 Inches | 20 Inches | 12 Inches |
| Fuel Type | Gas | Gas | Gas |
| Grade Type | Performance | Performance | Performance |
| Height | 10 Inches | 10 Inches | 10 Inches |
| Length | 18 Inches | 24 Inches | 12 Inches |
| Mounting Hardware Included | No | No | No |
| Mounting Straps Included | No | No | No |
| Sender Ohm Range | 0-90 | 0-90 | |
| Sending Unit Included | Yes | Yes | No |
| Fuel Pump Included | Yes | Yes | Yes |
| Maximum Flow Rating | A1000 | A1000 | A1000 |
| Pump Design | Rotary Vane | Rotary Vane | Rotary Vane |
| Motor Style | Brushless | Brushless | Brushless |
| Integrated Controller | Yes | Yes | Yes |
| Pulse Width Modulation Compatible | No | No | No |
| Outlet Type | Female | Female | Female |
| Outlet Outside Diameter | ORB-10 | ORB-10 | ORB-10 |
| Return Fitting Size | ORB-08 | ORB-08 | ORB-08 |
| Voltage | 12-16V | 12-16V | 12-16V |
| Negative Ground | Yes | Yes | Yes |
| Wire Quantity | 3 | 3 | 3 |
| Wiring Harness Included | No | No | No |
| Terminal Gender | Male | Male | Male |
| Terminal Quantity | 3 | 3 | 3 |
| Terminal Type | Threaded Stud | Threaded Stud | Threaded Stud |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
