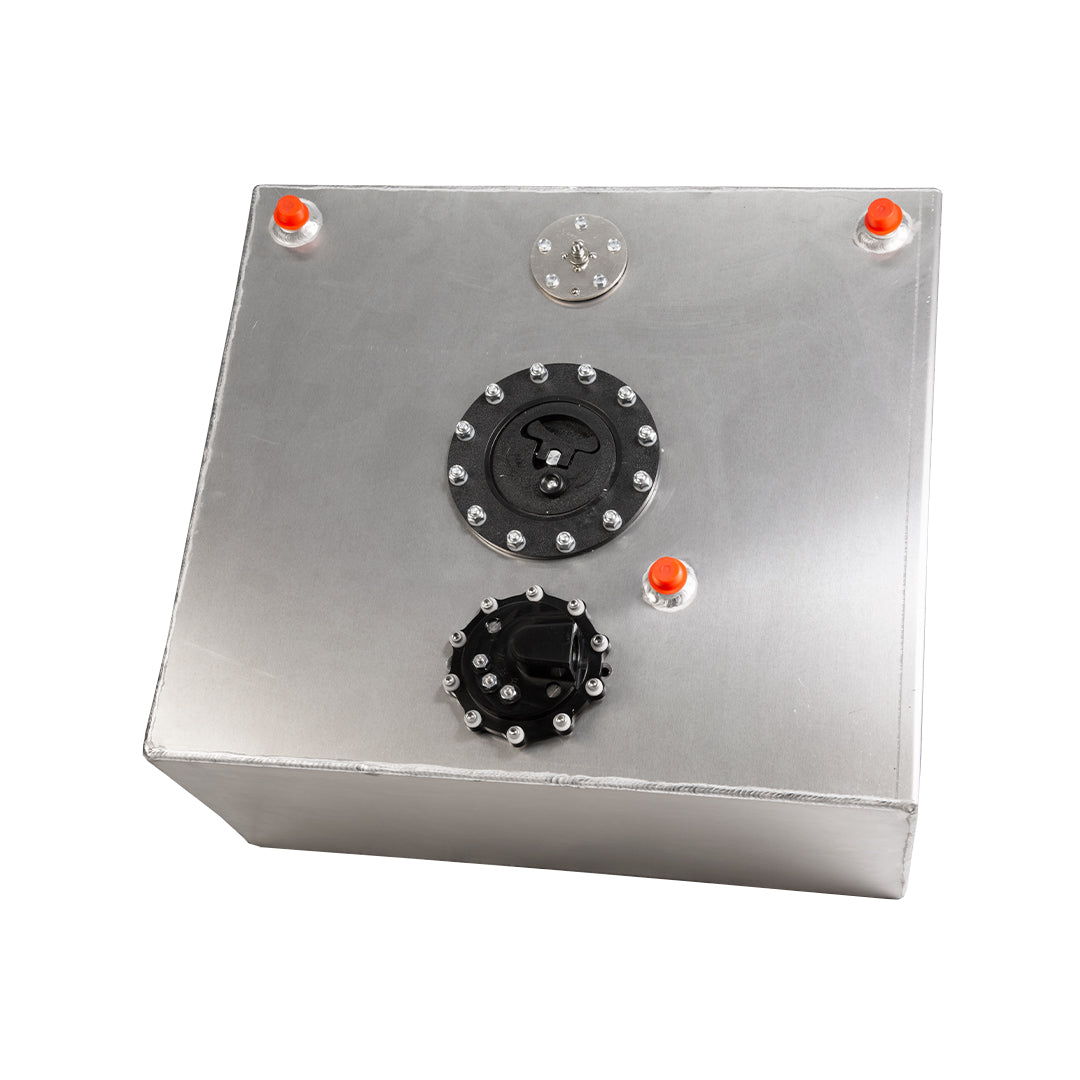

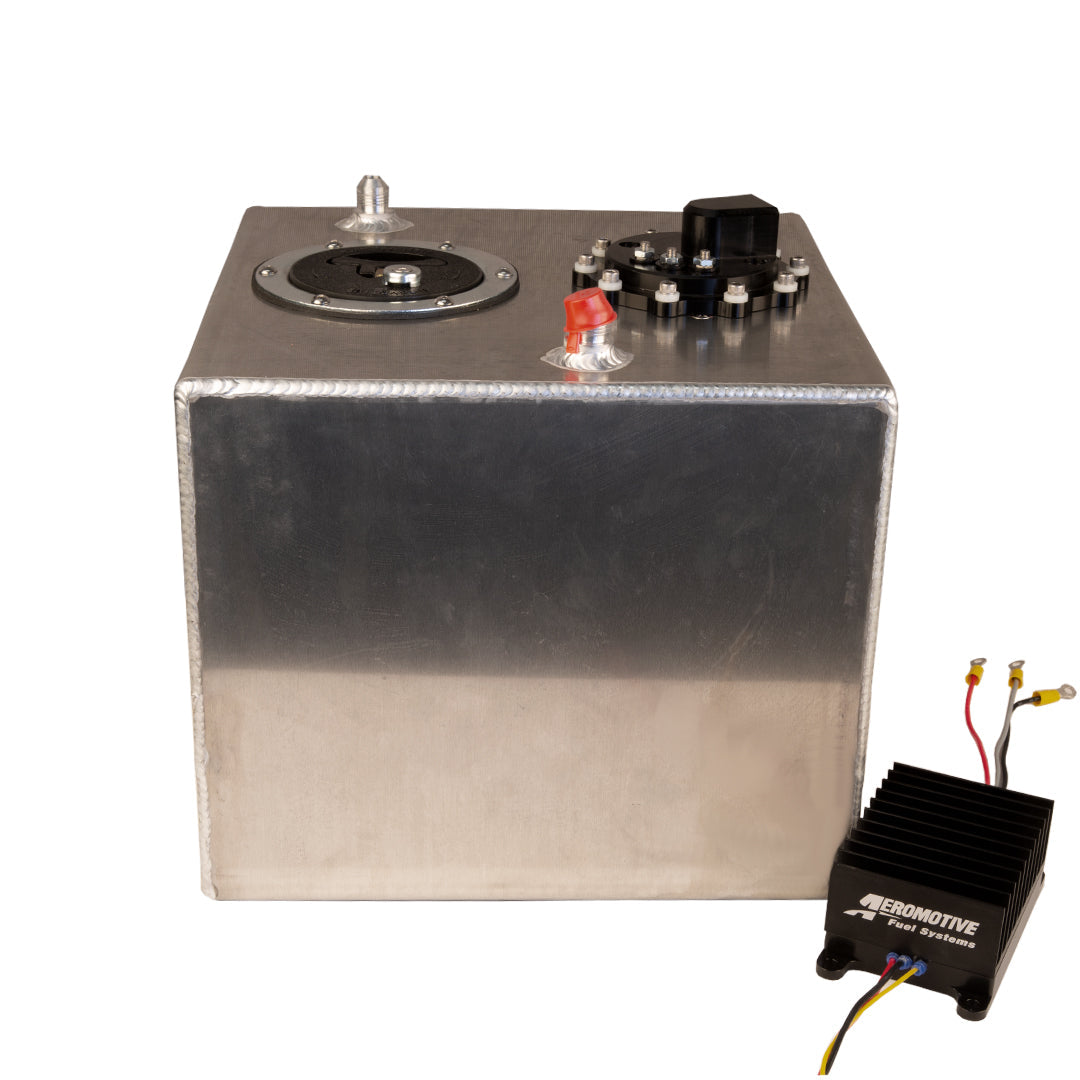

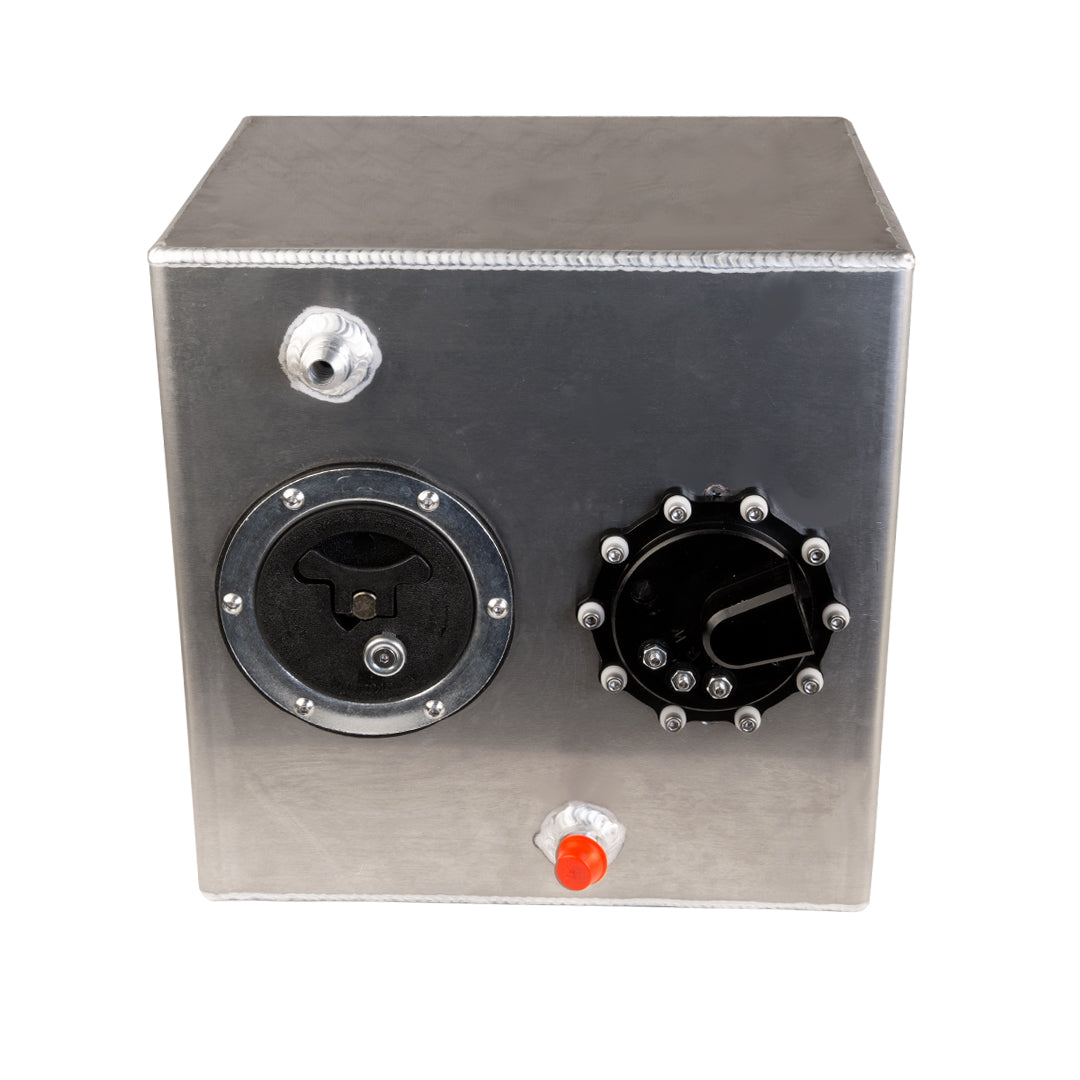

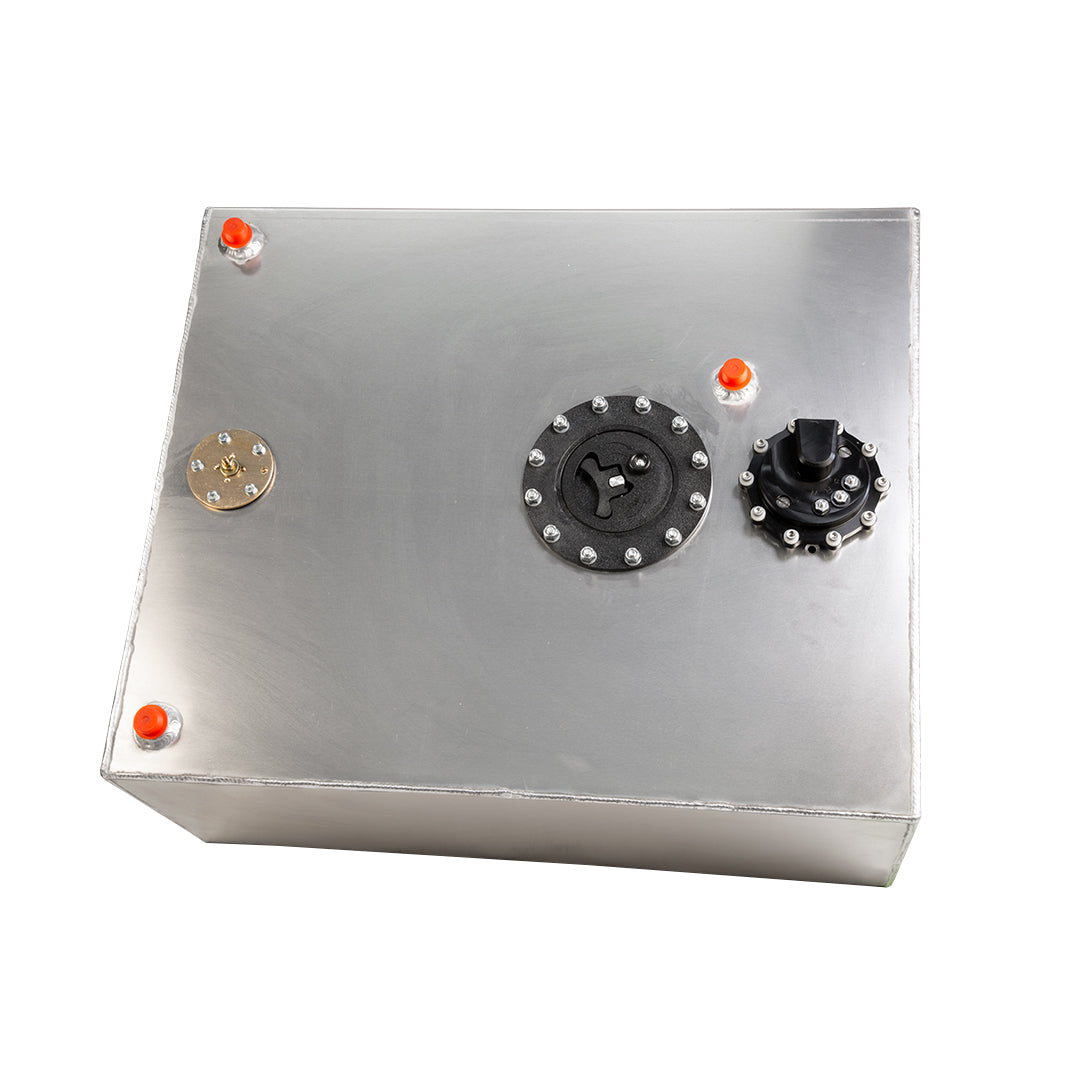

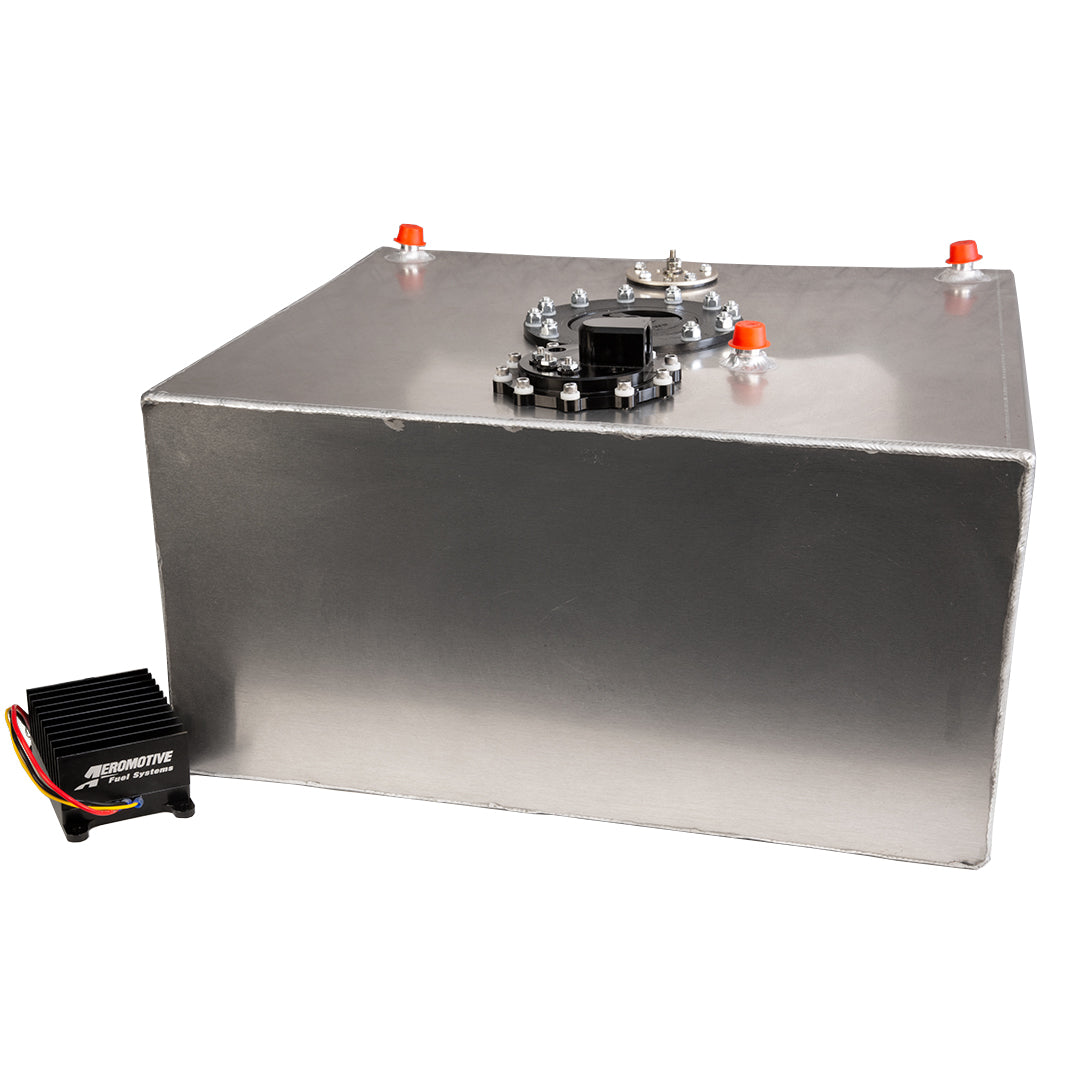

Fuel Cell with Integrated Brushless 7.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)

Fuel Cell with Integrated Brushless 7.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)

Part Number: 19305
Skip to product information

Product Info

P/N 19305 (6 Gallon), 19311 (15 Gallon), and 19317 (20 Gallon): Fuel Cell with Brushless Spur 7.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)
Ground Shaking Performance – Advanced Technology

  • Supports
    • Fuel-injected engines:
      – up to 4,800 FWHP on GAS – naturally-aspirated
      – up to 3,400 FWHP on GAS – forced air induction

      – up to 3,360 FWHP on E85 – naturally-aspirated
      – up to 2,380 FWHP on E85 – forced air induction

      – up to 1,680 FWHP on METHANOL – naturally-aspirated
      – up to 1,190 FWHP on METHANOL – forced air induction

      Carbureted Engines:
      – up to 5,400 FWHP on GAS – naturally-aspirated
      – up to 3,800 FWHP on GAS – forced air induction

      – up to 3,780 FWHP on E85 – naturally-aspirated
      – up to 2,400 FWHP on E85 – forced air induction

      – up to 1,890 FWHP on METHANOL – naturally-aspirated
      – up to 1,200 FWHP on METHANOL – forced air induction

  • E85 Compatible, reduce max FWHP by 30%

  • Lighter than the traditional external mount pumps.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.

  • Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.

  • ORB-12 inlet and ORB-10 outlet ports.

  • Requires straight 12-VDC to the 16-VDC power supply.
    • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse-modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.


Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Specifications

#19311 - 15 Gallon #19317 - 20 Gallon #19305 - 6 Gallon
Series Stealth Fuel Cell Stealth Fuel Cell Stealth Fuel Cell
Capacity 15 Gallons 20 Gallons 6 Gallons
Baffled Yes Yes Yes
Material Aluminum Aluminum Aluminum
Universal Or Specific Fit Universal Universal Universal
Color Natural Natural Natural
Filler Neck Attached Yes Yes Yes
Width 20 Inches 20 Inches 12 Inches
Fuel Type Gas Gas Gas
Grade Type Performance Performance Performance
Height 10 Inches 10 Inches 10 Inches
Length 18 Inches 24 Inches 12 Inches
Mounting Hardware Included No No No
Mounting Straps Included No No No
Sender Ohm Range 0-90 0-90
Sending Unit Included Yes Yes No
Fuel Pump Included Yes Yes Yes
Maximum Flow Rating 7.0 GPM 7.0 GPM 7.0 GPM
Maximum Pressure 150 PSI 150 PSI 150 PSI
Pump Design Spur Gear Spur Gear Spur Gear
Motor Style Brushless Brushless Brushless
Integrated Controller Yes No Yes
Pulse Width Modulation Compatible No No No
Outlet Type Female Female Female
Outlet Outside Diameter ORB-12 ORB-12 ORB-12
Return Fitting Size ORB-10 ORB-10 ORB-10
Maximum Current Draw 12 @ 40 psi 12 @ 40 psi 12 @ 40 psi
Voltage 12-16V 12-16V 12-16V
Negative Ground Yes Yes Yes
Wire Quantity 3 3 3
Wiring Harness Included No No No
Terminal Gender Male Male Male
Terminal Quantity 3 3 3
Terminal Type Threaded Stud Threaded Stud Threaded Stud

Installation Instructions

Instruction Manual
19305 Installation Instructions

Download PDF
Instruction Manual
19311 Installation Instructions

Download PDF
Instruction Manual
19317 Installation Instructions

Download PDF
