Fuel Cell with Integrated Brushless 3.5 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)
Fuel Cell with Integrated Brushless 3.5 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)
Product Info
Product Info

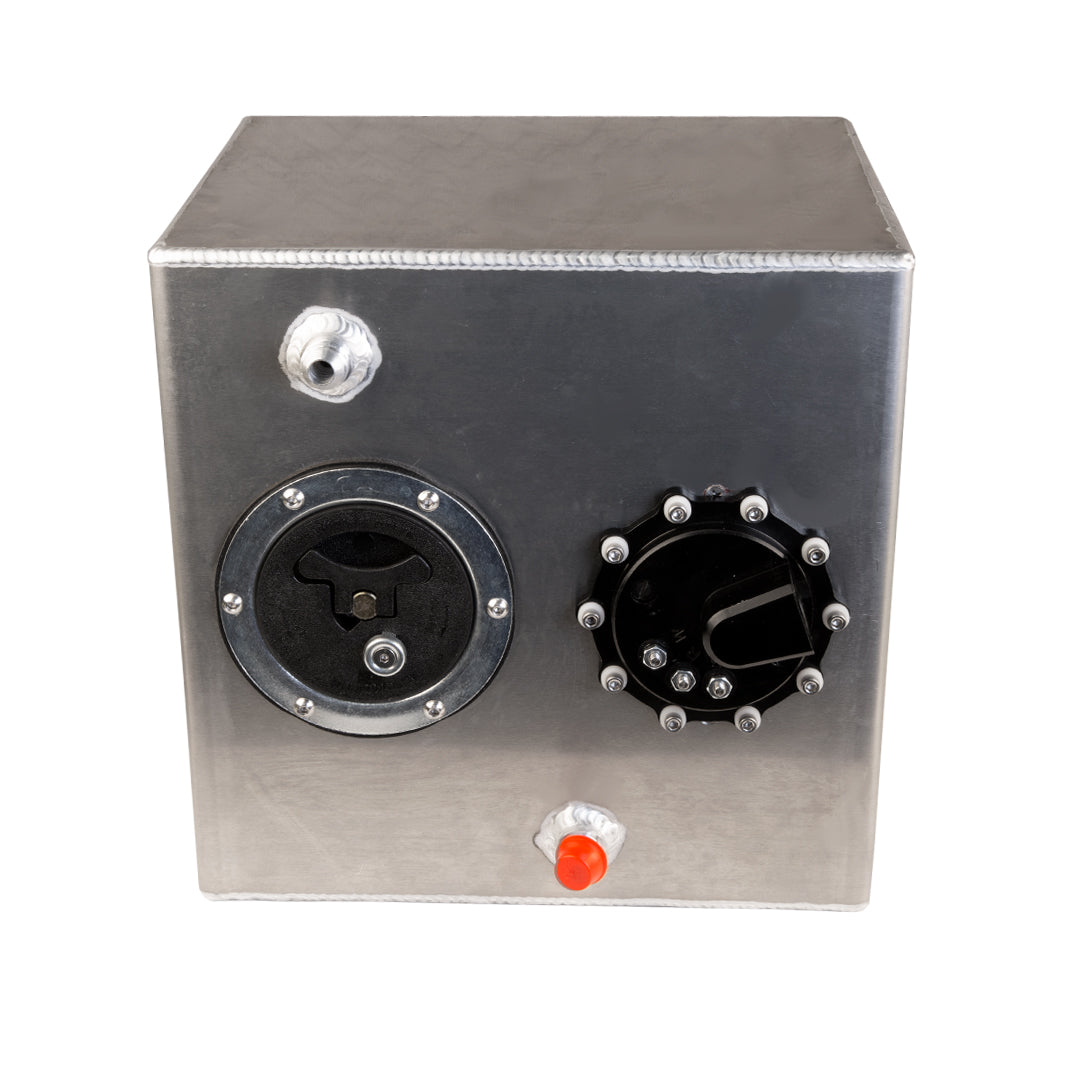

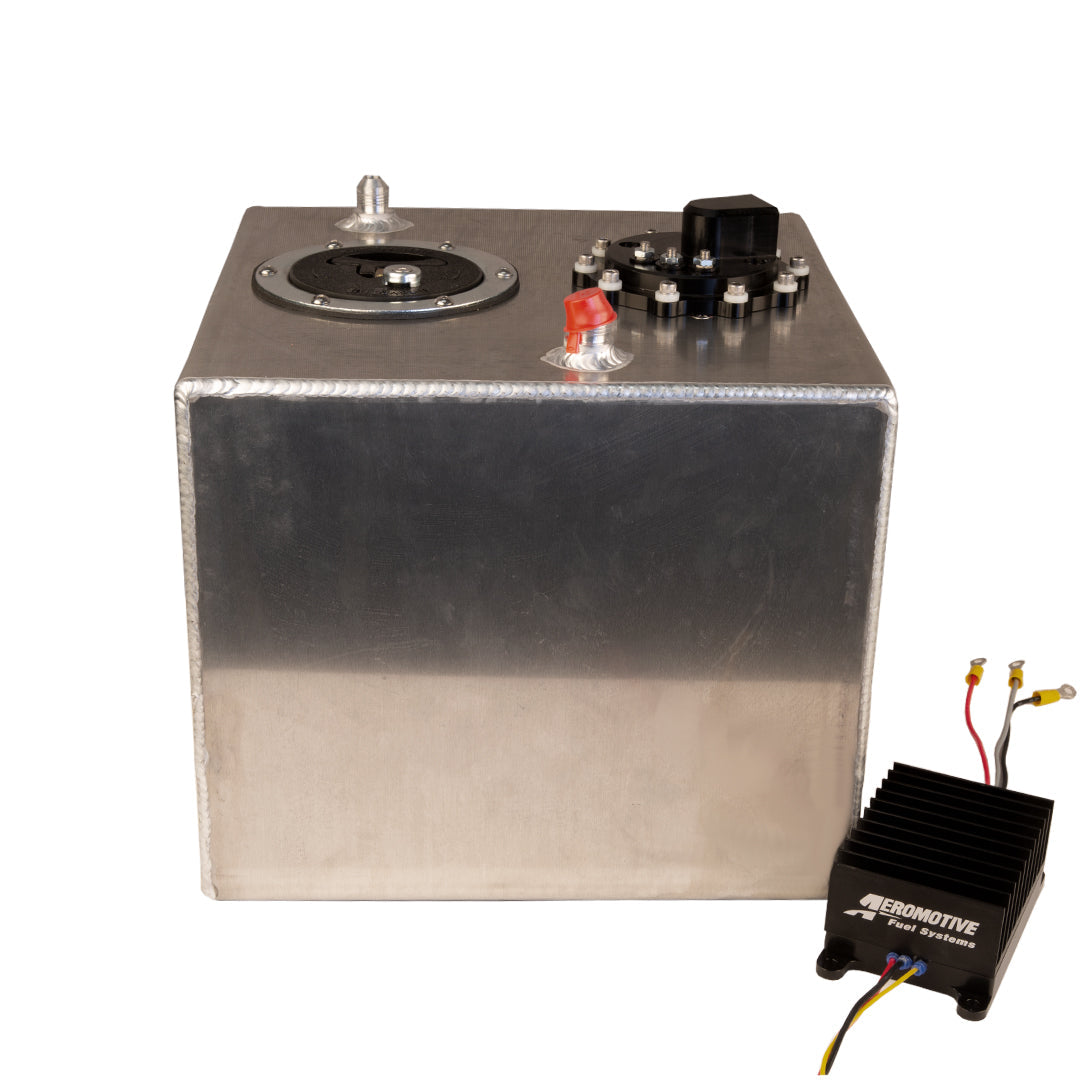

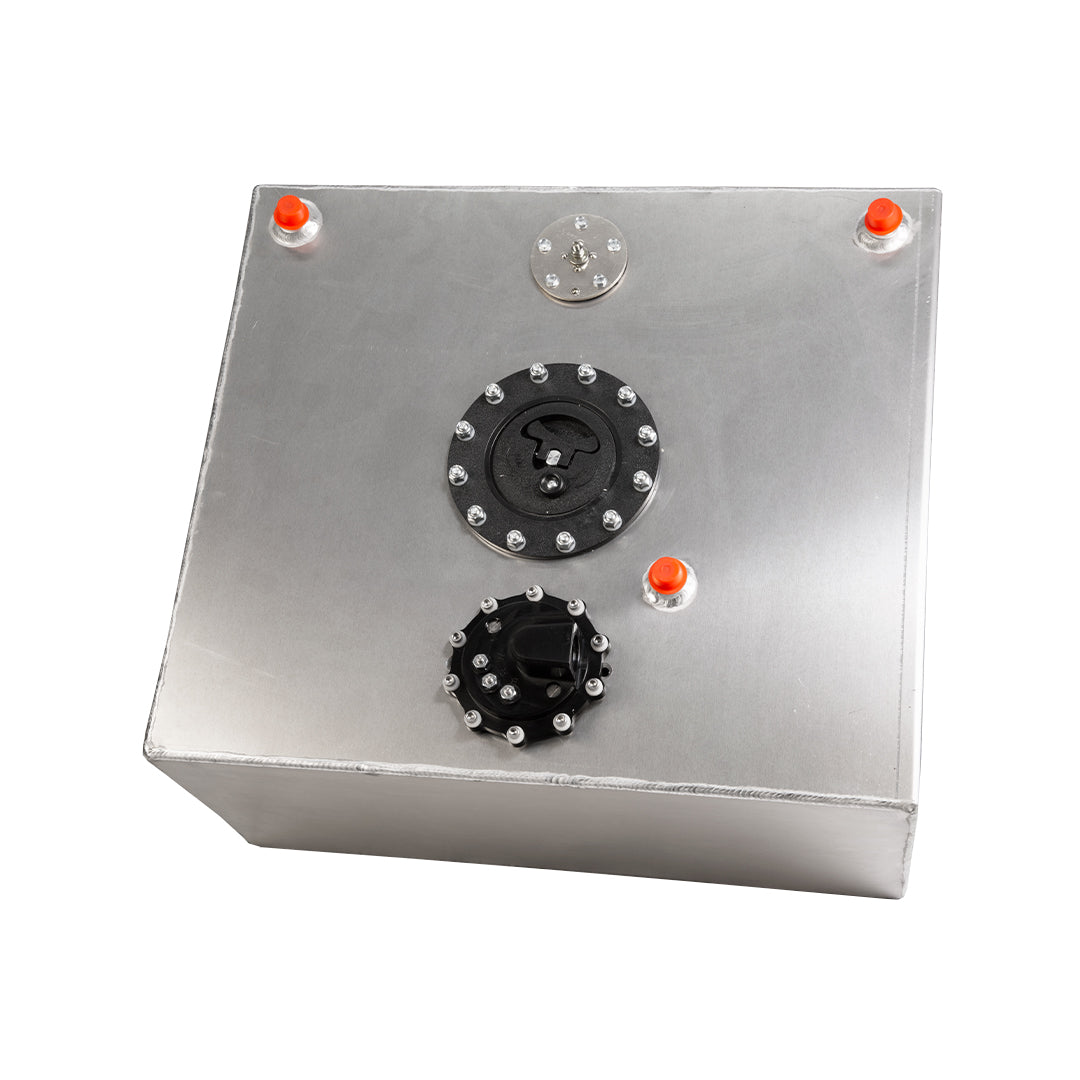

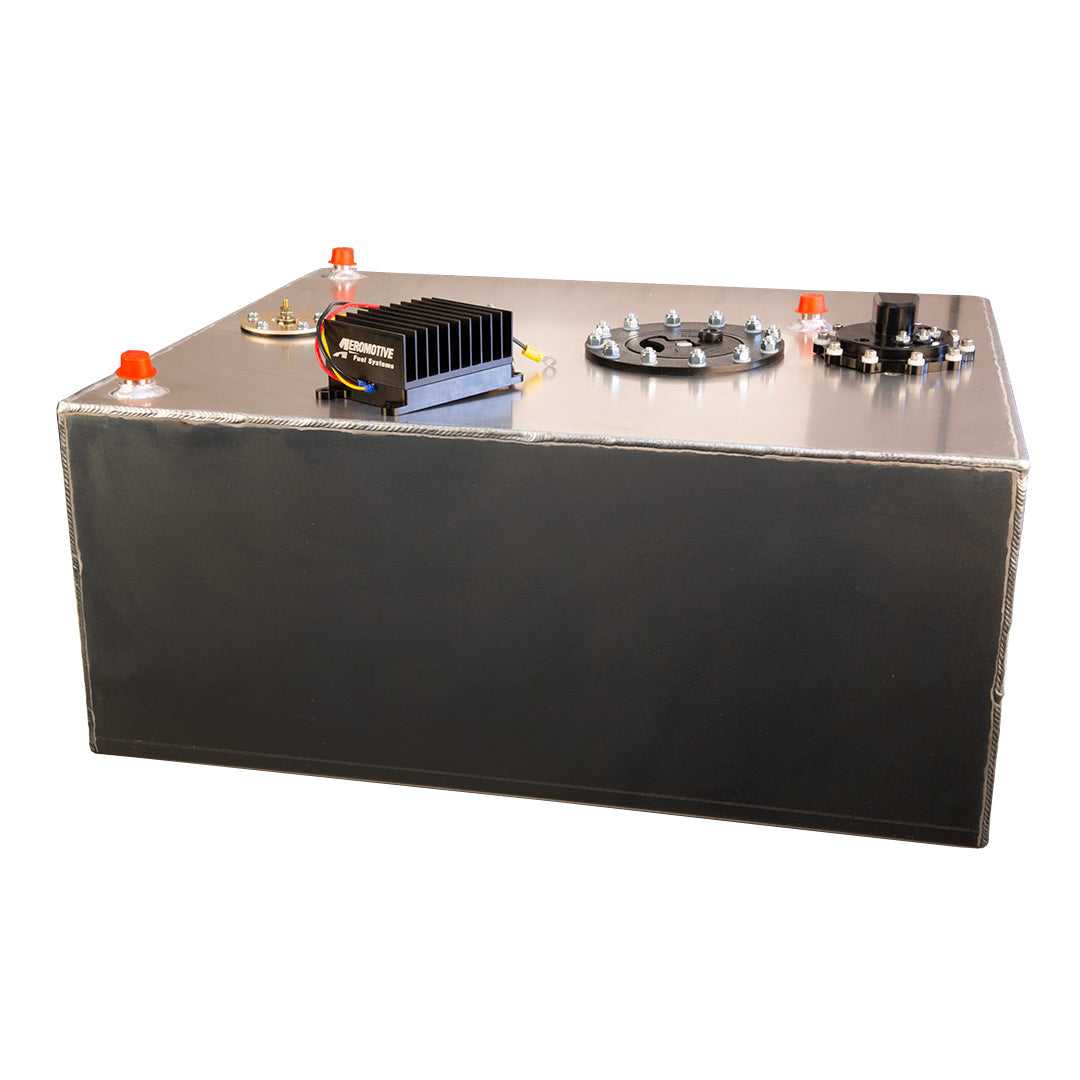

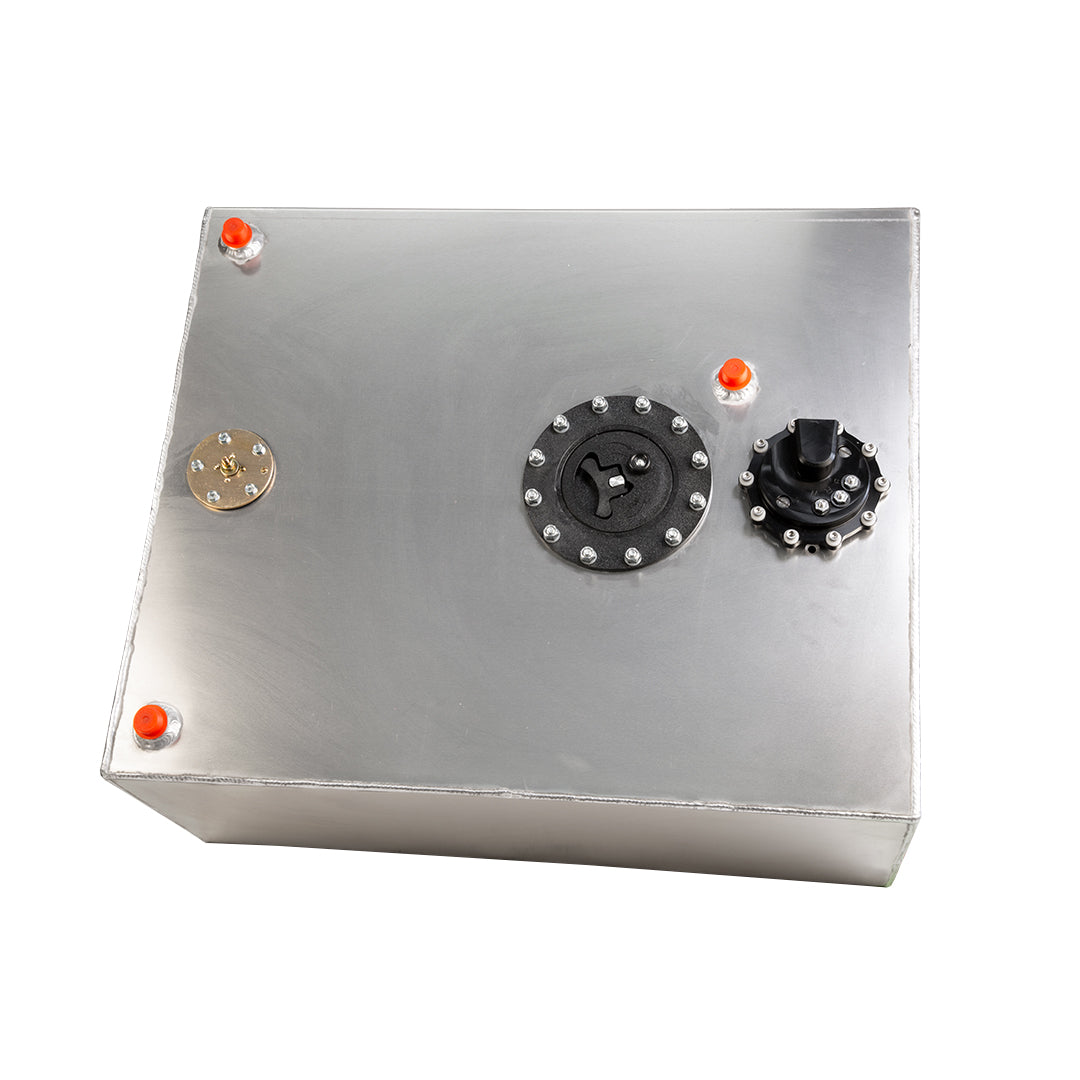

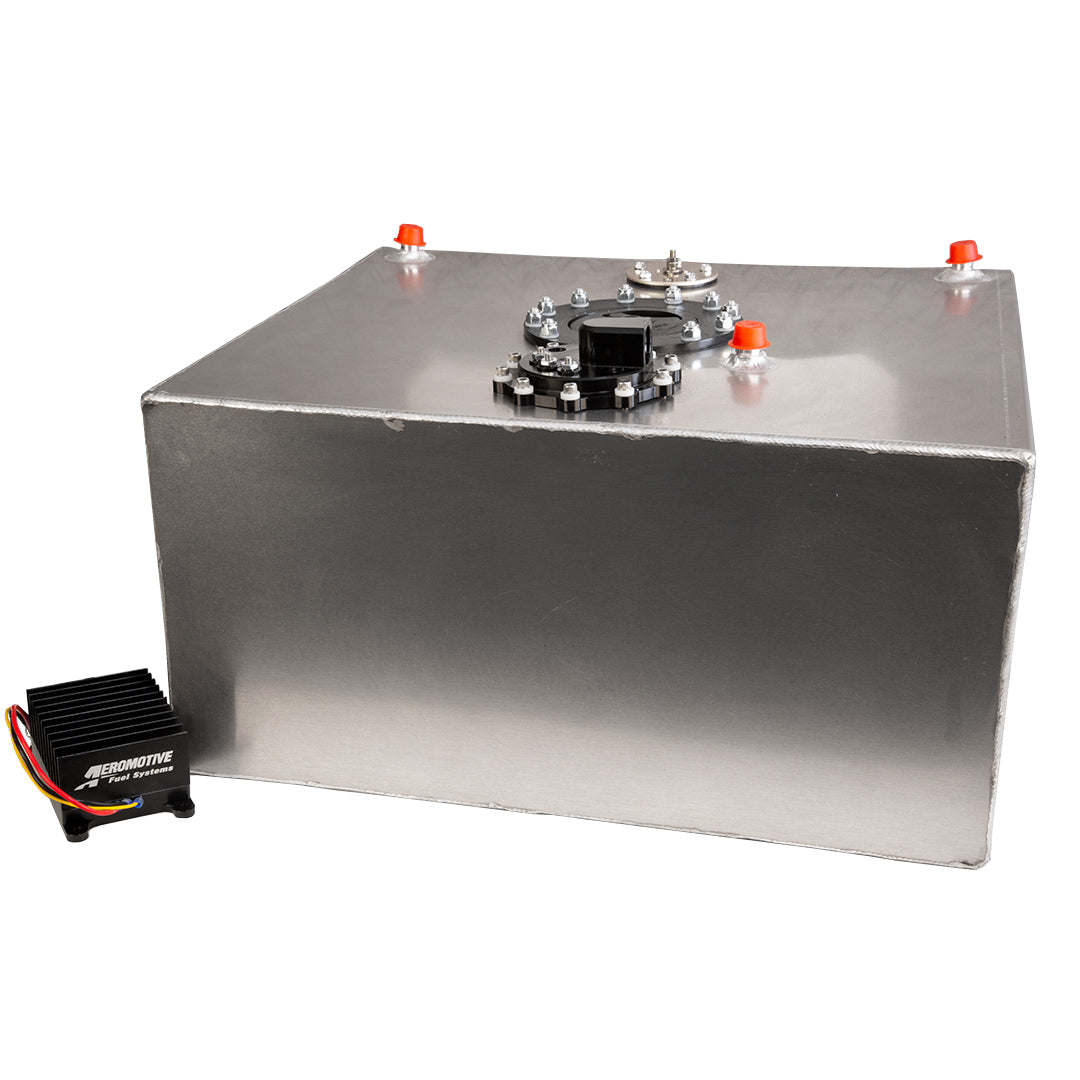

P/N 19303 (6 Gallon), 19309 (15 Gallon), and 19315 (20 Gallon): Fuel Cell with Brushless Spur 3.5 GPM Fuel Pump, True Variable Speed, 90-Deg Outlet, and Pre-Pump Fuel Filter
Pro-Series Performance Plus Advanced Technology
This configuration features a universal filter pickup, for an overall height adjustment from 10-16in.
- The Pro-Series performance you expect and more:
-
Fuel-injected engines: GAS
up to 2400 FWHP – naturally-aspirated
up to 1800 FWHP – forced air induction
-
Carbureted engines: GAS
Up to 2600 FWHP – naturally-aspirated
Up to 2000 FWHP – forced air induction
-
Fuel-injected engines: E85
up to 1680 FWHP – naturally-aspirated
up to 1260 FWHP – forced air induction
-
Carbureted engines: E85
Up to 1820 FWHP – naturally-aspirated
Up to 1400 FWHP – forced air induction
-
Fuel-injected engines: METHANOL
up to 840 FWHP – naturally-aspirated
up to 630 FWHP – forced air induction
-
Carbureted engines: METHANOL
Up to 910 FWHP – naturally-aspirated
Up to 700 FWHP – forced air induction
-
Fuel-injected engines: GAS
- Dimensions:
- 6 Gallon: 12" L x 12" W x 10" H
- 15 Gallon: 18" L x 20" W x 10" H
-
20 Gallon: 24" L x 20" W x 10" H
- Lighter than the traditional Pro-Series pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
- ORB-10 outlet port.
- Requires straight 12-VDC to the 16-VDC power supply.
- Not compatible with pulse-modulated systems or fuel pump speed controllers.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts
Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
Specifications
Specifications
#19309 - 15 Gallon | #19315 - 20 Gallon | #19303 - 6 Gallon | |
---|---|---|---|
Series | Stealth Fuel Cell | Stealth Fuel Cell | Stealth Fuel Cell |
Capacity | 15 Gallons | 20 Gallons | 6 Gallons |
Baffled | Yes | Yes | Yes |
Material | Aluminum | Aluminum | Aluminum |
Universal Or Specific Fit | Universal | Universal | Universal |
Color | Natural | Natural | Natural |
Filler Neck Attached | Yes | Yes | Yes |
Width | 20 Inches | 20 Inches | 12 Inches |
Fuel Type | Gas | Gas | Gas |
Grade Type | Performance | Performance | Performance |
Height | 10 Inches | 10 Inches | 10 Inches |
Length | 18 Inches | 24 Inches | 12 Inches |
Mounting Hardware Included | No | No | No |
Mounting Straps Included | No | No | No |
Sender Ohm Range | 0-90 | 0-90 | |
Sending Unit Included | Yes | Yes | No |
Fuel Pump Included | Yes | Yes | Yes |
Maximum Flow Rating | 3.5 GPM | 3.5 GPM | 3.5 GPM |
Maximum Pressure | 90 PSI | 90 PSI | 90 PSI |
Pump Design | Spur Gear | Spur Gear | Spur Gear |
Motor Style | Brushless | Brushless | Brushless |
Integrated Controller | Yes | Yes | Yes |
Pulse Width Modulation Compatible | No | No | No |
Outlet Type | Female | Female | Female |
Outlet Outside Diameter | ORB-10 | ORB-10 | ORB-10 |
Return Fitting Size | ORB-08 | ORB-08 | ORB-08 |
Maximum Current Draw | 12 @ 40 psi | 12 @ 40 psi | 12 @ 40 psi |
Voltage | 12-16V | 12-16V | 12-16V |
Negative Ground | Yes | Yes | Yes |
Wire Quantity | 3 | 3 | 3 |
Wiring Harness Included | No | No | No |
Terminal Gender | Male | Male | Male |
Terminal Quantity | 3 | 3 | 3 |
Terminal Type | Threaded Stud | Threaded Stud | Threaded Stud |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
