Fuel Cell with Integrated Brushless 10.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter

Fuel Cell with Integrated Brushless 10.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter

Part Number: 18649 / UPC 00684980011852
Skip to product information

Product Info

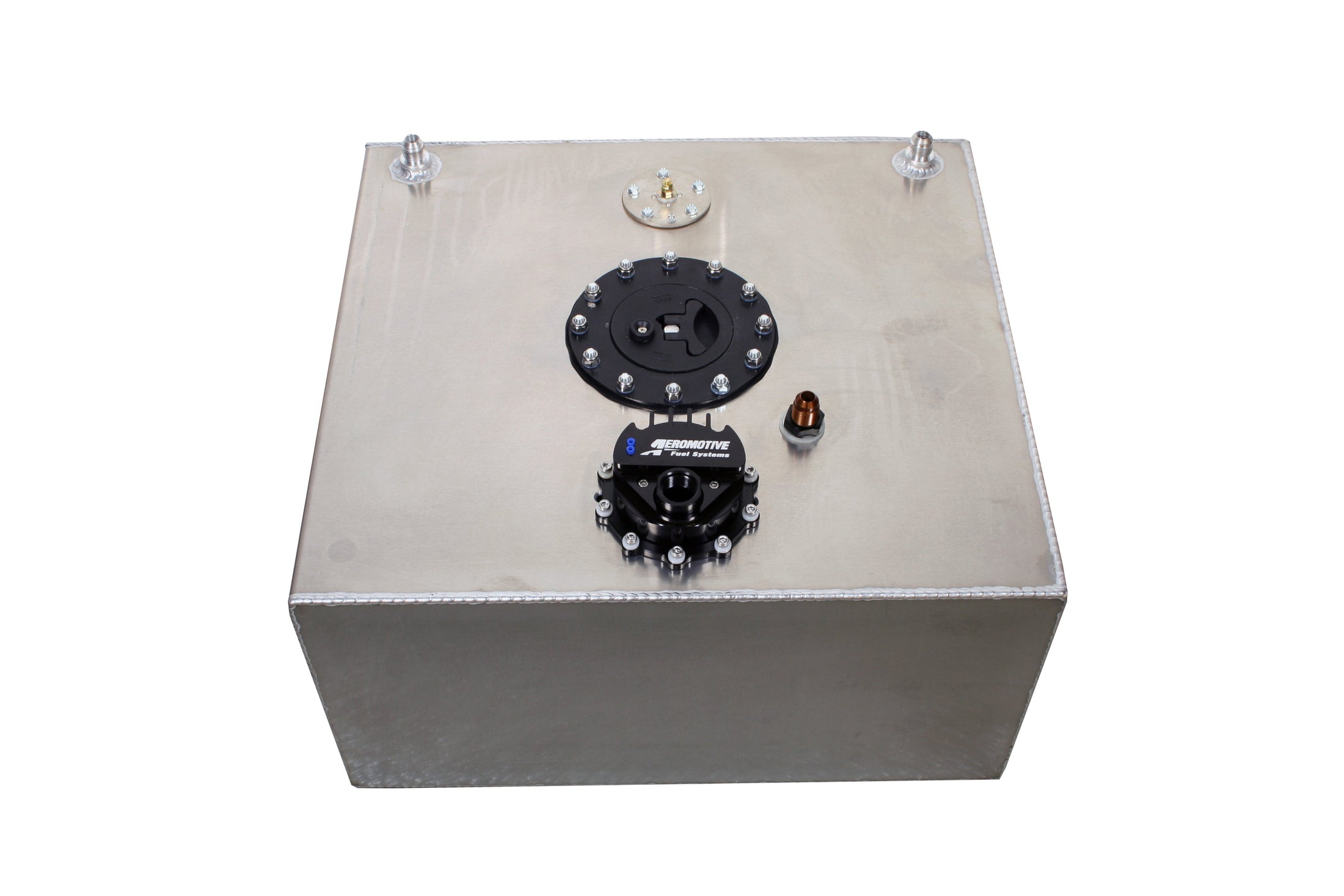

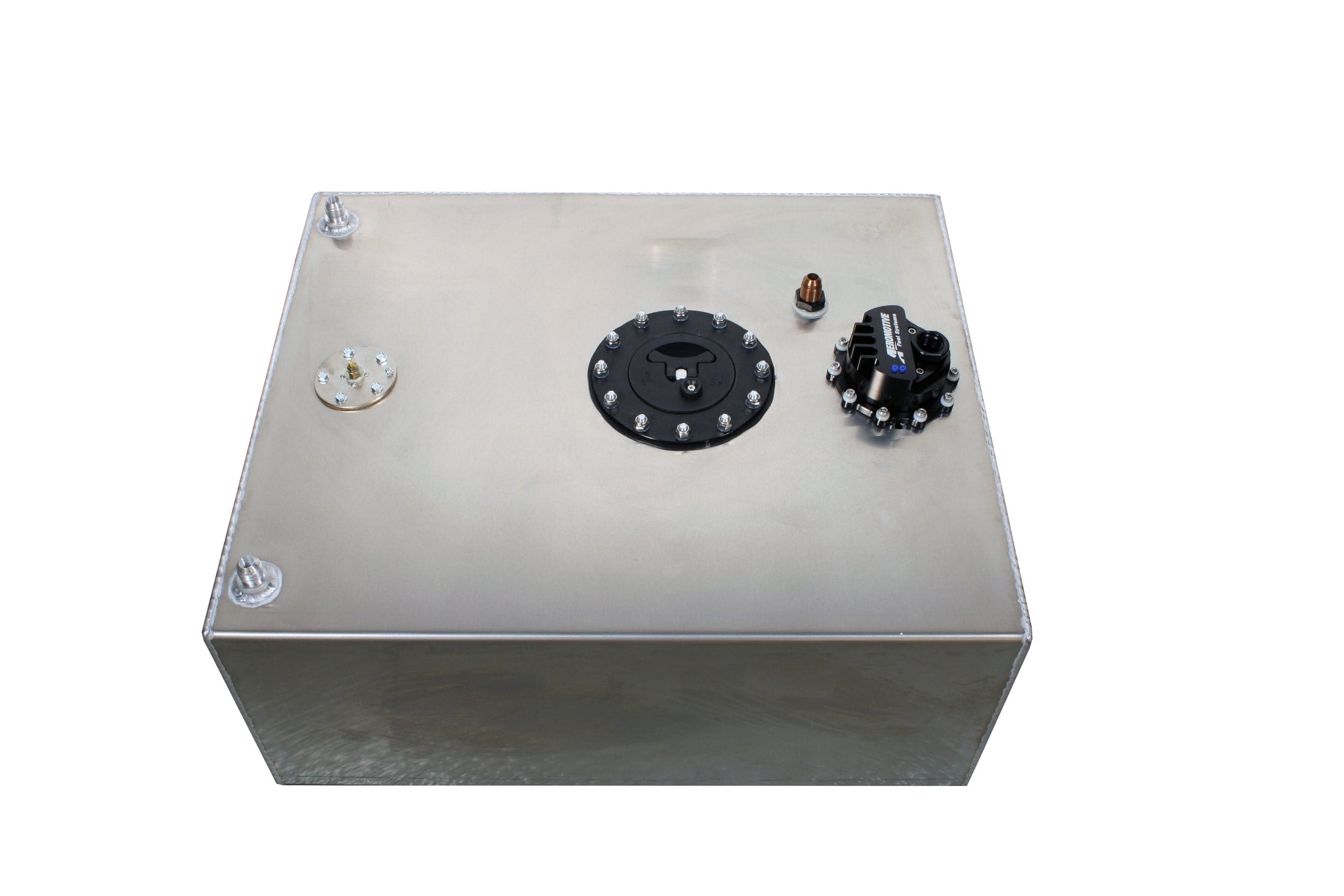

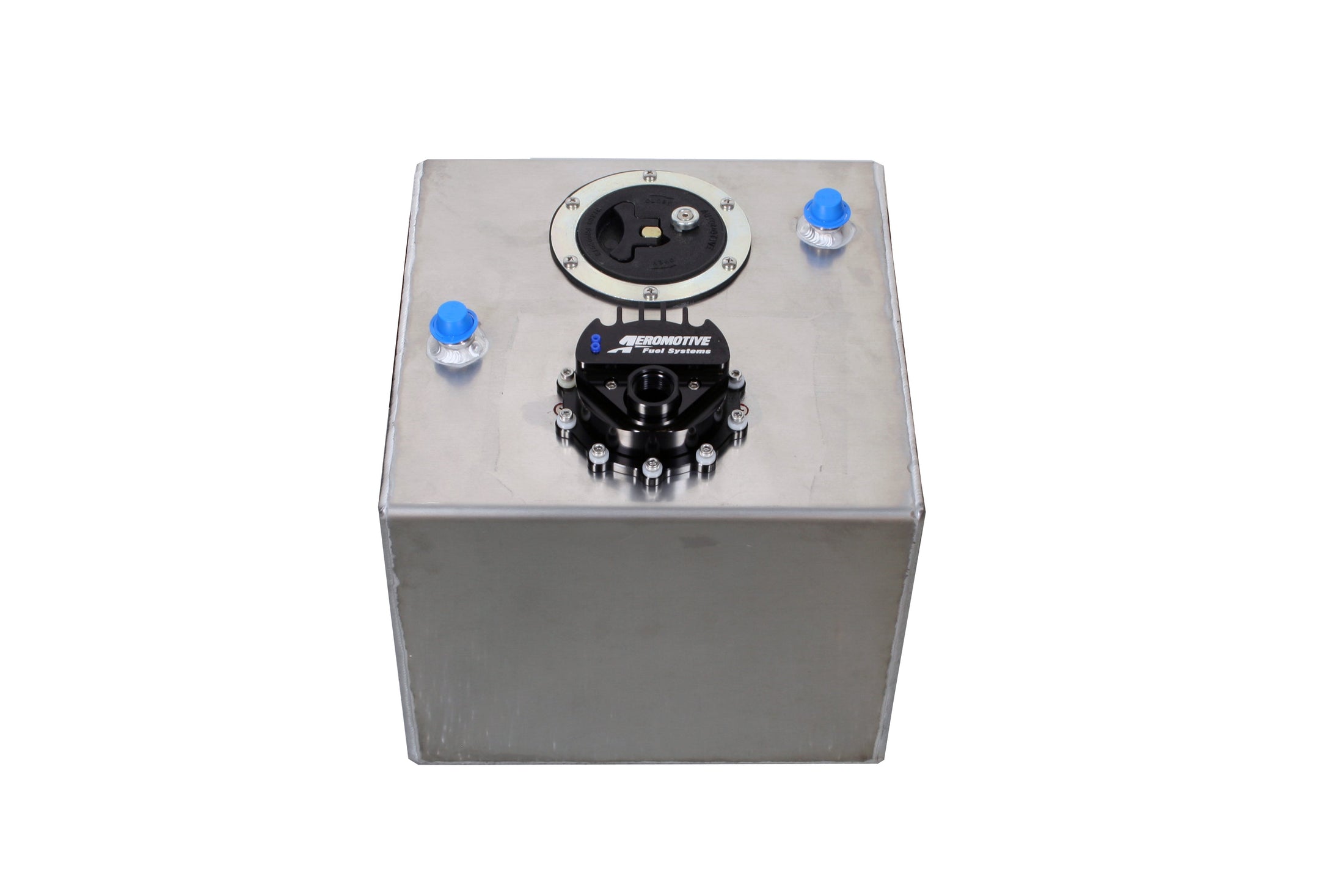

P/N 18647 (6 Gallon), 18649 (15 Gallon), and 18656 (20 Gallon): Brushless Spur 10.0 GPM Fuel Cell with In-Tank Fuel Pump, True Variable Speed, and Pre-Pump Fuel Filter
Ground Shaking Performance – Advanced Technology

  • Supports
    • Fuel injected engines:
      – up to 6,900 FWHP on GAS – naturally aspirated
      – up to 4,900 FWHP on GAS – forced air induction

      – up to 4,830 FWHP on E85 – naturally aspirated
      – up to 3,430 FWHP on E85 – forced air induction

      – up to 2,415 FWHP on METHANOL – naturally aspirated
      – up to 1,715 FWHP on METHANOL – forced air induction

      Carbureted Engines:
      – up to 7,600 FWHP on GAS – naturally aspirated
      – up to 5,500 FWHP on GAS – forced air induction

      – up to 5,300 FWHP on E85 – naturally aspirated
      – up to 3,850 FWHP on E85 – forced air induction

      – up to 2,650 FWHP on METHANOL – naturally aspirated
      – up to 1,925 FWHP on METHANOL – forced air induction

  • E85 Compatible, reduce max FWHP by 30%

  • Lighter than the traditional external mount pumps.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.

  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

  • ORB-12 inlet and ORB-10 outlet ports.

  • Requires straight 12-VDC to 16-VDC power supply.

  • Not compatible with pulse modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Additional information





This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Installation Instructions

Instruction Manual
18649 Installation Instructions

Download PDF
Instruction Manual
18647 Installation Instructions

Download PDF
Instruction Manual
18656 Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews

Fuel Cell with Integrated Brushless 10.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter

Fuel Cell with Integrated Brushless 10.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter

Part Number: 18649 / UPC 00684980011852
Choose your Size:
Regular price $3,234.95
Sale price $3,234.95 Regular price

Part Number: 18649 / UPC 00684980011852
Does This part fit My vehicle?
View full details

Product Info

P/N 18647 (6 Gallon), 18649 (15 Gallon), and 18656 (20 Gallon): Brushless Spur 10.0 GPM Fuel Cell with In-Tank Fuel Pump, True Variable Speed, and Pre-Pump Fuel Filter
Ground Shaking Performance – Advanced Technology

  • Supports
    • Fuel injected engines:
      – up to 6,900 FWHP on GAS – naturally aspirated
      – up to 4,900 FWHP on GAS – forced air induction

      – up to 4,830 FWHP on E85 – naturally aspirated
      – up to 3,430 FWHP on E85 – forced air induction

      – up to 2,415 FWHP on METHANOL – naturally aspirated
      – up to 1,715 FWHP on METHANOL – forced air induction

      Carbureted Engines:
      – up to 7,600 FWHP on GAS – naturally aspirated
      – up to 5,500 FWHP on GAS – forced air induction

      – up to 5,300 FWHP on E85 – naturally aspirated
      – up to 3,850 FWHP on E85 – forced air induction

      – up to 2,650 FWHP on METHANOL – naturally aspirated
      – up to 1,925 FWHP on METHANOL – forced air induction

  • E85 Compatible, reduce max FWHP by 30%

  • Lighter than the traditional external mount pumps.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 60-PSI continuous operating pressure and up to 100-PSI peak pressure, base plus boost.

  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

  • ORB-12 inlet and ORB-10 outlet ports.

  • Requires straight 12-VDC to 16-VDC power supply.

  • Not compatible with pulse modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Additional information





This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
