Fuel Cell with Integrated Brushless A1000 In-Tank Fuel Pump Module and Pre-Pump Fuel Filter

Fuel Cell with Integrated Brushless A1000 In-Tank Fuel Pump Module and Pre-Pump Fuel Filter

Part Number: 18366 / UPC 00684980008951
Skip to product information

Product Info

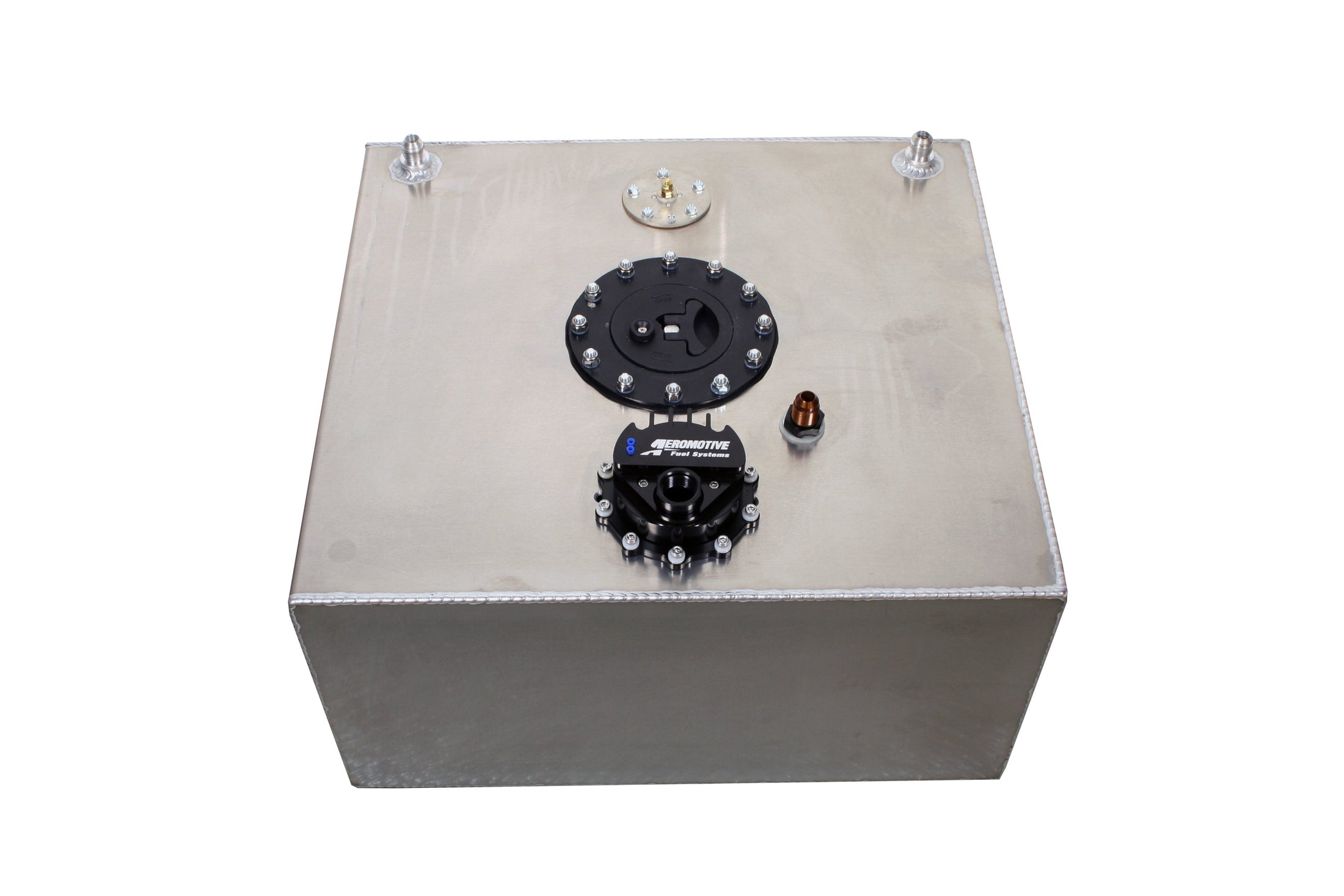

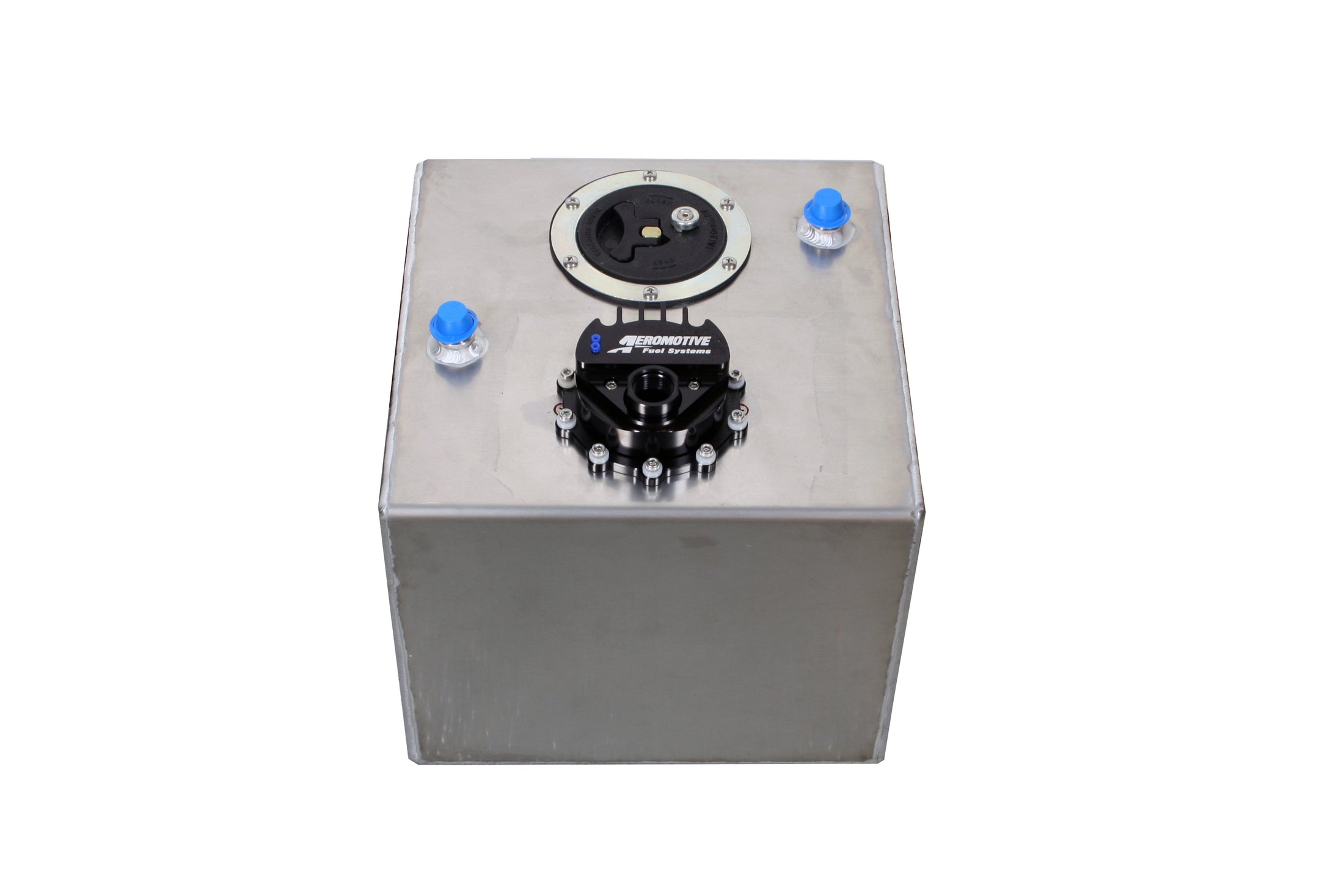

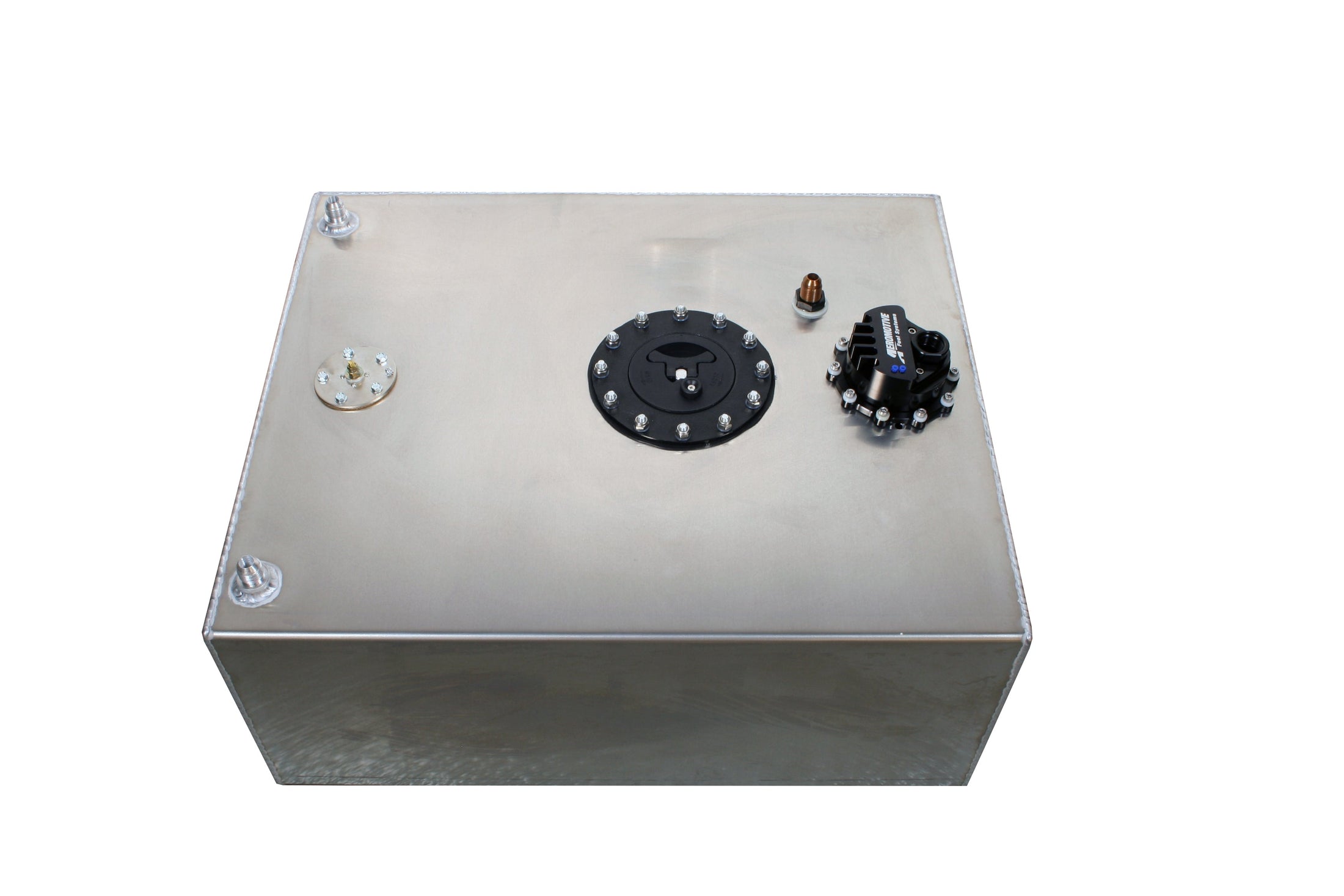

P/N 18366 (6 Gallon), 18360 (15 Gallon), or 18361 (20 Gallon) A1000 Brushless Stealth Cell
A1000 Performance Plus Advanced Technology

Racing Fuel Cell with Stealth A1000 Brushless Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.

  • Baffled design keeps fuel at the pump inlet

  • Fluted pickup with integrated 100-m prefilter

  • Dimensions:
    • 6 Gallon: 12" W x 12" L x 10" H
    • 15 Gallon: 20" W x 18" L x 10" H
    • 20 Gallon: 20" W x 24" L x 10" H

  • The A1000 performance you expect and more:

    • Fuel Injected Engines: GAS
      up to 1300 FWHP - naturally aspirated
      up to 1000 FWHP - forced air induction

    • Carbureted Engines: GAS
      up to 1500 FWHP - naturally aspirated
      up to 1200 FWHP - forced air induction

    • Fuel Injected Engines: E85
      up to 910 FWHP – naturally aspirated
      up to 700 FWHP – forced air induction

    • Carbureted Engines: E85
      up to 1050 FWHP – naturally aspirated
      up to 840 FWHP – forced air induction
  • Lighter than the traditional A1000 pump.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

  • Quieter than the traditional A1000 pump.

  • ORB-10 outlet port.

  • Requires straight 12-VDC to 16-VDC power supply.

  • Not compatible with pulse modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts

Installation Instructions

Instruction Manual
18366 Installation Instructions

Download PDF
Instruction Manual
18360 Installation Instructions

Download PDF
Instruction Manual
18361 Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.
