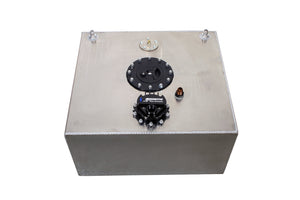

Fuel Cell with Integrated Brushless 3.5 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter

Fuel Cell with Integrated Brushless 3.5 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter

Part Number: 18396
Skip to product information

Product Info

P/N 18396 (6 Gallon), 18390 (15 Gallon), and 18391 (20 Gallon) Brushless 3.5 GPM Spur Gear Fuel Cell with Variable Speed Controller
Pro-Series Performance Plus Advanced Technology

Racing Fuel Cell with 3.5 Brushless Gear Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.  This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and many of the MOPAR Drag Pack cars.

  • Baffled design keeps fuel at the pump inlet

  • Fluted pickup with integrated 100-m prefilter

  • Fuel Cell Dimensions:
    • 6 Gallon: 12" W x 12" L x 10" H
    • 15 Gallon: 20" W x 18" L x 10" H
    • 20 Gallon: 20" x 24" L x 10" H

  • The Pro-Series performance you expect and more:

    • Fuel injected engines: GAS
      up to 2400 FWHP – naturally aspirated
      up to 1800 FWHP – forced air induction

    • Carbureted engines: GAS
      Up to 2600 FWHP – naturally aspirated
      Up to 2000 FWHP – forced air induction

    • Fuel injected engines: E85
      up to 1680 FWHP – naturally aspirated
      up to 1260 FWHP – forced air induction

    • Carbureted engines: E85
      Up to 1820 FWHP – naturally aspirated
      Up to 1400 FWHP – forced air induction

    • Fuel injected engines: METHANOL
      up to 840 FWHP – naturally aspirated
      up to 630 FWHP – forced air induction

    • Carbureted engines: METHANOL
      Up to 910 FWHP – naturally aspirated
      Up to 700 FWHP – forced air induction
  • Lighter than the traditional Pro-Series pump.

  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

  • ORB-10 outlet port.

  • Requires straight 12-VDC to 16-VDC power supply.

  • Not compatible with pulse modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Additional information

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Specifications

#18390 - 15 Gallon #18391 - 20 Gallon #18396 - 6 Gallon
Series Stealth Fuel Cell Stealth Fuel Cell Stealth Fuel Cell
Capacity 15 Gallons 20 Gallons 6 Gallons
Baffled Yes Yes Yes
Material Aluminum Aluminum Aluminum
Universal Or Specific Fit Universal Universal Universal
Color Natural Natural Natural
Filler Neck Attached Yes Yes Yes
Width 20 Inches 20 Inches 12 Inches
Fuel Type Gas Gas Gas
Grade Type Performance Performance Performance
Height 10 Inches 10 Inches 10 Inches
Length 18 Inches 24 Inches 12 Inches
Mounting Hardware Included No No No
Mounting Straps Included No No No
Sender Ohm Range 0-90 0-90
Sending Unit Included Yes Yes No
Fuel Pump Included Yes Yes Yes
Maximum Flow Rating 3.5 GPM 3.5 GPM 3.5 GPM
Maximum Pressure 90 PSI 90 PSI 90 PSI
Pump Design Spur Gear Spur Gear Spur Gear
Motor Style Brushless Brushless Brushless
Integrated Controller Yes Yes Yes
Pulse Width Modulation Compatible No No No
Outlet Type Female Female Female
Outlet Outside Diameter ORB-10 ORB-10 ORB-10
Return Fitting Size ORB-08 ORB-08 ORB-08
Maximum Current Draw 12 @ 40 psi 12 @ 40 psi 12 @ 40 psi
Voltage 12-16V 12-16V 12-16V
Negative Ground Yes Yes Yes
Wire Quantity 3 3 3
Wiring Harness Included No No No
Terminal Gender Male Male Male
Terminal Quantity 3 3 3
Terminal Type Threaded Stud Threaded Stud Threaded Stud
