40 Micron Extreme Flow Fuel Filter with AN-16 ORB Ports & Stainless Mesh Element
40 Micron Extreme Flow Fuel Filter with AN-16 ORB Ports & Stainless Mesh Element
Product Info
Product Info

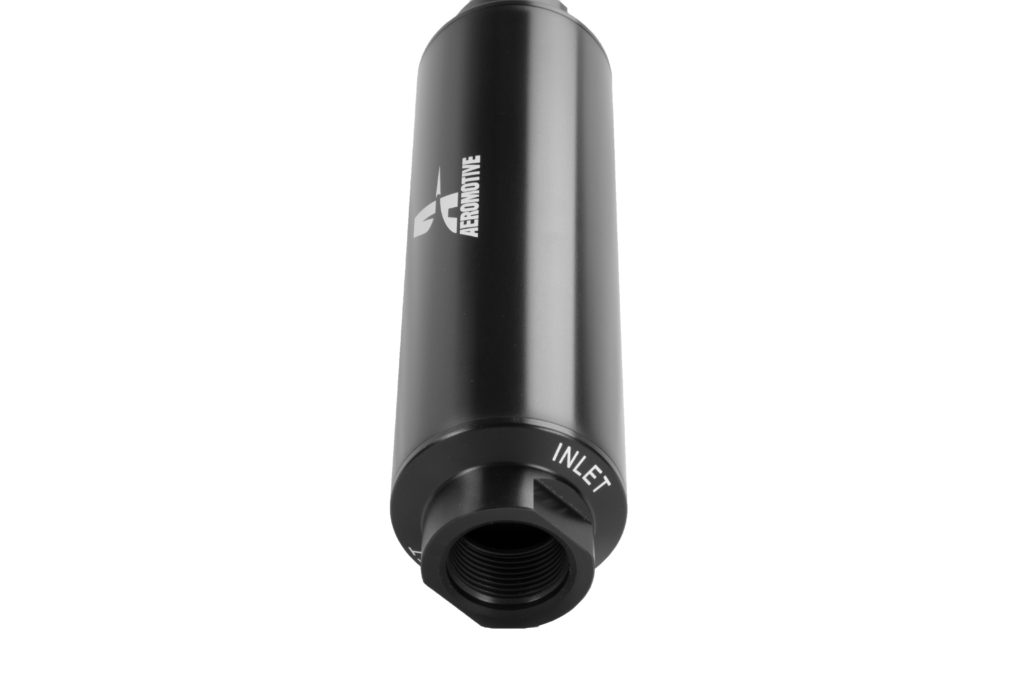

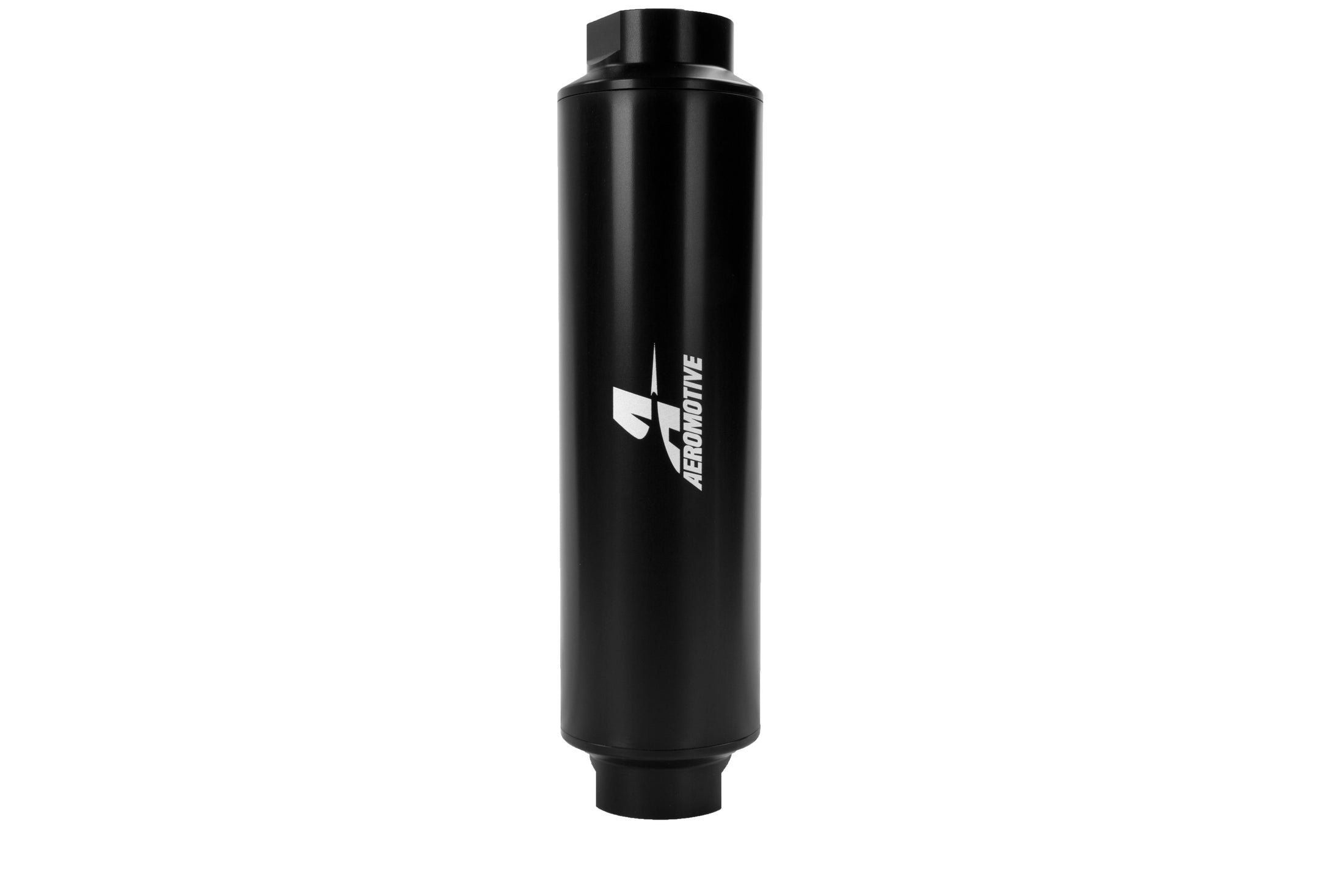

P/N 12363: Extreme Flow 40-m SS AN-16 ORB Fuel Filter
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps
High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.
Suitable as a post filter with mechanical or electric pumps up to 32-GPM.
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps
High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.
Suitable as a post filter with mechanical or electric pumps up to 32-GPM.
- High-flow, 40-micron Stainless Steel cleanable element.
- Ideal for use with gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
- Suitable post filter for up to 32-GPM mechanical or electric fuel pumps.
- Flows 9,000 lb/hr (24-GPM) with a pressure drop of less than 2-PSI.
- Flows 12,000 lb/hr (32-GPM) with a pressure drop of less than 3-PSI.
- AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Extreme-Flow filters feature a tough, Hard-Coat Black finish.

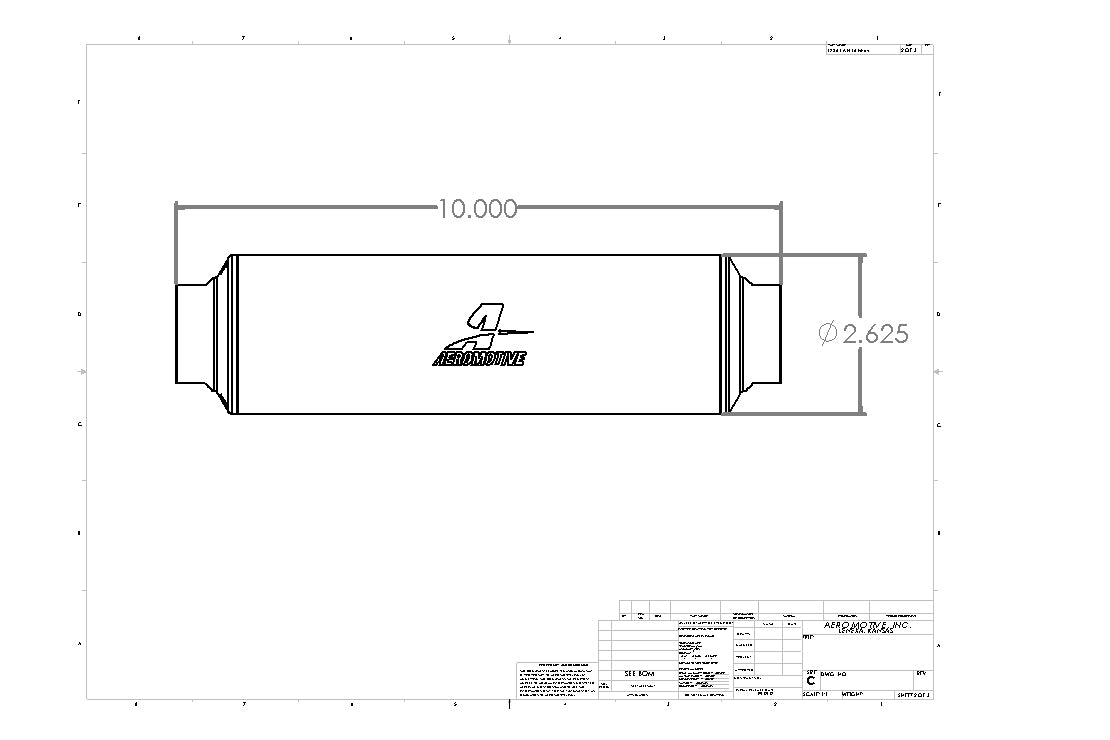

- 10" long x 2-5/8" diameter.

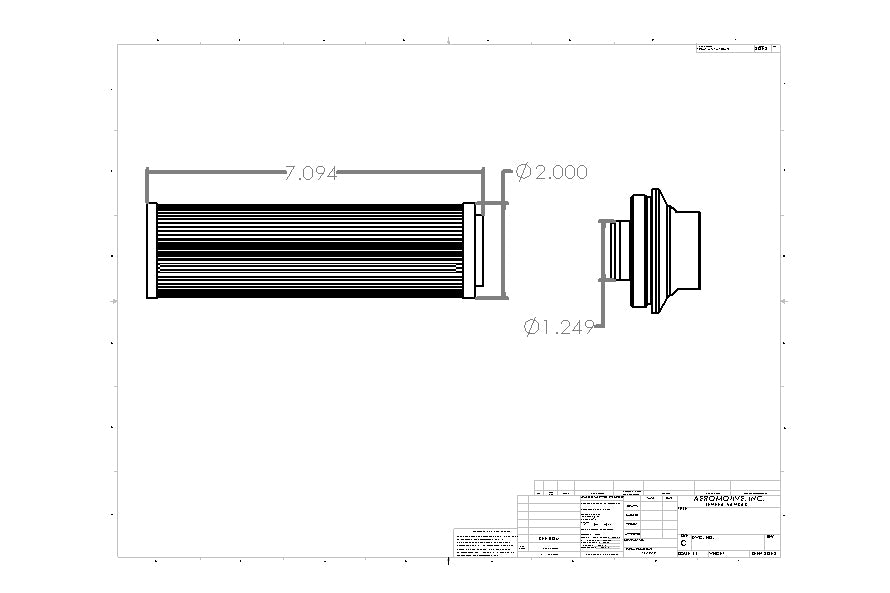

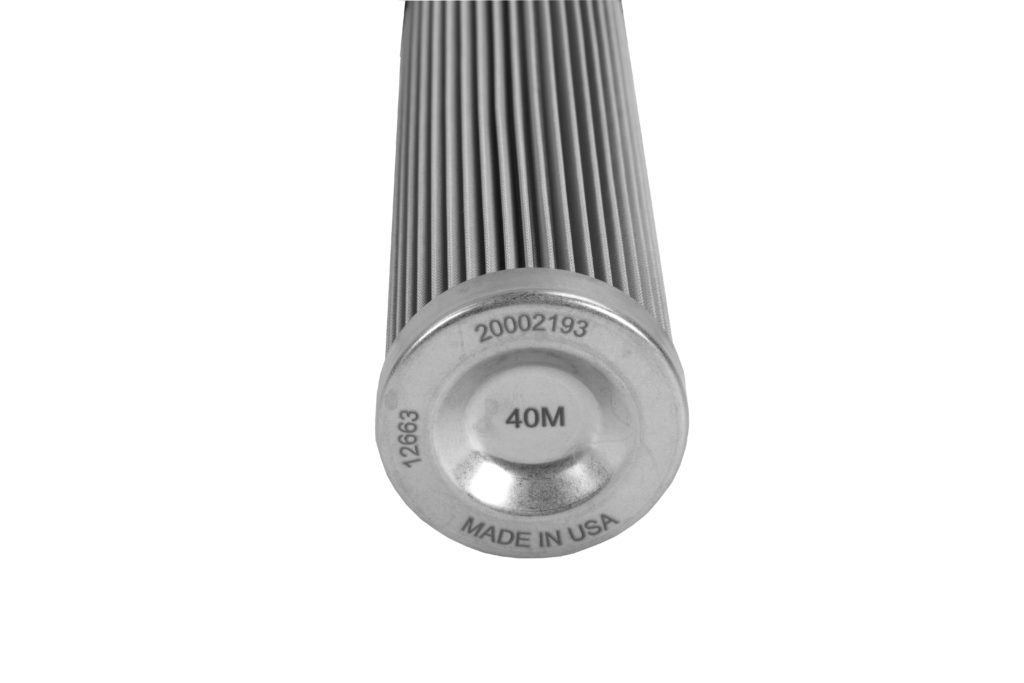

- Replacement element P/N 12663
Additional information
Additional information
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers a full line of filter options suitable for 200 - 4,000 plus HP applications. Specialized filter media for gas, ethanol and methanol fuels available. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.
Suitable as a post filter with mechanical or electric pumps up to 32-GPM.
High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.
Suitable as a post filter with mechanical or electric pumps up to 32-GPM.
- High-flow, 40-micron Stainless Steel cleanable element.
- Ideal for use with gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
- Suitable post filter for up to 32-GPM mechanical or electric fuel pumps.
- Flows 9,000 lb/hr (24-GPM) with a pressure drop of less than 2-PSI.
- Flows 12,000 lb/hr (32-GPM) with a pressure drop of less than 3-PSI.
- AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Extreme-Flow filters feature a tough, Hard-Coat Black finish.
- 10" long x 2-5/8" diameter.
- Replacement element P/N 12663
Specifications
Specifications
| Fuel Filter Style | Inline |
|---|---|
| Fuel Type | All Fuels |
| Inlet Quantity | 1 |
| Inlet Size | AN-16 |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-16 |
| Outlet Quantity | 1 |
| Outlet Size | AN-16 |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-16 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Fitting Type | AN-16 |
| Fittings Included | No |
| Filter Element Included | Yes |
| Filter Element Material | Stainless steel mesh |
| Micron Rating | 40 |
| Smallest Particle Filtered | 40 microns |
| Flow Rate | 2000 Pounds Per Hour |
| Filter Housing Color | Black |
| Filter Housing Finish | Anodized |
| Filter Housing Diameter | 2.0 Inches |
| Filter Housing Length | 5.5 Inches |
| Filter Housing Material | Billet Aluminum |
| Mounting Type | External |
| Mounting Bracket Included | No |
| Clamps Included | No |
| Gasket Or Seal Included | Yes |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Universal Or Specific Fit | Universal |
filter replacement element
filter replacement element

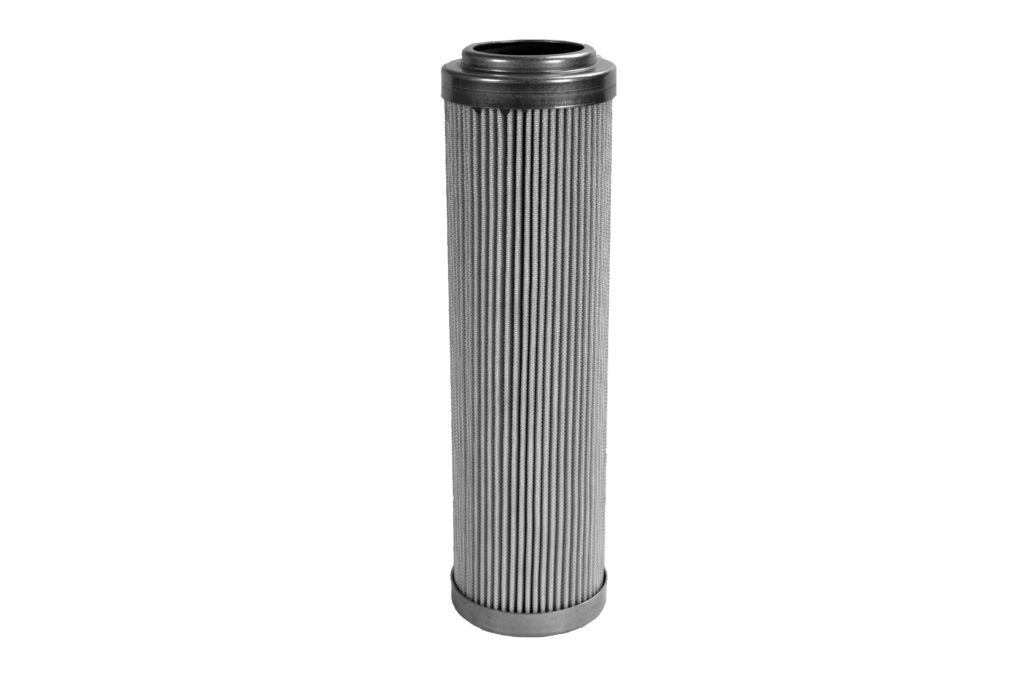

40 Micron Stainless Mesh Replacement for Extreme Flow Filters
Part Number:
12663
Regular price
$87.95
Sale price
$87.95
Regular price
Unit price
per
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
