Extreme Flow 2-Port EFI Regulator

Extreme Flow 2-Port EFI Regulator

Part Number: 13134 / UPC 00684980005882
Skip to product information

Product Info

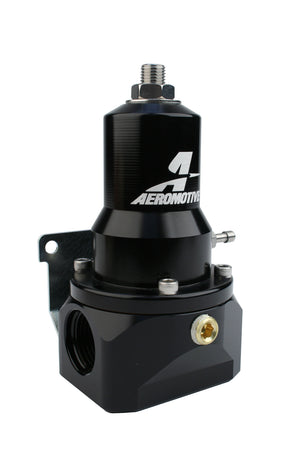

P/N 13134: Extreme Flow EFI Regulator
30-75 PSI and 75-125 PSI Base Pressure Range

  • Extreme Flow Design ideal with Eliminator, Pro-Pump, Dual A1000 and Brushless 3.5 and 5.0 Gear Pump fuel systems.

  • Suitable for Mechanical pumps up to 6.0 GPM.

  • Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port.

  • High Flow 0.313" Valve/Seat, optimized for larger electric fuel pumps in the 2.5-6.0 GPM flow range.

  • Dual Springs expand pressure range while maintaining a low profile and reduced weight.

    • Standard spring (installed) supports 30-75 PSI base fuel pressure.

    • High Pressure spring (included) supports 75-120 PSI base fuel pressure.



  • Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.

  • This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.

  • Vacuum and boost reference on a 1:1 ratio.

  • Compatible with gasoline, ethanol and methanol.

Additional information



Extreme Flow EFI Regulator Designed for use with Eliminator, Pro-Pump and Dual A1000 fuel systems. Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port. 0.313 . High Flow Valve/Seat, able to handle 3-6 GPM Fuel Pumps Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI. This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.

Regulator Service Kits

  • Installation Instructions

    Instruction Manual
    Installation Instructions

    Download PDF

    Reviews

    Extreme Flow 2-Port EFI Regulator

    Extreme Flow 2-Port EFI Regulator

    Part Number: 13134 / UPC 00684980005882
    Regular price $288.95
    Sale price $288.95 Regular price

    Part Number: 13134 / UPC 00684980005882
    View full details

    Product Info

    P/N 13134: Extreme Flow EFI Regulator
    30-75 PSI and 75-125 PSI Base Pressure Range

    • Extreme Flow Design ideal with Eliminator, Pro-Pump, Dual A1000 and Brushless 3.5 and 5.0 Gear Pump fuel systems.

    • Suitable for Mechanical pumps up to 6.0 GPM.

    • Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port.

    • High Flow 0.313" Valve/Seat, optimized for larger electric fuel pumps in the 2.5-6.0 GPM flow range.

    • Dual Springs expand pressure range while maintaining a low profile and reduced weight.

      • Standard spring (installed) supports 30-75 PSI base fuel pressure.

      • High Pressure spring (included) supports 75-120 PSI base fuel pressure.



    • Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.

    • This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.

    • Vacuum and boost reference on a 1:1 ratio.

    • Compatible with gasoline, ethanol and methanol.

    Additional information



    Extreme Flow EFI Regulator Designed for use with Eliminator, Pro-Pump and Dual A1000 fuel systems. Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port. 0.313 . High Flow Valve/Seat, able to handle 3-6 GPM Fuel Pumps Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI. This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.

    Regulator Service Kits

  • Installation Instructions

    Instruction Manual
    Installation Instructions

    Download PDF

    Reviews
