10 Micron Extreme Flow Fuel Filter with AN-16 ORB Ports & Cellulose Element
10 Micron Extreme Flow Fuel Filter with AN-16 ORB Ports & Cellulose Element
Product Info
Product Info

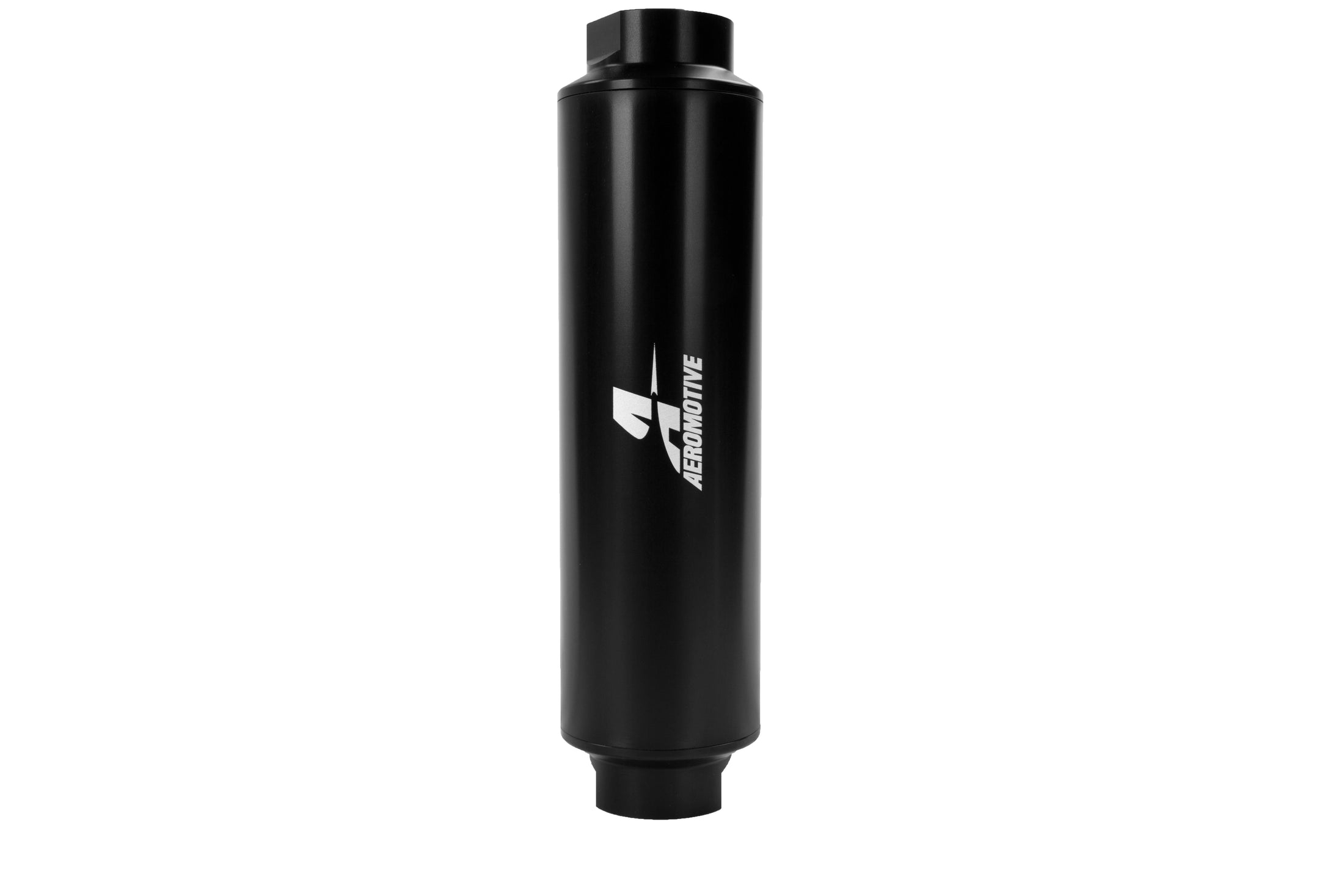

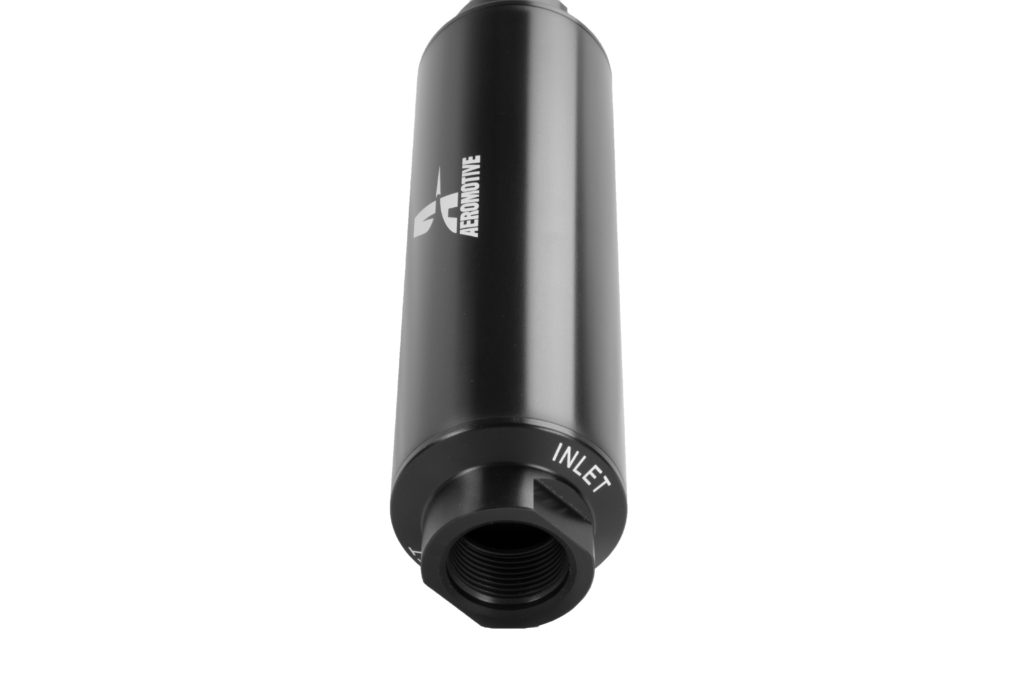

P/N 12361: Extreme Flow 10-m Fabric AN-16 ORB Fuel Filter
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps
High-flow cellulose filter ideal for extended service life in gas or diesel fuel applications using mechanical or electric fuel pumps up to 6-GPM.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
When over 6-GPM mechanical or electric pumps are required for ethanol and methanol applications see 10-m Microglass filter Assembly P/N 12364 .
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps
High-flow cellulose filter ideal for extended service life in gas or diesel fuel applications using mechanical or electric fuel pumps up to 6-GPM.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
When over 6-GPM mechanical or electric pumps are required for ethanol and methanol applications see 10-m Microglass filter Assembly P/N 12364 .
- High-flow, 10-micron fabric (cellulose) replaceable element.
- Fabric element for use with gasoline and diesel fuels only.
- Suitable for up to 6-GPM mechanical or electric fuel pumps.
- Flows 3,000 lb/hr with a clean pressure drop of less than 3-PSI.
- AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
- Extreme-Flow filters feature a tough, Hard-Coat Black finish.

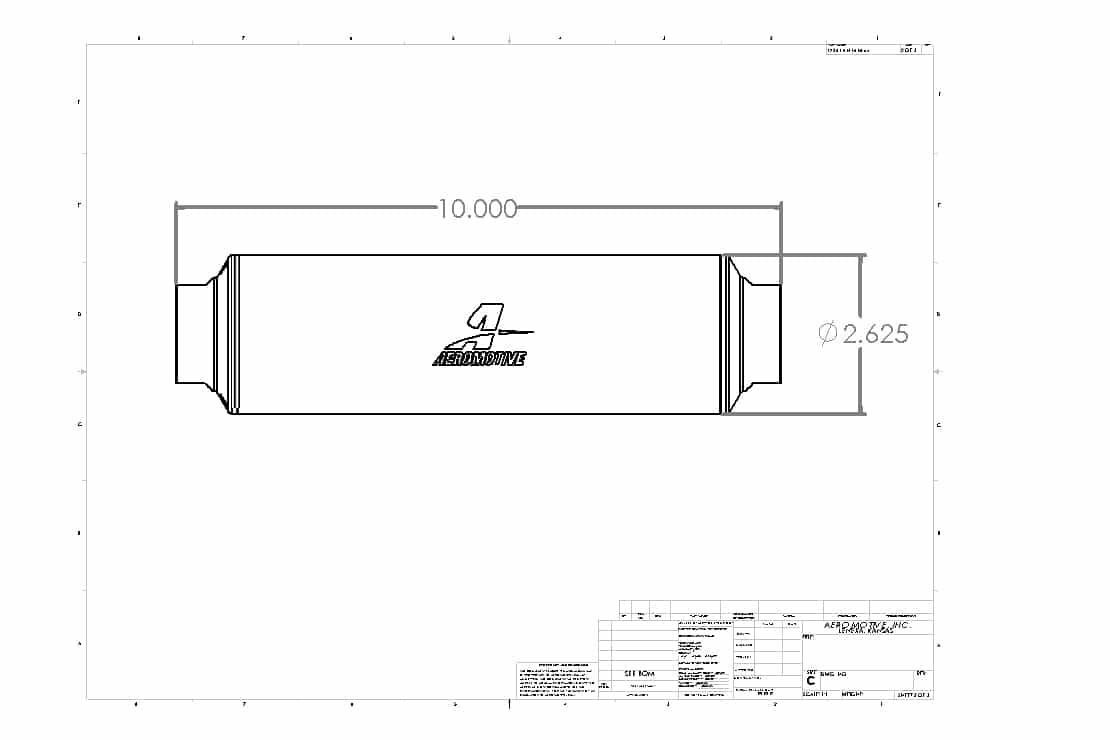

- 10" long x 2-5/8" diameter.
- Replacement element P/N 12661
Additional information
Additional information
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers a full line of filter options suitable for 200 - 4,000 plus HP applications. Specialized filter media for gas, ethanol and methanol fuels available. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
High-flow cellulose filter ideal for extended service life in gas or diesel fuel applications using mechanical or electric fuel pumps up to 6-GPM.
When over 6-GPM mechanical or electric pumps are required for ethanol and methanol applications see 10-m Microglass filter Assembly P/N 12364 .
High-flow cellulose filter ideal for extended service life in gas or diesel fuel applications using mechanical or electric fuel pumps up to 6-GPM.
When over 6-GPM mechanical or electric pumps are required for ethanol and methanol applications see 10-m Microglass filter Assembly P/N 12364 .
- High-flow, 10-micron fabric (cellulose) replaceable element.
- Fabric element for use with gasoline and diesel fuels only.
- Suitable for up to 6-GPM mechanical or electric fuel pumps.
- Flows 3,000 lb/hr with a clean pressure drop of less than 3-PSI.
- AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Extreme-Flow filters feature a tough, Hard-Coat Black finish.
- 10" long x 2-5/8" diameter.
- Replacement element P/N 12661
Specifications
Specifications
| Fuel Filter Style | Inline |
|---|---|
| Fuel Type | Gas / Diesel |
| Inlet Quantity | 1 |
| Inlet Size | AN-16 |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-16 |
| Outlet Quantity | 1 |
| Outlet Size | AN-16 |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-16 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Fitting Type | AN-16 |
| Fittings Included | No |
| Filter Element Included | Yes |
| Filter Element Material | Cellulose |
| Micron Rating | 100 |
| Smallest Particle Filtered | 100 microns |
| Flow Rate | 2000 Pounds Per Hour |
| Filter Housing Color | Black |
| Filter Housing Finish | Anodized |
| Filter Housing Diameter | 2.0 Inches |
| Filter Housing Length | 5.5 Inches |
| Filter Housing Material | Billet Aluminum |
| Mounting Type | External |
| Mounting Bracket Included | No |
| Clamps Included | No |
| Gasket Or Seal Included | Yes |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Universal Or Specific Fit | Universal |
filter replacement element
filter replacement element

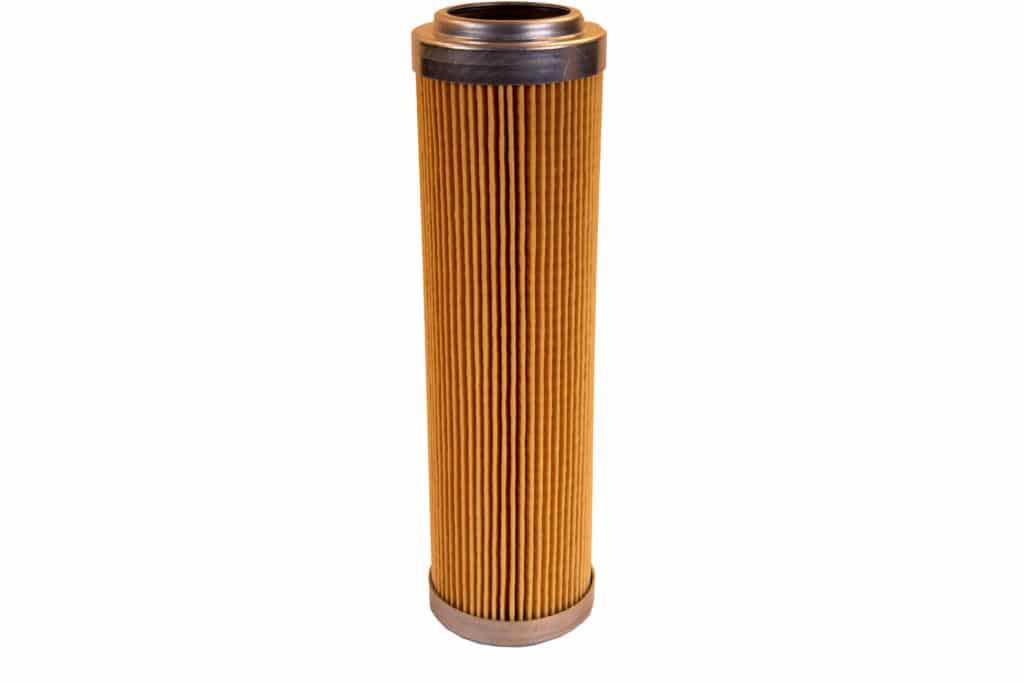

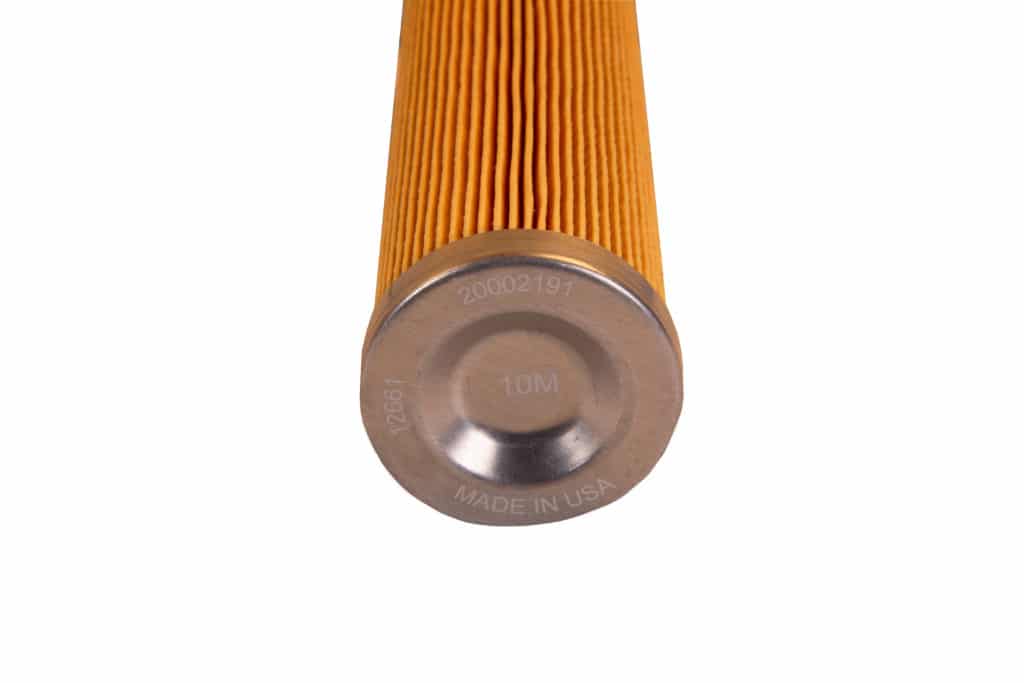

10 Micron Replacement Cellulose Element for Extreme Flow Filters
Part Number:
12661
Regular price
$61.95
Sale price
$61.95
Regular price
Unit price
per
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
