Eliminator Corvette Stealth Kit

Eliminator Corvette Stealth Kit

Part Number: 18671 / UPC 00684980003673
Skip to product information

Product Info

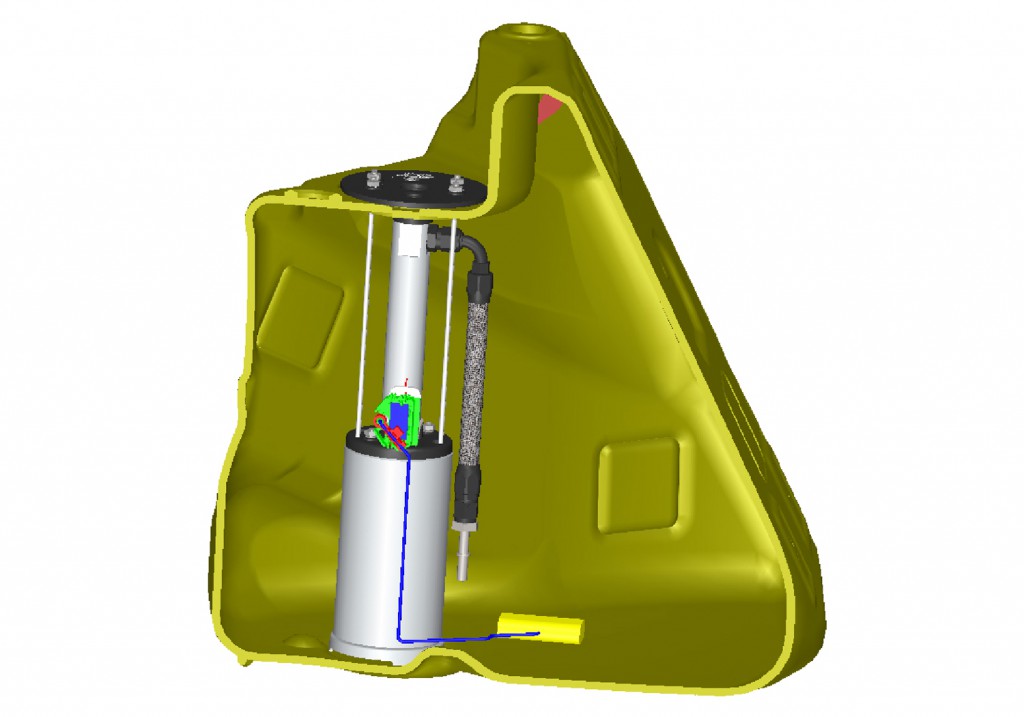

Finally, a solution to your Corvette's fuel system needs. No more drilling your fuel tanks, no more risking pump failure in a 1, 2, or 3 pump set ups, no more surge tanks, no more mess. Aeromotive has engineered a patent-pending, complete drop-in fuel system available for C6 and late C5 Corvettes. The system provides a single Eliminator Fuel Pump capable of supporting big HP. The best part, it's a complete drop-in assembly into your factory tank that still incorporates the factory jet siphon system. Now you can plumb a true return-style system into your Corvette without the worry of the siphon system and while using the factory fuel tank. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. For details on this system and the installation of the 18671 into your Corvette, download the installation instruction below.

  • Fits 2003 1/2 and later Corvettes (Late C5 and C6)

  • ORB-10 outlet port

  • ORB-06 return port

  • Incorporates factory jet siphon system and sending unit

  • Includes an integrated 100-Micron Stainless Steel pre-pump filter

  • Utilizes the factory tank, o-ring, lock ring and mounting location

  • Includes all necessary fittings and hardware to plumb the pump into your tank.
    - Remaining system plumbing not included. For recommendations on line sizes, filters, regulators and fuel rails, call our tech lines at: (913) 647-7300. Or follow the guidelines for the Eliminator Fuel Pump.For Eliminator (P/N 11104) specifications, CLICK HEREAdditional photos and videos can be found HERE


Naturally Aspirated Fuel Injected: 1,900hp
Forced Induction Fuel Injected: 1,400hp
Naturally Aspirated Carbureted: 2,300hp
Forced Induction Carbureted: 1,700hp

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF
