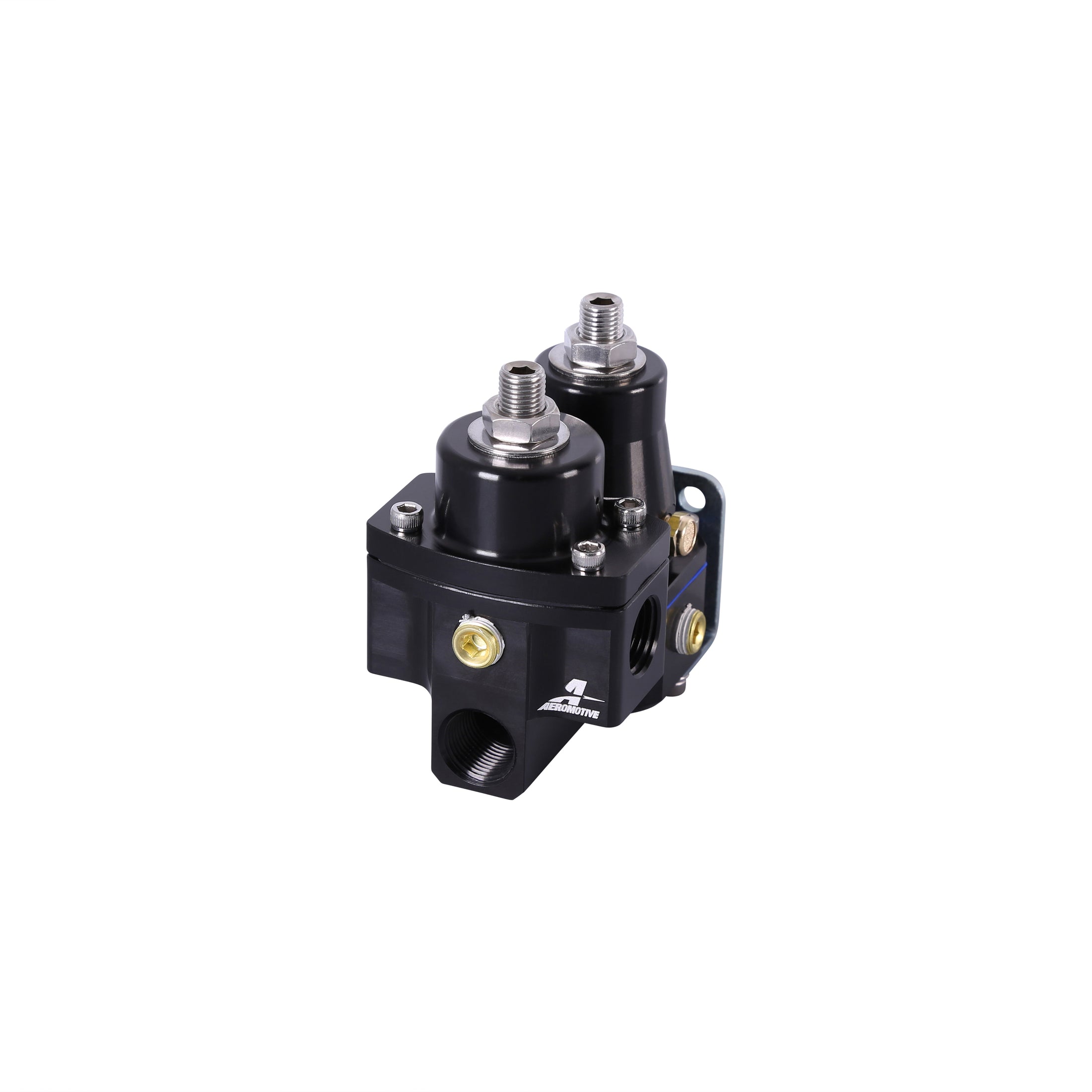

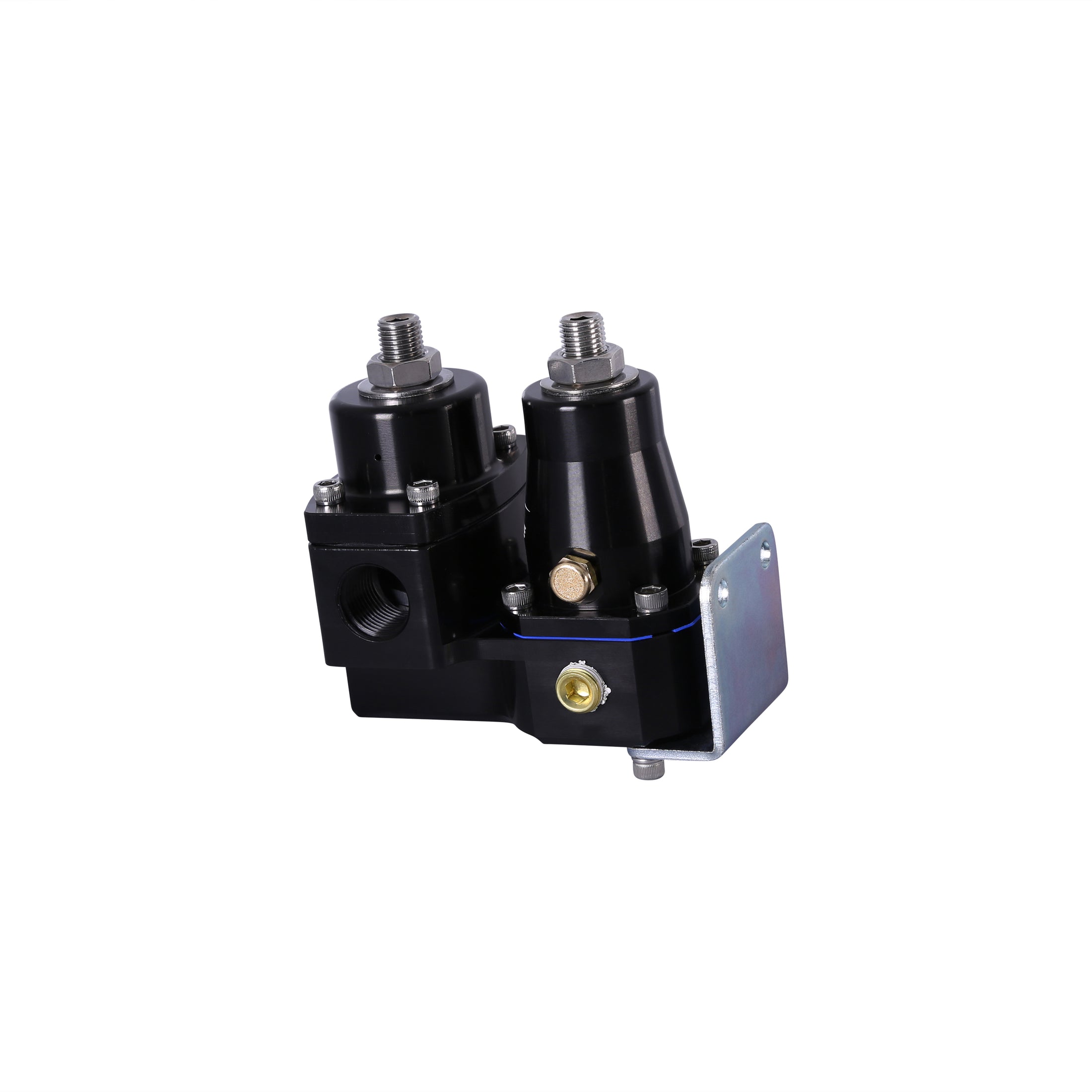

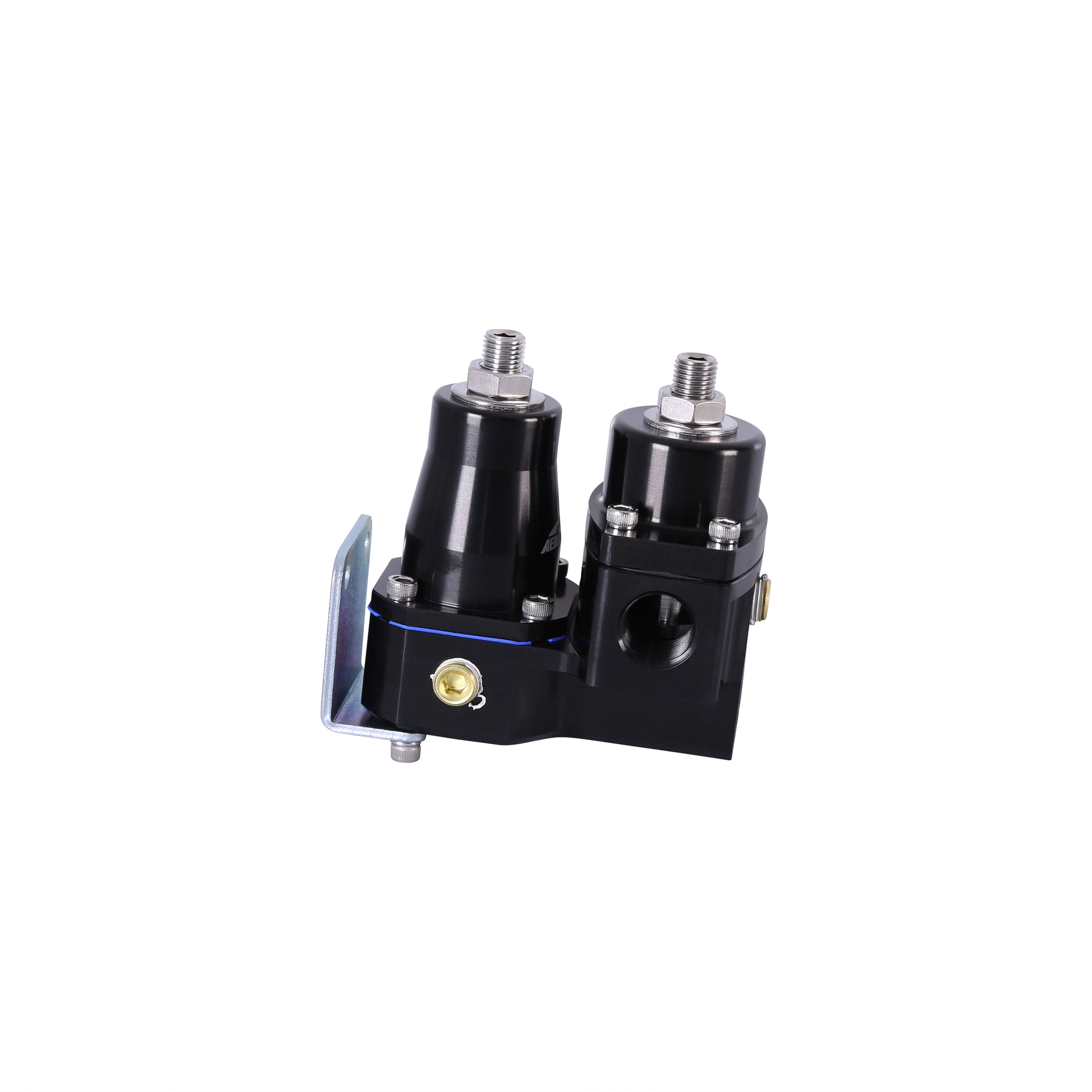

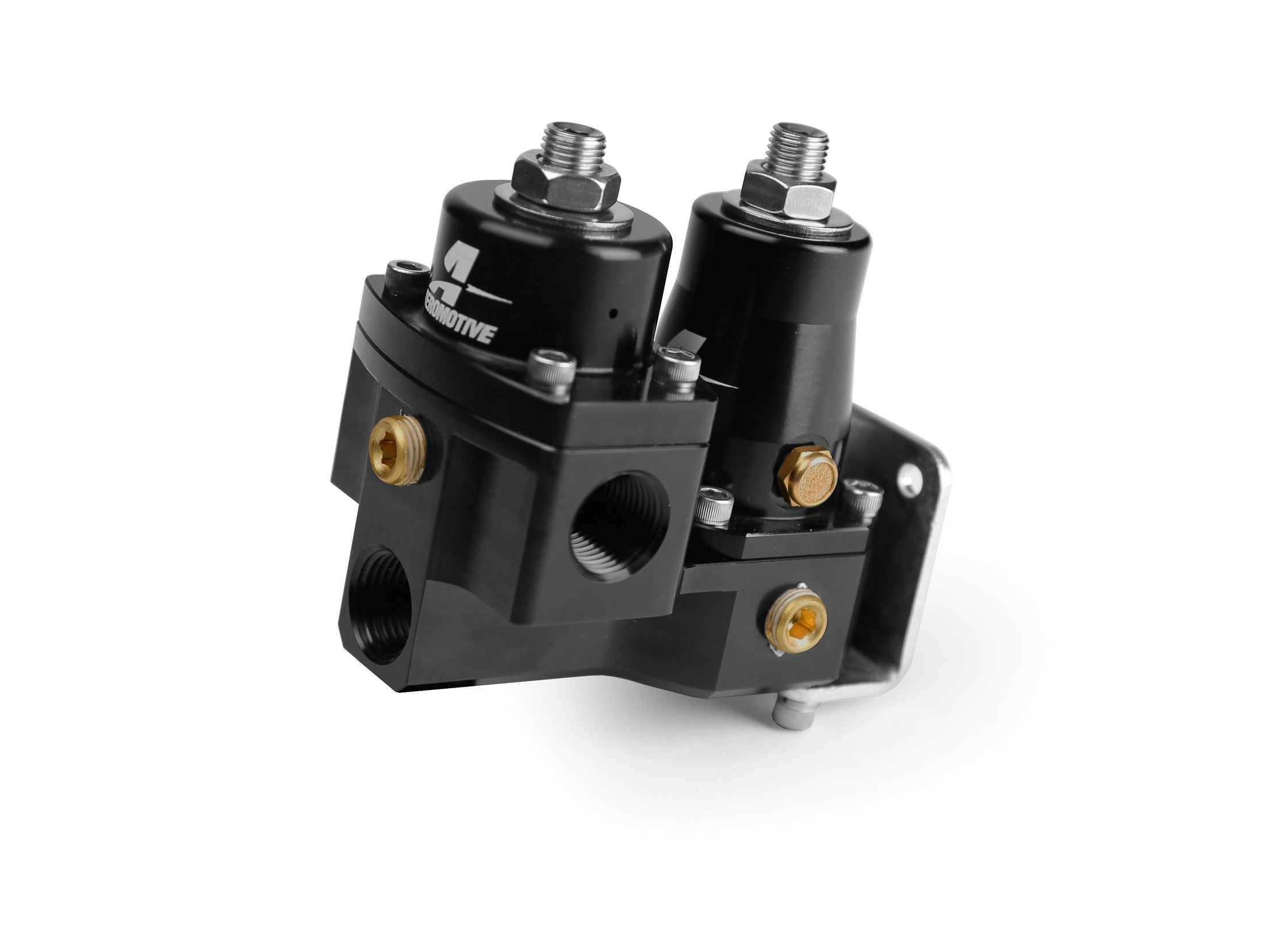

EFI to Carb Dual Stage Carbureted Fuel Pressure Regulator
EFI to Carb Dual Stage Carbureted Fuel Pressure Regulator
Product Info
Product Info
For vehicles equipped with OEM fuel injected engines where a conversion to carburetor is desired. Enables the use of the complete, OEM EFI fuel system to support a carbureted engine.
- Dual Stage pressure control with one regulator.
- Controls pump/line pressure from 8-16 PSI.
- Controls carburetor pressure from 5-9 PSI.
- Allows use of the stock EFI, in-tank fuel pump.
- Permits use of the stock supply line and filter.
- Allows use of the stock EFI return line.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- 3/8" NPT inlet and return, plus two outlet ports.
- Compact, all-in-one, Dual Regulator design.
- Rebuild Kits
- Low side #13005
- High side #13003
Additional information
Additional information
With the New EFI-2-Carb Dual Stage regulator, no changes to the original EFI fuel system are required to bolt on a carburetor and go. Allows use of the stock EFI pump in the tank, the stock EFI supply and return lines, and the stock fuel filter. This amazing new dual stage pressure regulator provides seamless control of bypass pressure to keep the EFI fuel pump happy while enabling full control of output pressure low enough to feed any off-the-shelf carb.
In the first stage, pump bypass pressure is adjustable from 8-16 psi. In the second stage, pressure to the carburetor is regulated and adjustable from 5-9 psi. Installation is painless thanks to universal, 3/8” NPT inlet, outlet and return ports. Two 1/8” NPT gauge ports allow both first stage line pressure and second stage carbureted pressure to be adjusted and monitored. Ordinary 3/8” NPT to AN, or 3/8” NPT to barb fittings may be used, making plumbing easy to do and the fittings inexpensive.
The new EFI-2-Carb Dual Stage regulator from Aeromotive allows you to get an otherwise good car or truck running and back on the road again, easily and affordably. No need to spend an arm and a leg, or countless hours, diagnosing and/or repairing a complicated, worn out EFI system. And, no more need to perform a costly redo of the fuel system just to install a carburetor!
Specifications
Specifications
| Pressure Range | 5-9 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 5 PSI |
| Maximum Pressure | 9 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 3 |
| Inlet Port Diameter | 3/8 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black |
| Grade Type | Performance |
