340 LPH Phantom In-Tank Fuel Pump Kit, EFI Returnless Applications
340 LPH Phantom In-Tank Fuel Pump Kit, EFI Returnless Applications
Product Info
Product Info

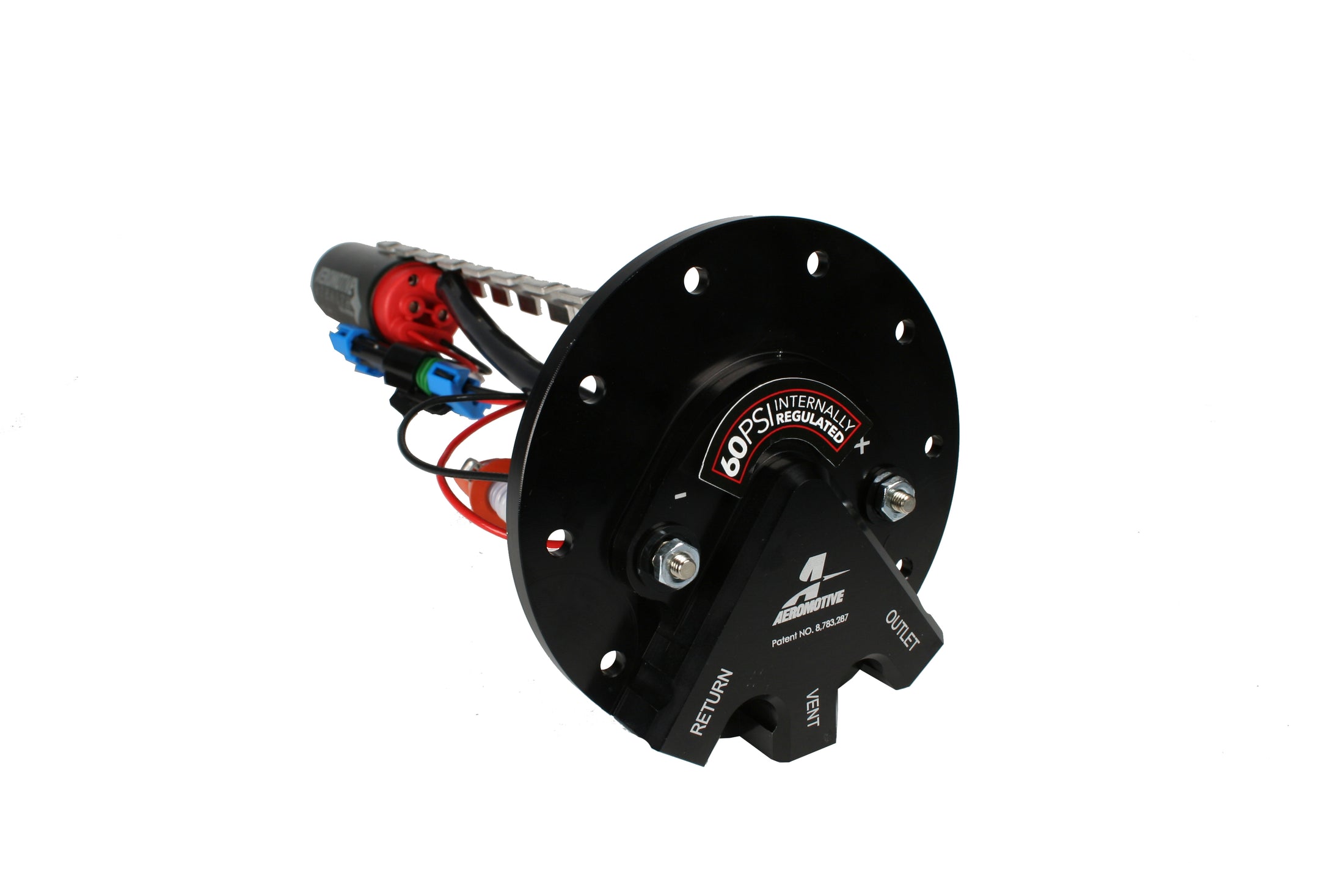

P/N 18329 EFI-Returnless Phantom In-Tank Pump
Internally regulated, returnless EFI fuel pump kit
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Recommended parts to complete the system include:
Internally regulated, returnless EFI fuel pump kit
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- 340 Stealth in-tank, baffled fuel pump
- 55-60 PSI internal bypass valve for returnless installations
- ORB-06 outlet and vent ports
- Gasoline and Ethanol compatible
- Made for non-pulse modulated return-less systems.
Recommended parts to complete the system include:
- 1 - 12347 10-m AN-06 filter (for gasoline only)
- 1 - 16307 Fuel Pump Wiring Kit
- 2 - 15606 ORB-06 to AN-06 port fittings
Additional information
Additional information
Aeromotive’s all-new returnless EFI Phantom is a cost-effective way to fuel a late model EFI engine swapped into an early, carbureted muscle car or truck. For those who want an in-tank, baffled fuel pump, but they don't want to run an external regulator with a return line, the new Phantom EFI-Returnless In-Tank Pump is just the ticket.
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction EFI on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction EFI on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

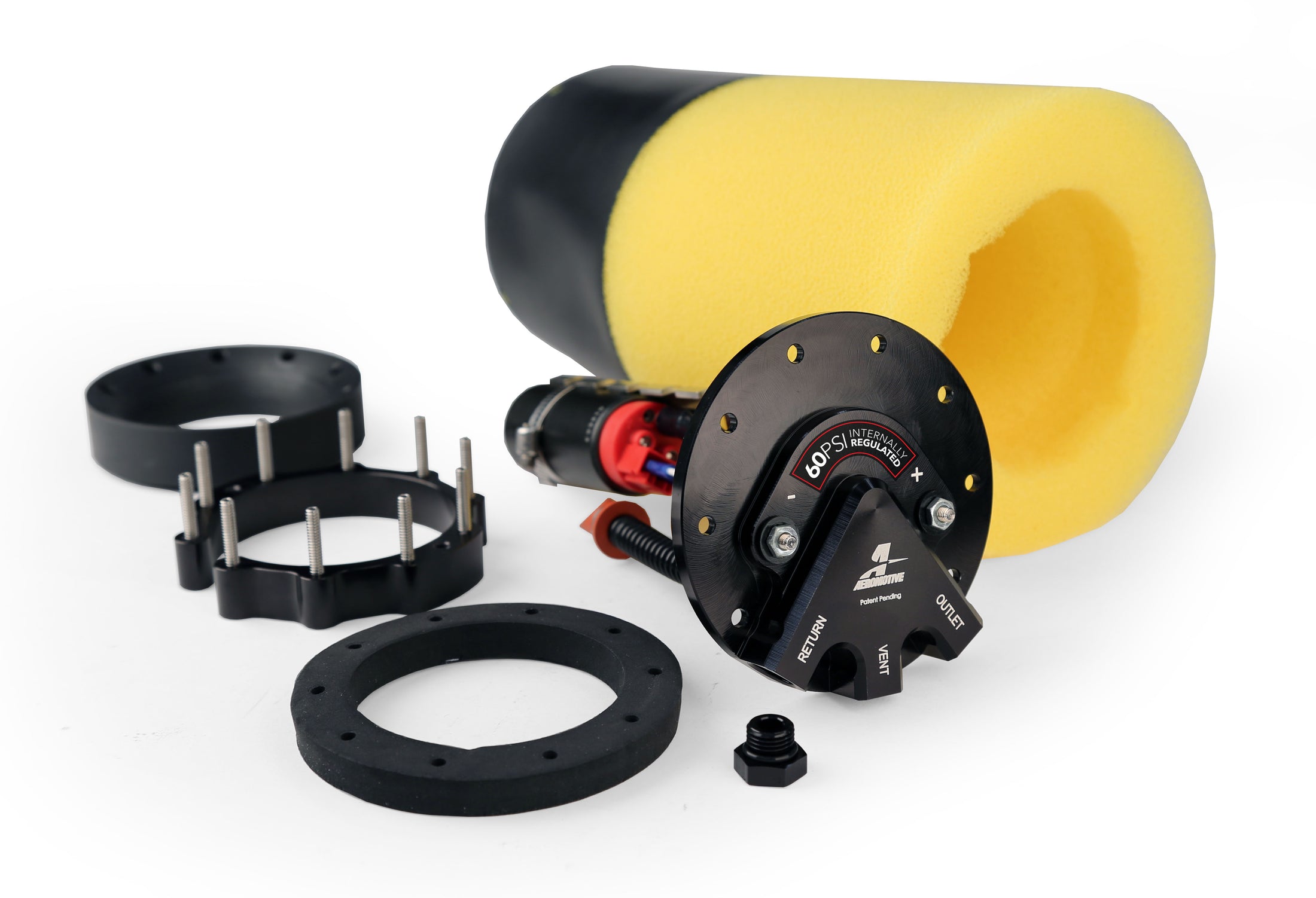

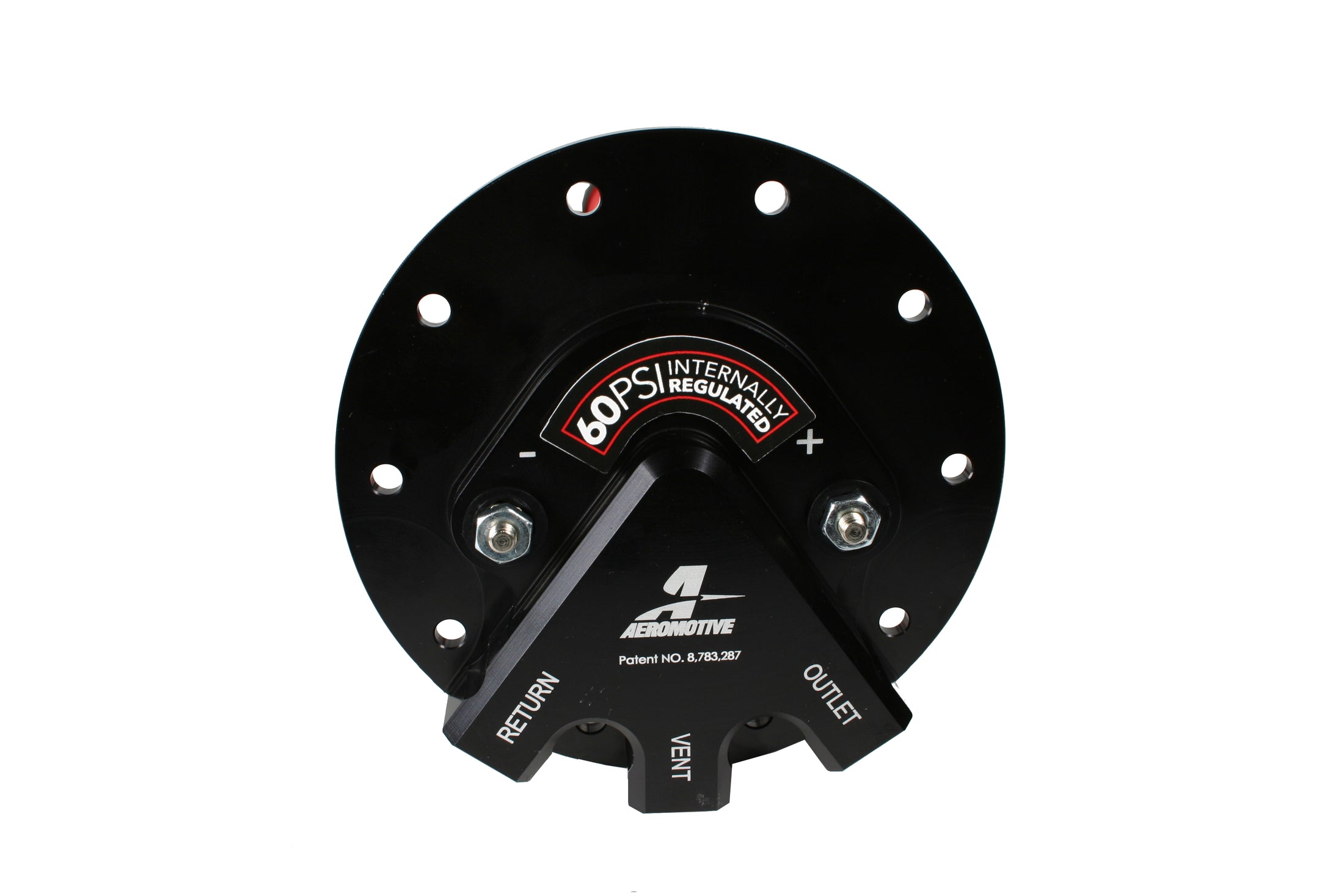

- Billet Top Hat with ORB-06 ports
- Foam Baffle & Bladder Sump
- Proprietary Sealing Gasket
- Installation Ring
- High-Flow Pre-Pump Filter
- Billet C-Ring Mount
- Height Adjustable 6-11”
- ORB-06 port plug
Specifications
Specifications
| Series | Phantom |
|---|---|
| Maximum Flow Rating | 340 |
| Maximum Pressure | 55-60 |
| Fuel Type | Gas/E85 |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | Turbine Impeller |
| Integrated Controller | No |
| Pulse Width Modulation Compatible | Yes |
| Fuel Delivery Type | Fuel Injection |
| Outlet Type | Female Thread |
| Outlet Outside Diameter | AN-06 |
| Maximum Current Draw | 13 |
| Voltage | 12 |
| Negative Ground | Yes |
| Wiring Harness Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Strainer Included | Yes |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Seal And Lock Ring Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
340 LPH Phantom In-Tank Fuel Pump Kit, EFI Returnless Applications
340 LPH Phantom In-Tank Fuel Pump Kit, EFI Returnless Applications
Regular price
$659.95
Sale price
$659.95
Regular price
Unit price
per
Does This part fit My vehicle?
Product Info
Product Info
P/N 18329 EFI-Returnless Phantom In-Tank Pump
Internally regulated, returnless EFI fuel pump kit
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Recommended parts to complete the system include:
Internally regulated, returnless EFI fuel pump kit
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- 340 Stealth in-tank, baffled fuel pump
- 55-60 PSI internal bypass valve for returnless installations
- ORB-06 outlet and vent ports
- Gasoline and Ethanol compatible
- Made for non-pulse modulated return-less systems.
Recommended parts to complete the system include:
- 1 - 12347 10-m AN-06 filter (for gasoline only)
- 1 - 16307 Fuel Pump Wiring Kit
- 2 - 15606 ORB-06 to AN-06 port fittings
Additional information
Additional information
Aeromotive’s all-new returnless EFI Phantom is a cost-effective way to fuel a late model EFI engine swapped into an early, carbureted muscle car or truck. For those who want an in-tank, baffled fuel pump, but they don't want to run an external regulator with a return line, the new Phantom EFI-Returnless In-Tank Pump is just the ticket.
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction EFI on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Featuring the same simple, fabrication free installation of the return style Phantom kits, but you just run one AN-06 supply line through an Aeromotive high flow filter to the engine, connect a proper power supply to the pump and bang, you're done! Supports up to 850 FWHP naturally aspirated and up to 700 FWHP forced induction EFI on gasoline. Reduce FWHP limit by 30% for E85.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Billet Top Hat with ORB-06 ports
- Foam Baffle & Bladder Sump
- Proprietary Sealing Gasket
- Installation Ring
- High-Flow Pre-Pump Filter
- Billet C-Ring Mount
- Height Adjustable 6-11”
- ORB-06 port plug
Specifications
Specifications
| Series | Phantom |
|---|---|
| Maximum Flow Rating | 340 |
| Maximum Pressure | 55-60 |
| Fuel Type | Gas/E85 |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | Turbine Impeller |
| Integrated Controller | No |
| Pulse Width Modulation Compatible | Yes |
| Fuel Delivery Type | Fuel Injection |
| Outlet Type | Female Thread |
| Outlet Outside Diameter | AN-06 |
| Maximum Current Draw | 13 |
| Voltage | 12 |
| Negative Ground | Yes |
| Wiring Harness Included | No |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Strainer Included | Yes |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Seal And Lock Ring Included | Yes |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
