Double-Adjustable Return Style Carbureted Fuel Pressure Regulator
Double-Adjustable Return Style Carbureted Fuel Pressure Regulator
Product Info
Product Info

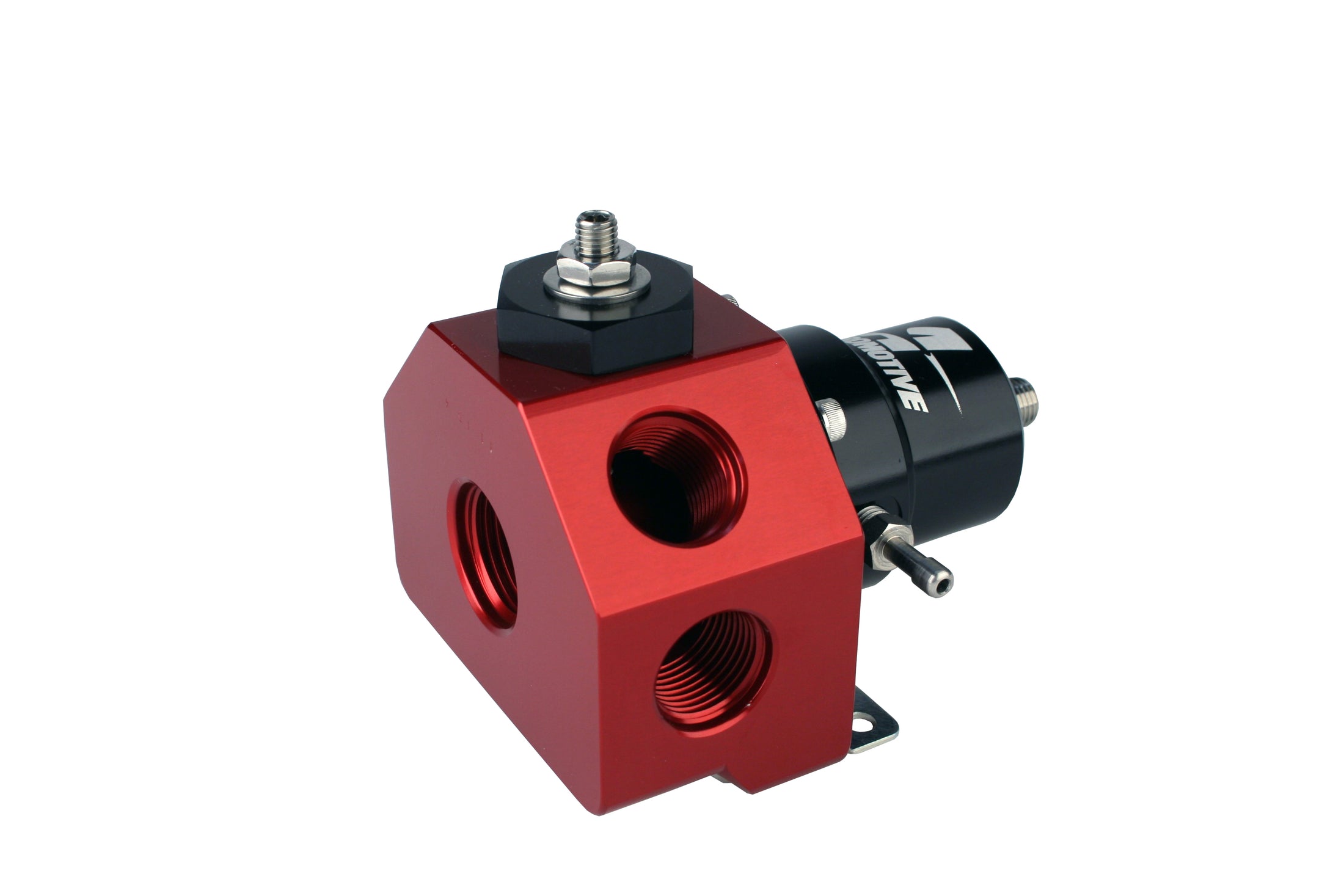

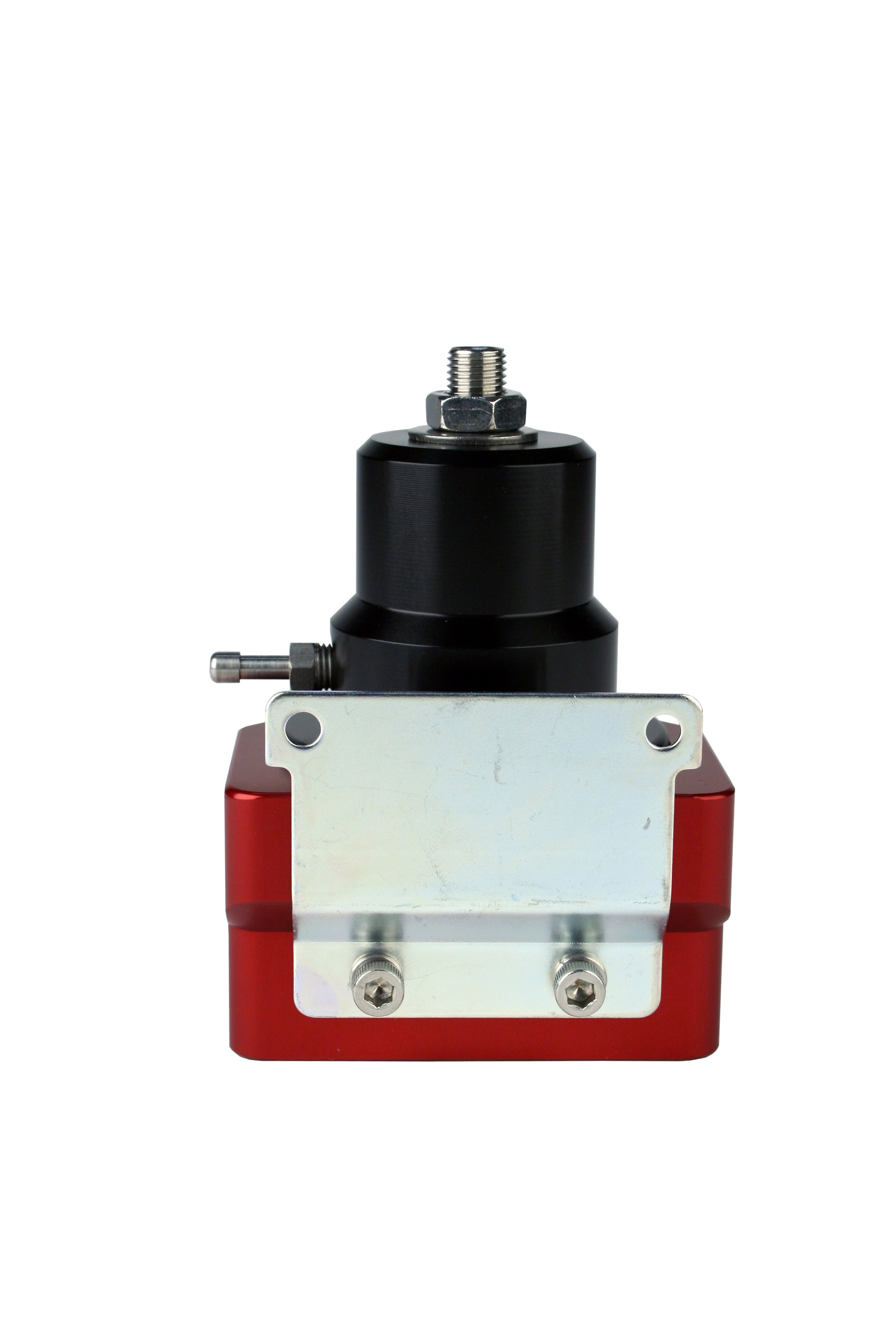

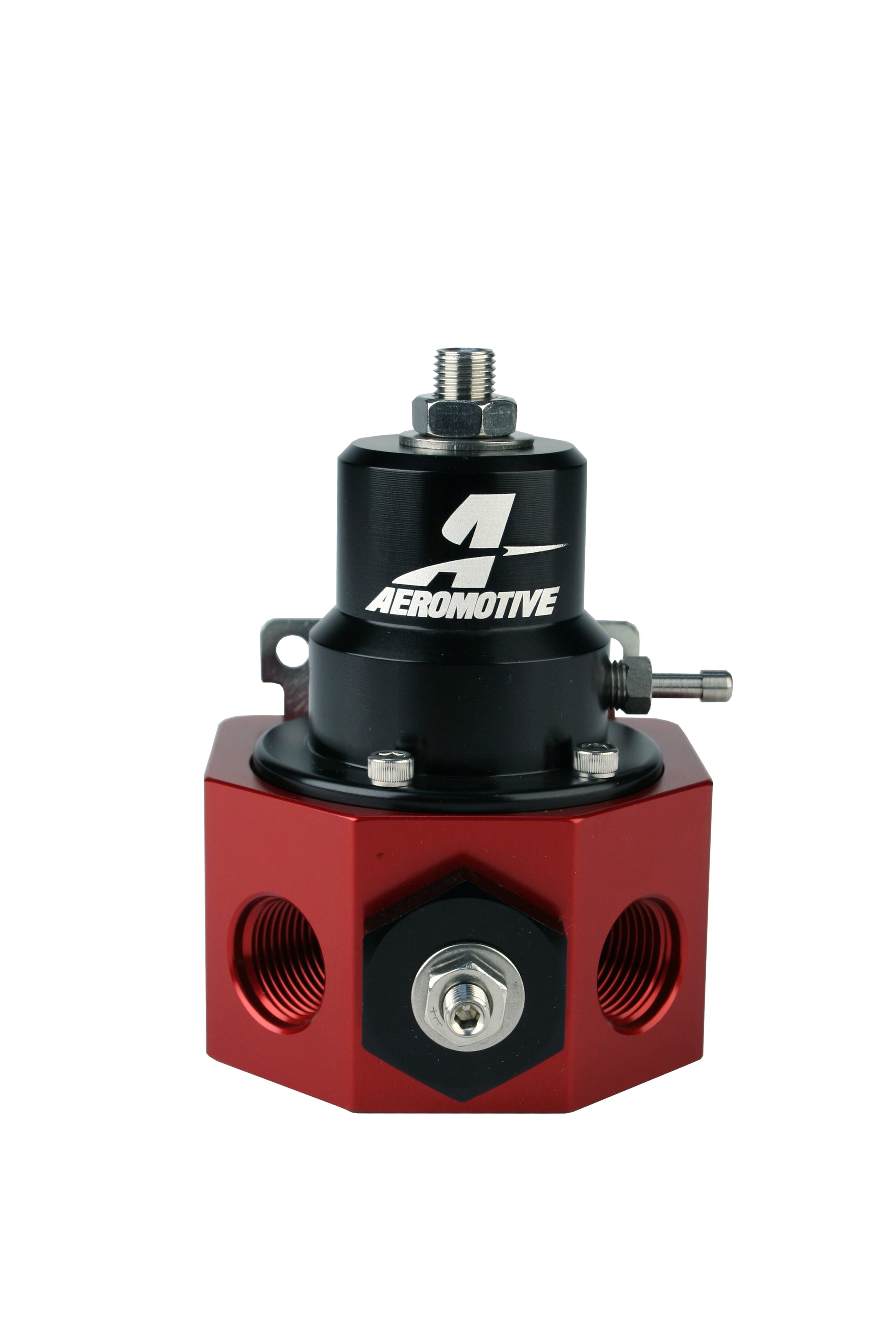

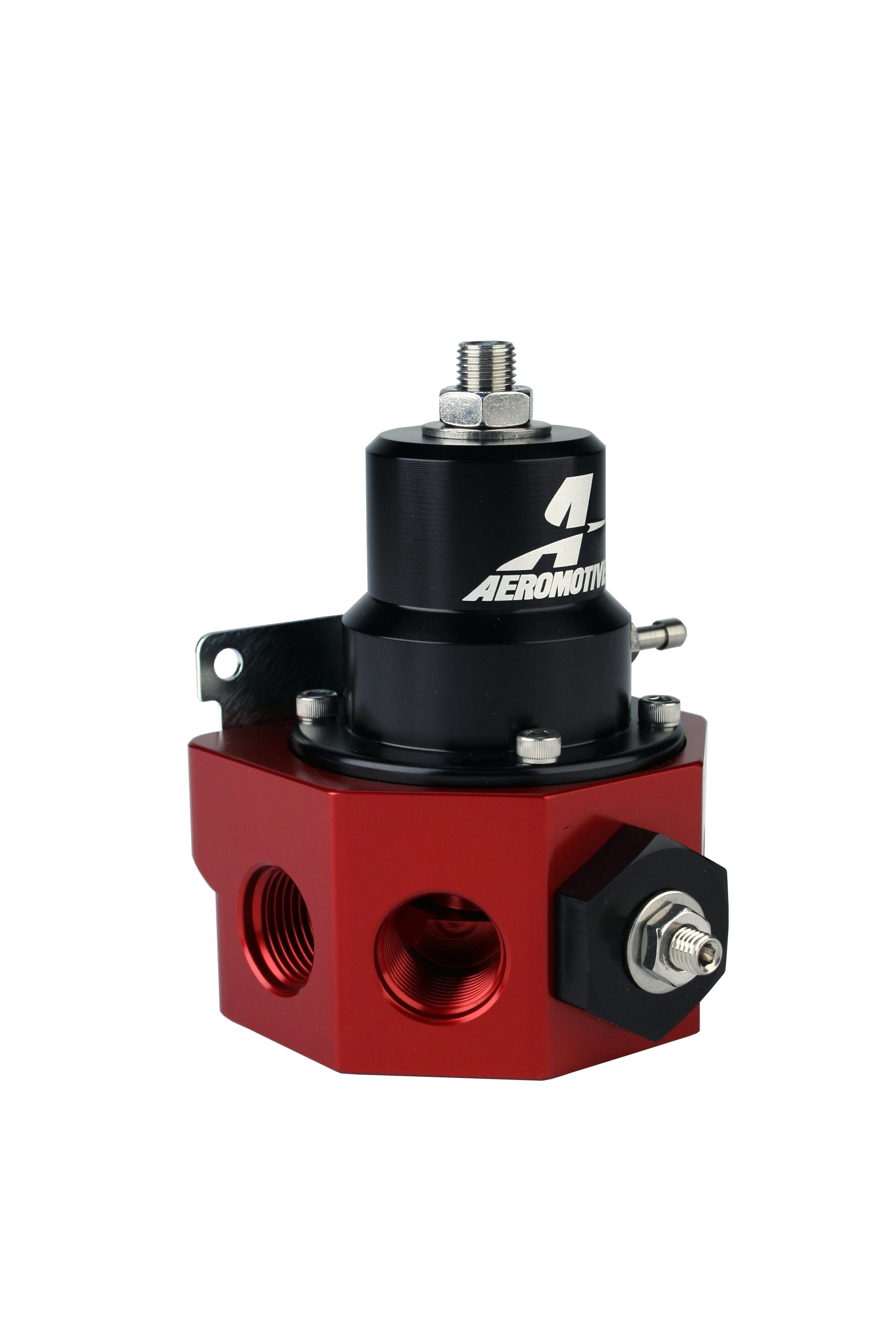

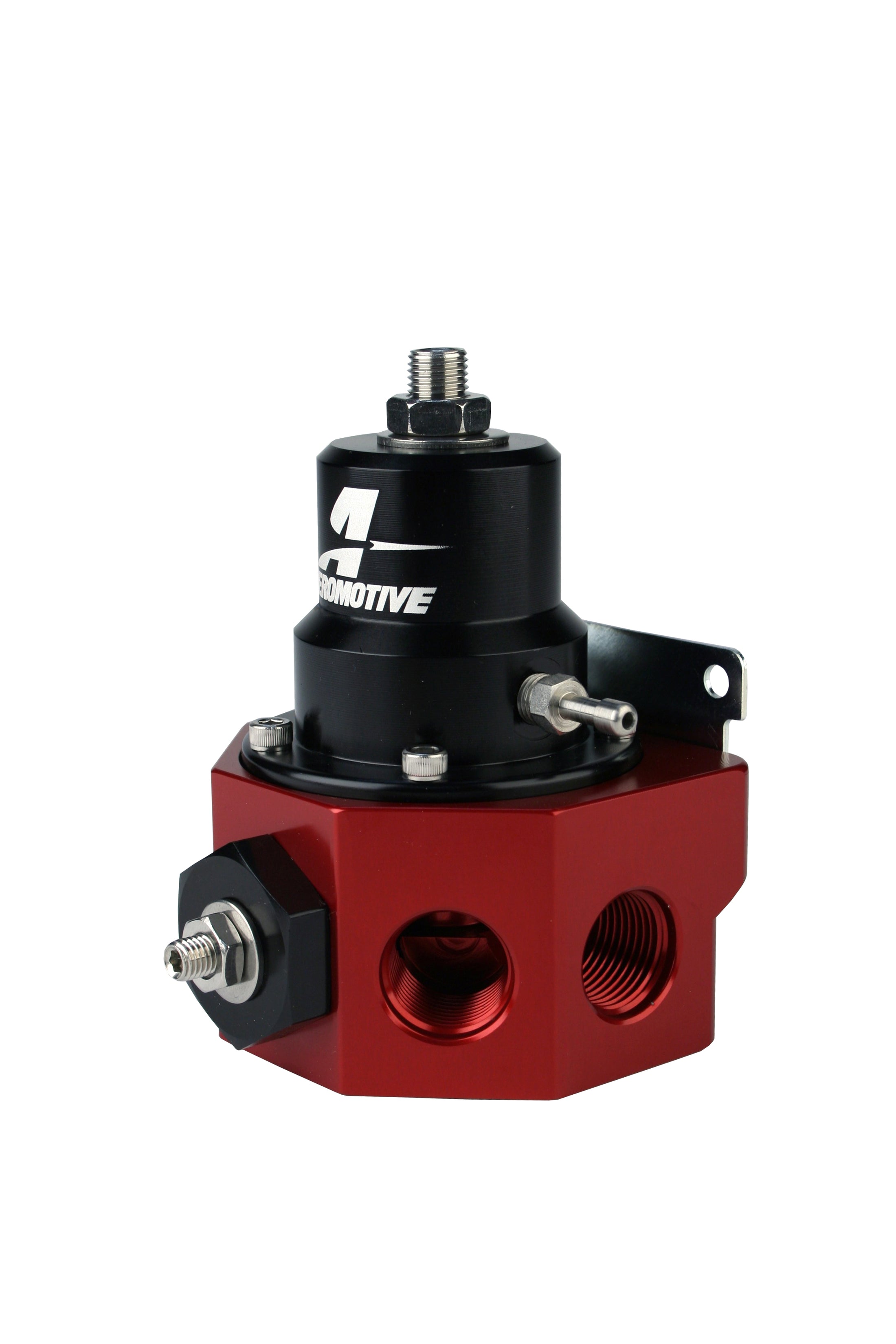

P/N 13209: Double-Adjustable Return Style Regulator
Revolutionary design provides two independent pressure adjustments; one adjustment for idle and one for wide open throttle. Engineered for use with variable volume pumps tied to engine RPM. This regulator creates the smoothest and most repeatable fuel curve from idle to wide open throttle of any return style system.
Revolutionary design provides two independent pressure adjustments; one adjustment for idle and one for wide open throttle. Engineered for use with variable volume pumps tied to engine RPM. This regulator creates the smoothest and most repeatable fuel curve from idle to wide open throttle of any return style system.
- ORB-10 return port.
- P/N 13209 provides (1) ORB-08 inlet and (3) ORB-08 outlet ports.
- Can be configured for single or dual carbureted engines and provides superior pressure control and flow when installed before the carburetor or after a fuel log.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Also available with a single inlet port for fuel logs. (P/N 13214)
- provides ORB-10 inlet and return ports.
Specifications
Specifications
| Pressure Range | 3-18 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 3 PSI |
| Maximum Pressure | 18 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 4 |
| Inlet Port Diameter | ORB-08 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black/Red |
| Grade Type | Performance |
Regulator Service Kits
Regulator Service Kits
Regulator Diaphragm Service Kit
Part Number:
13006
Regular price
$58.45
Sale price
$58.45
Regular price
Unit price
per
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
