Carbureted Phantom 200 Kit

Carbureted Phantom 200 Kit

Part Number: 17255 / UPC 00684980005912
Skip to product information

Product Info

P/N 17255: Carbureted Phantom 200 Kit

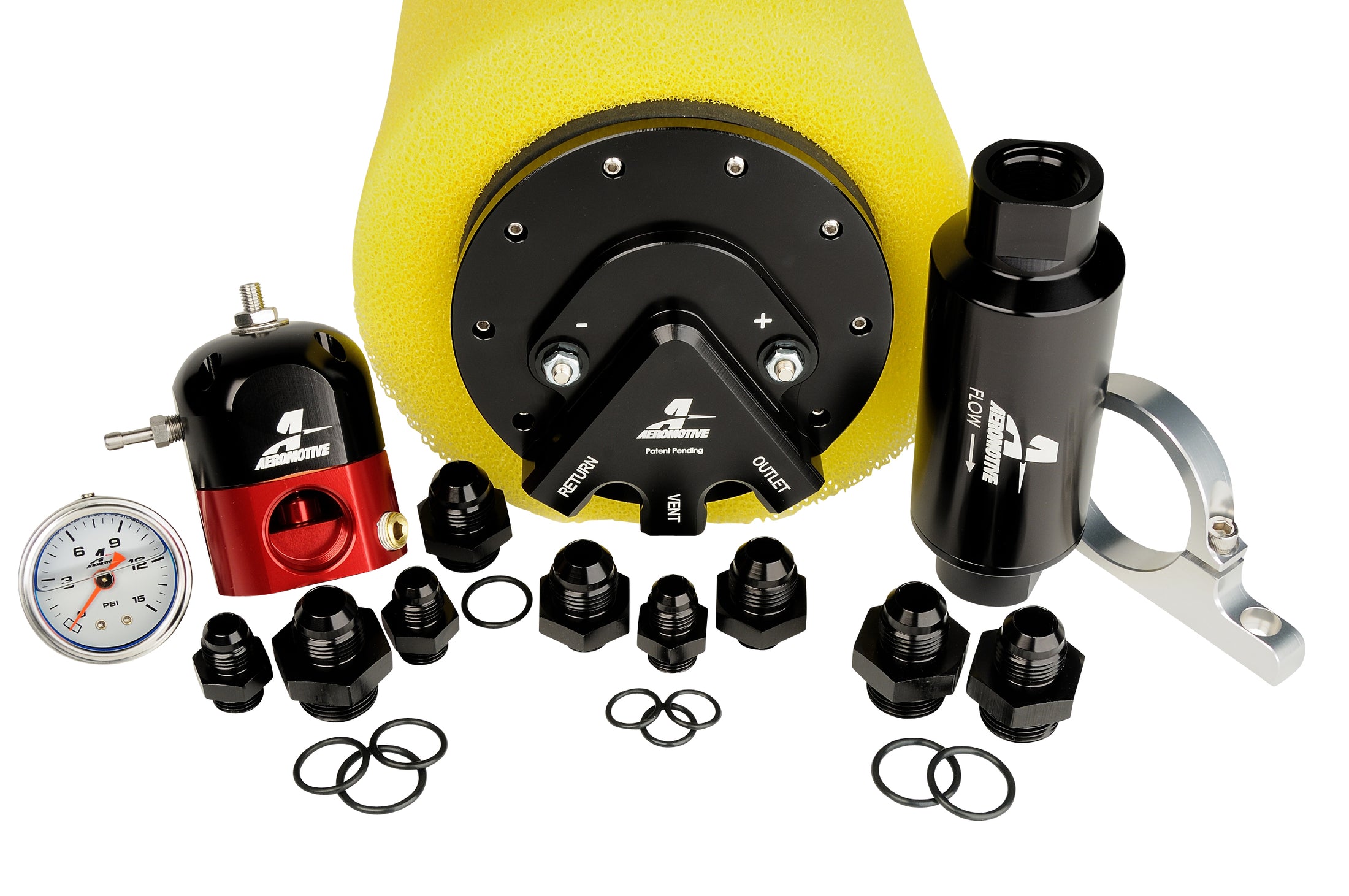

These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 200 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge.

Ideal for naturally aspirated and blown, carbureted engines producing from 300- 900 plus flywheel Horse Power, on the street or at the track.  AN-08 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line sold separately and not included.

This kit contains the following parts:

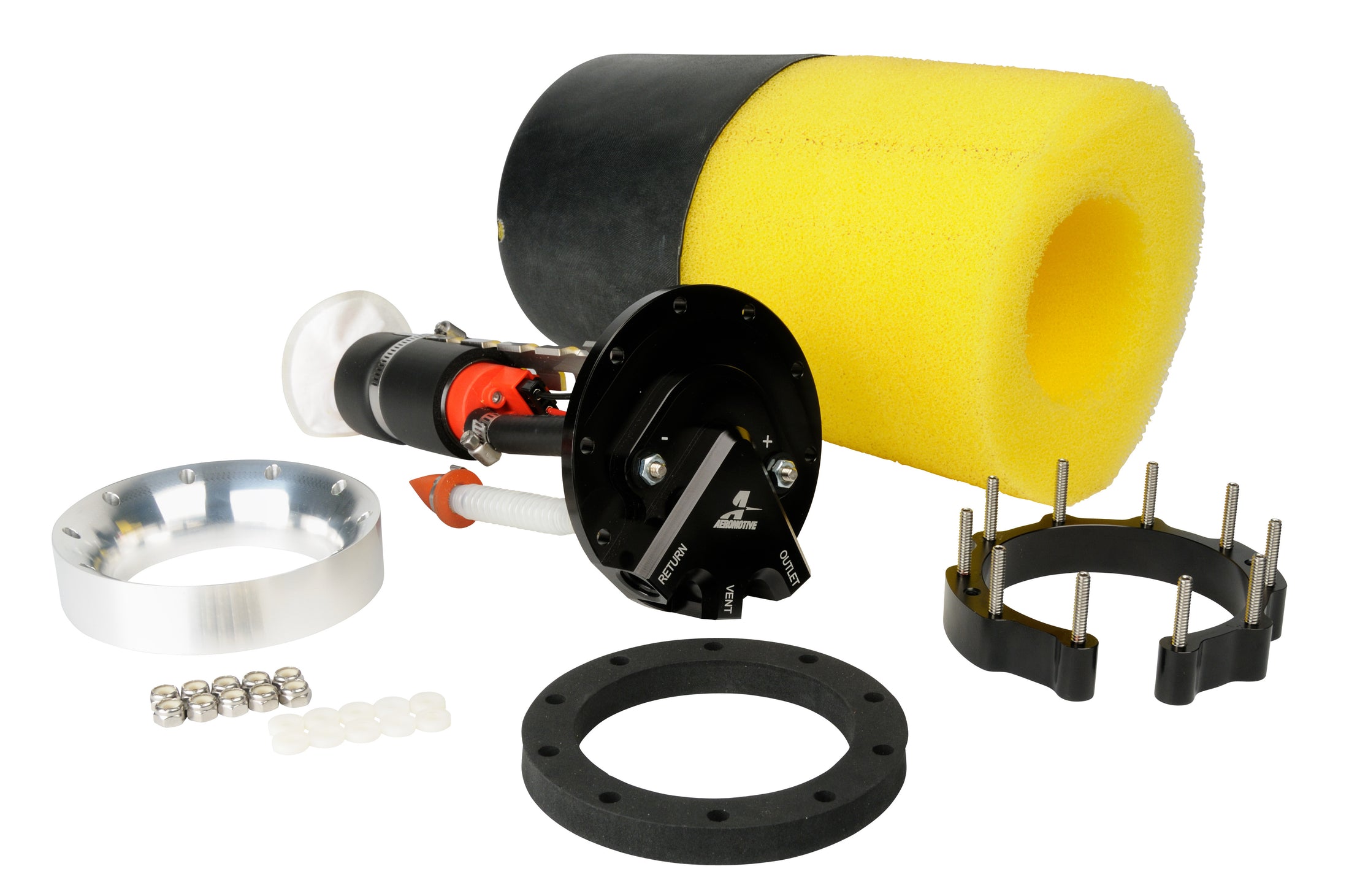

1ea p/n 18689 Phantom 200
1ea p/n 12321 Filter 10-micron Paper
1ea p/n 12305 Filter Bracket
1ea p/n 13204 Regulator, ByPass, Carb.

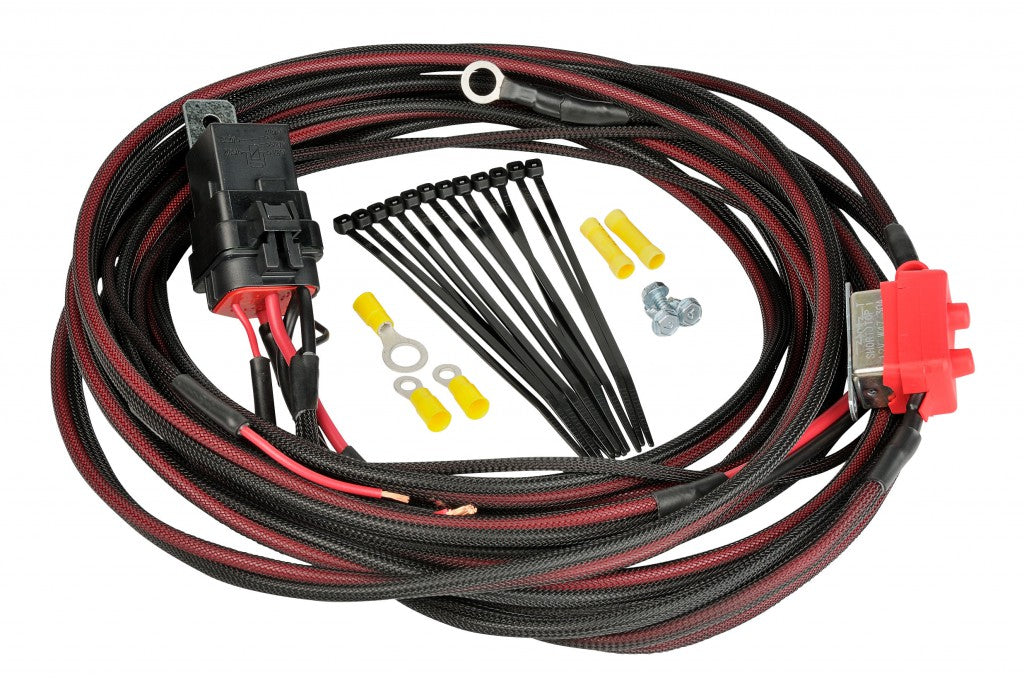

1ea p/n 16307 Fuel Pump Wiring Kit.
3 ea p/n 15606 AN-06 ORB to AN-06 flare
1 ea p/n 15607 AN-08 ORB to AN-08 flare
3 ea p/n 15610 AN-10 ORB to AN-08 flare
1ea p/n 15626 AN-06 Port Plug
2ea p/n 15649 AN-06 ORB to AN-08 flare
1 ea p/n 15632 0-15 PSI Pressure Gauge

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF
