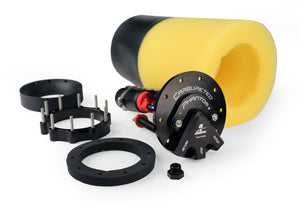

325 LPH Phantom In-Tank Fuel Pump Kit, Carbureted Returnless Applications

325 LPH Phantom In-Tank Fuel Pump Kit, Carbureted Returnless Applications

Part Number: 18201 / UPC 00684980008708
Skip to product information

Product Info

P/N 18201 Carbureted Phantom 325 In-Tank Pump

Aeromotive’s all-new returnless Carbureted Phantom is a cost-effective way to install a fuel system for any carbureted system, in virtually any fuel tank. For those customers who want the ease of a returnless carbureted system in their car and are tired of loud, noisy T-style pumps, Aeromotive’s new Carbureted Phantom is the way to go. Line pressure is pre-set to 15 psi.

Equipped with the Aeromotive Stealth 325 pump, the Phantom Carbureted System is capable of supporting up to 900 horsepower naturally aspirated, 750 horsepower forced induction, on gasoline. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

A static or dead-head style fuel pressure regulator is required for use with this Phantom Carbureted kit.  Recommended Aeromotive regulators include:

P/N 13222 For engines up to 750 FWHP with carburetors requiring low, 2-5 PSI, fuel pressure

P/N 13201 and P/N 13205 for engines up to 750 FWHP Naturally Aspirated and 5-9 PSI fuel pressure.

P/N 13203 for engines up to 900 FWHP Naturally Aspirated, 750 HP Forced Induction.

The Phantom Carbureted System is compatible with gasoline only, not recommended for use with Ethanol, E85 or Methanol Fuels.

Additional information

The Kit Includes:

  • Billet Top Hat with ORB-06 ports

  • Compatible with AN-06 line using fitting P/N 15606

  • Compatible with AN-08 line using fitting P/N 15649

  • Foam Baffle & Bladder Sump

  • Proprietary Sealing Gasket

  • Installation Ring

  • High-Flow Pre-Pump Filter

  • Billet C-Ring Mount

  • Height Adjustable 6-11”


This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews
