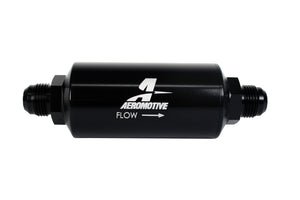

10 Micron Black Fuel Filter with AN-10 Male Ports & Microglass Element
10 Micron Black Fuel Filter with AN-10 Male Ports & Microglass Element
Part Number: 12385
Product Info
Product Info
AN-10, 10-micron microglass element, black anodize finish
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
10 Micron Microglass Element ORB-10 - 12650
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 10-micron microglass replaceable element.
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
- Male AN-10
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Bright dip black anodized finish for a corrosion resistant, show car quality appearance
10 Micron Microglass Element ORB-10 - 12650
Specifications
Specifications
Fuel Filter Style | Inline |
---|---|
Fuel Type | All Fuels |
Fuel Type | E85/Alcohol |
Inlet Quantity | 1 |
Inlet Size | AN-10 |
Inlet Attachment | Male Thread |
Inlet Outside Diameter | AN-10 |
Outlet Quantity | 1 |
Outlet Size | AN-10 |
Outlet Attachment | Male Thread |
Outlet Outside Diameter | AN-10 |
End 1 Gender | Male |
End 2 Gender | Male |
Fitting Type | AN-10 |
Fittings Included | No |
Filter Element Included | Yes |
Filter Element Material | Microglass |
Micron Rating | 10 |
Smallest Particle Filtered | 10 microns |
Flow Rate | 2000 Pounds Per Hour |
Filter Housing Color | Black |
Filter Housing Finish | Anodized |
Filter Housing Diameter | 2.0 Inches |
Filter Housing Length | 5.5 Inches |
Filter Housing Material | Billet Aluminum |
Mounting Type | External |
Mounting Bracket Included | No |
Clamps Included | No |
Gasket Or Seal Included | Yes |
Maximum Fuel Pressure (psi) | 70 PSI |
Universal Or Specific Fit | Universal |
filter replacement element
filter replacement element
10 Micro Replacement Microglass Element for ORB-10 Filter Housings
Regular price
$55.75
Sale price
$55.75
Regular price
$61.95
Unit price
/
per
Sale
2" Filter Body 10-pack Replacement O-Rings
Regular price
$10.75
Sale price
$10.75
Regular price
$11.95
Unit price
/
per
Sale
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
