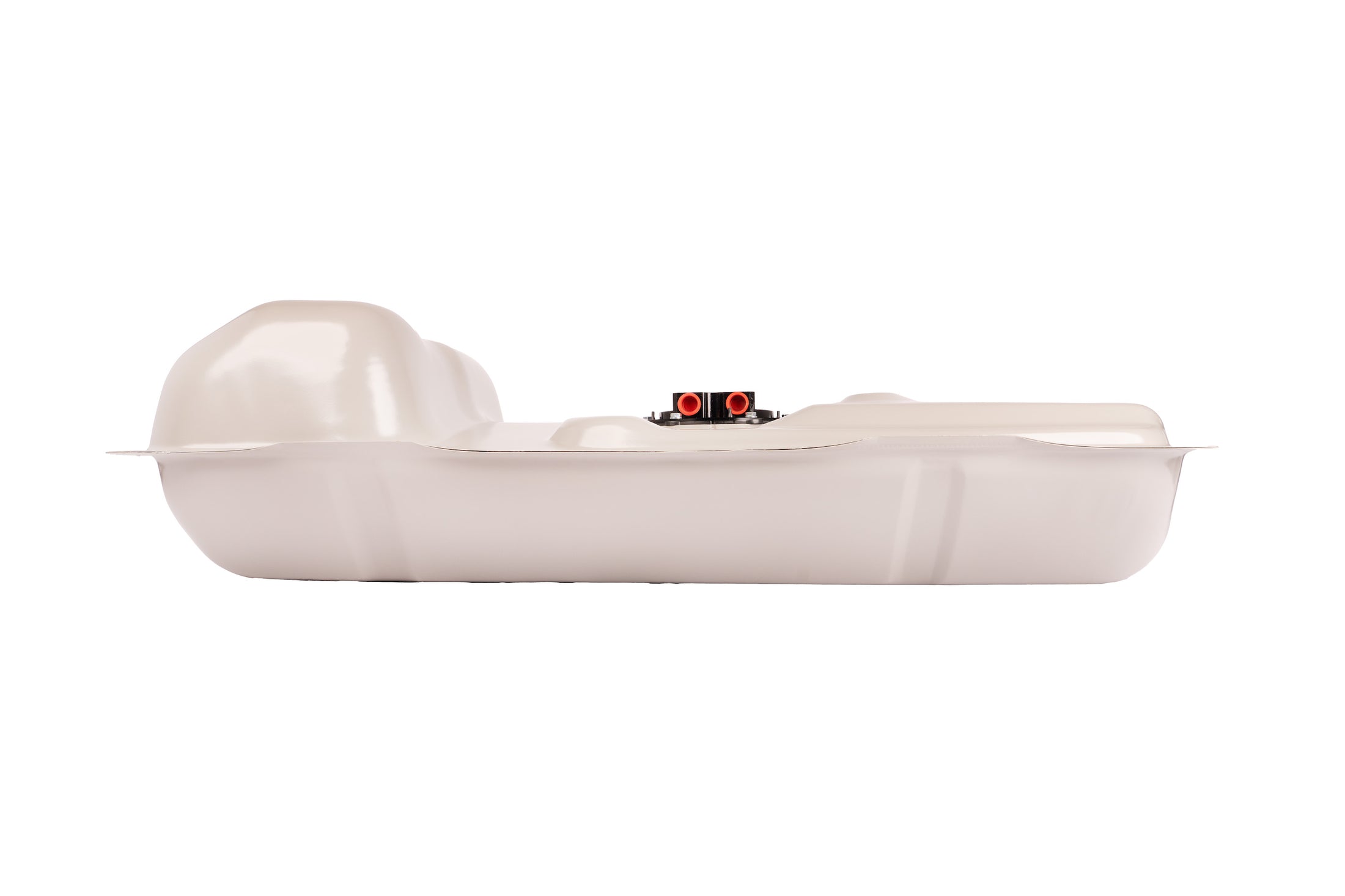

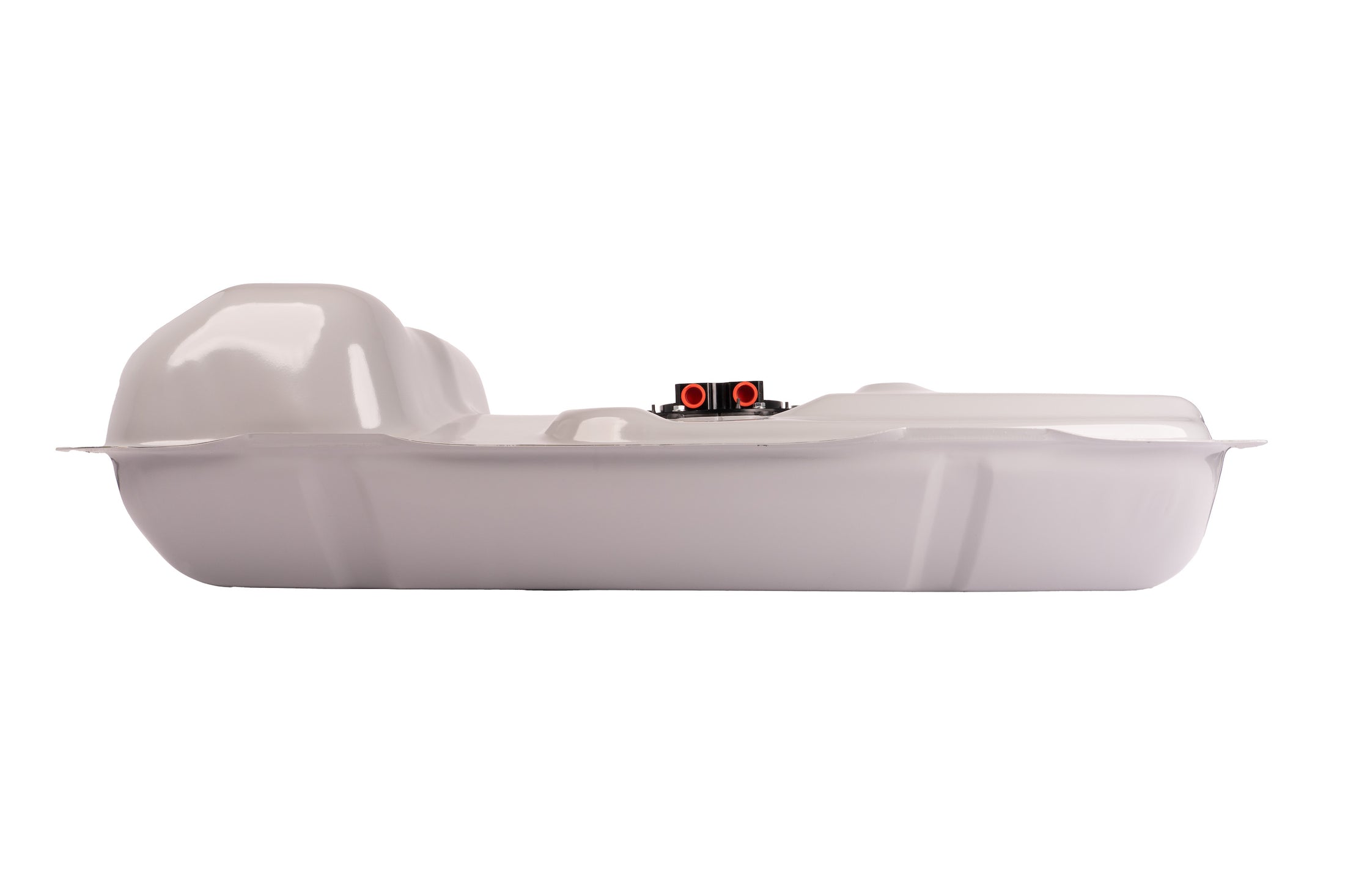

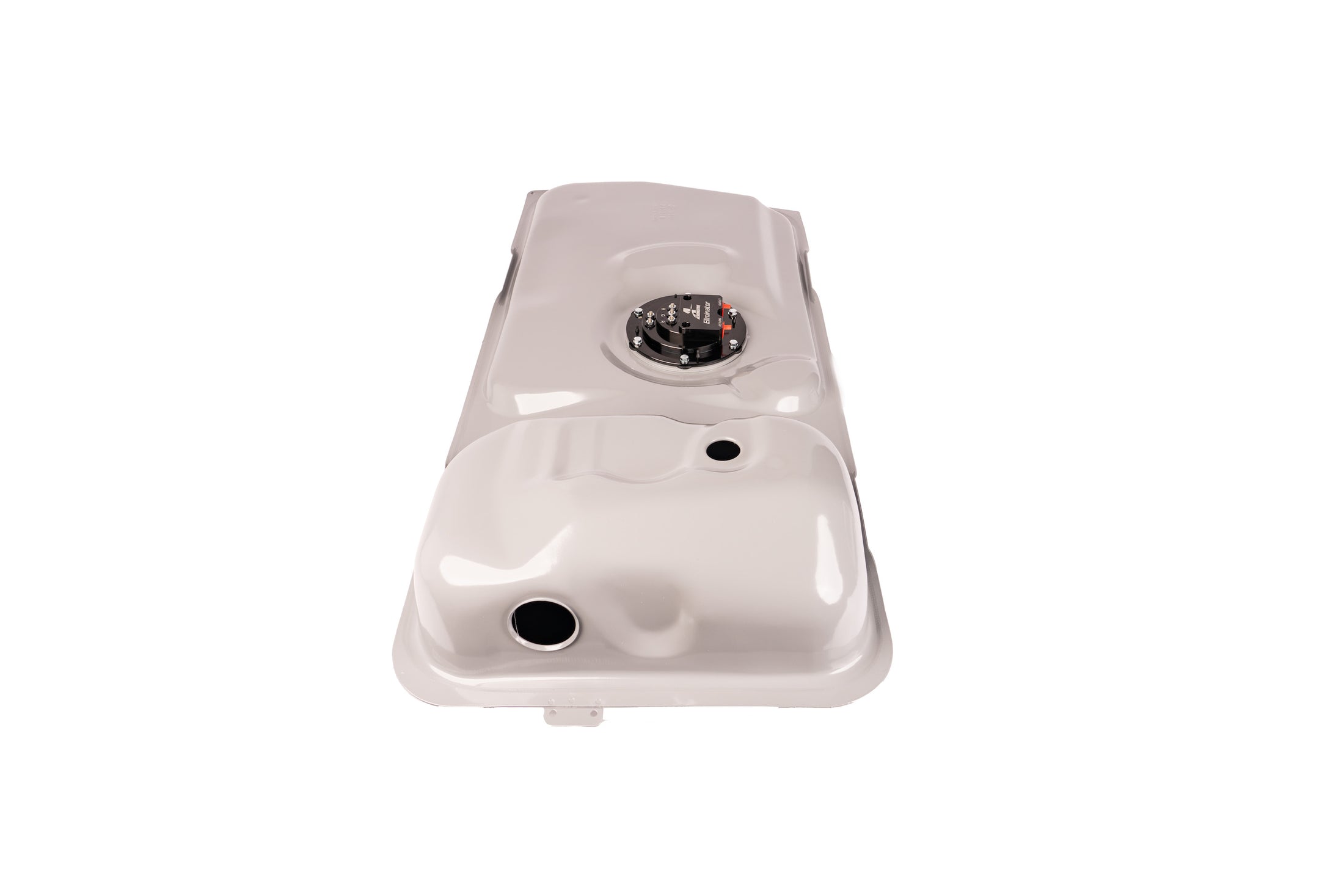

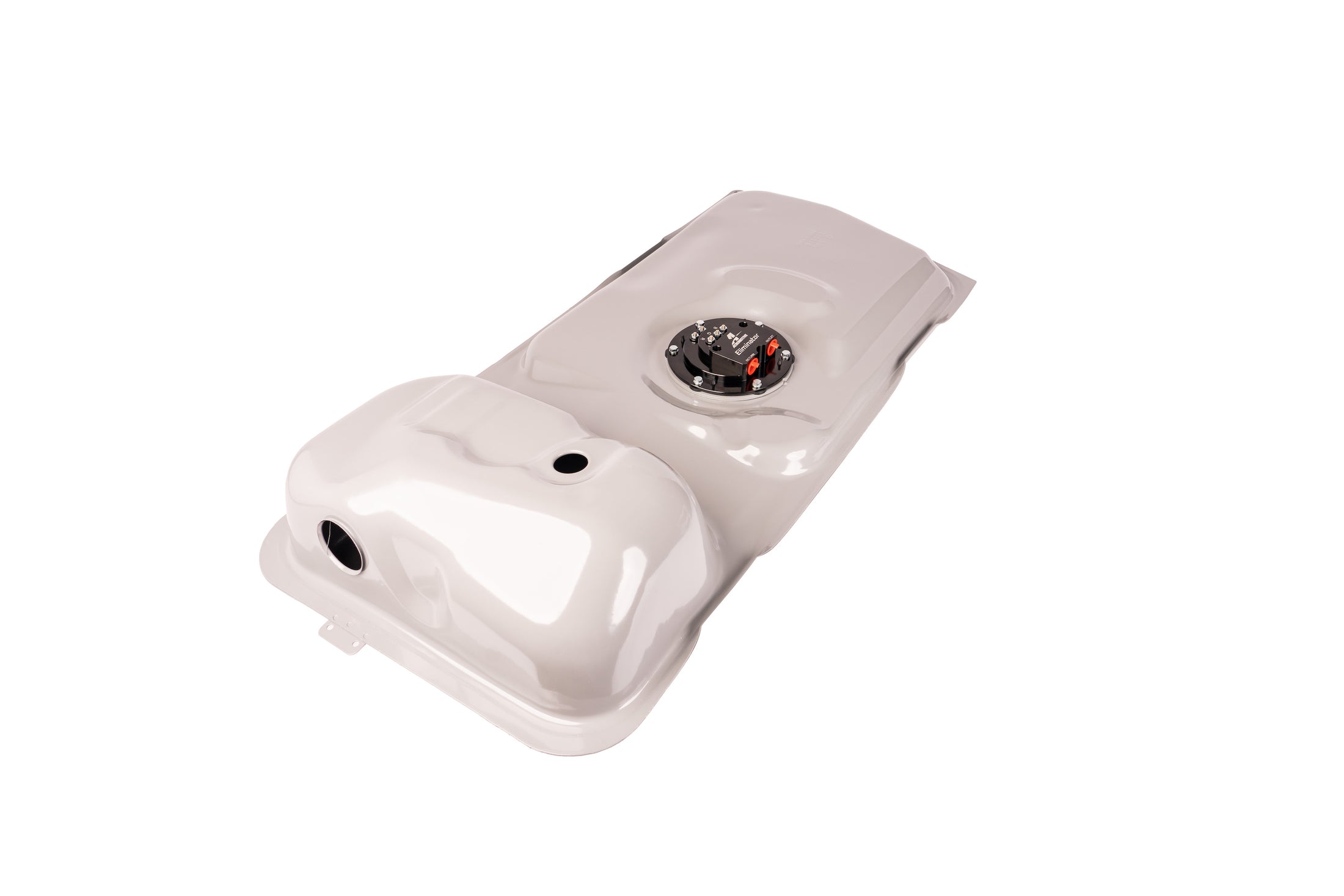

Stealth Fuel Tank, 86-98.5 Mustang Fox Body

Stealth Fuel Tank, 86-98.5 Mustang Fox Body

Part Number: 18685 / UPC 00684980004946
Skip to product information

Product Info

In 2003 Ford developed a specific tank for the 03 and 04 Mustang Cobras. This tank looked like a normal tank from the outside, but featured one of the finest internal baffling systems we've seen from an OE tank to date. In late 2011, Ford decided to discontinue these tanks. At Aeromotive, we saw and opportunity to reproduce these tanks. Not only can we offer reproduction 03-04 Cobra tanks, but we can also modify the tooling in the production process to offer this same tank to fit all Fox Body Mustangs. And that is exactly what we did. But we took it one step further. We built specific A1000, Eliminator, TVS Brushless A1000, and TVS Brushless Eliminator Fuel Pumps that bolt right into top of these tanks. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

These Fox Body Stealth tanks give you the best performance possible from a stock appearing tank, and our proven A1000, Eliminator, TVS Brushless A1000, and TVS Brushless Eliminator fuel pumps built right into the tank. Choose from either pump and you can now bolt in a fuel tank into your Fox that appears stock, but features an innovative baffling system, a built in fuel pump capable of supporting almost any hp demand and a pre-pump filter.

These tanks are a direct bolt-in for 1986-1998 ½ Ford Mustangs. Although the Fox Body began in 1979 and carried all the way through 2004, some modifications are necessary for these system to be direct bolt-ins.

Additional information

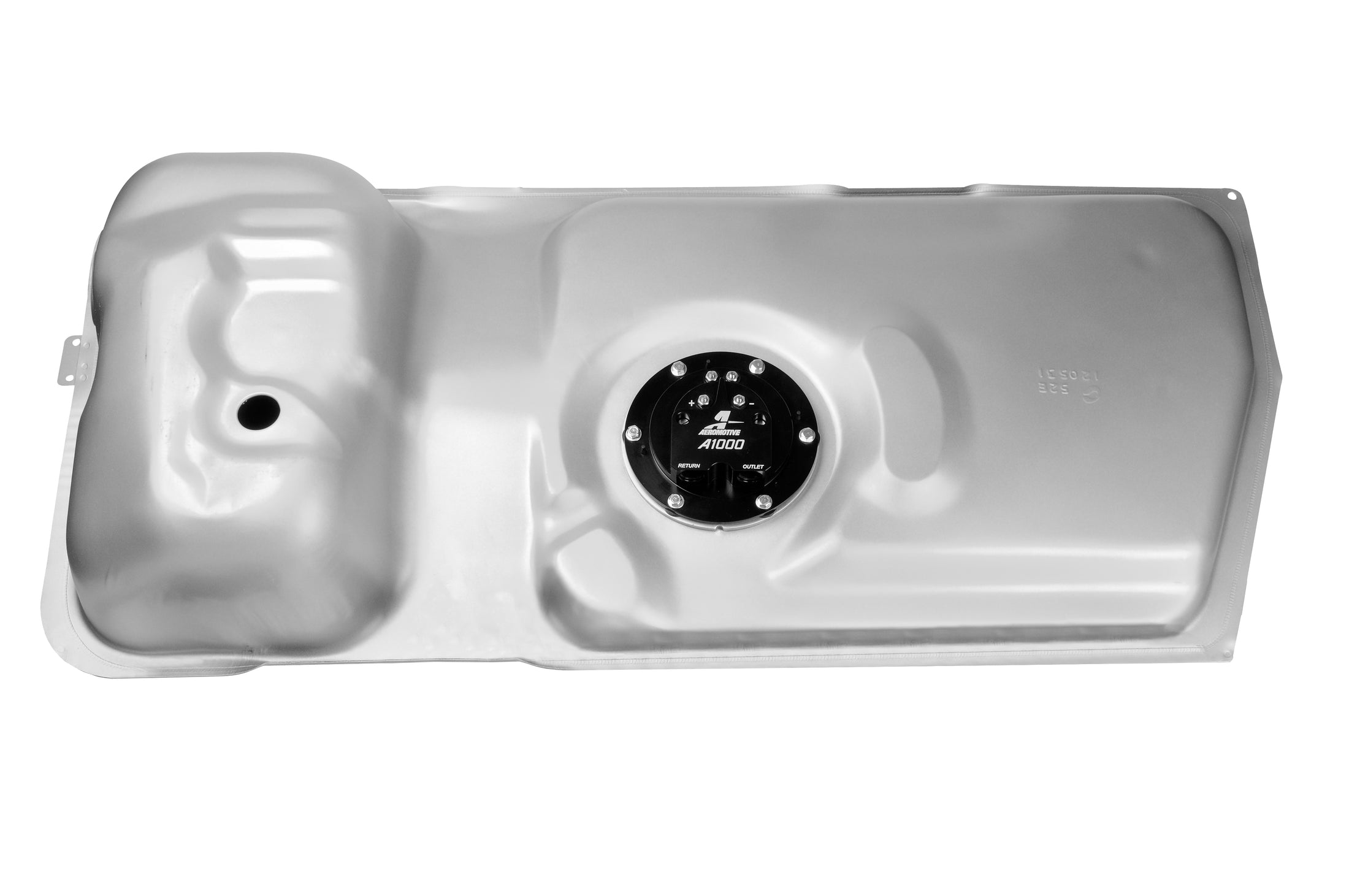

P/N 18685 – 86-98 ½ A1000 Fox Body Stealth Fuel Tank

  • Built in A1000 Fuel Pump

  • 100-Micron Stainless Steel Pre Filter

  • (1) ORB-08 Outlet Port & (1) ORB-08 Return Port

  • Bolts right into factory location using factory tank straps

  • Wiring upgrade recommended

  • Requires the use a full return style systemRecommended Parts:
    P/N 13101 - EFI Bypass Regulator
    P/N 12301 - 10-Micron Post Pump Filter
    P/N 12305 - 2" Billet Filter Bracket
    P/N 16301 - Fuel Pump Wiring Kit
    P/N 14101 - 86-95 5.0L GT & Cobra Fuel Rail Kit or...
    P/N 14103 - 96-04 4.6L SOHC GT Fuel Rail Kit or...
    P/N 14104 - 96-98.5 4.6L DOHC Cobra Fuel Rail Kit
    AN-08 Fuel Line


For engine swaps, see our Fuel Rail Section for your engine platform Year specifications:

* For 1979 to 1986 Mustangs, you must use an 1986 fuel level sending unit with 73-10 Ohms for the stock fuel level gauge.  For 1987 to 1998 Mustangs you must use an 87-98 sending unit with 16-158 ohms for the stock fuel level gauge.

* If you have a factory 2003 or 2004 Cobra or Cobra Fuel Tank, it is a direct bolt-in to your 1998.5 to 2004 Mustang and you can use the A1000 Stealth Fuel Pump P/N 18679. (Requires the use of 03-04 Cobra fuel level sending unit as well)

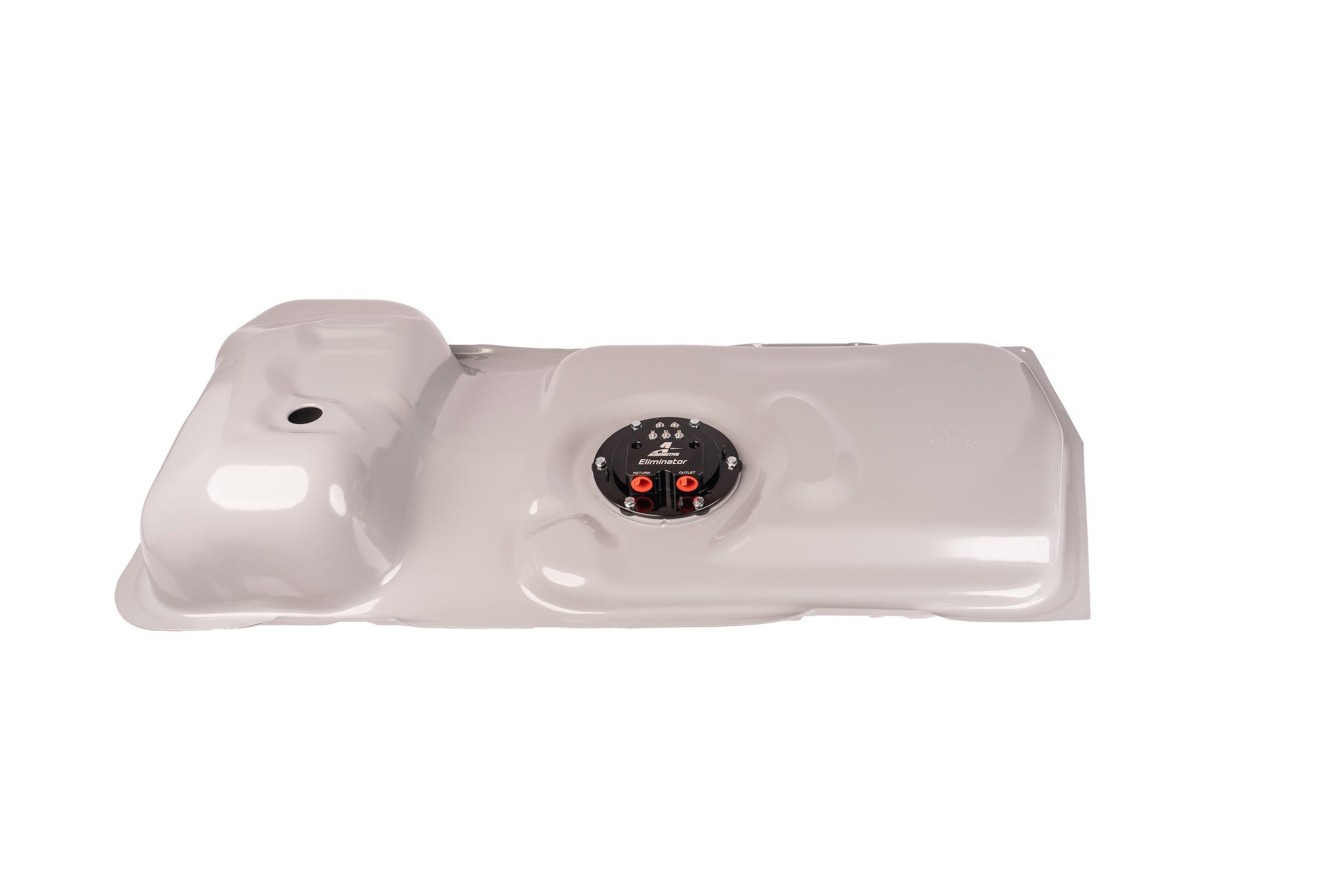

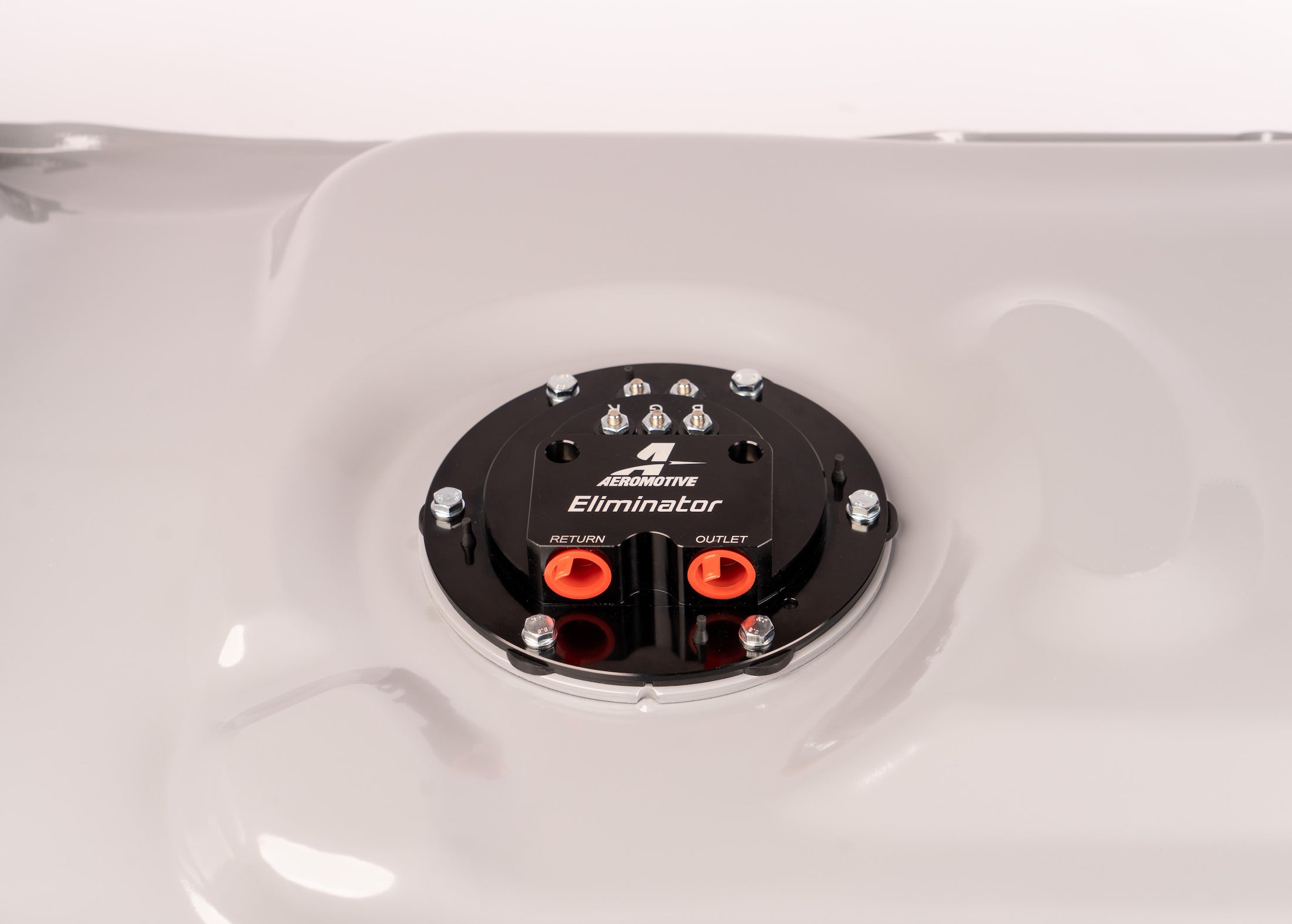

P/N 18686 – 86-98 ½ Eliminator Fox Body Stealth Fuel Tank



  • Built in Eliminator Fuel Pump

  • 100-Micron Stainless Steel Pre Filter

  • (1) ORB-08 Outlet Port & (1) ORB-08 Return Port

  • Bolts right into factory location using factory tank straps

  • Wiring upgrade recommended

  • Requires the use a full return style systemRecommended Parts:
    P/N 13101 - EFI Bypass Regulator
    P/N 12301 - 10-Micron Post Pump Filter
    P/N 12305 - 2" Billet Filter Bracket
    P/N 16301 - Fuel Pump Wiring Kit
    P/N 14101 - 86-95 5.0L GT & Cobra Fuel Rail Kit or...
    P/N 14103 - 96-04 4.6L SOHC GT Fuel Rail Kit or...
    P/N 14104 - 96-98.5 4.6L DOHC Cobra Fuel Rail Kit
    AN-08 Fuel Line
    For engine swaps, see our Fuel Rail Section for your engine platform Year specifications:



* For 1979 to 1986 Mustangs, you must use an 1986 fuel level sending unit with 73-10 Ohms for the stock fuel level gauge.  For 1987 to 1998 Mustangs you must use an 87-98 sending unit with 16-158 ohms for the stock fuel level gauge.

* If you have a factory 2003 or 2004 Cobra or Cobra Fuel Tank, it is a direct bolt-in to your 1998.5 to 2004 Mustang and you can use the Eliminator Stealth Fuel Pump P/N 18680. (Requires the use of 03-04 Cobra fuel level sending unit as well)


P/N 19120 – 86-98 ½ TVS Brushless A1000 Fox Body Stealth Fuel Tank

P/N 19121 – 86-98 ½ TVS Brushless Eliminator Fox Body Stealth Fuel Tank

Installation Instructions
