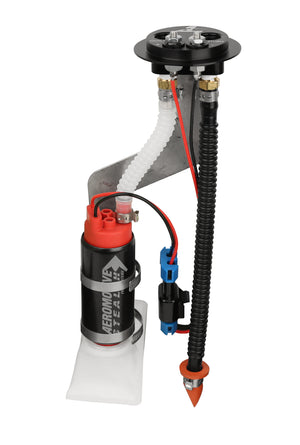

Fox Body Mustang 83-97 Stealth 340, 450 or 525lph Fuel Pump & Hanger
Assembly Fits all 83-97 Mustang OEM - EFI Fuel Tanks
Billet Fuel Pump Hanger and High Flow 340, 450, or 525lph Stealth Pump assembly drops into stock tank. Supports high-flow, high horsepower combinations in stock 83-97 Mustang EFI fuel tanks. Eliminates fuel starvation and return aeration common to the factory Mustang hanger.
- CNC machined billet aluminum hat fits stock opening, with ORB-06 outlet and return ports.
- Supports AN-06 or AN-08 fuel lines with P/N 15606 or P/N 15649 port fittings respectively.
- 6065 aluminum hat is bright dip anodized black and laser engraved for good looks and durability.
- Stainless Steel pump mounting bracket.
- OEM grade convoluted tubing on supply and return for durability and high flow.
- Extended, high flow return with anti-siphon eliminates aeration and cavitation.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
340 LPH (Part #18638)
Fuel Injected Engines:
- Gasoline: up to 850 HP – naturally aspirated.
- Gasoline: up to 700 HP – forced air induction.
- E85: up to 595 HP – naturally aspirated.
- E85: up to 490 HP – forced air induction.
Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 700 HP – naturally aspirated.
- E85: up to 595 HP – forced air induction.
450 LPH (Part #19139)
Fuel Injected Engines:
- Gasoline: up to 1,100 HP – naturally aspirated.
- Gasoline: up to 800 HP – forced air induction.
- E85: up to 750 HP – naturally aspirated.
- E85: up to 550 HP – forced air induction.
Carbureted Engines:
- Gasoline: up to 1,300 HP – naturally aspirated.
- Gasoline: up to 950 HP – forced air induction.
- E85: up to 900 HP – naturally aspirated.
- E85: up to 700 HP – forced air induction.
525 LPH (Part #19140)
Fuel Injected Engines:
- Gasoline: up to 1,200 HP – naturally aspirated.
- Gasoline: up to 900 HP – forced air induction.
- E85: up to 810 HP – naturally aspirated.
- E85: up to 600 HP – forced air induction.
Carbureted Engines:
- Gasoline: up to 1,400 HP – naturally aspirated.
- Gasoline: up to 1,100 HP – forced air induction.
- E85: up to 950 HP – naturally aspirated.
- E85: up to 740 HP – forced air induction.
Pump Applications
Pump Applications
Mounting: In-Tank
| CARB or EFI | Power Adder | Fuel | Min HP | Max HP |
|---|---|---|---|---|
| Fuel Injected | Yes - Forced Induction | E85 | 100 | 490 |
| Carbureted | Yes - Forced Induction | Gas | 400 | 850 |
| Fuel Injected | No - Naturally Aspirated | Gas | 400 | 850 |
| Fuel Injected | No - Naturally Aspirated | E85 | 220 | 595 |
| Carbureted | No - Naturally Aspirated | E85 | 325 | 700 |
| Carbureted | No - Naturally Aspirated | Gas | 500 | 1000 |
| Carbureted | Yes - Forced Induction | E85 | 220 | 595 |
| Fuel Injected | Yes - Forced Induction | Gas | 350 | 700 |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
Regular price
$315.45
Sale price
$315.45
Regular price
Unit price
per
Starting at $29/mo or 0% APR with Affirm. See if you qualify
Does This part fit My vehicle?
