6-Gallon Pro Series Fuel Cell

6-Gallon Pro Series Fuel Cell

Part Number: 18645
Skip to product information

Product Info

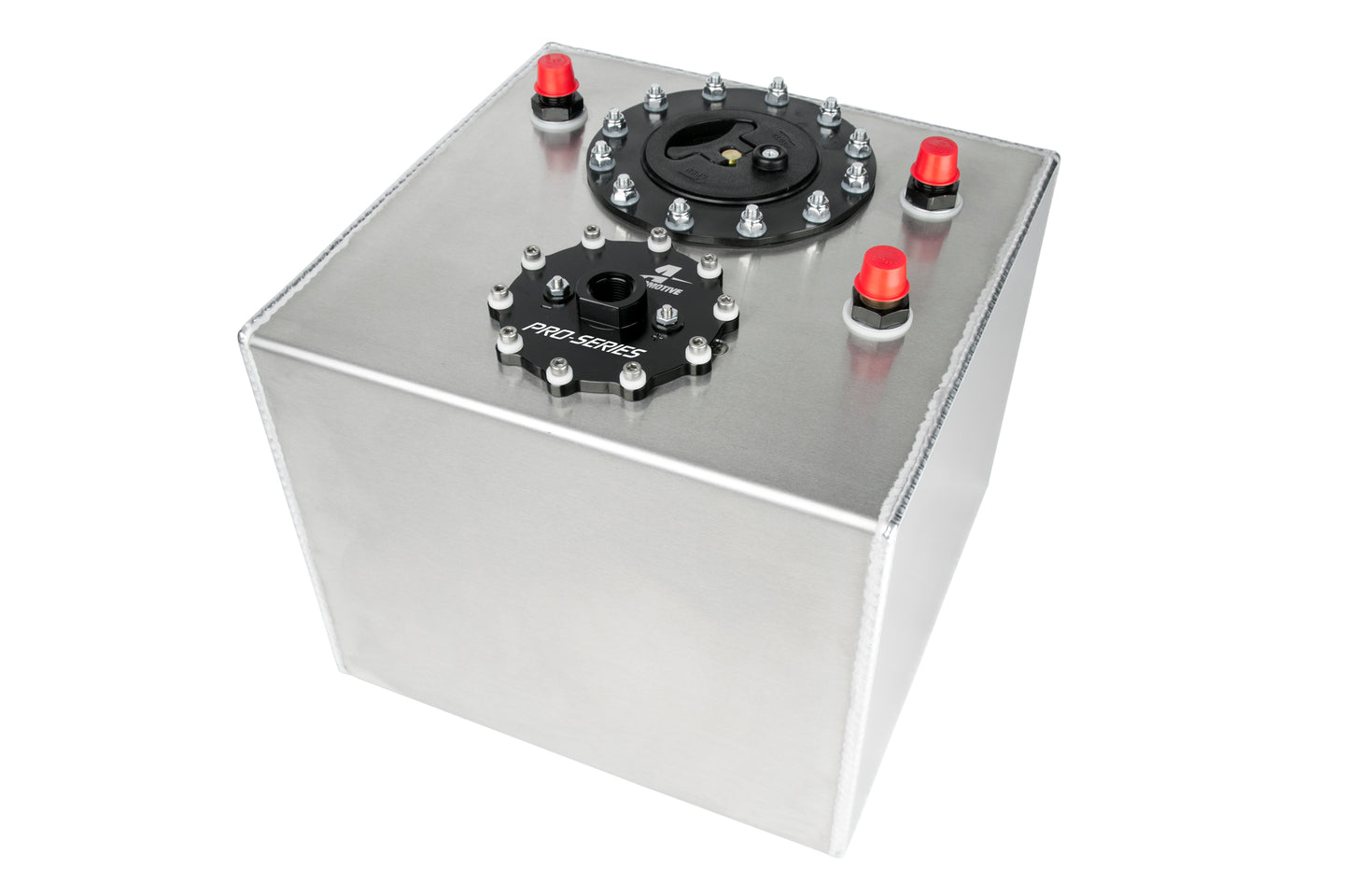

Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue. This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road. Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete "in-tank" fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes. With either the A1000, Eliminator or Pro-Series Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy. Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Fuel Injected Engines: up to 2600 HP - naturally aspirated up to 1700 HP - forced air induction
Carbureted Engines: up to 2600 HP - naturally aspirated up to 2000 HP - forced air induction

Part Number 18645 Features:

  • Pro-Series Fuel Pump (internal) - P/N 18005

  • 100 Micron Stainless Steel Pre-Filter

  • 6.2 Gallon Capacity

  • AN-08 Return Line Provision

  • ORB-10 Outlet Port

  • (2) AN-08 Vents with Rollover Valves

  • Standard 12-Bolt Flush Mount Lid Assembly

  • Natural Aluminum Finish Dimensions: 12''L x 12''W x 10''H


Specifications

Series Stealth Fuel Cell
Capacity 6 Gallons
Baffled Yes
Material Aluminum
Universal Or Specific Fit Universal
Color Natural
Filler Neck Attached Yes
Width 12 Inches
Fuel Type Gas
Grade Type Performance
Height 10 Inches
Length 12 Inches
Mounting Hardware Included No
Mounting Straps Included No
Sending Unit Included No
Fuel Pump Included Yes
Motor Style Brushed
Integrated Controller No
Pulse Width Modulation Compatible Yes
Outlet Type Female
Voltage 12-16V
Wiring Harness Included No

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews
