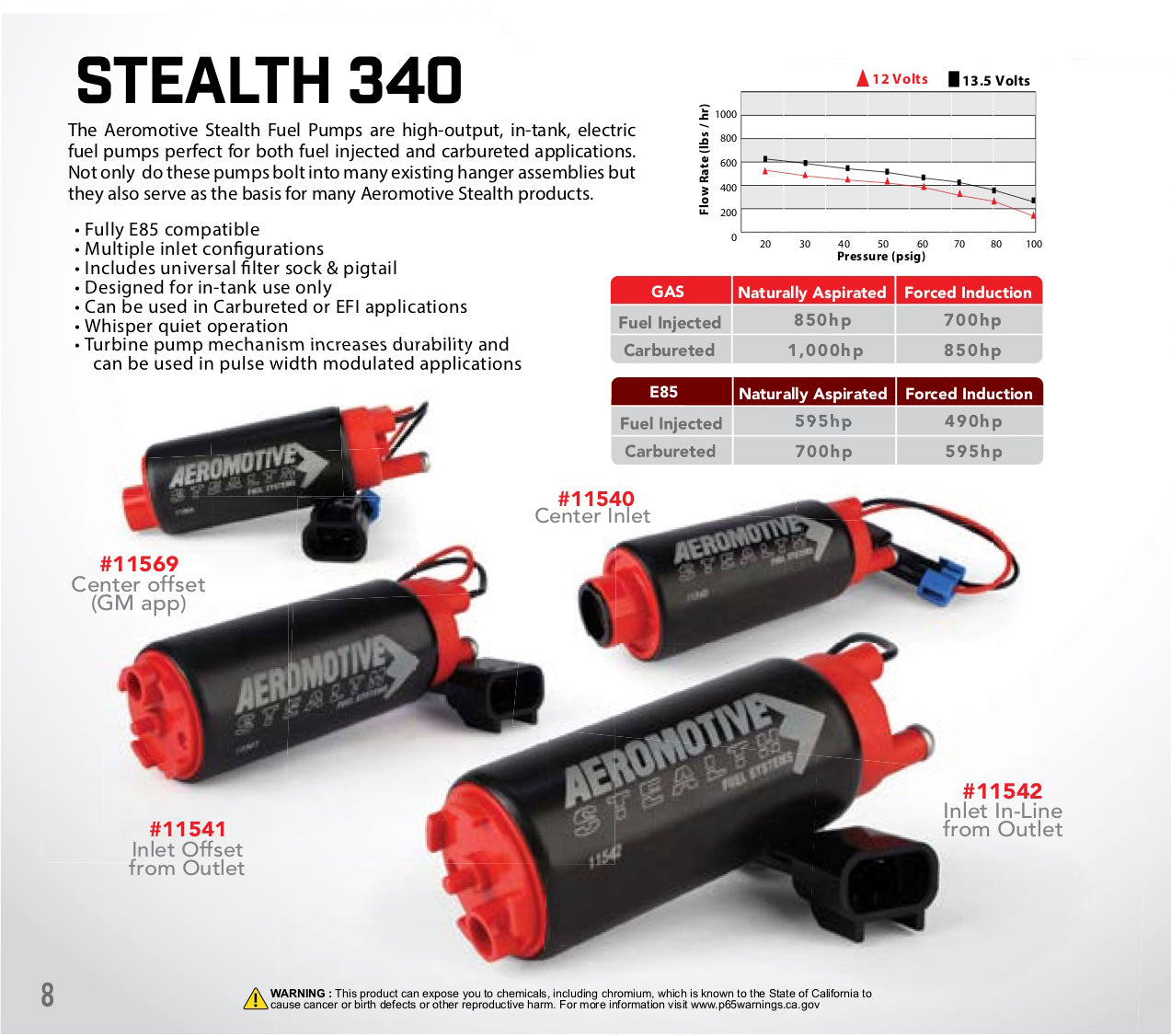

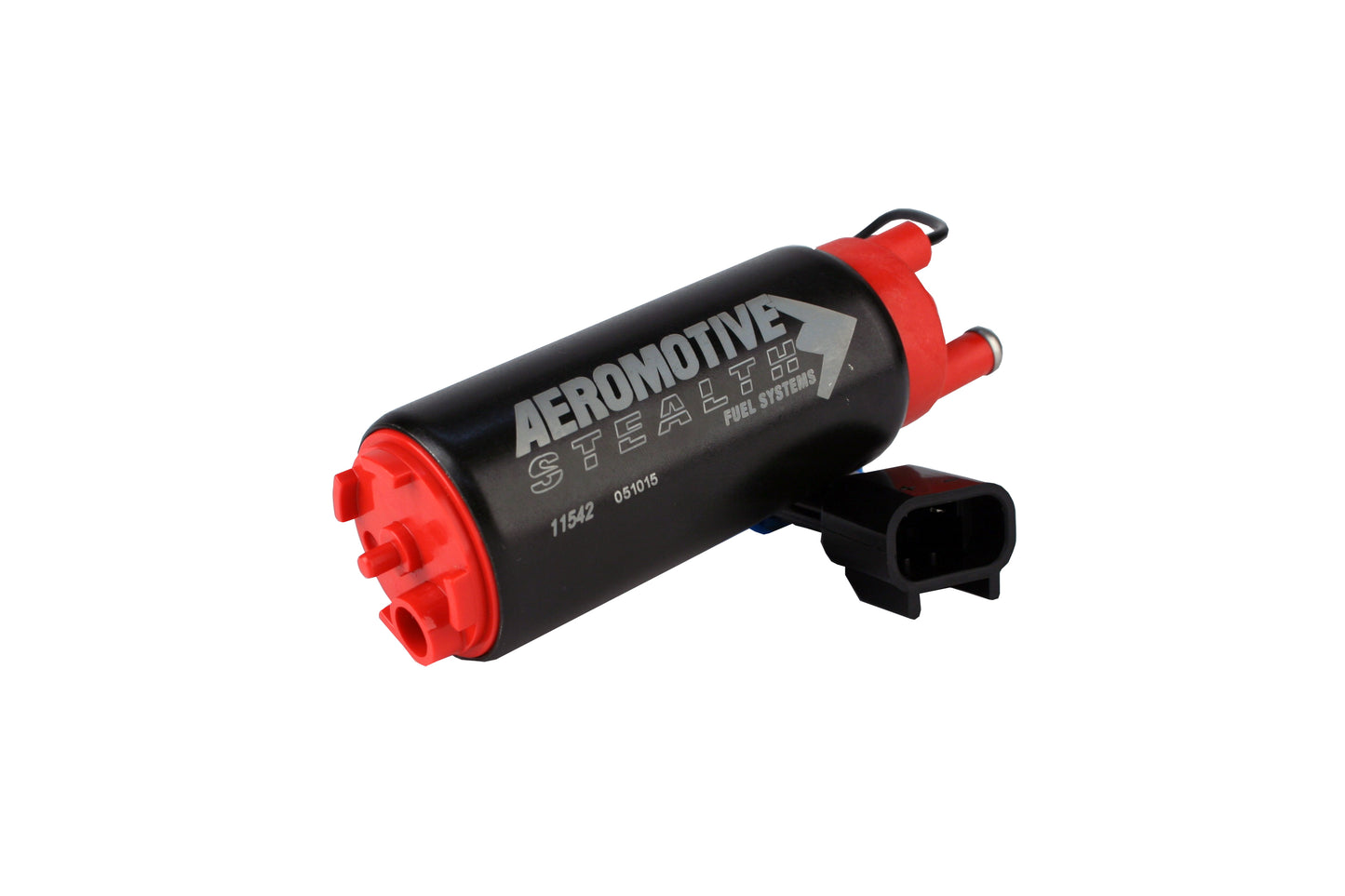

P/N 11542: 340 Fuel Pump, Offset Inlet
**Offset Inlet, inline w/ outlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.
P/N 11542 Includes:
**Offset Inlet, inline w/ outlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.
- Fits most vehicles where popular aftermarket pumps are applicable.

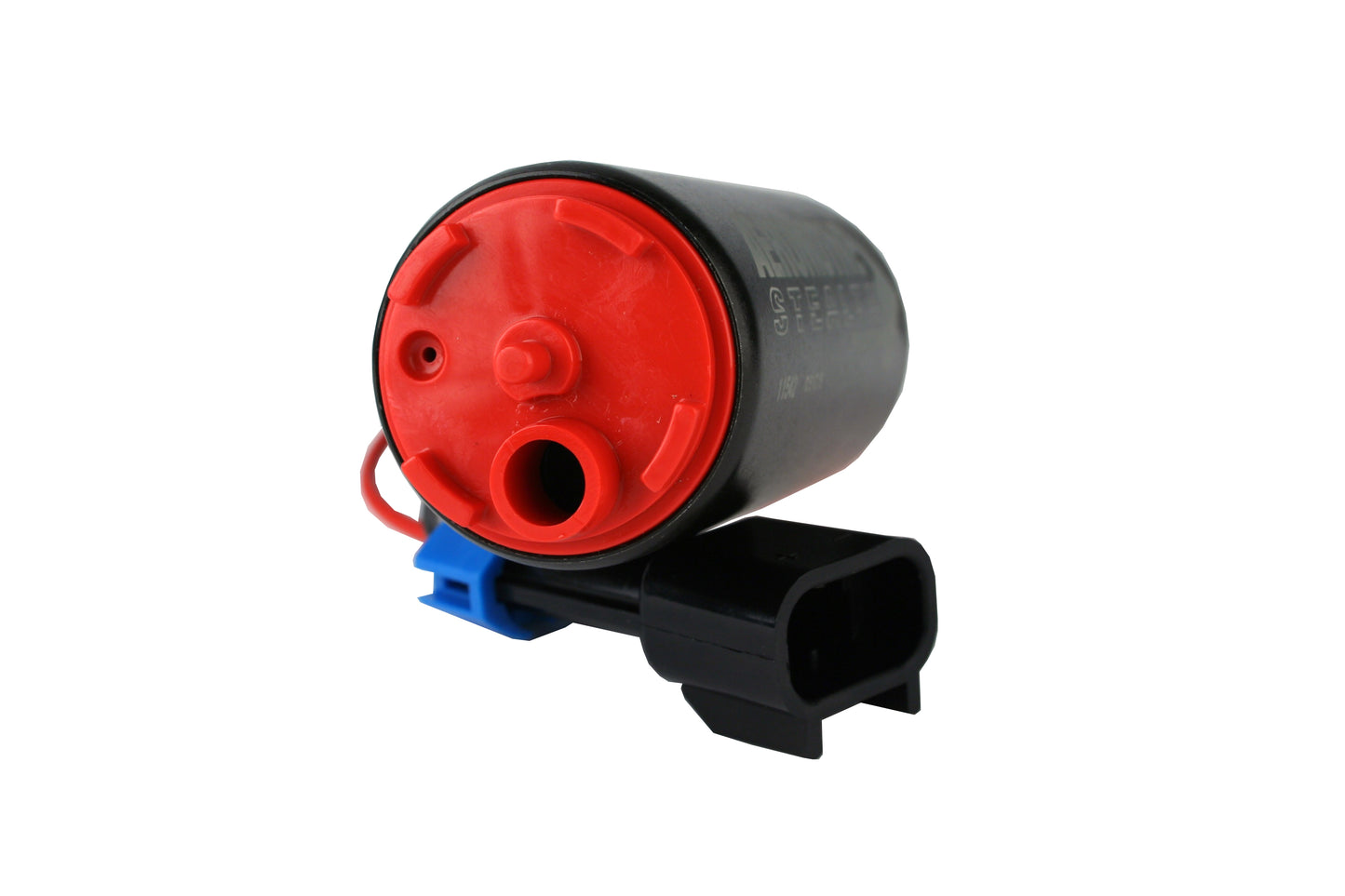

- Offset Inlet, In-line with outlet E85 Compatible
- OEM 39mm Body
- Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)
- Designed for in-tank use only
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Can be used in carbureted or EFI applications
- Turbine pump mechanism increases durability and can be used in pulse modulated applications.

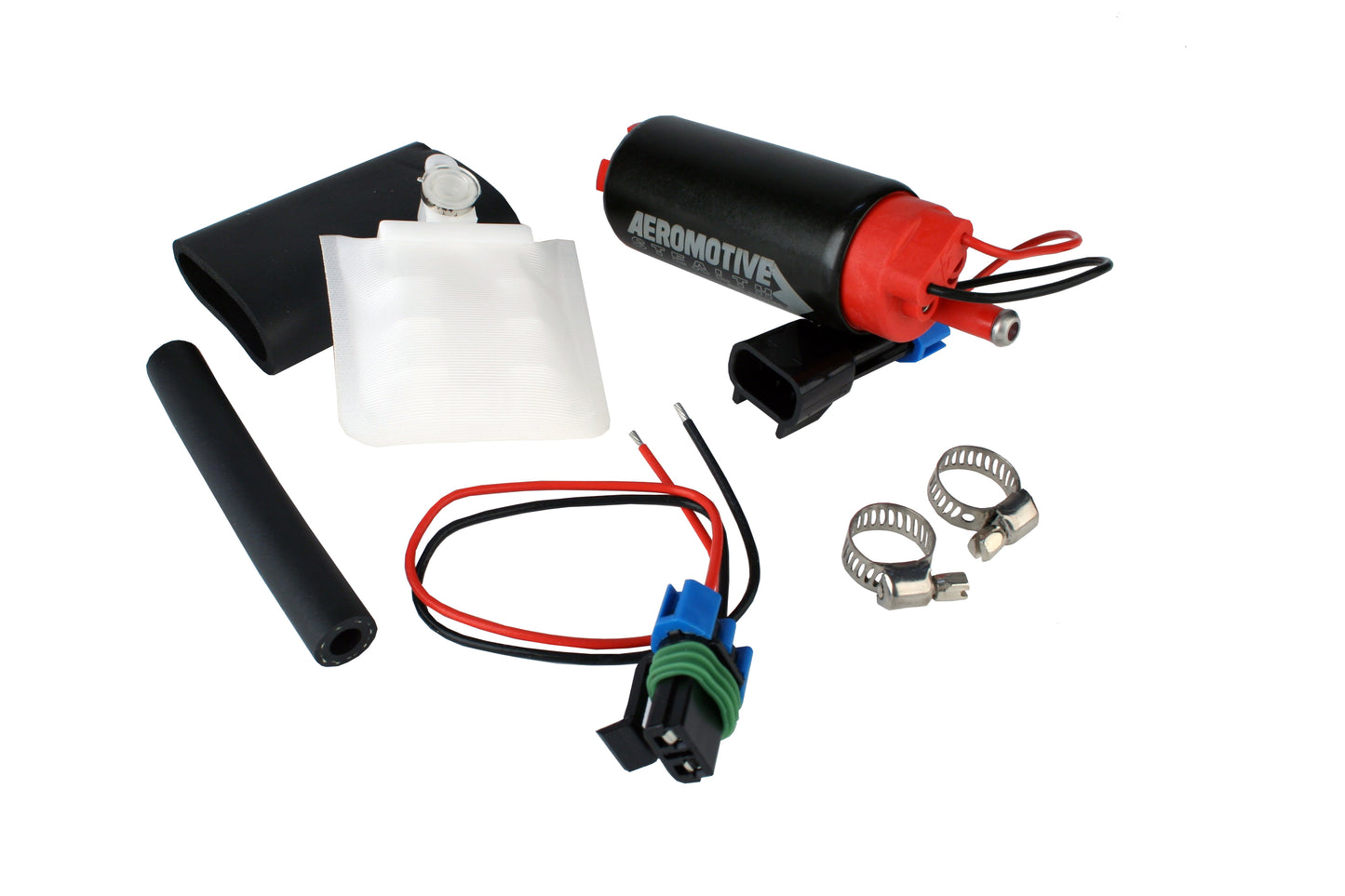

P/N 11542 Includes:
- 340 Stealth Pump
- Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)
- Supersedes P/N 11142
Specifications
Specifications
| Series | Stealth 340 |
|---|---|
| Maximum Flow Rating | 340 |
| Maximum Pressure | 40 |
| Fuel Type | Gas/E85 |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | Turbine Impeller |
| Integrated Controller | No |
| Pulse Width Modulation Compatible | Yes |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Outlet Type | Barb |
| Outlet Outside Diameter | 0.35 |
| Maximum Current Draw | 15.5 |
| Voltage | 12 |
| Negative Ground | Yes |
| Wire Quantity | 2 |
| Wiring Harness Included | Yes |
| Terminal Gender | 280 Metri_Pack |
| Terminal Quantity | 2 |
| Terminal Type | Lead Wire |
| Strainer Included | Yes |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Seal And Lock Ring Included | No |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
Regular price
$147.95
Sale price
$147.95
Regular price
Unit price
per
Does This part fit My vehicle?
Product Info
Product Info
P/N 11542: 340 Fuel Pump, Offset Inlet
**Offset Inlet, inline w/ outlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.
P/N 11542 Includes:
**Offset Inlet, inline w/ outlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.
- Fits most vehicles where popular aftermarket pumps are applicable.
- Offset Inlet, In-line with outlet E85 Compatible
- OEM 39mm Body
- Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)
- Designed for in-tank use only
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Can be used in carbureted or EFI applications
- Turbine pump mechanism increases durability and can be used in pulse modulated applications.
P/N 11542 Includes:
- 340 Stealth Pump
- Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)
- Supersedes P/N 11142
Specifications
Specifications
| Series | Stealth 340 |
|---|---|
| Maximum Flow Rating | 340 |
| Maximum Pressure | 40 |
| Fuel Type | Gas/E85 |
| Universal Or Specific Fit | Universal |
| Internal Or External | Internal |
| Pump Design | Turbine Impeller |
| Integrated Controller | No |
| Pulse Width Modulation Compatible | Yes |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Outlet Type | Barb |
| Outlet Outside Diameter | 0.35 |
| Maximum Current Draw | 15.5 |
| Voltage | 12 |
| Negative Ground | Yes |
| Wire Quantity | 2 |
| Wiring Harness Included | Yes |
| Terminal Gender | 280 Metri_Pack |
| Terminal Quantity | 2 |
| Terminal Type | Lead Wire |
| Strainer Included | Yes |
| Fuel Sending Unit Included | No |
| Regulator Included | No |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Seal And Lock Ring Included | No |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews

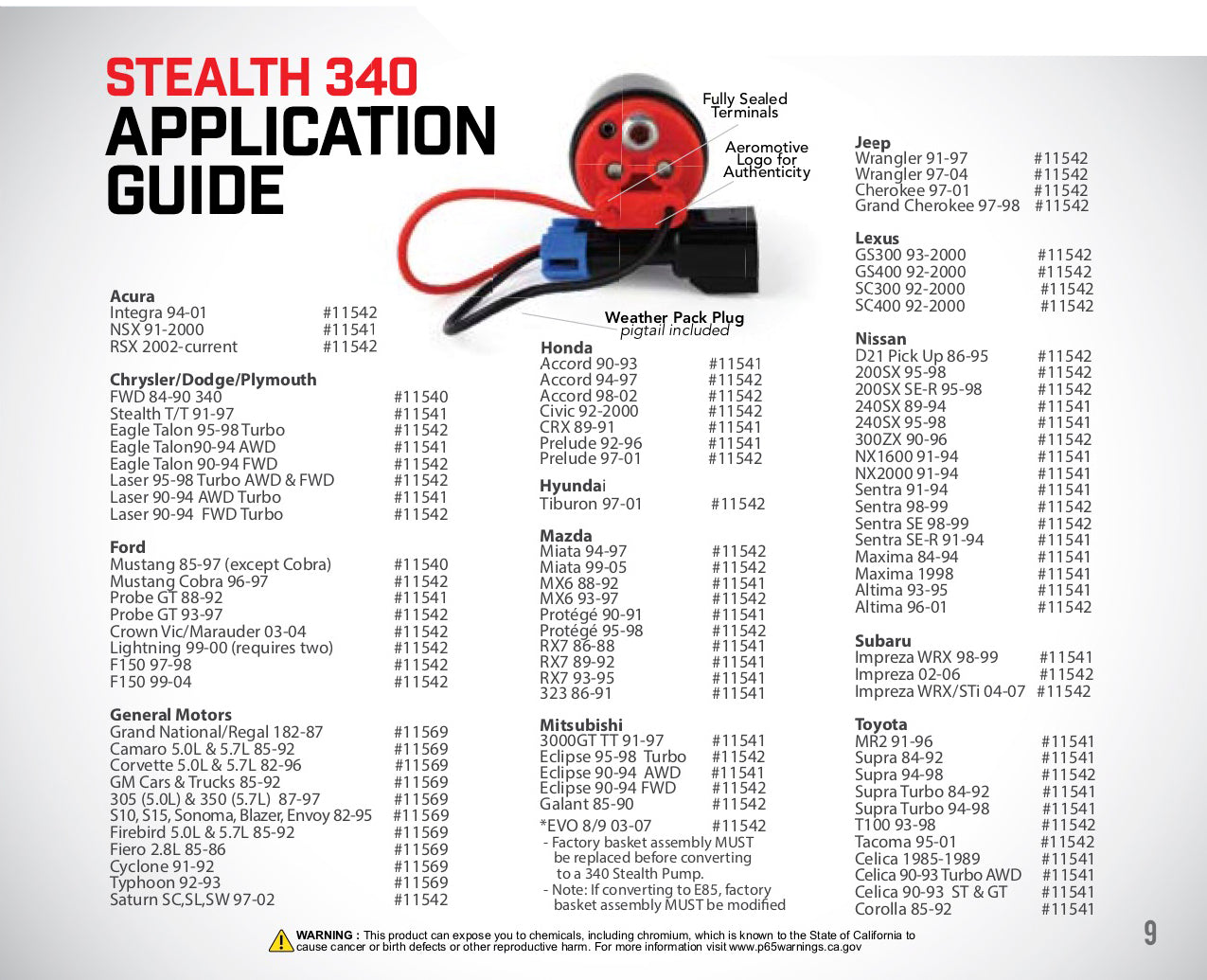

| Year / Make / Model | 2002-2006 Subaru Impreza |
|---|---|
| Engine Size(s) |
Liters: 2.0, 2.5 |
| Year / Make / Model | 2004-2007 Subaru Impreza WRX |
|---|---|
| Engine Size(s) |
Liters: 2.0, 2.5 |
| Year / Make / Model | 2004-2007 Subaru Impreza WRX STI |
|---|---|
| Engine Size(s) |
Liters: 2.0, 2.5 |
| Year / Make / Model | 1997-2001 Hyundai Tiburon |
|---|---|
| Engine Size(s) |
Liters: 1.8, 2.0 |
| Year / Make / Model | 1990-1994 Eagle Talon |
|---|---|
| Engine Size(s) |
Liters: 1.8, 2.0 Cubic Inches: 107, 122 |
| Year / Make / Model | 1995-1998 Eagle Talon |
|---|---|
| Engine Size(s) |
Liters: 2.0 Cubic Inches: 122 |
| Year / Make / Model | 1997-2001 Jeep Cherokee |
|---|---|
| Engine Size(s) |
Liters: 2.5, 4.0 Cubic Inches: 150, 242 |
| Year / Make / Model | 1997-1998 Jeep Grand Cherokee |
|---|---|
| Engine Size(s) |
Liters: 4.0, 5.2, 5.9 Cubic Inches: 242, 318, 360 |
| Year / Make / Model | 1991-1995 Jeep Wrangler |
|---|---|
| Engine Size(s) |
Liters: 2.4, 2.5, 4.0 Cubic Inches: 148, 150, 242 |
| Year / Make / Model | 1997-2004 Jeep Wrangler |
|---|---|
| Engine Size(s) |
Liters: 2.4, 2.5, 4.0 Cubic Inches: 148, 150, 242 |
| Year / Make / Model | 1994 Plymouth Laser |
|---|---|
| Engine Size(s) |
Liters: 2.0 Cubic Inches: 122 |
| Year / Make / Model | 2003-2004 Ford Crown Victoria |
|---|---|
| Engine Size(s) |
Liters: 4.6 Cubic Inches: 281 |
| Year / Make / Model | 1997-1998 Ford F-150 |
|---|---|
| Engine Size(s) |
Liters: 4.2, 4.6, 4.9, 5.4 Cubic Inches: 256, 281, 300, 330 |
| Year / Make / Model | 1999-2004 Ford F-150 |
|---|---|
| Engine Size(s) |
Liters: 4.2, 4.6, 5.4 Cubic Inches: 256, 281, 330 |
| Year / Make / Model | 1997 Ford Mustang Cobra |
|---|---|
| Engine Size(s) |
Liters: 4.6 Cubic Inches: 281 |
| Year / Make / Model | 1993-1997 Ford Probe GT |
|---|---|
| Engine Size(s) |
Liters: 2.5 |
| Year / Make / Model | 2003-2004 Mercury Marauder |
|---|---|
| Engine Size(s) |
Liters: 4.6 Cubic Inches: 281 |
| Year / Make / Model | 1994-2001 Acura Integra |
|---|---|
| Engine Size(s) |
Liters: 1.8 |
| Year / Make / Model | 1994-2002 Honda Accord |
|---|---|
| Engine Size(s) |
Liters: 2.2, 2.3, 2.7, 3.0 |
| Year / Make / Model | 1992-2000 Honda Civic |
|---|---|
| Engine Size(s) |
Liters: 1.5, 1.6 Cubic Inches: 98 |
| Year / Make / Model | 1997-2001 Honda Prelude |
|---|---|
| Engine Size(s) |
Liters: 2.2 |
| Year / Make / Model | 1986-1994 Nissan D21 |
|---|---|
| Engine Size(s) |
Liters: 2.4, 3.0 Cubic Inches: 181 |
| Year / Make / Model | 1995-1998 Nissan 200SX |
|---|---|
| Engine Size(s) |
Liters: 1.6, 2.0 Cubic Inches: 97, 122 |
| Year / Make / Model | 1990-1996 Nissan 300ZX |
|---|---|
| Engine Size(s) |
Liters: 3.0 Cubic Inches: 181 |
| Year / Make / Model | 1996-2001 Nissan Altima |
|---|---|
| Engine Size(s) |
Liters: 2.4 |
| Year / Make / Model | 1991-1994 Nissan Sentra SE-R |
|---|---|
| Engine Size(s) |
Liters: 2.0 Cubic Inches: 122 |
| Year / Make / Model | 1998-1999 Nissan Sentra |
|---|---|
| Engine Size(s) |
Liters: 1.6, 2.0 Cubic Inches: 97, 122 |
| Year / Make / Model | 1998-1999 Nissan Sentra SE |
|---|---|
| Engine Size(s) |
Liters: 2.0 Cubic Inches: 122 |
| Year / Make / Model | 1986-1990 Mitsubishi Galant |
|---|---|
| Engine Size(s) |
Liters: 2.0, 2.4, 3.0 Cubic Inches: 122, 181 |
| Year / Make / Model | 1990-1994 Mitsubishi Eclipse |
|---|---|
| Engine Size(s) |
Liters: 1.8, 2.0 Cubic Inches: 107, 122 |
| Year / Make / Model | 1995-1998 Mitsubishi Eclipse |
|---|---|
| Engine Size(s) |
Liters: 2.0 Cubic Inches: 122 |
| Year / Make / Model | 1992-2000 Lexus SC300 |
|---|---|
| Engine Size(s) |
Liters: 3.0 |
| Year / Make / Model | 1992-2000 Lexus SC400 |
|---|---|
| Engine Size(s) |
Liters: 4.0 |
| Year / Make / Model | 1993-2000 Lexus GS300 |
|---|---|
| Engine Size(s) |
Liters: 3.0 |
| Year / Make / Model | 1998-2000 Lexus GS400 |
|---|---|
| Engine Size(s) |
Liters: 4.0 |
| Year / Make / Model | 1994-1998 Toyota Supra |
|---|---|
| Engine Size(s) |
Liters: 3.0 |
| Year / Make / Model | 1993-1998 Toyota T100 |
|---|---|
| Engine Size(s) |
Liters: 2.7, 3.0, 3.4 |
| Year / Make / Model | 1995-2001 Toyota Tacoma |
|---|---|
| Engine Size(s) |
Liters: 2.4, 2.7, 3.4 |
| Year / Make / Model | 1994-1997 Mazda Miata |
|---|---|
| Engine Size(s) |
Liters: 1.8 |
| Year / Make / Model | 1999-2005 Mazda Miata |
|---|---|
| Engine Size(s) |
Liters: 1.8 |
| Year / Make / Model | 1993-1997 Mazda MX-6 |
|---|---|
| Engine Size(s) |
Liters: 2.0, 2.5 |
| Year / Make / Model | 1995-1998 Mazda Protege |
|---|---|
| Engine Size(s) |
Liters: 1.5, 1.8 |
You may also like
-
{{ #.}}
-
Vendor{{ vendor }}
{{ title }}
Part Number: {{ variants.0.sku }}Regular price ${{ variants.0.price }}{{ #variants.0.compare_at_price }}Sale price ${{ variants.0.compare_at_price }}{{ /variants.0.compare_at_price}}
{{ /. }}
Recently Viewed Products
-
{{ #.}}
-
Vendor{{ vendor }}
{{ title }}
Part Number: {{ variants.0.sku }}Regular price ${{ variants.0.price }}{{ #variants.0.compare_at_price }}Sale price ${{ variants.0.compare_at_price }}{{ /variants.0.compare_at_price}}
{{ /. }}
Fuel Your Passion with Aeromotive
Trending Builds & Posts in the Aeromotive Community
