340 LPH In-Tank Fuel Pump, GM Style Inlet

340 LPH In-Tank Fuel Pump, GM Style Inlet

Part Number: 11569
Skip to product information

Product Info

P/N 11569: 340 Fuel Pump, GM

GM specific applications* The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.

  • P/N 11569

  • Fits most vehicles where popular aftermarket pumps are applicable

  • Center Inlet

  • E85 Compatible

  • OEM 39mm Body

  • Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)

  • Designed for in-tank use only

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Can be used in Carbureted or EFI applications

  • Turbine pump mechanism increases durability and can be used in pulse modulated applications.

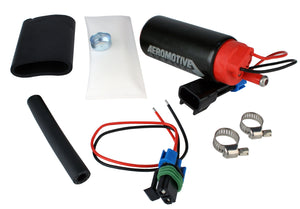

P/N 11569 Includes:

  • 340 Stealth Pump

  • Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)

  • Supersedes P/N 11169

Specifications

Series Stealth 340
Maximum Flow Rating 340
Maximum Pressure 40
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Barb
Outlet Outside Diameter 0.35
Maximum Current Draw 15.5
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews

340 LPH In-Tank Fuel Pump, GM Style Inlet

340 LPH In-Tank Fuel Pump, GM Style Inlet

Part Number: 11569
Regular price $144.95
Sale price $144.95 Regular price

Part Number: 11569
Does This part fit My vehicle?
Product details
View full details

Product Info

P/N 11569: 340 Fuel Pump, GM

GM specific applications* The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.

  • P/N 11569

  • Fits most vehicles where popular aftermarket pumps are applicable

  • Center Inlet

  • E85 Compatible

  • OEM 39mm Body

  • Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)

  • Designed for in-tank use only

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Can be used in Carbureted or EFI applications

  • Turbine pump mechanism increases durability and can be used in pulse modulated applications.


P/N 11569 Includes:

  • 340 Stealth Pump

  • Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)

  • Supersedes P/N 11169

Specifications

Series Stealth 340
Maximum Flow Rating 340
Maximum Pressure 40
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Barb
Outlet Outside Diameter 0.35
Maximum Current Draw 15.5
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews

Year / Make / Model 1982-1987 Buick Regal
Engine Size(s) Liters: 3.8, 4.1, 4.4, 5.0
Cubic Inches: 231, 252, 267, 305, 307

Year / Make / Model 1985-1992 Chevrolet Camaro
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7
Cubic Inches: 305, 350

Year / Make / Model 1982 Chevrolet Corvette
Engine Size(s) Liters: 5.7
Cubic Inches: 350

Year / Make / Model 1984-1996 Chevrolet Corvette
Engine Size(s) Liters: 5.7
Cubic Inches: 350

Year / Make / Model 1983-1994 Chevrolet S10 Blazer
Engine Size(s) Liters: 1.9, 2.0, 2.5, 2.8, 3.1, 4.3
Cubic Inches: 119, 122, 151, 173, 262

Year / Make / Model 1982-1995 Chevrolet S10
Engine Size(s) Liters: 1.9, 2.0, 2.2, 2.5, 2.8, 3.1, 4.3
Cubic Inches: 119, 122, 134, 151, 173, 262

Year / Make / Model 1992-1993 GMC Typhoon
Engine Size(s) Liters: 4.3
Cubic Inches: 262

Year / Make / Model 1985-1986 Pontiac Fiero
Engine Size(s) Liters: 2.8
Cubic Inches: 173

Year / Make / Model 1985-1992 Pontiac Firebird
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7
Cubic Inches: 305, 350
