325 LPH In-Tank Fuel Pump, Compact Body

325 LPH In-Tank Fuel Pump, Compact Body

Part Number: 11565
Skip to product information

Product Info

P/N 11565: Stealth 325 Fuel Pump

Features:

  • Now E85 Compatible

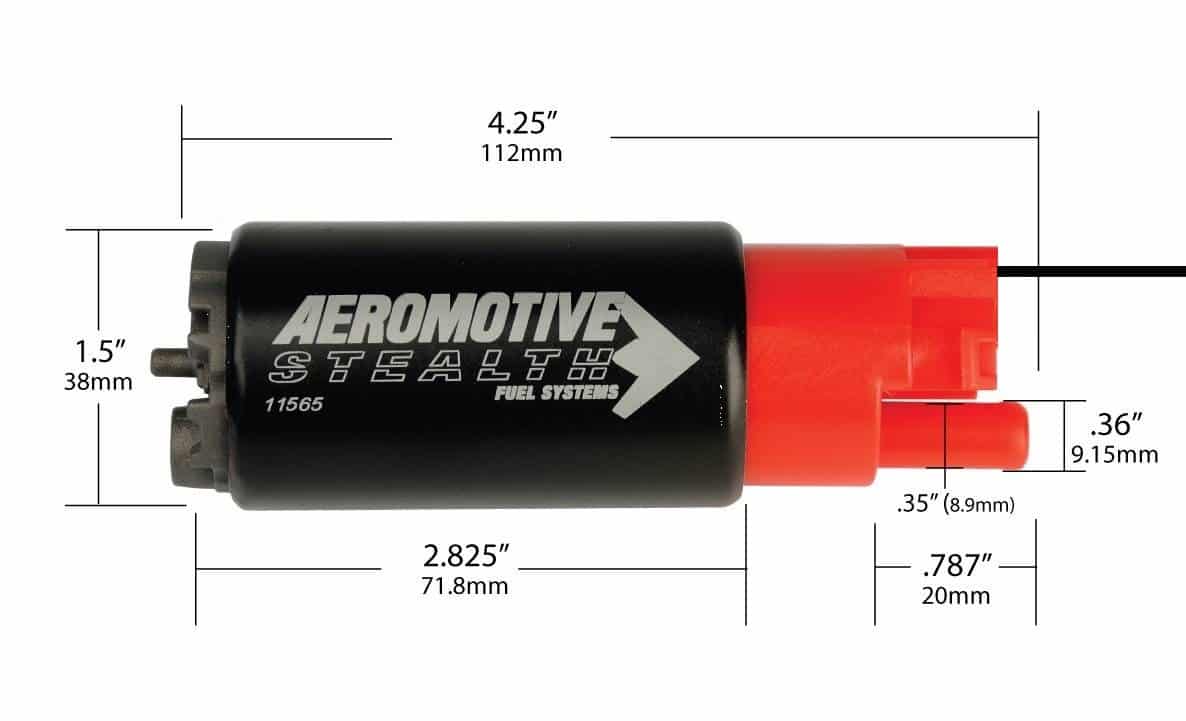

  • Compact 38mm body for OE fitment

  • Fits a wide range of vehicles where popular aftermarket pumps are applicable

  • Flows 325 lph @ 40 psi

  • Internal check valve

  • Quiet, durable and reliable turbine impeller

  • Designed for in-tank use only

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Can be used with carbureted or EFI applications

  • Can be used in pulse modulated applications

  • Specs: Fuel Injected Engines up to 800 HP - naturally aspirated up to 700 HP - forced air induction

Additional information

The New Aeromotive 325 Stealth Fuel Pump is similar to the popular 340 Stealth Pumps, the 325 is a compact body design, high-output, in-tank fuel pump that fits many popular late model EFI applications. The Aeromotive 325 is a high performance pump that bolts into many existing hanger assemblies. It is also a significant addition to the Aeromotive Stealth line, as this one part number now fits more than 25 very recent cars and truck platforms, many of which are common for performance upgrades. (To find your vehicle, see the applications guide) What sets the 325 Stealth Pump apart is its superior fl ow throughout a wide pressure range. Compared to other aftermarket pumps, the 325 boasts a significant increase in performance, flowing more than 325 lph at 40 psi. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 325 is also perfect for use as a replacement fuel pump for applications that require more flow to support forced air power adders such as turbo and superchargers. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Specifications

Series Stealth 325
Maximum Flow Rating 325
Maximum Pressure 40
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Barb
Outlet Outside Diameter 0.35
Maximum Current Draw 15.5
Voltage 12
Negative Ground Yes
Wire Quantity 2

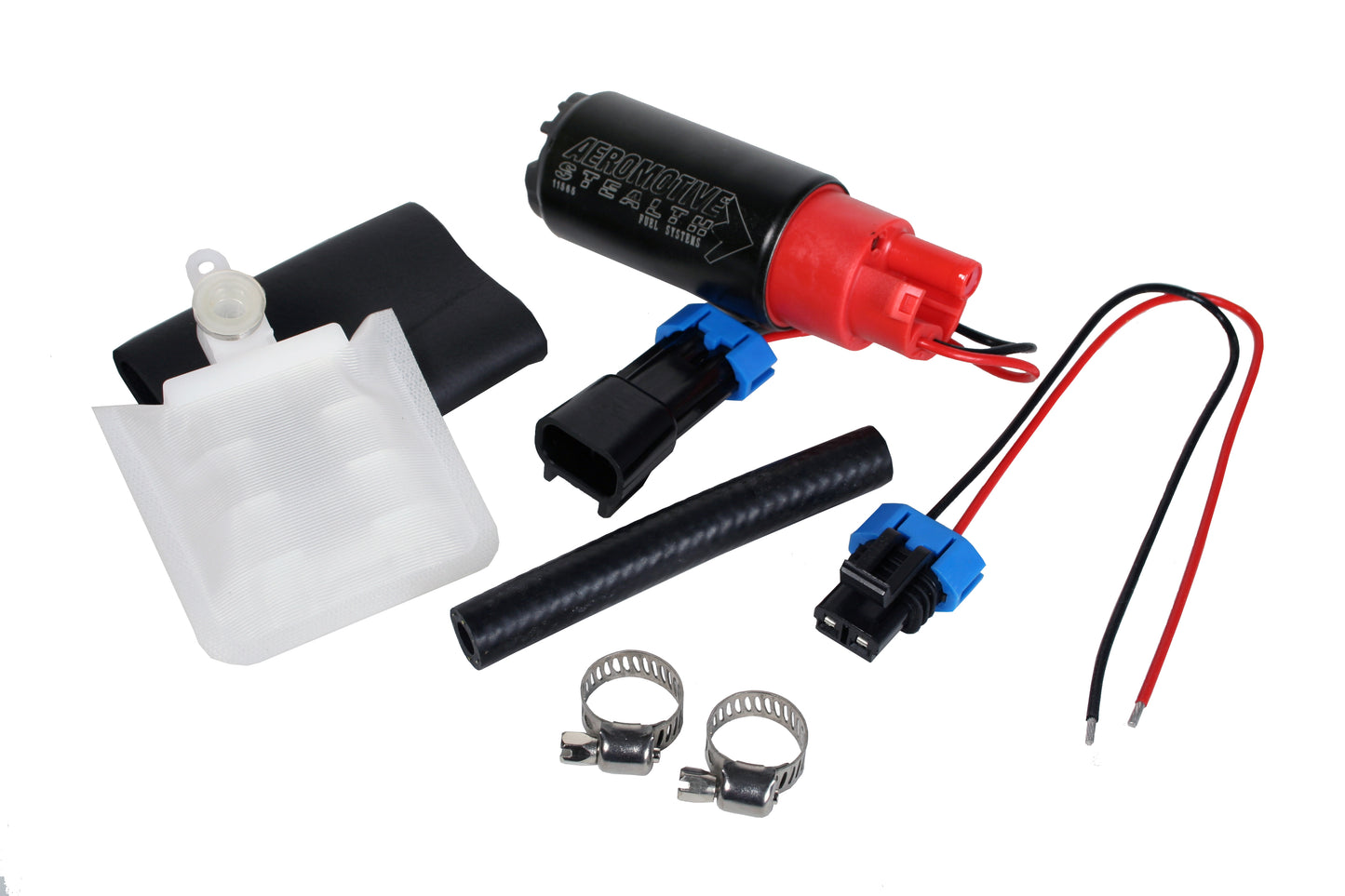

Wiring Harness Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF
